Tensile Test Chamber ToronTTC-60-300

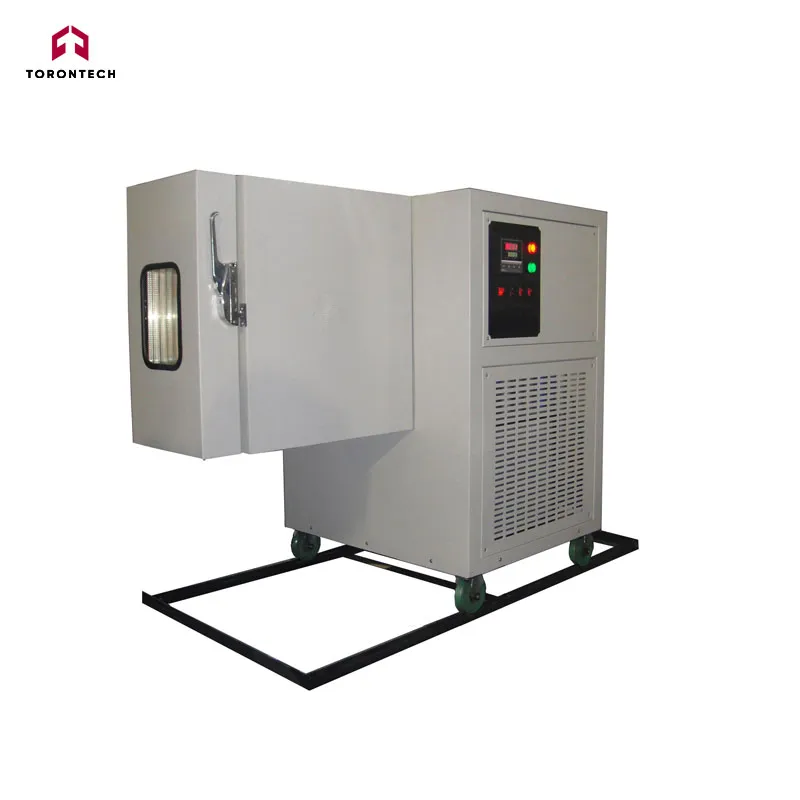

Tensile Test Chamber ToronTTC™ 60-300
Parent Product
Tensile Test Chambers and Furnaces

Tensile Test Chamber ToronTTC™ 60-300 is designed to meet precise temperature requirements for material testing. It features a fully enclosed compressor refrigeration system and utilizes a PID-controlled temperature system for exceptional accuracy and minimal temperature fluctuations. A centrifugal fan ensures consistent airflow, maintaining uniform conditions within the chamber.

This high-performance testing equipment is ideal for universities, research institutions, and industrial material testing facilities. It integrates seamlessly with testing machines without requiring modifications and includes a track system for easy operation. During standard temperature tests, the high-temperature chamber can be moved effortlessly.

The chamber supports a wide range of material tests, including tensile, compression, bending, and shear evaluations under various temperature conditions. It is well-suited for specialized industries such as plastics and rubber, ensuring reliable performance in diverse applications.

Standards

  1. Metallic materials – Tensile testing at elevated temperatures
  2. Other relevant industry standards for high- and low-temperature testing chambers and tensile testing of metallic materials

Key Features

  1. Low-temperature operation utilizes compressor refrigeration, while thermal compensation is managed through a heater with PID-controlled heating.
  2. Durable construction features an electrostatically coated exterior and a mirror-finish stainless steel interior. The front door includes an observation window with a demisting function and built-in lighting for easy monitoring during tests.
  3. Precision temperature control with a PID system ensures stability and accuracy, displaying temperatures with a precision of 0.1°C.
  4. Optimized airflow is achieved with a centrifugal fan, ensuring uniform temperature distribution to meet testing standards.
  5. Smooth integration with a guide rail system allows effortless movement of the chamber in and out of the testing machine’s workspace.
  6. Convenient access is provided through U-shaped openings on the top and bottom, equipped with a sealing mechanism for seamless entry and exit within the testing space.

Temperature control range-60～300℃
Temperature control accuracy≤±1℃
Temperature uniformity≤±2℃（Axial center 200mm）
Cooling speed (25℃ room temp)1～2℃/min（Free load）
Heating speed1～3℃/min（Free load）
Internal Dimensions250 × 530 × 430 mm (width x height x depth)
Chamber External Dimensions370 × 670 × 640 mm (width x height x depth)
Tensile rod hole sizeΦ 50 mm
DimensionsPlease reference the dimensions picture
VoltageAC220V, 50HZ (110V is also available
Power2.6 kW
Operating environment temperature5℃～30℃

Configuration

  1. Observation Window: Hollow electric-heated glass with a demisting function for clear visibility during low-temperature tests.
  2. Temperature Control: PID automatic temperature regulation for precise adjustments.
  3. Exterior Material: Cold-rolled iron plate with electrostatic coating.
  4. Interior Material: Mirror-finish stainless steel.
  5. Insulation: Aluminum silicate flame-retardant insulation.
  6. Illumination: One strategically placed light with an external control switch.
  7. Air Regulation System:
    1. Temperature Control: PID automatic regulation.
    2. Air Circulation: Centrifugal fan for uniform airflow.
    3. Heating Method: Stainless steel electric heater with forced ventilation and internal circulation.
    4. Cooling Method: Compressor-based refrigeration.
    5. Temperature Sensor: Platinum resistance sensor for accurate measurements.
  8. Sealing & Reliability: Welded cooling system piping ensures a secure and reliable seal.
  9. Door & Chamber Sealing: High-quality silicone strips provide an effective seal.
  10. Mobility: Equipped with guide rails for smooth and linear movement, making installation and removal easy.
  11. Refrigeration System:
    1. Compressor: Two high-performance Embraco fully enclosed compressors (each with a serial number) for long-term stability.
    2. Condensation: High-efficiency fin condenser with an outer rotor fan for optimal cooling.
    3. Refrigerant: Eco-friendly, fluorine-free refrigerant.
    4. Heat Exchanger: One stainless steel plate-type heat exchanger.
  12. Safety Features:
    1. Power overload and short-circuit protection.
    2. Grounding protection.
    3. Leakage protection.
    4. Compressor overheat protection.
    5. Over-temperature protection for the equipment.

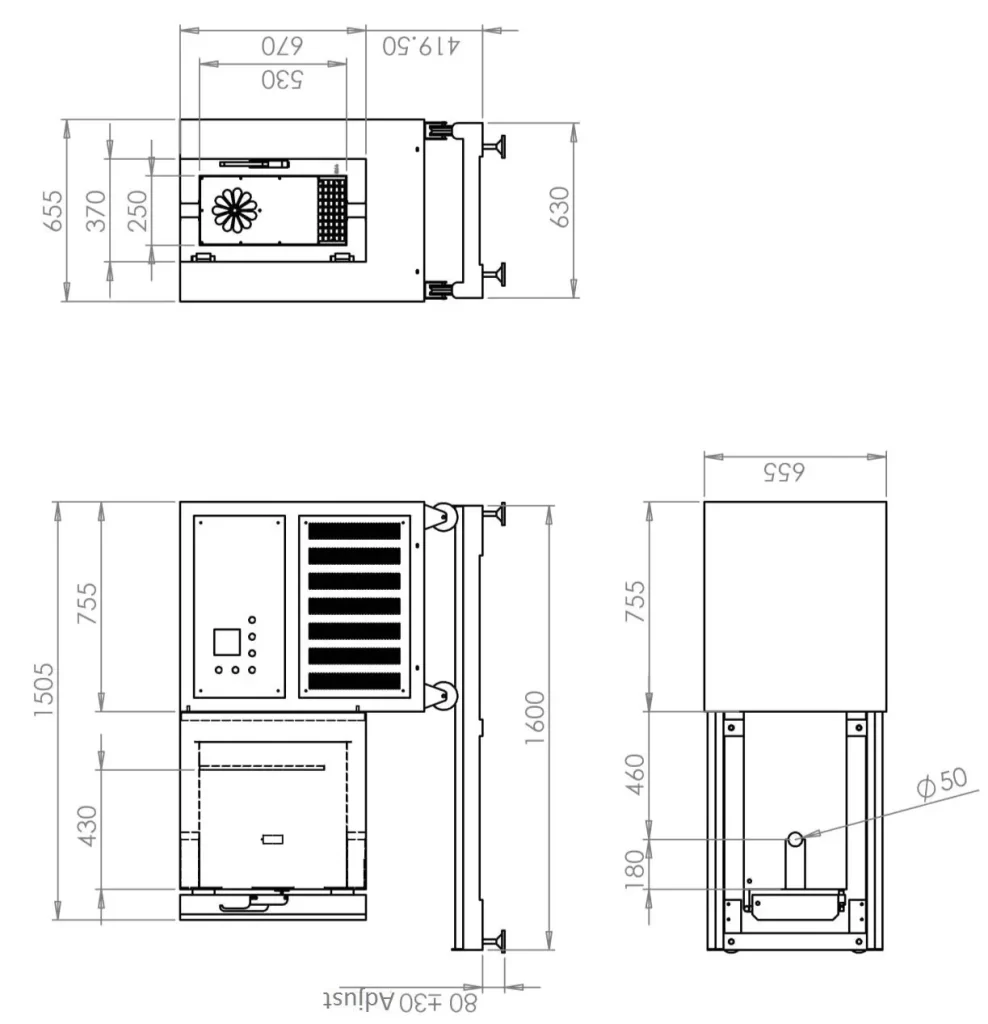

Dimensions

Tensile Test Chamber ToronTTC-60-300
