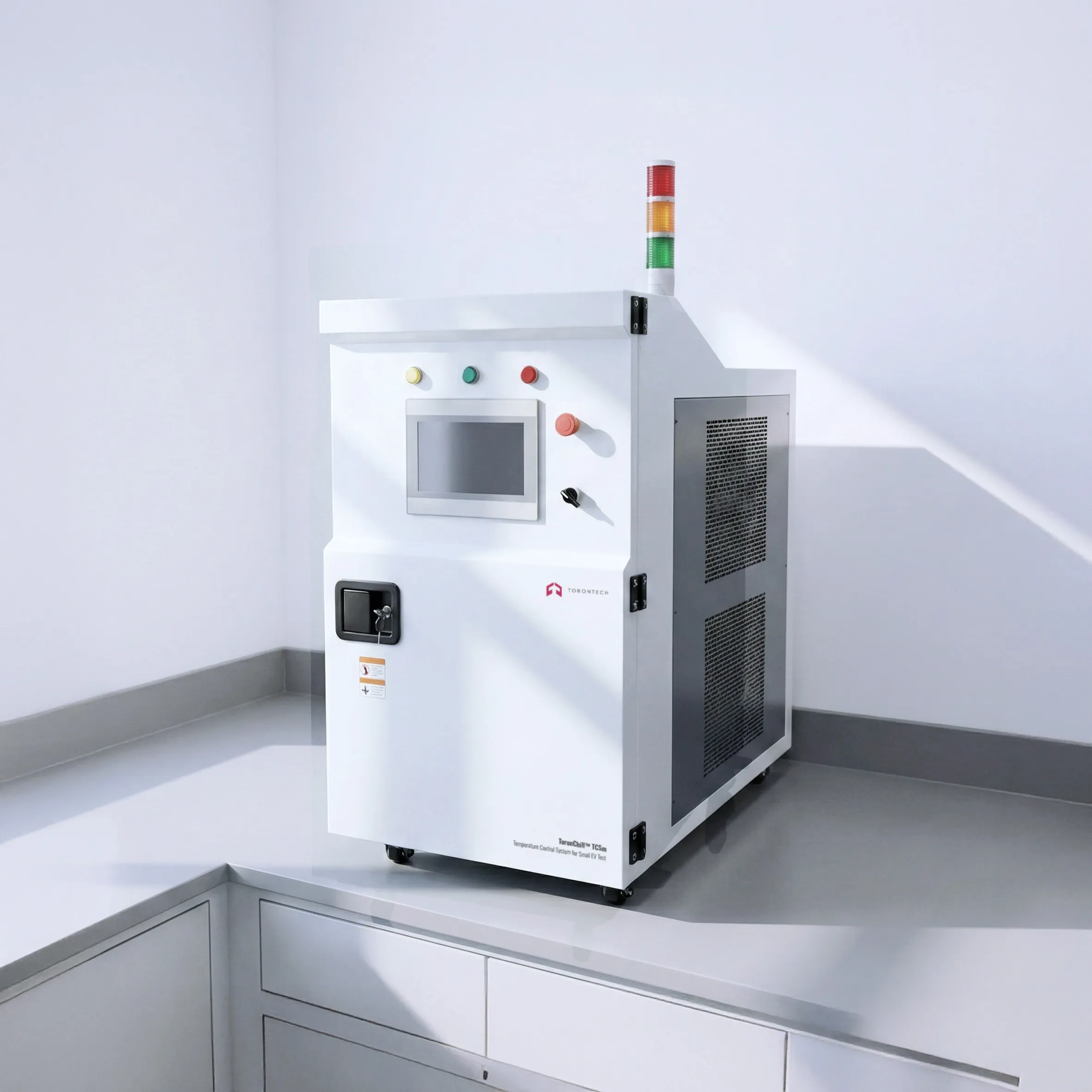

Temperature Control System for Small EV Test – ToronChill™ TCSm
ToronChill™ TCSm is a compact Temperature Control System designed for small-scale EV test work on low-power battery packs and battery modules. It delivers stable heating and cooling to create controlled high/low temperature environments for performance checks, thermal shock routines, and constant-power test setups.
This Temperature Control System combines a space-saving footprint with flexible circulation modes and optional communications for easy integration. Intelligent fluid return control, leakage detection support, and stable flow/pressure control help improve repeatability when running small EV test cycles in labs and pilot lines.
Temperature Control System for Small EV Test – ToronChill™ TCSm Applications
- Battery pack performance testing: Supports steady temperature conditioning for low-power packs during baseline and comparative EV test runs.
- Battery module validation: Enables controlled hot/cold environments to evaluate module behavior under changing temperatures.
- Thermal shock screening: Helps run heat-to-cold transitions for reliability checks on packs and modules.
- Constant-power test workflows: Maintains consistent thermal conditions during constant load or cycling programs.
- Lab and pilot-line EV test benches: Fits tight spaces while still supporting internal or external circulation setups.
Temperature Control System for Small EV Test – ToronChill™ TCSm Key Features
- Compact mini design: Built for small EV test stations where footprint and portability matter.
- Temperature control range: -20°C to 95°C for common battery pack and module evaluations.
- Stable control performance: Temperature control stability of ±0.5°C for repeatable EV test results.
- Optional flow control selections: 0.5–10 L/min or 2–20 L/min, with control stability better than ±0.1 L/min.
- Stable flow and pressure output: Frequency conversion flow and pressure control helps maintain steady circulation conditions.
- Smart fluid management: Intelligent liquid return with automatic blowing supports stable operation and easier recovery.
- Leakage detection support: Helps verify pipeline tightness during EV test operation.
- Multiple circulation modes: Supports internal circulation, external circulation, and constant-power output modes.
- Connectivity options: Optional RS485 / CAN / Ethernet for integration with EV test control systems.
- Upgradeable modular concept: Designed for easier upgrades to match changing test requirements.
- User-friendly control: 10-inch large color touchscreen for simpler setup and monitoring.
Temperature Control System for Small EV Test – ToronChill™ TCSm Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Temperature Control System for Small EV Test – ToronChill™ TCSm |
| System Type | Compact Temperature Control System for EV test benches |
| Temperature Control Range | -20°C to 95°C |
| Temperature Control Stability | ±0.5°C |
| Optional Flow Control Range | 0.5–10 L/min or 2–20 L/min |
| Flow Control Stability | Better than ±0.1 L/min |
| Flow/Pressure Control | Frequency conversion flow & pressure control |
| Fluid Return Management | Intelligent liquid return; automatic blowing |
| Leak Management | Load leakage detection to support pipeline tightness |
| Operating Modes | Internal circulation; external circulation; constant-power output |
| Communication Options | RS485 / CAN / Ethernet (optional) |
| HMI | 10-inch color touchscreen |
| Design | Compact structure; modular/upgrade-friendly configuration |
