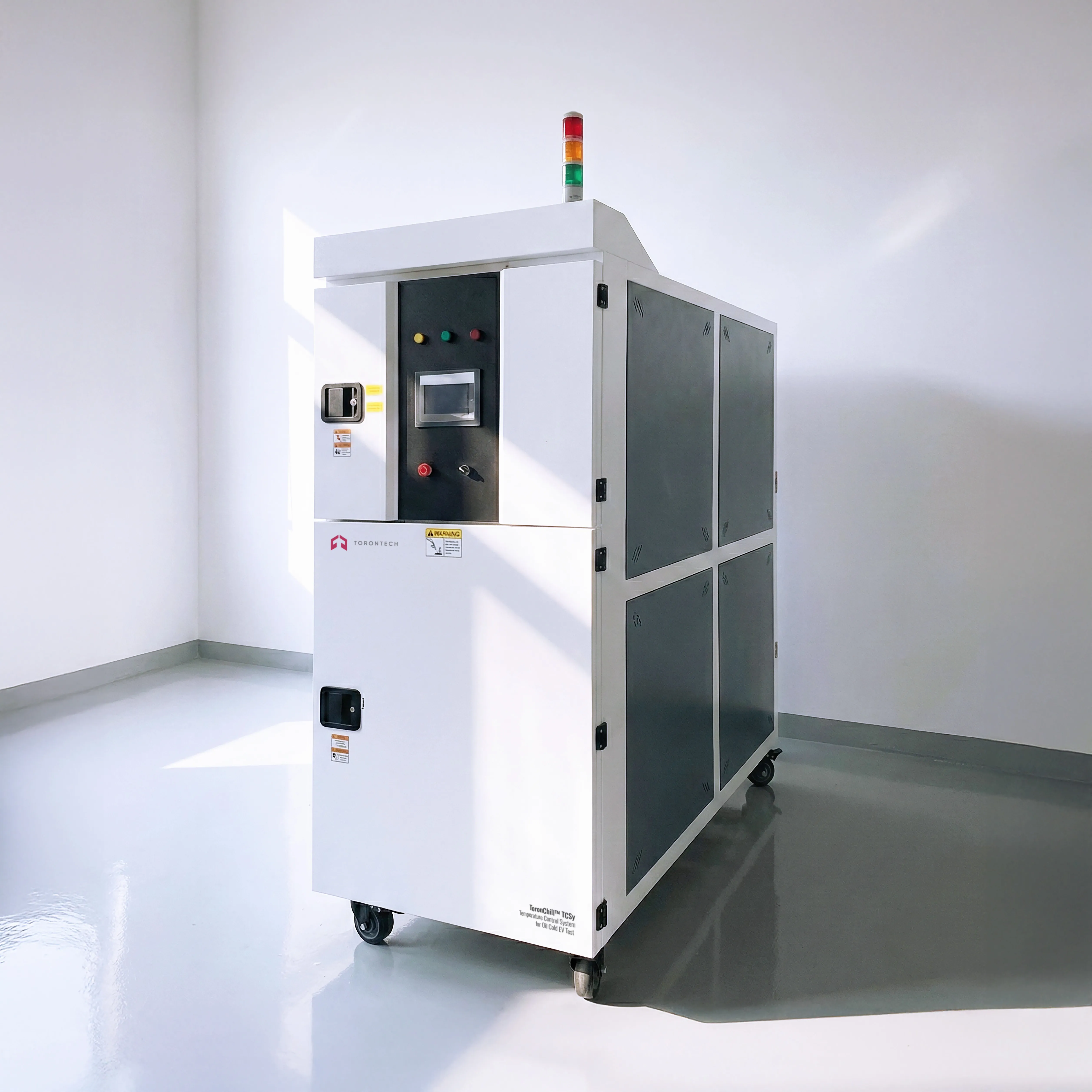

Temperature Control System for Oil Cold EV Test – ToronChill™ TCSy
ToronChill™ TCSy is a Temperature Control System engineered for Oil Cold EV Test programs that require stable temperature conditioning for oil-cooled components. It uses a refrigerant-to-heat-transfer-oil secondary heat exchange design to support both high- and low-temperature operation across varying test conditions.
Built for durability testing and thermal shock workflows, this Temperature Control System supports controlled flow and stable temperature output while helping reduce cross-contamination risk between refrigerant and oil. Optional communications and integrated leakage monitoring support safer, more repeatable EV test operations.
Temperature Control System for Oil Cold EV Test – ToronChill™ TCSy Applications
- Oil-cooled motor testing: Maintains controlled oil temperature for performance and durability validation in EV test benches.
- Gearbox testing under thermal stress: Supports high/low temperature shock and long-duration endurance testing with stable oil conditioning.
- Engine and powertrain component testing: Provides consistent thermal control for oil-cooled equipment across changing load conditions.
- Thermal shock and durability workflows: Enables repeatable Oil Cold EV Test cycles where fast response and tight stability matter.
Temperature Control System for Oil Cold EV Test – ToronChill™ TCSy Key Features
- Wide temperature operating range: Temperature range from -40°C to 150°C for Oil Cold EV Test coverage.
- Stable control performance: Temperature stability of ±0.5°C for repeatable test conditions.
- Flexible flow control selections: Optional flow control ranges 2–20 / 4–40 / ≥60 L/min, with control stability better than ±0.2 L/min.
- Secondary heat exchange architecture: Heat-transfer-oil secondary loop helps prevent direct contact between refrigerant and oil.
- Open/closed system switching: Switchable open/closed design supports different external test stand requirements.
- Oil circuit optimized for viscosity: Special oil pump and flowmeter suitable for low-temperature, high-viscosity fluids.
- Smart fluid return management: Intelligent liquid return with automatic reverse blowing supports stable circulation.
- Leak detection and monitoring: Load leakage detection supports pipeline tightness checks; anti-leakage tank design includes leakage monitoring.
- Connectivity options: Optional RS485 / CAN / Ethernet for EV test integration.
Temperature Control System for Oil Cold EV Test – ToronChill™ TCSy Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Temperature Control System for Oil Cold EV Test |
| Temperature Range | -40°C to 150°C |
| Temperature Stability | ±0.5°C |
| Optional Flow Control Range | 2–20 / 4–40 / ≥60 L/min |
| Flow Control Stability | Better than ±0.2 L/min |
| Heat Exchange Method | Refrigerant-to-heat-transfer-oil secondary heat exchange |
| System Configuration | Switchable open/closed system to match external test stand setup |
| Oil Circuit Hardware | Special oil pump and flowmeter for low-temp, high-viscosity fluids |
| Fluid Management | Intelligent liquid return; automatic reverse blowing |
| Leak Management | Load leakage detection; pipeline tightness support |
| Communication Options | RS485 / CAN / Ethernet |
| Safety/Monitoring | Anti-leakage tank design; leakage monitoring |
