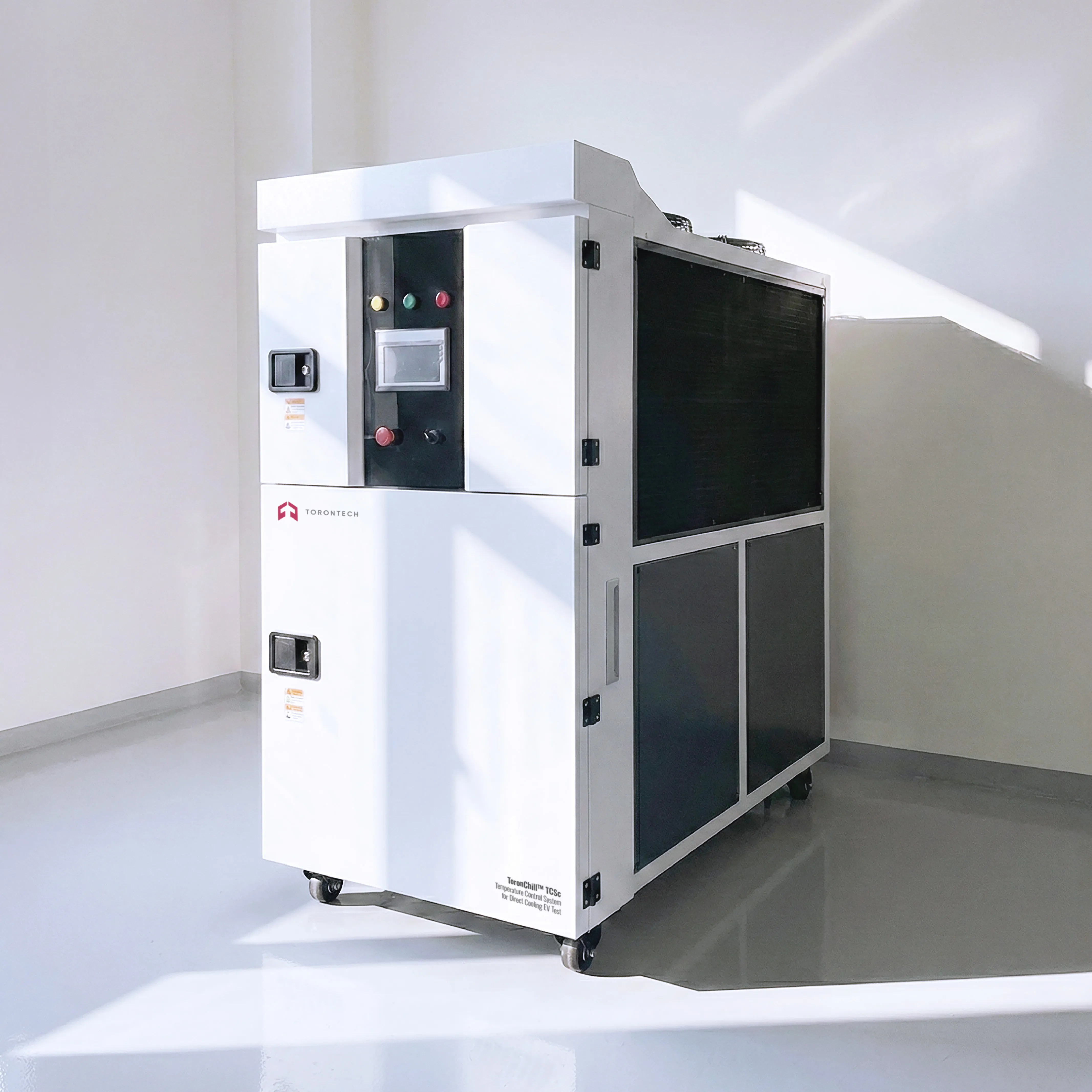

Temperature Control System for Direct Cooling EV Test – ToronChill™ TCSc
ToronChill™ TCSc is a Temperature Control System designed for direct-cooling EV test benches, using refrigerant-to-circulating-fluid heat exchange for fast, stable temperature response. It helps standardize thermal conditions during validation, durability, and performance testing.
Built as an air-cooled, all-in-one unit, this Temperature Control System supports precise setpoint control, flexible flow configurations, and test-lab connectivity. Integrated monitoring and leakage safeguards help protect rigs, reduce downtime, and keep long test runs consistent.
Temperature Control System for Direct Cooling EV Test – ToronChill™ TCSc Applications
- Motor and drivetrain support testing: Maintains controlled coolant temperature to stabilize test conditions and repeatability.
- Endurance and fatigue testing: Supports long-duration cycles where temperature drift can impact results and component stress.
- High/low-temperature start-up testing: Enables controlled cold and warm start evaluations for EV components and subsystems.
Temperature Control System for Direct Cooling EV Test – ToronChill™ TCSc Key Features
- Wide temperature control range: Covers -40 to 95°C for direct-cooling EV test scenarios.
- Stable temperature regulation: Temperature control stability of ±0.5°C helps improve repeatability.
- Flexible flow-control options: Multiple flow-control ranges are available to match different test loops and rigs.
- High-precision flow stability: Minimum control stability is better than ±0.2 L/min (as stated).
- Intelligent liquid return: Automatic liquid blow-down function supports faster loop management and handling.
- Leakage-focused safety design: Load leakage detection and pipeline tightness support help reduce risk during testing.
- Easy system integration: Optional communications include RS485, CAN, and Ethernet.
- Built-in leak containment and monitoring: Anti-leakage water tank design with leakage monitoring supports safer operation.
Temperature Control System for Direct Cooling EV Test – ToronChill™ TCSc Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Temperature Control System for Direct Cooling EV Test – ToronChill™ TCSc |
| Temperature Control Range | -40 to 95°C |
| Temperature Control Stability | ±0.5°C |
| Flow Control Options | 0.5–10 L/min; 2–20 L/min; 4–40 L/min; 6–60 L/min; 9–90 L/min; 10–150 L/min |
| Minimum Flow Control Stability | Better than ±0.2 L/min |

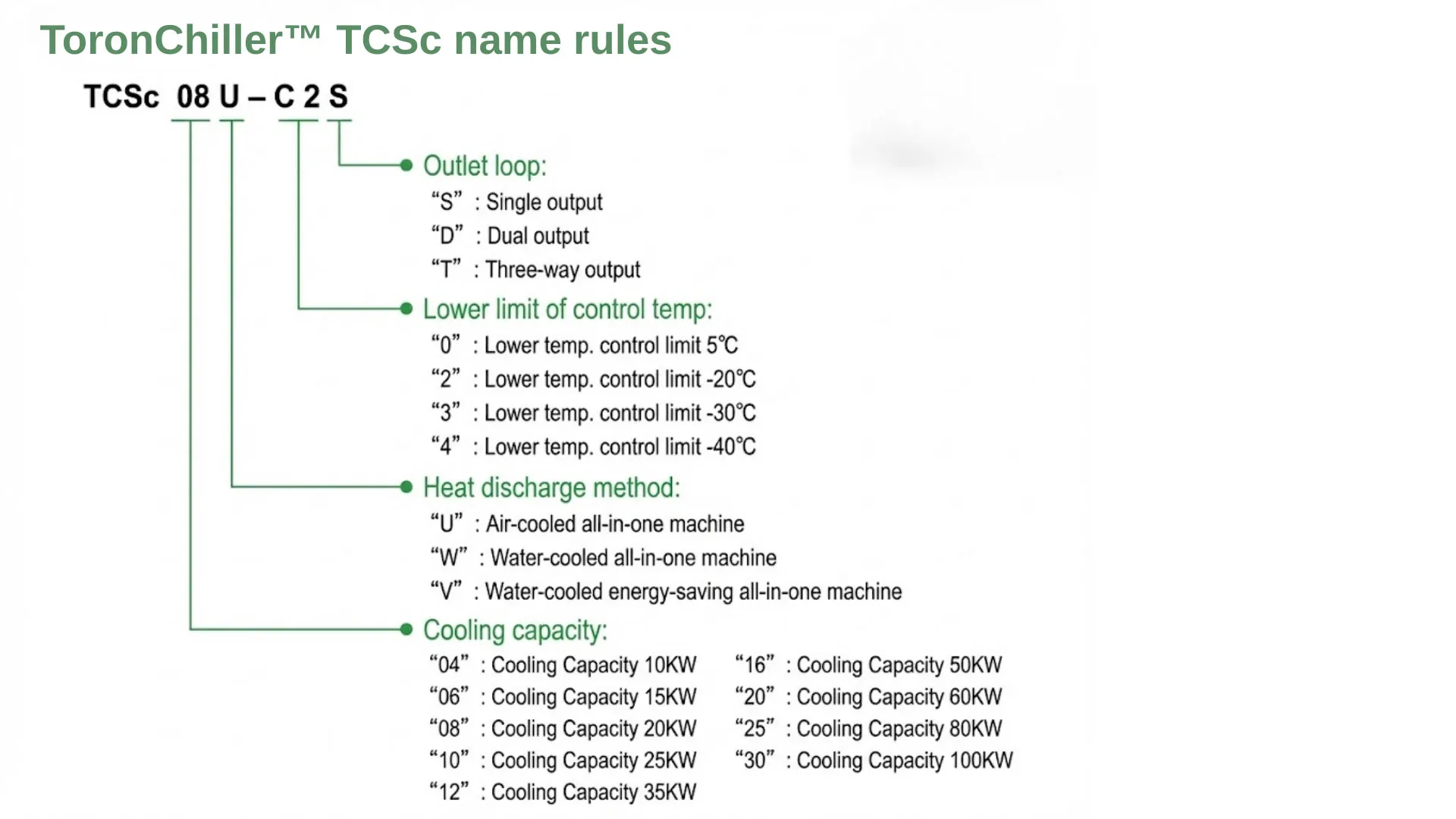

| Heat Discharge Method (Code "U") | Air-cooled all-in-one machine |
| Cooling Capacity Code (08) | 20 kW (code definition shown in brochure) |
| Optional Communication | RS485 / CAN / Ethernet |
| Leakage Protection | Load leakage detection; pipeline tightness support |
| Water Tank Design | Built-in anti-leakage tank + leakage monitoring |
