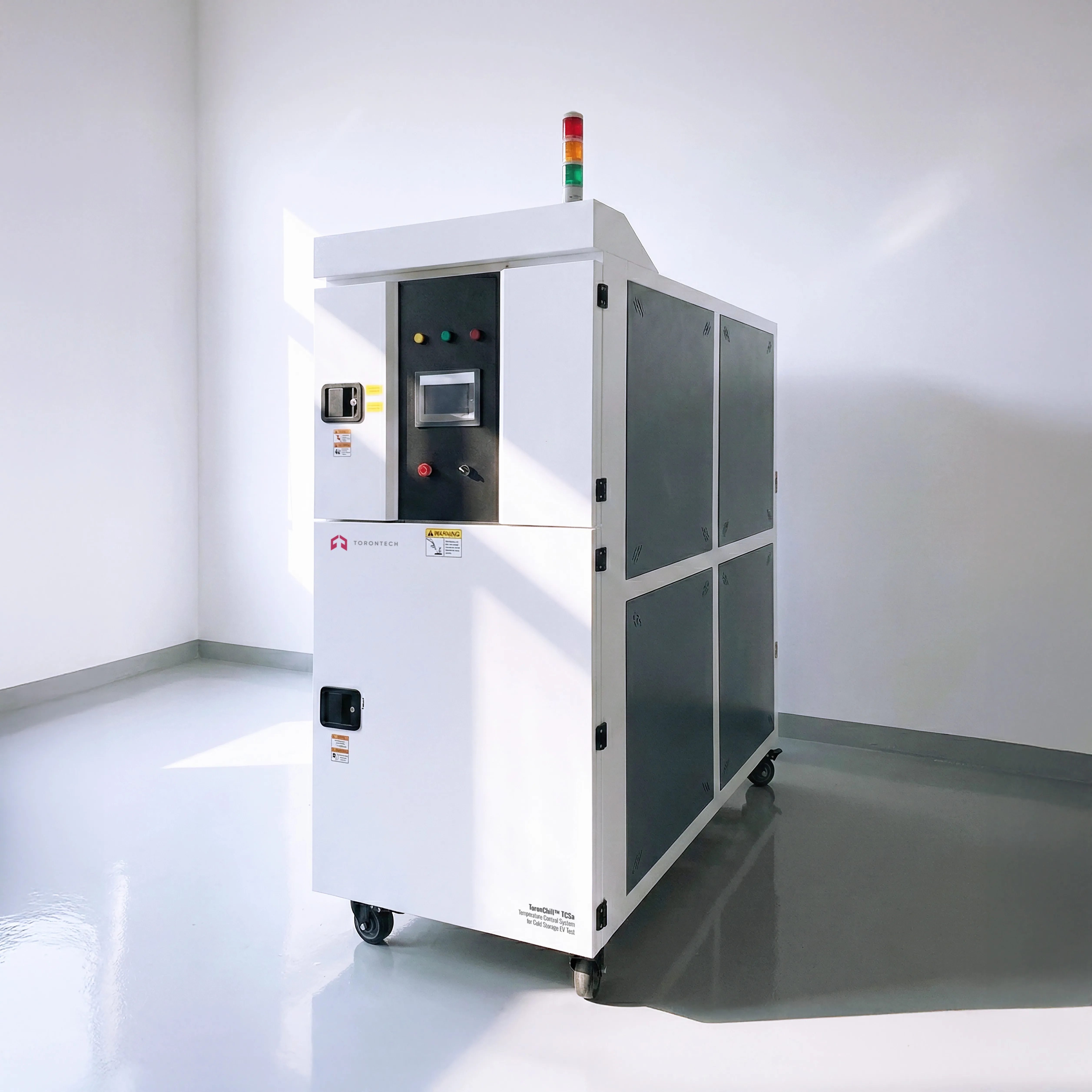

Temperature Control System for Cold Storage EV Test – ToronChill™ TCSa
ToronChill™ TCSa is a Temperature Control System built for Cold Storage EV Test programs that require ultra-low temperature control and rapid thermal transitions. It uses a two-stage low-temperature compressor architecture to deliver stable setpoints across a wide operating range for demanding EV validation work.
Designed for multi-loop testing, this Temperature Control System lets each channel run independently while maintaining controlled flow and pressure. Integrated leakage detection, intelligent liquid return, and optional RS485/CAN/Ethernet communications help improve repeatability, safety, and integration with modern EV test benches.
Temperature Control System for Cold Storage EV Test – ToronChill™ TCSa Applications
- Extreme motor performance testing: Supports cold-soak and high-temperature conditions to validate efficiency and durability.
- Battery pack cold-start and thermal performance testing: Maintains stable coolant temperature for repeatable cold storage EV test cycles.
- Rapid heating/cooling and thermal shock testing: Enables aggressive temperature transitions for stress screening and validation.
- Environmental adaptability evaluation: Helps simulate wide ambient conditions to verify system robustness across operating scenarios.
Temperature Control System for Cold Storage EV Test – ToronChill™ TCSa Key Features
- Wide control range for cold storage EV test: Temperature control range from -40°C to 95°C for broad EV testing needs.
- High stability control: Temperature control stability of ±0.2°C to support repeatable EV test results.
- Multi-channel independent control: Each channel controls temperature independently with a maximum temperature difference of 135°C.
- Fast thermal response: Rapid heating and cooling with a temperature change rate ≥10 K.
- Stable output flow and pressure: Frequency-conversion flow and pressure control helps maintain consistent loop conditions.
- Smart fluid management: Intelligent liquid return technology with automatic blowing supports stable circulation.
- Leak detection for safer operation: Load leakage detection supports production-line load testing and pipeline tightness.
- Connectivity options: Optional RS485 / CAN / Ethernet for integration with EV test systems.
- Leakage monitoring design: Built-in anti-leakage fume design with leakage monitoring for improved site safety.
Temperature Control System for Cold Storage EV Test – ToronChill™ TCSa Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Temperature Control System for Cold Storage EV Test |
| Temperature Control Range | -40°C to 95°C |
| Temperature Control Stability | ±0.2°C |
| Flow Control Options | 0.5–10 / 2–20 / 4–40 / 6–60 L/min |
| Flow Control Stability | Better than ±0.2 L/min |
| Channel Control | Independent temperature control per channel |
| Max Temperature Difference (Between Channels) | 135°C |
| Heating/Cooling Rate | ≥10 K |
| Control Method | Frequency-conversion flow & pressure control |
| Fluid Management | Intelligent liquid return; automatic blowing |
| Leak Management | Load leakage detection; pipeline tightness support |
| Communication Options | RS485 / CAN / Ethernet |
| Safety/Monitoring | Anti-leakage fume design; leakage monitoring |
