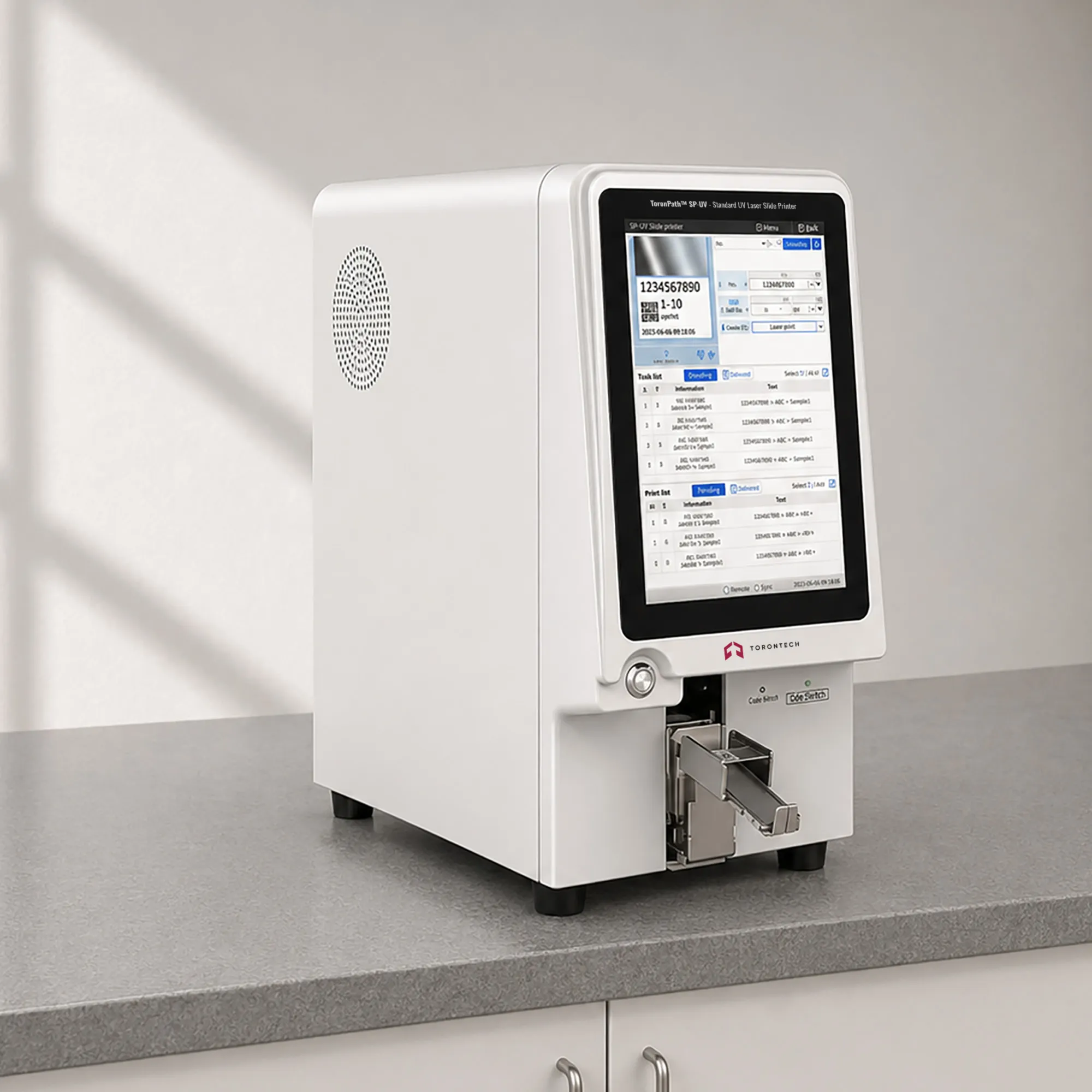

Standard UV Laser Slide Printer – ToronPath™ SP-UV
ToronPath™ SP-UV is a high-performance slide laser printer engineered for professional histopathology and clinical laboratory environments. Utilizing advanced UV laser printing technology, this slide printer delivers precise, permanent markings directly onto standard microscope slides without the need for consumables such as ribbons or ink cartridges.
The ToronPath™ SP-UV combines a compact, self-contained design with an integrated touchscreen interface, enabling fully stand-alone operation without an external computer. Designed for high-throughput workflows, the ToronPath™ SP-UV slide printer is an ideal solution for laboratories seeking reliability, clarity, and long-term specimen traceability.
Standard UV Laser Slide Printer – ToronPath™ SP-UV Applications
The ToronPath™ SP-UV Standard UV Laser Slide Printer is designed for use in:
- Histopathology and anatomical pathology laboratories
- Clinical and hospital laboratories requiring slide identification
- Research institutions performing long-term specimen archiving
- Cytology departments needing barcode-based slide tracking
- Facilities integrated with LIS, HIS, PIS, or PACS systems
Standard UV Laser Slide Printer – ToronPath™ SP-UV Key Features
- UV laser printing technology – non-contact, no consumables required; laser-engraved markings are permanent and maintenance-free
- Exceptional print clarity – ultra-fine laser spot with 2500 dpi resolution for crisp characters, barcodes, QR codes, and symbols
- Chemical resistance – printed markings withstand exposure to xylene, alcohol, and decalcifying fluid, ensuring long-term specimen preservation
- Broad slide compatibility – prints on a wide variety of paint-size slides, compatible with multiple colored slide types
- Integrated design – fully stand-alone operation with built-in OS; no external computer required
- 10.1-inch full-color LCD touchscreen – intuitive on-screen controls for easy daily operation
- Built-in barcode scanner with optional external barcode scanner support for flexible workflow integration
- High loading capacity – accommodates ≥ 100 slides for uninterrupted batch printing
- Large output storage – Big storage box capacity: ≥ 35 / 50 / 80 pcs (batch printing mode)
- High print speed – ≤ 3 seconds per slide for efficient, high-volume throughput
- LIS/HIS/PIS/PACS compatible – seamlessly integrates with major hospital information systems
- Composite air treatment function for a cleaner printing environment
- Compact footprint – ideal for space-constrained laboratory benchtops
Theory and Method
The ToronPath™ SP-UV (G364) operates on UV laser printing technology, a non-contact, consumable-free method that uses a precisely focused laser beam to permanently engrave text, symbols, barcodes, and QR codes directly onto the surface of standard glass microscope slides.
The laser spot size is extremely small, enabling ultra-high-resolution output at 2500 dpi. Because the marking process is chemical-free and non-contact, the printed information is inherently resistant to xylene, alcohol, decalcifying fluid, and other harsh laboratory reagents, making it suitable for long-term preservation. The built-in operating system manages print jobs autonomously, and slide loading and output are handled by an automated mechanism compatible with professional slide loading/output devices.
Standard UV Laser Slide Printer – ToronPath™ SP-UV Technical Specifications
| Printing Technology | UV Laser Printing |
|---|---|
| Printing Resolution | 2500 dpi |
| Print Speed | ≤ 3 seconds per slide |
| Loading Capacity | ≥ 100 slides |
| Output Collection Capacity (Print & Use) | ≥ 10 pcs |
| Output Collection Capacity (Batch Printing) | Big storage box: ≥ 35 / 50 / 80 pcs |
| Data Transmission | USB, Ethernet, Serial Ports |
| Display | 10.1-inch Full-Color LCD Touchscreen |
| Barcode Scanner | Built-in; optional external barcode scanner |
| Operating System | Built-in (stand-alone, no external computer required) |
| System Compatibility | LIS / HIS / PIS / PACS |
| Chemical Resistance | Xylene, Alcohol, Decalcifying Fluid |
| Consumables | None (non-contact laser technology) |
| Air Treatment | Composite Air Treatment Function |
| Dimensions (W × D × H) | 200 mm × 437 mm × 445 mm |
