Split Type Chiller – ToronChill™ Split Series (Industrial Chiller)

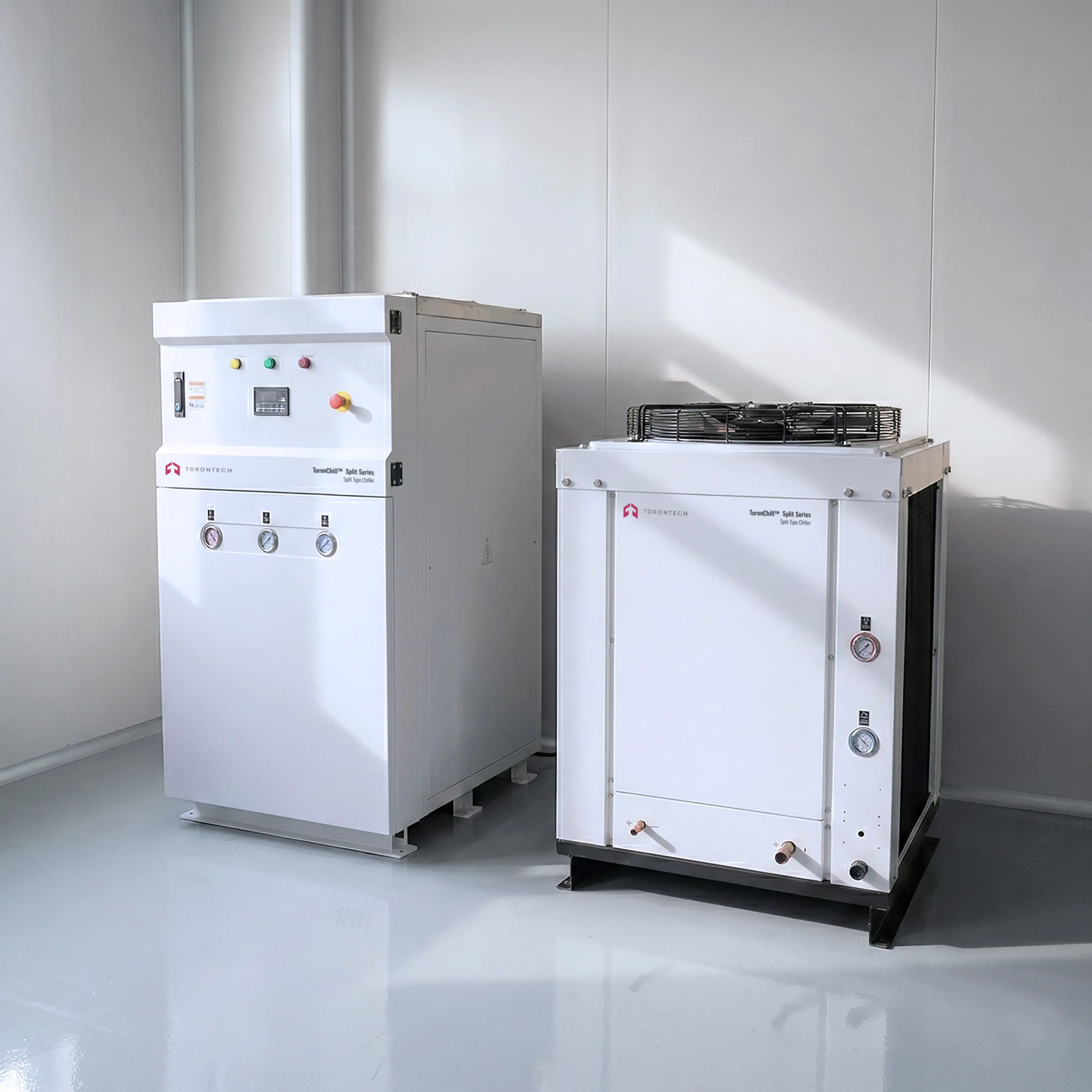

ToronChill™ Split Series is a split-type industrial chiller designed to remove heat from critical instruments while keeping most noise and heat outdoors. The system uses an indoor hydronic unit (pump + reservoir) and an outdoor unit (compressor + fan + condenser) to improve comfort inside the lab or plant.
Built for demanding environments, the ToronChill™ Split Series supports stable cooling for high-heat-load equipment and can also be configured as a centralized chiller solution for multiple instruments. It is a practical option when floor space, indoor noise, and indoor heat discharge must be minimized.
Split Type Chiller – ToronChill™ Split Series (Industrial Chiller) Applications
- XRD / XRF cooling loops: Helps maintain stable operating conditions for X-ray diffractometers and X-ray fluorescence systems.
- Electron microscopy & plasma systems: Suitable for large field-emission electron microscopes, plasma etchers, and related tools with continuous heat loads.
- Vacuum & coating equipment: Supports vacuum plating, ion plating, and vacuum furnace cooling where reliable circulation is required.
- Industrial furnaces & multi-tool lines: Can serve as a central chiller to supply multiple instruments simultaneously.
Split Type Chiller – ToronChill™ Split Series (Industrial Chiller) Key Features
- Split architecture (indoor + outdoor): Outdoor unit discharges most heat and noise outside, while the indoor unit integrates the pump and reservoir.
- Industrial outdoor-unit design: Built for efficiency and durability with an industrial-focused structure.
- Wide ambient adaptability: Compressor heating and fan-speed regulation support stable operation across changing outdoor conditions.
- Stainless-steel reservoir: Large opening design supports easier filling and cleaning.
- Monitoring and protections: Designed to monitor refrigeration pressures and includes multiple protection functions (overheating, overflow, high/low pressure, phase sequence/phase loss).
Split Type Chiller – ToronChill™ Split Series (Industrial Chiller) Technical Specifications
1) High stability room-temp. split chiller (ToronChill™ SG**s Series)
- Temperature Stability: ±0.1 °C
- Temperature Range: 5–35 °C
| Model | Cooling Capacity (kW @25°C) | Max Flow (L/min) | Max Pressure (bar) | Reservoir (L) | Indoor Unit Dimensions (W×D×H, mm) | Outdoor Unit Dimensions (W×D×H, mm) |
|---|---|---|---|---|---|---|
| ToronChill™ SG02s | 5.2 | 60 | 3.6 | 60 | 430×635×955 | 960×410×833 |
| ToronChill™ SG03s | 8.0 | 60 | 4.5 | 90 | 490×715×985 | 960×410×833 |
| ToronChill™ SG05s | 12 | 110 | 3.6 | 140 | 540×800×1055 | 960×410×1230 |
| ToronChill™ SG06s | 18 | 110 | 3.6 | 200 | 620×980×1403 | 700×800×1180 |
| ToronChill™ SG08s | 24 | 110 | 3.6 | 200 | 620×980×1403 | 700×800×1180 |
| ToronChill™ SG10s | 30 | 230 | 3.3 | 260 | 700×1100×1453 | 800×900×1298 |
| ToronChill™ SG12s | 35 | 230 | 3.3 | 360 | 800×1210×1553 | 800×900×1298 |
| ToronChill™ SG16s | 45 | 230 | 4.4 | 360 | 800×1210×1553 | 900×1000×1525 |
2) On/off room-temp. split chiller (ToronChill™ SG**r series)
- Temperature Stability: ±1 °C (ToronChill™ SG02r/SG03r/SG05r), ±2 °C (ToronChill™ SG06r and above)
- Temperature Range: 5–35 °C
| Model | Cooling Capacity (kW @25°C) | Max Flow (L/min) | Max Pressure (bar) | Reservoir (L) | Indoor Unit Dimensions (W×D×H, mm) | Outdoor Unit Dimensions (W×D×H, mm) |
|---|---|---|---|---|---|---|
| ToronChill™ SG02r | 5.2 | 60 | 3.6 | 60 | 430×635×954 | 850×290×580 |
| ToronChill™ SG03r | 8.0 | 60 | 4.5 | 90 | 490×715×984 | 865×310×710 |
| ToronChill™ SG05r | 12 | 110 | 3.6 | 140 | 540×800×1054 | 910×310×1300 |
| ToronChill™ SG06r | 18 | 110 | 3.6 | 200 | 620×980×1403 | 700×800×1180 |
| ToronChill™ SG08r | 24 | 110 | 3.6 | 200 | 620×980×1403 | 700×800×1180 |
| ToronChill™ SG10r | 30 | 230 | 3.3 | 260 | 700×1100×1453 | 800×900×1298 |
| ToronChill™ SG12r | 35 | 230 | 3.3 | 360 | 800×1210×1553 | 800×900×1298 |
| ToronChill™ SG16r | 45 | 230 | 4.4 | 360 | 800×1210×1553 | 900×1000×1525 |
3) Large on/off room-temp. split chiller (platform models included) (ToronChill™ SG**b Series)
- Temperature Stability: ±2 °C
- Temperature Range: 5–35 °C
| Model | Cooling Capacity (kW @25°C) | Max Flow (L/min) | Max Pressure (bar) | Reservoir (L) | Indoor Unit Dimensions (W×D×H, mm) | Outdoor Unit Dimensions (W×D×H, mm) |
|---|---|---|---|---|---|---|
| ToronChill™ SG20b | 60 | 480 | 4.1 | 500 | 880×1500×1615 | 980×1970×1455 |
| ToronChill™ SG24b | 70 | 480 | 4.1 | 500 | 880×1500×1615 | 980×1970×1455 |
| ToronChill™ SG32b | 90 | 480 | 4.1 | 500 | 880×1500×1615 | 980×1970×1455 |
| ToronChill™ SG40b | 110 | 480 | 5.5 | 800 | 980×1800×1795 | 980×2950×1455 |
| ToronChill™ SG48b | 140 | 480 | 5.5 | 800 | 980×1800×1795 | 980×2950×1455 |
| ToronChill™ SG40b.be | 120 | 660 | 4.0 | 1000 | 1080×1800×1995 | 1900×2210×2225 |
| ToronChill™ SG48b.be | 140 | 660 | 4.0 | 1000 | 1080×1800×1995 | 1900×2210×2225 |
| ToronChill™ SG64b.be | 180 | 660 | 5.4 | 1000 | 1080×1800×1995 | 1900×2210×2225 |
| ToronChill™ SG72b.ve | 210 | 900 | 4.0 | 1000 | 1080×1800×1995 | 1900×3320×2225 |
| ToronChill™ SG96b.ve | 270 | 900 | 4.0 | 1000 | 1080×1800×1995 | 1900×3320×2225 |
