Solid Materials Density Tester TTD-300E/600E

Solid Materials Density Tester TTD-300E/600E specifically designed for solid rubber materials, suitable for general-size samples with dimensions of 148mm in length, 100mm in width, and 85mm in height.

Density Meter, Density Tester, Densimeter, Specific Gravity Tester

Density Meter, Density Tester, Densimeter, Specific Gravity Tester

Density Meter, Density Tester, Densimeter, Specific Gravity Tester

Maximum Weight Capacity: Supports a maximum weight of either 300g or 600g.

Precision in Density Measurement: Offers density measurement precision up to 0.001g/cm³.

Suitable for

Laboratory of solder, brass, bronze, silver, nickel, zinc, plastic, rubber, wire and cable, glass, film, hard alloy, soft synthetic leather, leather, elastic material, oil seal, oil ring, new materials, and other recycling industries.

Principle

Referring to the standards of ASTM D297, D792, JIS K6530, ISO2781, 1183and by applying the buoyancy of the object immersed in the liquid and hydrostatics principle, the density, volume, and mixture ratio of dense solid materials can be shown.

  • Density Measuring Mode (DS): Measures both density and volume.
  • Mix Ratio Density Measuring Mode (Mix1): Determines the proportion of the primary material.
  • Mix Ratio Density Measuring Mode (Mix2): Determines the proportion of the secondary material.

ModelTTD-300ETTD-600E
Max Weight300g600g
Weighing Precision0.01g
Density Precision0.001g/cm3
Volume Precision0.001g/cm3
Mixing Ratio 10.01%
Mixing Ratio 20.01%

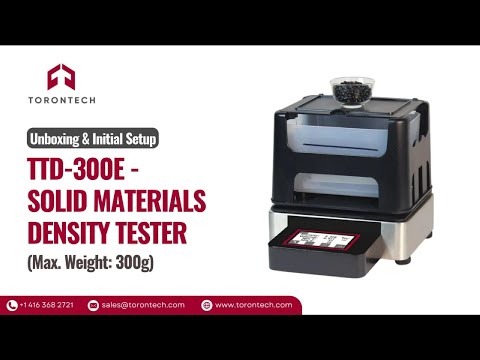

Preview image for the video "Initial Setup | TTD-300E  - Solid Materials Density Tester | Torontech".

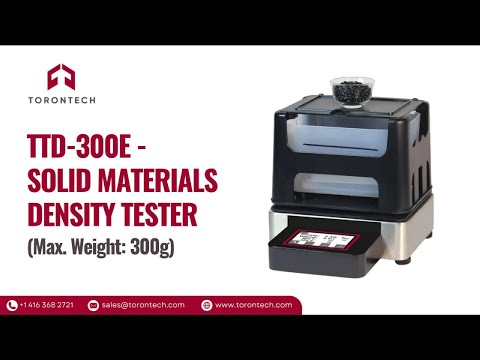

Preview image for the video "TTD-300E - Solid Materials Density Tester (Max. Weight: 300g) | Torontech".
