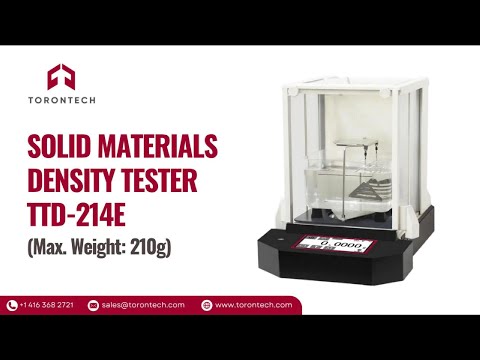

Solid Materials Density Tester TTD-214E
Solid Materials Density Tester TTD-214E specially for solid film materials, suitable for small and lightweight samples with dimensions of 148mm in length, 100mm in width, and 85mm in height.
Maximum Weight Capacity: Supports a maximum weight of 210g.
Precision in Density Measurement: Offers density measurement precision up to 0.0001g/cm³.
Suitable for
Laboratory of solder, brass, bronze, silver, nickel, zinc, plastic, rubber, wire and cable, glass, film, hard alloy, soft synthetic leather, leather, elastic material, oil seal, oil ring, new materials, and other recycling industries.
Principle
Referring to the standards of ASTM D297, D792, JIS K6530, ISO2781, 1183and by applying the buoyancy of the object immersed in the liquid and hydrostatics principle, the density, volume, and mixture ratio of dense solid materials can be shown.
- Density Measuring Mode (DS): Measures both density and volume.
- Mix Ratio Density Measuring Mode (Mix1): Determines the proportion of the primary material.
- Mix Ratio Density Measuring Mode (Mix2): Determines the proportion of the secondary material.
| Model | TTD-214E |
| Max Weight | 210g |
| Weighing Precision | 0.0001g |
| Density Precision | 0.0001g/cm3 |
| Volume Precision | 0.0001g/cm3 |
| Mixing Ratio 1 | 0.01% |
| Mixing Ratio 2 | 0.01% |
