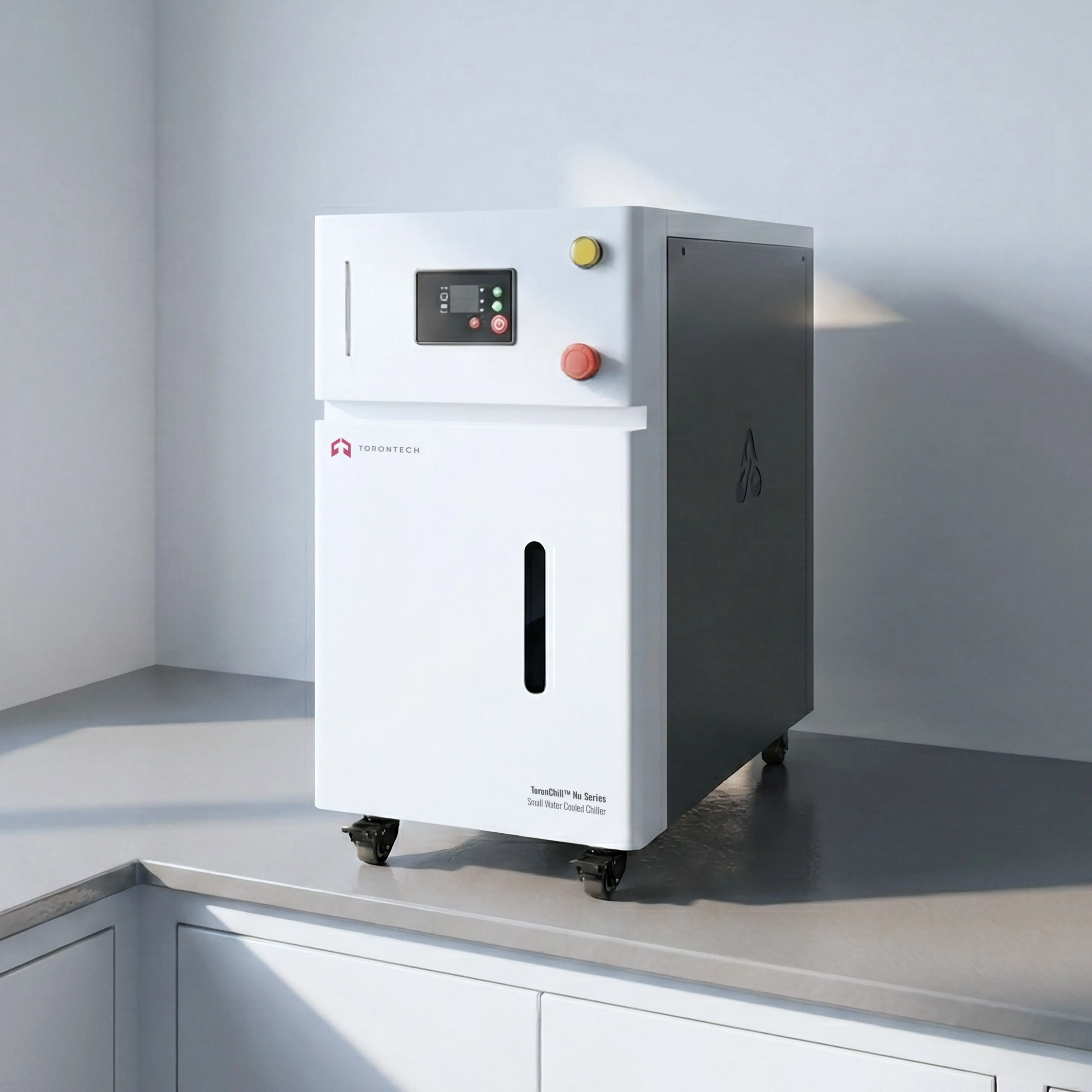

Small Water Cooled Chiller – ToronChill™ Nu Series
ToronChill™ Nu Series is a Small Water Cooled Chiller designed to remove heat using an external cooling-water source. It is a strong fit for facilities with a cooling-water pipe network or cooling tower, where low noise and minimal heat discharge into the room matter.
Built for dependable industrial cooling, the Nu Series uses a stainless-steel reservoir and multi-stage centrifugal stainless-steel pump options, with easy front access for service. Optional PID temperature control helps support stable outlet temperatures for sensitive processes and instruments.
Small Water Cooled Chiller – ToronChill™ Nu Series Applications
- Laboratory instruments cooling: Supports stable water temperature for heat-generating lab equipment and test systems.
- Facilities with cooling towers or chilled-water networks: Ideal when you already have plant cooling water and want lower noise with no hot air exhaust to the room.
- General equipment cooling in industry: Covers a wide range of cooling capacities for varied industrial loads, depending on model.
Small Water Cooled Chiller – ToronChill™ Nu Series Key Features
- Top-mounted stainless-steel reservoir: Easier cleaning and better durability for long service life.
- Stainless steel pumping and plumbing options: Multi-stage centrifugal stainless-steel pump with stainless steel or PPR pipeline choices.
- Service-friendly structure: Detachable panels simplify maintenance and reduce downtime.
- Simple controller interface: Microcomputer light-touch operation with dual-parameter digital display for straightforward monitoring.
- Multi-layer protection: Includes protections related to compressor overheating, overcurrent, high/low pressure, phase sequence, phase loss, and exhaust overheating.
- Optional PID temperature controller: Supports temperature stability down to ±0.1°C (optional, depending on configuration).
- Optional water-quality filtration: PP cotton filter and resin ion filter options help reduce scaling risk in circulation pipelines.
Small Water Cooled Chiller – ToronChill™ Nu Series Technical Specifications
Room Temperature High-Stability Chiller ( ToronChill™ N**s)
- Temperature Range: 5–40°C
- Temperature Stability: ±0.1°C (N01s–N15s); ±0.2°C (N18s–N30s)
| Model | Cooling Capacity (W @25°C) | Max Flow (L/min) | Max Pressure (bar) | Reservoir (L) | Overall Dimensions (W×D×H, mm) |
|---|---|---|---|---|---|
| ToronChill™ N01s | 1300 | 40 | 3.6 | 12 | 380×750×812 |
| ToronChill™ N02s | 1800 | 40 | 3.6 | 12 | 380×750×812 |
| ToronChill™ N03s | 2600 | 40 | 3.6 | 12 | 380×750×812 |
| ToronChill™ N04s | 3600 | 40 | 4.2 | 12 | 380×750×812 |
| ToronChill™ N06s | 5600 | 40 | 4.2 | 33 | 430×880×960 |
| ToronChill™ N08s | 8000 | 40 | 4.2 | 33 | 430×880×960 |
| ToronChill™ N10s | 10000 | 110 | 3.6 | 33 | 430×880×960 |
| ToronChill™ N15s | 15000 | 110 | 3.6 | 33 | 430×880×960 |
| ToronChill™ N18s | 18000 | 110 | 3.6 | 33 | 580×880×1052 |
| ToronChill™ N24s | 24000 | 110 | 3.6 | 33 | 430×880×860 |
| ToronChill™ N30s | 30000 | 110 | 3.6 | 33 | 430×880×860 |
Room Temperature Pure Water High-Stability Chiller (ToronChill™ N**p)
- Temperature Range: 5–40°C
- Temperature Stability: ±0.1°C
| Model | Cooling Capacity (W @25°C) | Max Flow (L/min) | Max Pressure (bar) | Reservoir (L) | Overall Dimensions (W×D×H, mm) |
|---|---|---|---|---|---|
| ToronChill™ N01p | 1300 | 40 | 3.6 | 12 | 380×750×812 |
| ToronChill™ N02p | 1800 | 40 | 3.6 | 12 | 380×750×812 |
| ToronChill™ N03p | 2600 | 40 | 3.6 | 12 | 380×750×812 |
| ToronChill™ N04p | 3600 | 40 | 4.2 | 12 | 380×750×812 |
| ToronChill™ N06p | 5600 | 40 | 4.2 | 33 | 430×880×960 |
| ToronChill™ N08p | 8000 | 40 | 4.2 | 33 | 430×880×960 |
| ToronChill™ N10p | 10000 | 110 | 3.6 | 33 | 430×880×960 |
| ToronChill™ N15p | 15000 | 110 | 3.6 | 33 | 430×880×960 |
| ToronChill™ N18p | 15000 | 110 | 3.6 | 33 | 580×880×1052 |
| ToronChill™ N24p | 15000 | 110 | 3.6 | 33 | 430×880×860 |
| ToronChill™ N30p | 15000 | 110 | 3.6 | 33 | 430×880×860 |
