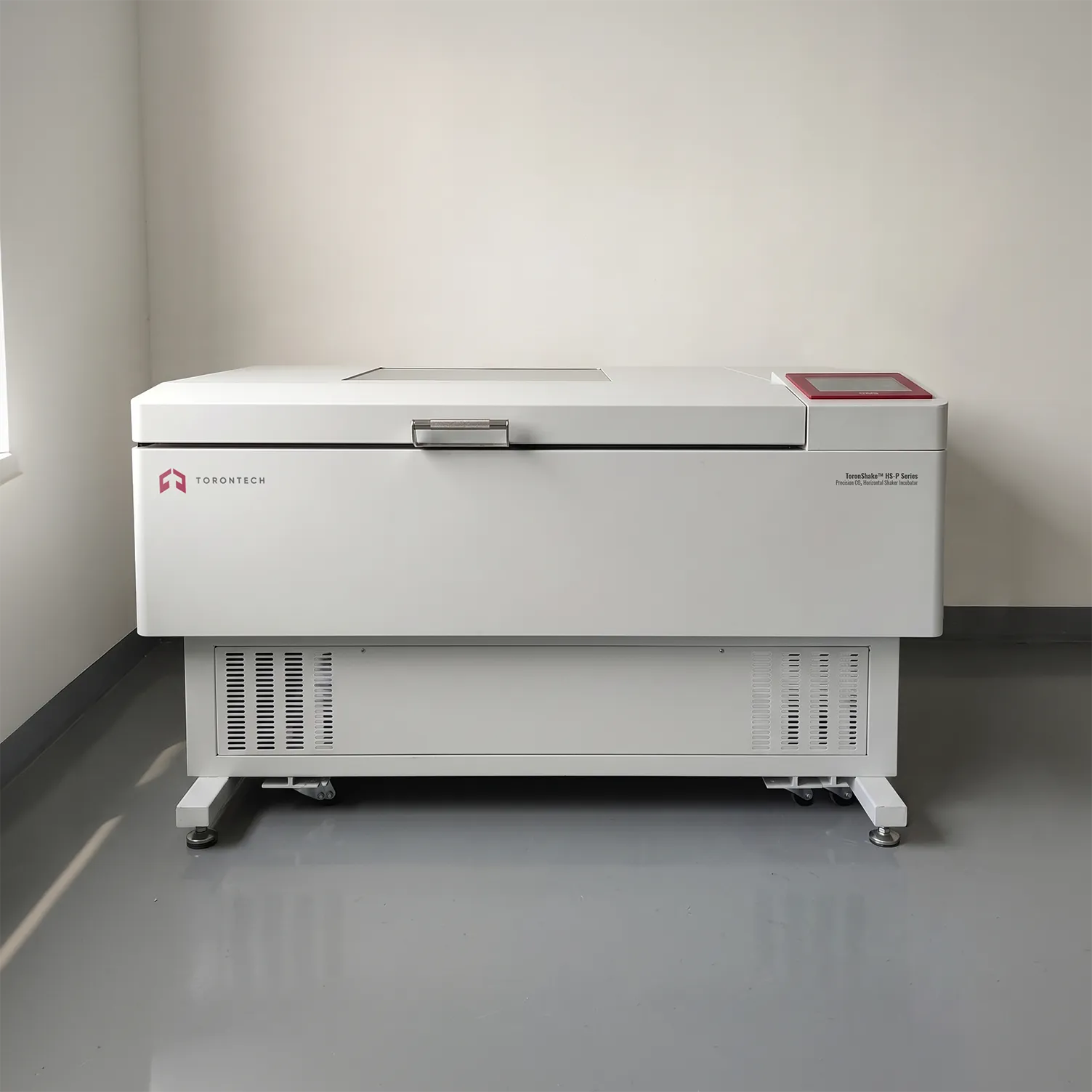

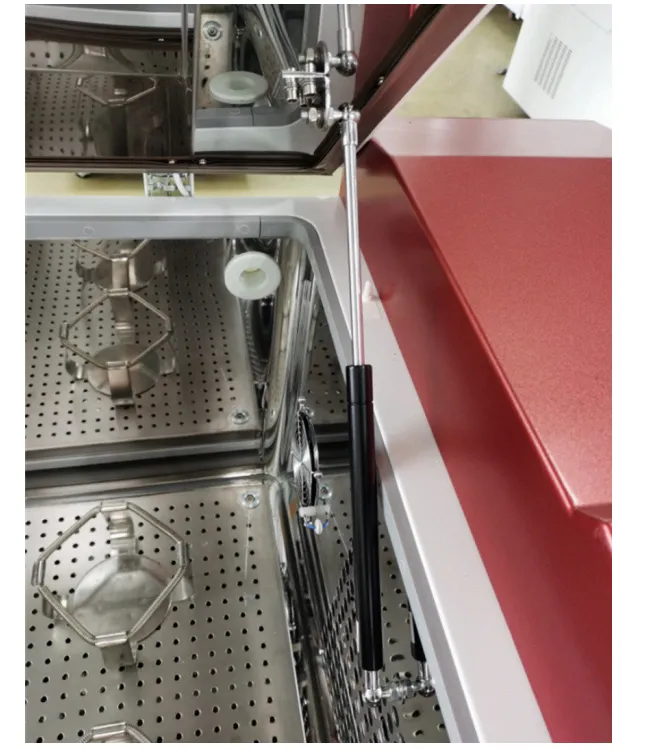

Precision CO₂ Horizontal Shaker Incubator

Theory and Method

Horizontal Orbital Shaking Mechanism The ToronShake™ HS-P operates on a horizontal orbital shaking principle in which the tray platform moves in a circular, fixed-radius orbit of Ø26 mm. This orbital motion generates consistent fluid movement within culture vessels promoting dissolved oxygen transfer, nutrient distribution, CO₂ equilibration across the culture volume, and waste product removal simultaneously. The DC motor driving the orbital mechanism delivers rotation rates from 30 to 300 rpm with an accuracy of ±1 rpm, maintaining the programmed agitation setpoint with precision across the full speed range and throughout extended incubation runs.

High-Precision Infrared CO₂ Sensing and Control CO₂ concentration is measured and controlled using a high-precision infrared (IR) CO₂ sensor operating on a non-dispersive infrared (NDIR) principle. The infrared sensing approach measures CO₂ absorption directly in the gas phase delivering accurate, stable CO₂ readings across the 0–20% control range with ±0.1% accuracy. Unlike thermal conductivity-based CO₂ sensing methods, the IR sensor is not subject to cross-sensitivity from humidity or other gas-phase components, making it well suited to the variable humidity conditions that arise in a shaker incubator during culture evaporation and humidification cycles.

A dedicated pressure reducing valve regulates CO₂ inlet pressure from the external gas supply to the chamber, ensuring consistent, controlled gas delivery regardless of supply cylinder pressure variation. This combination of high-precision IR sensing and regulated gas delivery maintains stable CO₂ setpoints throughout long-duration culture runs without requiring operator intervention for gas pressure adjustment.

BRIGHT I Intelligent Temperature Control Temperature is governed by the BRIGHT I intelligent operating system, which continuously monitors the internal chamber sensor and modulates output from the heating and refrigeration systems to maintain the programmed setpoint. BRIGHT I automatically compensates control parameter values in response to real-time ambient environmental changes maintaining setpoint accuracy without manual recalibration when laboratory conditions shift. Temperature resolution is 0.1 °C across the full 4–60 °C operating range, with fluctuation held to ±0.3 °C and spatial uniformity within ±1 °C, both measured at 37 °C.

Compressor Refrigeration Both the ToronShake™ HS-2P and ToronShake™ HS-1P sub-series incorporate a high-quality compressor refrigeration system that extends temperature control below room temperature down to 4 °C enabling CO₂-controlled shaking incubation protocols that require controlled cooling alongside active orbital agitation and atmospheric CO₂ management. This is particularly relevant for cold-adapted cell culture, low-temperature biological assays, and protocols where the heat generated by the compressor and shaking mechanism must be actively managed to maintain setpoint stability.

Humidity Control (ToronShake™ HS-1P) The ToronShake™ HS-1P configuration adds an internal water tank-based humidification system that controls relative humidity from ambient levels up to 95% RH, with fluctuation maintained within ±3% RH. In CO₂-controlled cell culture applications, humidity management is important for preventing evaporative loss from culture vessels which can concentrate media, alter osmolality, and affect cell viability over extended culture periods. The HS-1P addresses this by maintaining defined humidity alongside CO₂ and temperature control within the same lab shaker incubator chamber.

Programmable Multi-Segment Profiles The BRIGHT I platform supports up to 30 programmable segments arranged across 999 repeatable cycles. Operators can define ramp rates, target temperatures, CO₂ setpoints, agitation speeds, soak durations, and step transitions to create complex atmospheric and thermal profiles that run automatically without operator intervention between phases. The reservation function allows delayed-start scheduling, enabling culture cycles to begin at a predetermined time without manual initiation.

Data Management and Access Control All operational events including temperature, CO₂ concentration, agitation rate, and alarm history are recorded continuously in onboard memory capable of storing up to 1,000,000 data records. Real-time data curves are viewable directly on the 7-inch touch screen. USB export transfers timestamped data files to external drives for documentation, audit trail, and regulatory compliance purposes. Multi-level permission management restricts parameter access to authorized users in shared or regulated laboratory shaker incubator environments.
