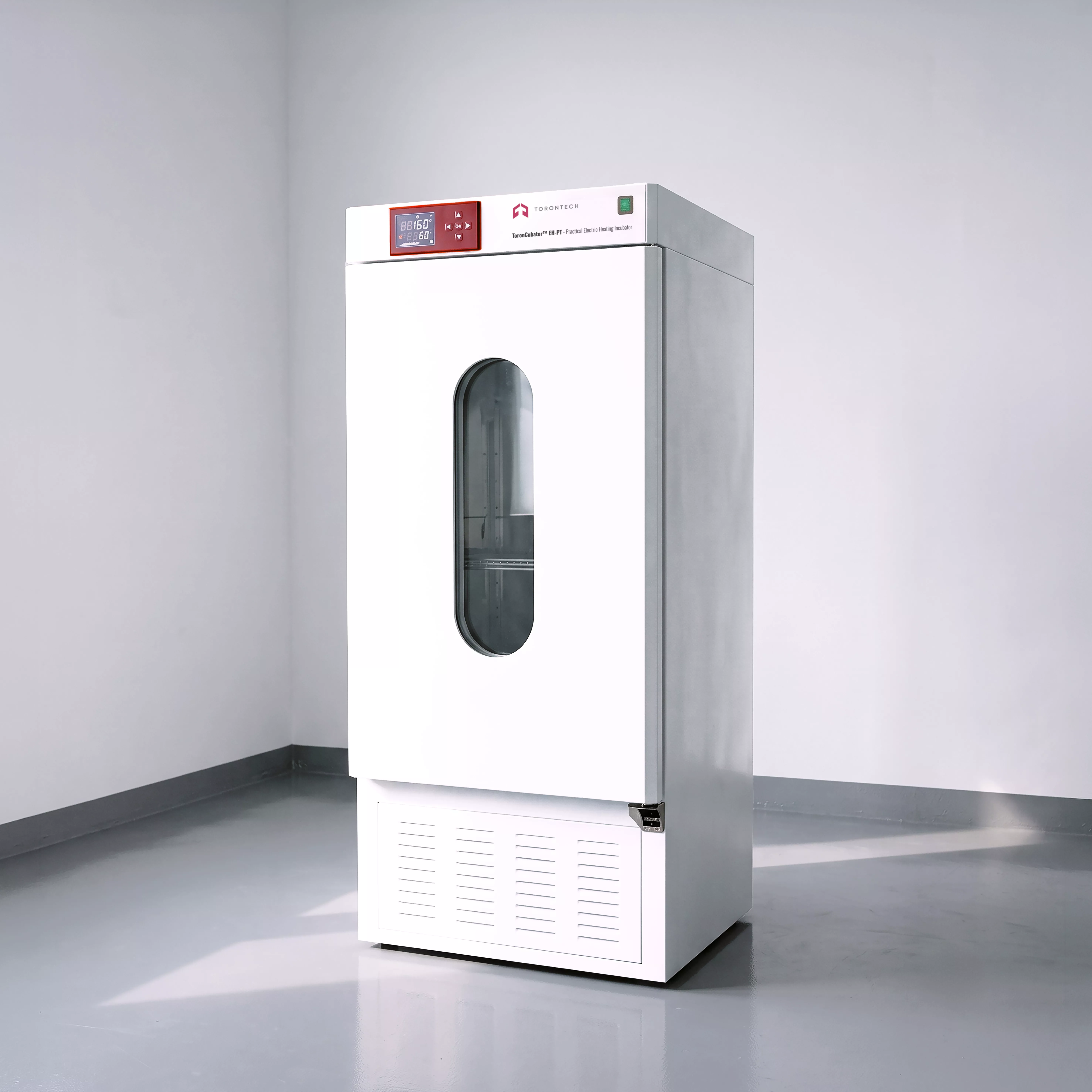

Practical Electric Heating Incubator – ToronCubator™ EH-P
The ToronCubator™ EH-P is a precision laboratory incubator designed for biochemical research, mould cultivation, and controlled-temperature biological studies. Combining a frequency-conversion refrigeration system with an advanced PMMA II operating platform, this series of laboratory incubators delivers stable, frost-free performance across a broad 5–60 °C temperature range — making it a dependable choice for demanding B2B laboratory environments.
The ToronCubator™ EH-P is a dual-purpose biochemical incubator and mould incubator engineered for laboratories that require consistent thermal control without compromise. Available in three chamber volumes — 100 L, 150 L, and 250 L — the series accommodates a wide range of sample loads and shelf configurations, making it adaptable for both small-scale research and high-throughput laboratory workflows.
Its cold-rolled steel housing with static spray-plastic finish and mirror stainless steel interior chamber offer both structural durability and easy maintenance. A large-angle, heat-preserving vacuum toughened glass window allows users to monitor samples without opening the door, reducing thermal disruption during sensitive incubation cycles. The integrated 220V power socket adds convenient in-chamber access for peripheral instruments.
Power recovery functionality protects data integrity during unexpected power interruptions — all programmed settings and active run data are retained when power is restored. This feature is particularly valuable in continuous or long-cycle incubation workflows where data loss could compromise experimental integrity.
Practical Electric Heating Incubator – ToronCubator™ EH-P Applications
The ToronCubator™ EH-P series serves a wide range of regulated and research-grade laboratory settings. Its dual biochemical and mould incubator capability makes it a flexible platform across multiple scientific disciplines.
- Microbiology: mould cultivation, fungal growth studies, and microbial culture incubation under controlled temperatures.
- Biochemical Research: enzyme kinetics, cell metabolism studies, and temperature-sensitive biochemical assays.
- Environmental Testing: controlled degradation studies and BOD (Biochemical Oxygen Demand) testing per standard methods.
- Pharmaceutical QC: stability testing of pharmaceutical compounds and biological samples requiring precise thermal control.
- Food Science: microbial safety testing, fermentation trials, and shelf-life evaluation under regulated conditions.
- Agricultural Science: seed germination, soil microbiology research, and plant pathogen incubation studies.
Practical Electric Heating Incubator – ToronCubator™ EH-P Key Features

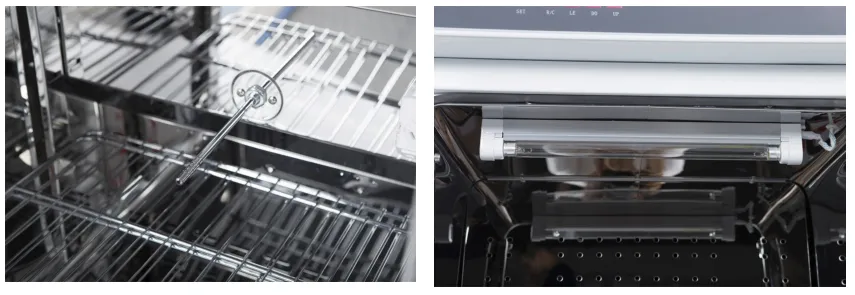

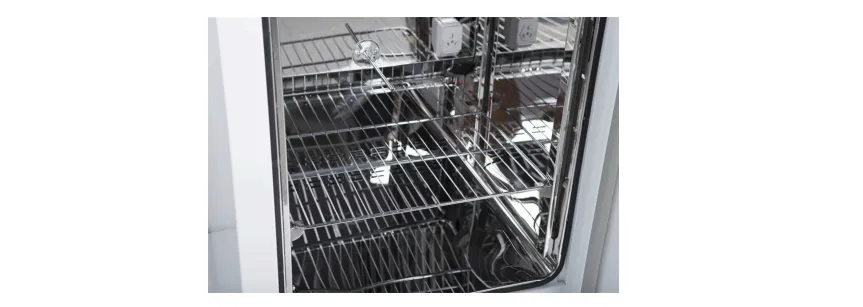

- Cold-rolled steel shell with static spray-plastic finish; mirror stainless steel interior chamber with optionally adjustable shelving
- PMMA II operating system with over-temperature alarm and self-diagnosis functionality for continuous process monitoring
- 6-stage fan speed regulation to accommodate different airflow requirements across various sample types
- 8W fluorescent interior lamp for clear sample visibility; UV lamp included on mould incubator variants
- Large-angle heat-preserving vacuum toughened glass door window for non-intrusive sample observation
- Built-in 220V power socket for convenient in-chamber connectivity to peripheral instruments
- Frequency-conversion refrigeration system using R134a refrigerant — high efficiency, low energy consumption, continuous frost-free operation
- Imported low-noise compressor unit with stable, consistent performance across the full operating range
- Power recovery function retains all programmed data and run settings after power interruption or system halt
- Programmable timer range of 0–9999 min/h for flexible incubation scheduling
Theory and Method
Thermoelectric Temperature Control
The ToronCubator™ EH-P operates on a dual-mode thermal control principle, combining resistive heating and compressor-driven refrigeration within a single chamber. A PMMA II microprocessor control system continuously reads the internal temperature sensor and modulates heating or cooling output to maintain the set-point. Temperature resolution is 0.1 °C, with fluctuation held to ±0.7 °C during heating and ±1.0 °C during active cooling cycles.
Frequency-Conversion Refrigeration
The refrigeration circuit uses an imported variable-frequency compressor and the R134a refrigerant — a hydrofluorocarbon with zero ozone depletion potential (ODP = 0). Frequency conversion allows the compressor to modulate its speed in response to real-time thermal load, reducing energy consumption and eliminating the temperature swings typical of fixed-speed systems. The system operates frost-free across the full temperature range, removing the need for periodic defrost cycles.
Multi-Stage Fan Circulation
A 6-stage variable-speed fan circulates conditioned air throughout the chamber to achieve uniform temperature distribution. Users can select fan speed to match the airflow sensitivity of their samples — lower speeds for delicate cultures, higher speeds for rapid temperature equilibration. Uniformity at 37 °C is rated at ±1.5 °C across the working volume.
Practical Electric Heating Incubator – ToronCubator™ EH-P Technical Specifications
| Parameter | ToronCubator™ EH-100P | ToronCubator™ EH-150P | ToronCubator™ EH-250P |
|---|---|---|---|
| Chamber Volume | 100 L | 150 L | 250 L |
| Type | Biochemical Incubator | ||
| Internal Dimensions W×D×H | 500×370×580 mm | 500×370×815 mm | 500×440×1100 mm |
| Housing Dimensions W×D×H | 580×570×1070 mm | 595×580×1232 mm | 615×620×1597 mm |
| Temperature Range | 5–60 °C | 5–60 °C | 5–60 °C |
| Temperature Resolution | 0.1 °C | 0.1 °C | 0.1 °C |
| Temp. Fluctuation (Heating) | ±0.7 °C | ||
| Temp. Fluctuation (Cooling) | ±1.0 °C | ||
| Temp. Uniformity at 37 °C | ±1.5 °C | ||
| Rated Power | 500 W | 500 W | 670 W |
| Timer Range | 0–9999 min/h | ||
| Shelves (Standard / Max.) | 2 / 3 | 3 / 5 | 3 / 7 |
| Load per Shelf | 15 kg | ||
| Net Weight / Gross Weight | 70 / 82 kg | 82 / 93 kg | 100 / 118 kg |
| Package Size W×D×H | 700×660×1260 mm | 700×660×1490 mm | 730×760×1820 mm |
| Refrigerant | R134a (HFC, ODP = 0) | ||
| Voltage | 220V / 50Hz (110V is also available) | ||
