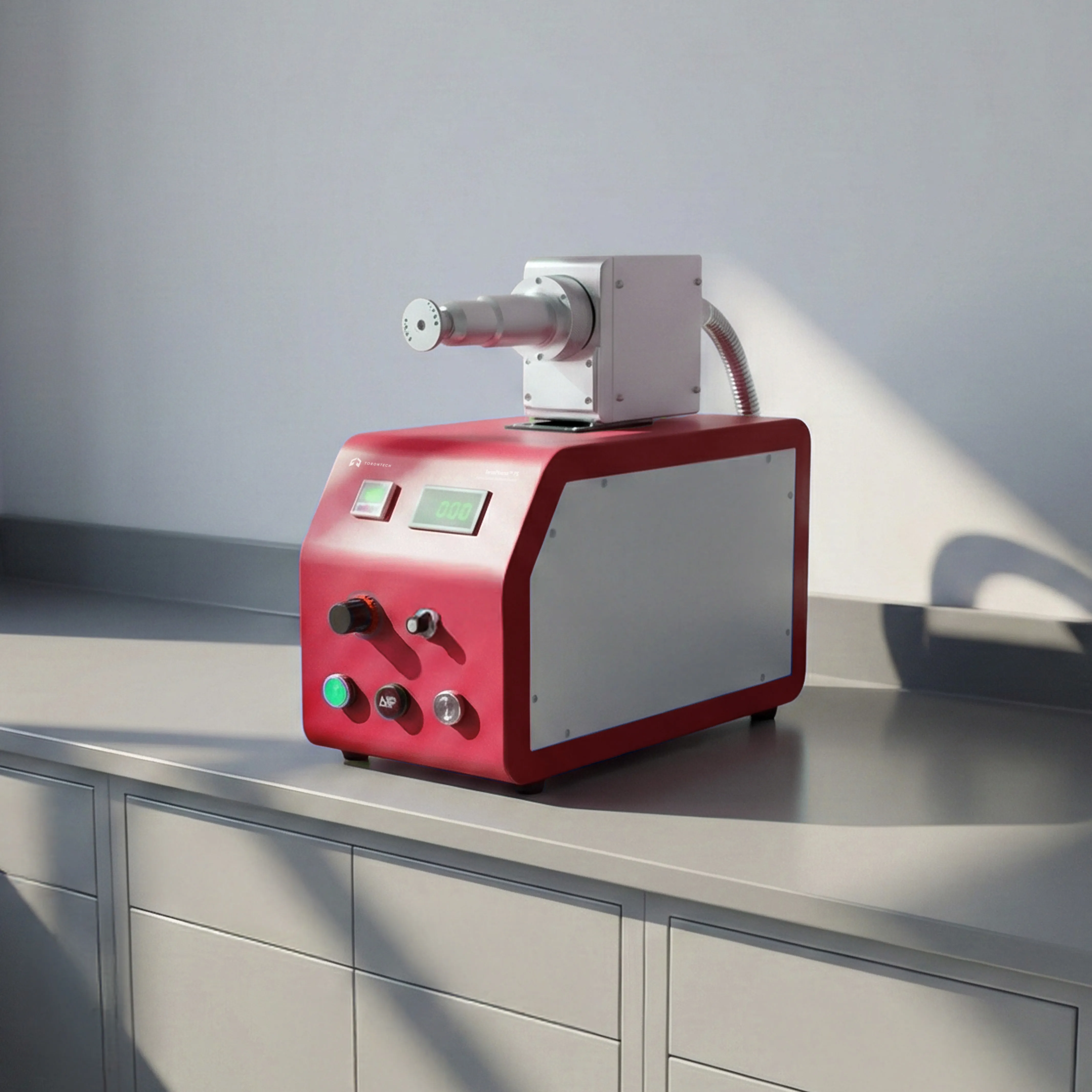

Plasma Surface Treatment Machine – ToronPlasma™ PS

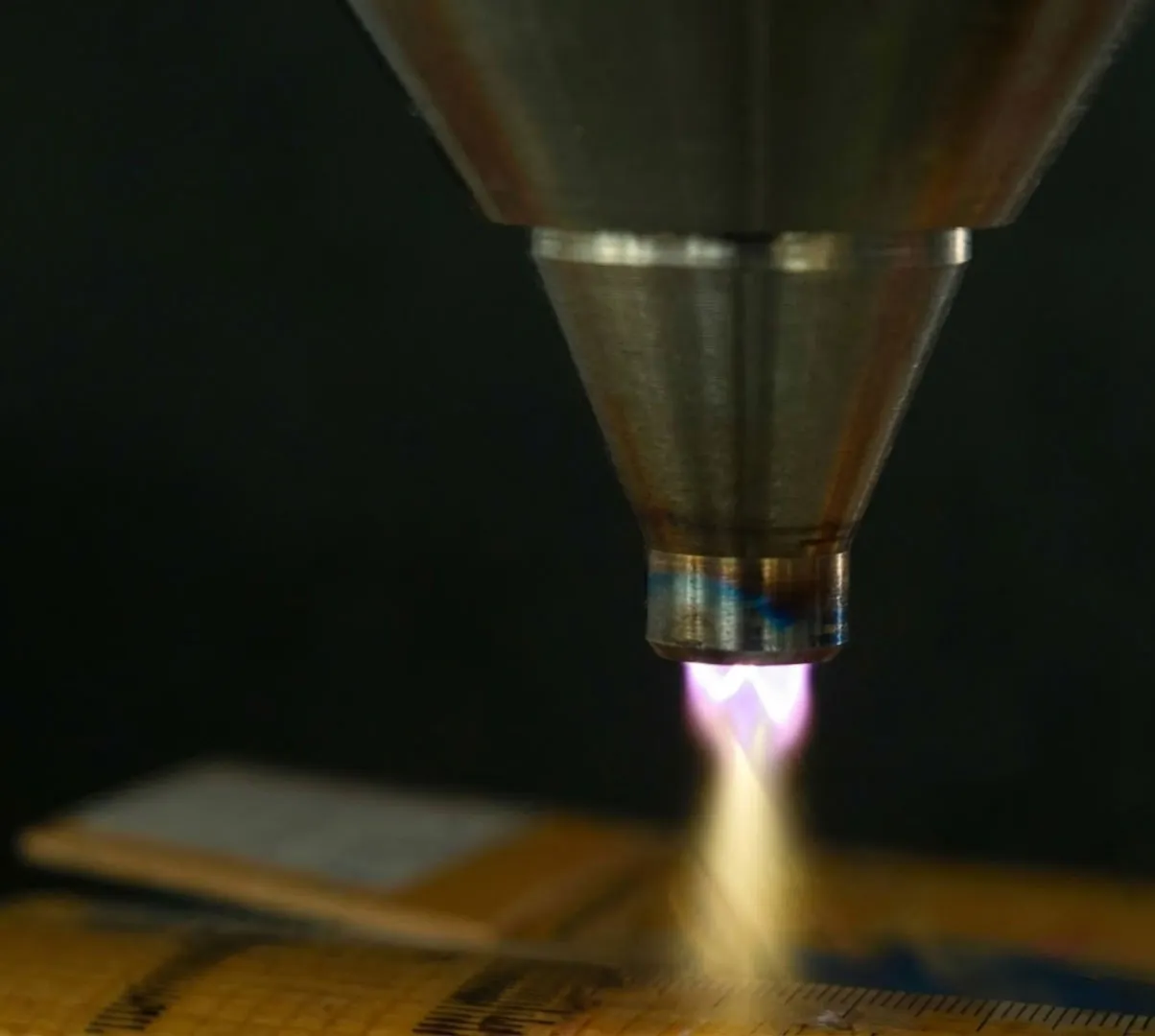

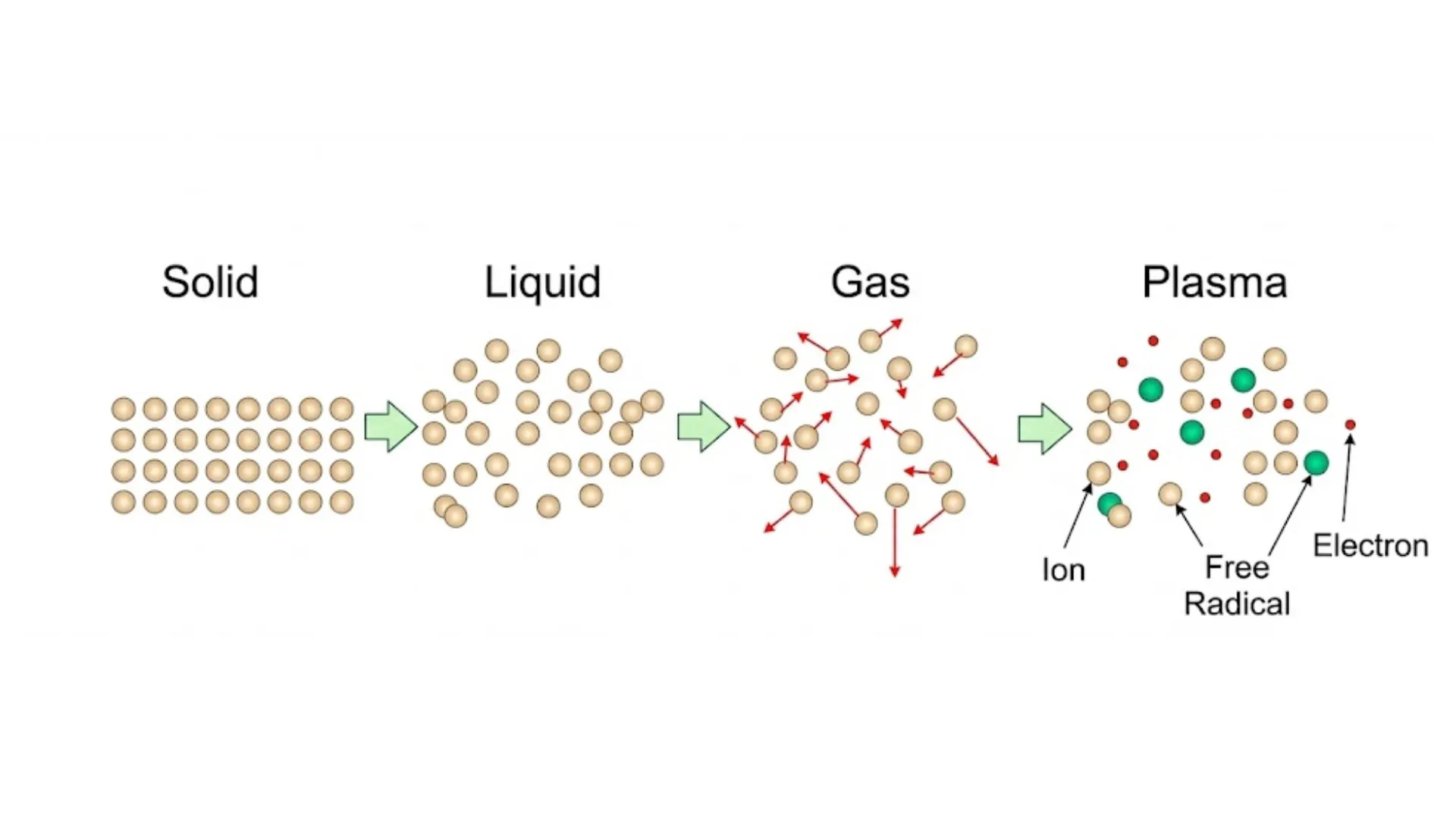

Plasma Surface Treatment Machine – ToronPlasma™ PS is a compact, high-performance corona treatment machine designed to modify surface energy at the molecular level using atmospheric plasma discharge. By applying high-frequency AC voltage across precision electrodes, the system ionizes ambient air to generate a stable plasma region, activating material surfaces for improved adhesion.
This corona treatment equipment transforms non-polar, low-energy surfaces into reactive, hydrophilic surfaces by introducing oxygen-containing functional groups. The result is a controlled and repeatable corona surface treatment process that significantly enhances bonding performance for coating, printing, and adhesive applications.
Engineered for laboratory and light industrial use, the PS Series combines safety, precision control, and compact design, making it ideal for R&D, pilot production, and quality verification environments.
Plasma Surface Treatment Machine – ToronPlasma™ PS Applications
The Plasma Surface Treatment Machine – ToronPlasma™ PS is widely used in applications requiring localized, high-precision surface activation:
- Plastic films, sheets, and molded polymer components
- Electronic components, PCBs, and semiconductor substrates
- Medical devices and laboratory consumables
- Automotive interior plastics and rubber parts
- Glass, ceramics, and composite materials
- Pre-treatment before printing, coating, bonding, or lamination
This corona treatment machine is especially effective where conventional flame or chemical treatment is unsuitable.
Plasma Surface Treatment Machine – ToronPlasma™ PS Key Features
- Atmospheric plasma-based corona surface treatment with no chemical additives
- High-frequency AC discharge for stable and uniform plasma generation
- Converts non-polar surfaces into hydrophilic, bond-ready surfaces
- Compact benchtop design for laboratory and pilot-scale use
- Precise voltage and power control for repeatable treatment results

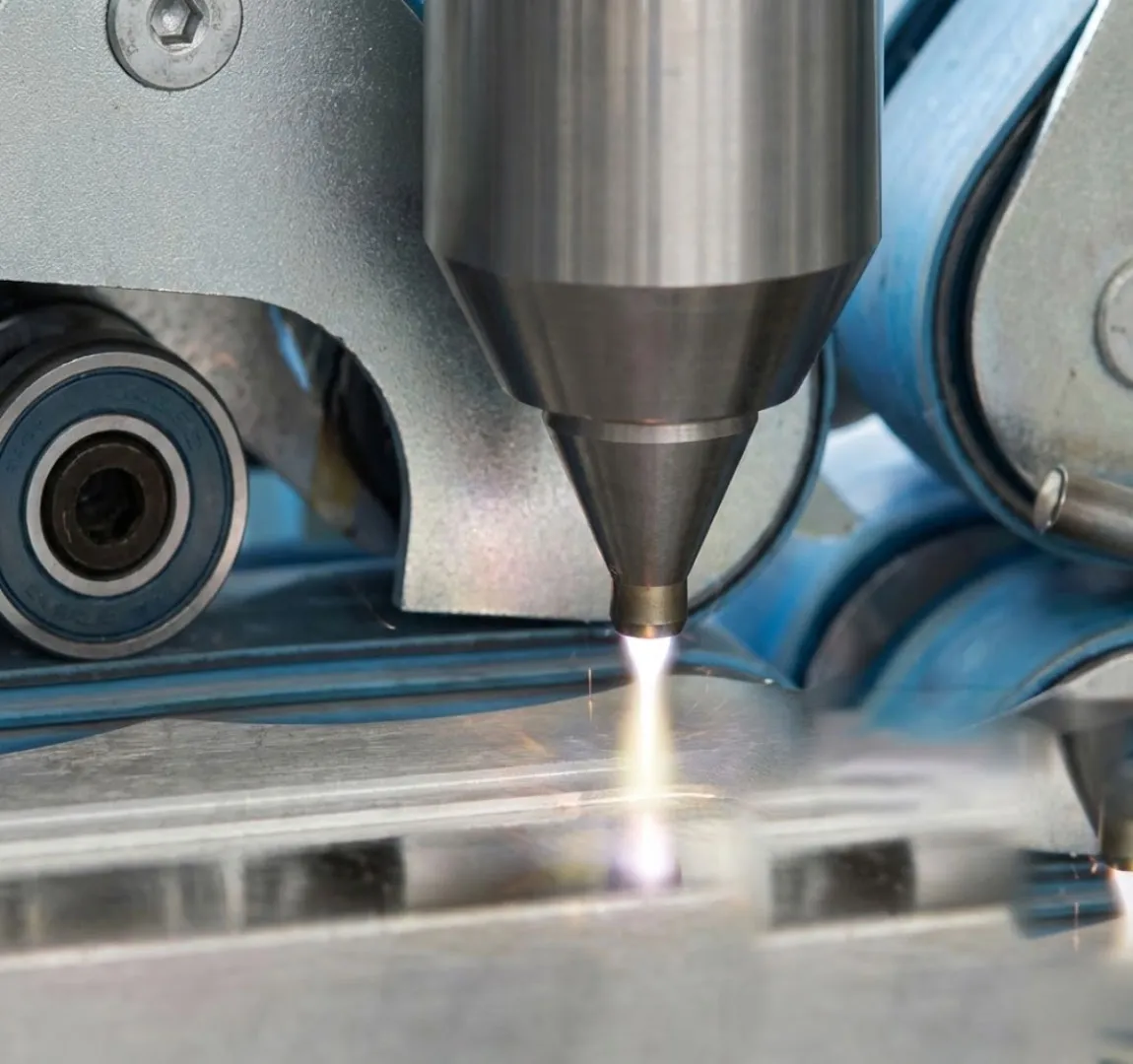

- Suitable for both metal and non-metal materials
- Fast treatment response with immediate surface activation
- Safe operation with enclosed discharge and insulated components
- Can clean and pro bonding of display screen glass terminals
- The control cabinet has four universal wheels, which are easy to move and can rotate 360 to push, saving effort and time.

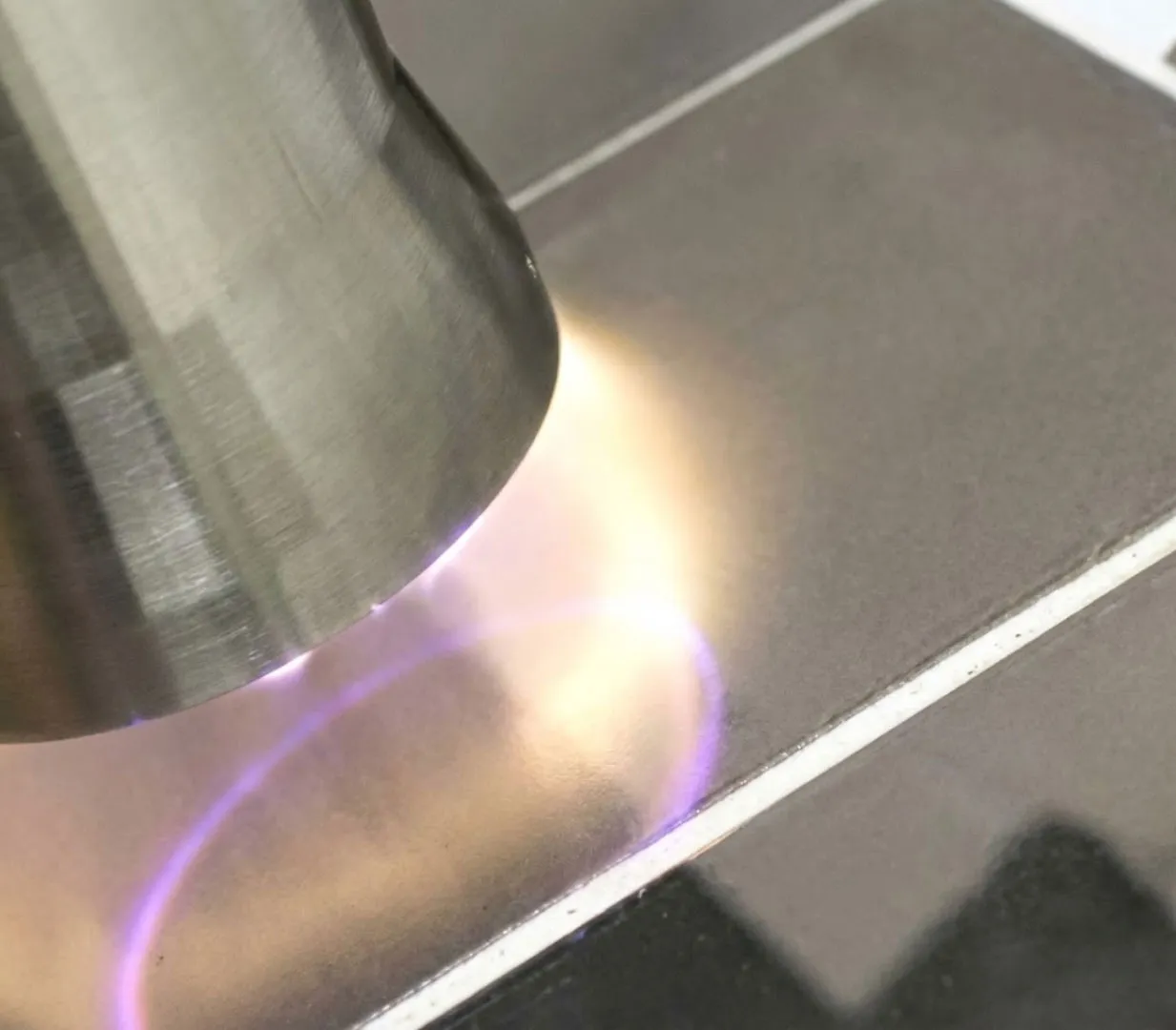

Capable for handling glass material
The control cabinet has four universal wheels, which are easy to move and can rotate 360 to push, saving effort and time
Cleaning and pre bonding of display screen glass terminals.
Plasma Surface Treatment Machine – ToronPlasma™ PS Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ToronPlasma™ PS |
| Input Voltage | AC 220V ±10%, 50/60Hz (110V is also available) |
| Power Interface | 10A / 250V |
| Working Frequency | 15 kHz – 35 kHz |
| Output High Voltage | 2 kV – 7 kV |
| Maximum Output Power | 1000 W |
| Maximum Power Consumption | ≤1100 W |
| Working Pressure Range | 0.05 MPa – 0.4 MPa |
| Air Source Requirement | Clean, dry compressed air |
| Plasma Discharge Length | Approx. 120 mm |
| Effective Treatment Width | Up to 60 mm |
| Adjustable Treatment Gap | Yes |
| Sample Thickness Range | 0 – 2.5 mm |
| Equipment Dimensions (L × W × H) | Approx. 500 × 250 × 300 mm |
| Weight | Approx. 15 kg |
| Operation Mode | Manual / Semi-automatic |
| Application Environment | Laboratory / R&D / Pilot Production |
