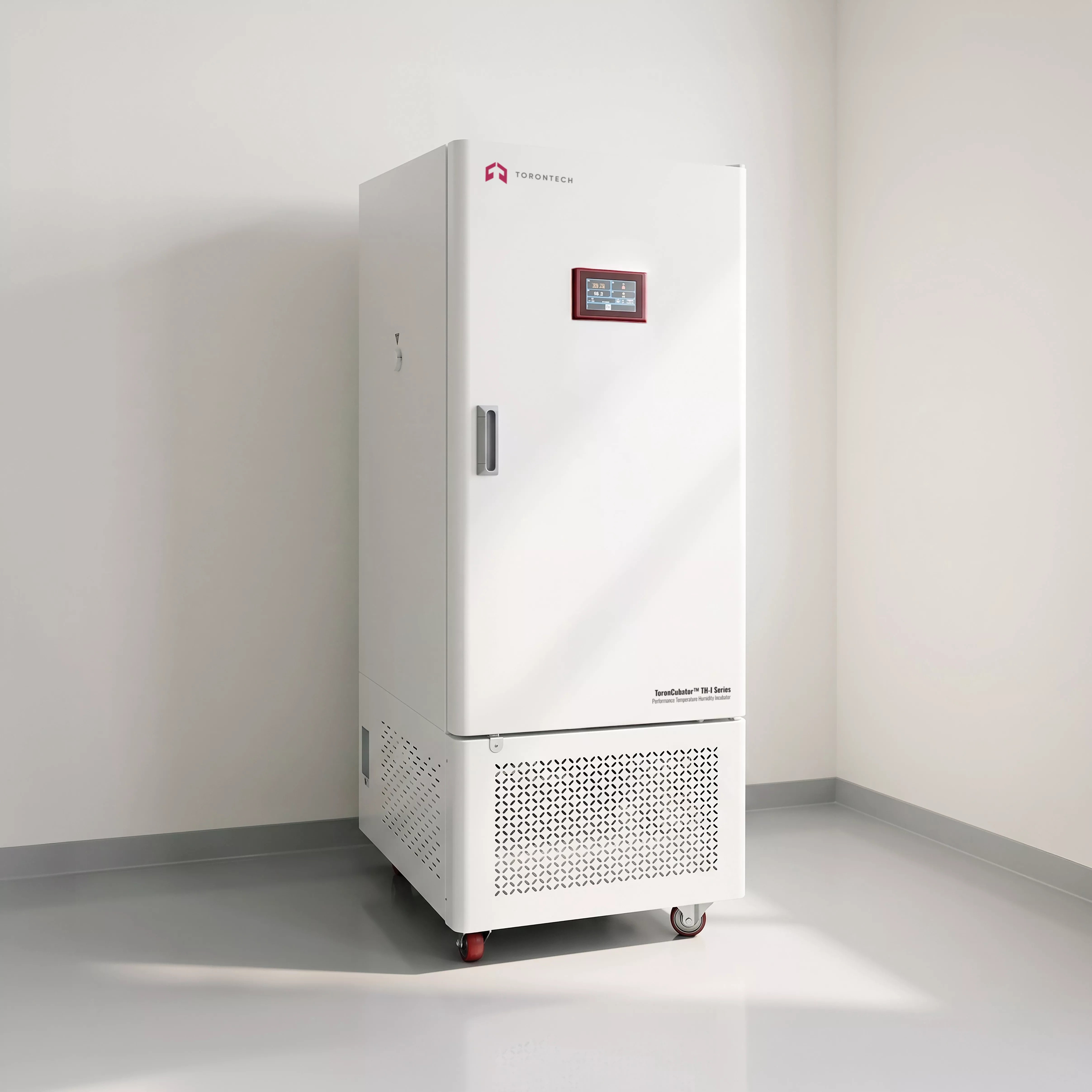

Performance Temperature Humidity Incubator — ToronCubator™ TH-I Series
ToronCubator™ TH-I is a high-performance Performance Temperature Humidity Incubator built for laboratories that require precise climate control, advanced programmability, and robust data security. This laboratory incubator combines a 4.3-inch color LCD touchscreen, the BRIGHT I intelligent control system, and a variable-frequency refrigeration unit to deliver stable, reproducible environmental conditions across a wide range of research and quality control applications.
The ToronCubator™ TH-I series spans six chamber capacities — 150 L, 250 L, 400 L, 800 L, 1000 L, and 1600 L — offering scalable solutions for benchtop research, pilot-scale testing, and large-volume storage protocols. As both a biochemical incubator and a mould incubator, the ToronCubator™ TH-I supports multi-phase programmed cycles with up to 30 segments and 99 repeatable loops. Data is stored internally for over five years without reliance on external SD cards, and multi-level password management adds an additional layer of access control for regulated environments.
Performance Temperature Humidity Incubator — ToronCubator™ TH-I Series Applications
The ToronCubator™ TH-I is designed to serve a broad range of laboratory, industrial, and research applications where temperature and humidity stability are required:
- Pharmaceutical Stability Testing — long-term and accelerated stability studies for drug substances, formulations, and biologics under ICH-defined conditions
- Microbiology and Biochemical Research — controlled incubation for bacterial, fungal, and enzymatic studies in life science laboratory incubators
- Mould and Fungi Cultivation — as a dedicated mould incubator, it supports standardized growth, inhibition, and antimicrobial efficacy testing
- Seed Germination and Agricultural Research — consistent temperature-humidity conditions for germination trials and crop science protocols
- Food Safety and Shelf-Life Testing — accelerated spoilage studies and microbiological challenge testing
- Environmental and Material Testing — corrosion testing, humidity-sensitive aging, and stress testing of electronic components and materials
- Quality Control Laboratories — routine product testing in pharmaceutical, chemical, and manufacturing environments
- Academic and Clinical Research — general-purpose laboratory incubators for multi-disciplinary research programs
Performance Temperature Humidity Incubator — ToronCubator™ TH-I Series Key Features
Control System and Interface
- 4.3-inch color LCD touchscreen for intuitive parameter entry and real-time status monitoring
- BRIGHT I intelligent control system with adaptive parameter management based on environmental feedback
- Programmable multi-segment operation: 30 segments per cycle, 99 repeatable cycles
- Internal non-volatile data storage retaining records for more than five years without SD card dependency
- Multi-level password management for access control in shared or regulated laboratory environments
Alarm and Safety Systems
The ToronCubator™ TH-I includes a comprehensive suite of protective functions:
- Over-temperature and over-humidity alarm
- Over-temperature automatic shutdown protection
- Door-open alarm
- Water shortage alarm with automatic water replenishment function
- Sensor fault alarm
- Overload and leakage protection
- Compressor over-temperature protection
- Water and power outage recovery function
Refrigeration and Temperature Control
- Variable-frequency refrigeration system for precise, energy-efficient temperature regulation
- Imported compressor and fan for reliable, long-term operation
- Temperature fluctuation at 25°C within ±0.5°C across all models
- Temperature uniformity within ±1°C (150–400 L) and ±1.5°C (800–1600 L) at 25°C
Humidity System
- Imported precision temperature and humidity sensor for accurate, responsive RH monitoring
- Humidity operating range: 25%–95% RH (150–400 L models); 30%–95% RH (800–1600 L models)
- Humidity fluctuation within ±3% RH (smaller models) and ±5% RH (larger models)
- Automatic water replenishment function with water shortage detection
Chamber and Door Design

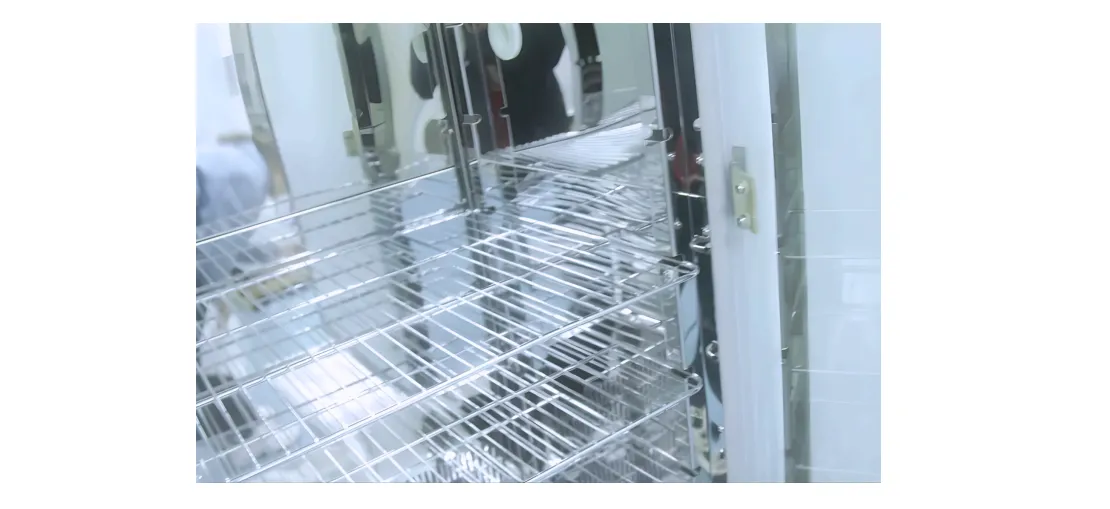

- Double-door design with inner observation glass panel for sample monitoring without chamber access
- Anti-fog system on the interior door glass for clear visibility during operation
- Test ports on both sides with 30 mm internal diameter for external sensor pass-through or cable routing
- Mechanical lock for chamber security
Optional Add-Ons
- Online monitoring platform for remote access and data logging
- GPRS SMS alarm notification for off-site alert delivery
- Embedded printer for on-site record generation
- UV sterilization light for chamber decontamination between runs
Theory and Method
The ToronCubator™ TH-I uses a closed-loop dual-parameter control architecture that manages temperature and relative humidity simultaneously and independently. The BRIGHT I intelligent control system continuously reads inputs from imported precision temperature and humidity sensors, then adjusts output from the heating, refrigeration, and humidification subsystems in real time to maintain target setpoints.
Temperature regulation is handled through a variable-frequency refrigeration system paired with electric resistance heating elements. Variable-frequency operation allows the compressor to modulate its output rather than cycling on and off at a fixed rate, resulting in tighter temperature control, reduced energy consumption, and extended compressor service life. A high-performance imported fan circulates conditioned air throughout the chamber to achieve spatial temperature uniformity within ±1°C at 25°C across the 150 L to 400 L models, and within ±1.5°C for the 800 L to 1600 L configurations.
Humidity management works through a sensor-driven humidification loop. The system monitors chamber RH and introduces moisture through an electric heating humidification mechanism, drawing from an automatically replenished internal water supply. The humidity range extends from 25% to 95% RH on smaller models and 30% to 95% RH on larger configurations, with fluctuation held within ±3% RH and ±5% RH respectively.
Programmed test profiles are structured as multi-segment sequences, with up to 30 configurable segments per cycle and up to 99 cycle repetitions. All program data and session states are stored in non-volatile internal memory, retaining records for more than five years without SD card dependency. Multi-level password access limits unauthorized parameter changes and protects data integrity in shared or regulated laboratory settings.
Performance Temperature Humidity Incubator — ToronCubator™ TH-I Series Technical Specifications
| Parameter | ToronCubator™ TH-150I | ToronCubator™ TH-250I | ToronCubator™ TH-400I | ToronCubator™ TH-800I | ToronCubator™ TH-1000I | ToronCubator™ TH-1600I |
|---|---|---|---|---|---|---|
| Volume (L) | 150 | 250 | 400 | 800 | 1000 | 1600 |
| Temp. Range Without Humidifying (°C) | 0–70 | |||||
| Temp. Range With Humidifying (°C) | 10–60 | |||||
| Temp. Resolution (°C) | 0.1 | |||||
| Temp. Fluctuation at 25°C (°C) | ±0.5 | |||||
| Temp. Uniformity at 25°C (°C) | ±1 | ±1.5 | ||||
| Humidity Range (% RH) | 25–95 | 30–95 | ||||
| Humidity Fluctuation (% RH) | ±3 | ±5 | ||||
| Power (W) | 1900 | 1950 | 2000 | 3500 | 3600 | 3700 |
| Timer Range (min) | 1–9999 | |||||
| Internal Dimensions W×D×H (mm) | 510×390×760 | 510×450×1090 | 600×640×1050 | 1220×585×1123 | 1363×670×1123 | 1363×800×1500 |
| External Dimensions W×D×H (mm) | 650×820×1400 | 650×880×1724 | 745×1070×1695 | 1362×1068×1789 | 1362×1168×1789 | 1562×1238×2039 |
| Number of Baskets (Std./Max.) | 3/4 | 4/7 | 4/7 | 8/16 | 8/16 | 8/16 |
| Net Weight / Gross Weight (kg) | 106/122 | 123/153 | 153/185 | 288/344 | 340/390 | — |
| Package Size (mm) | 790×1000×1610 | 790×1210×1930 | 890×1250×1900 | 1510×1250×2010 | 1510×1400×2010 | 1710×1490×2250 |
