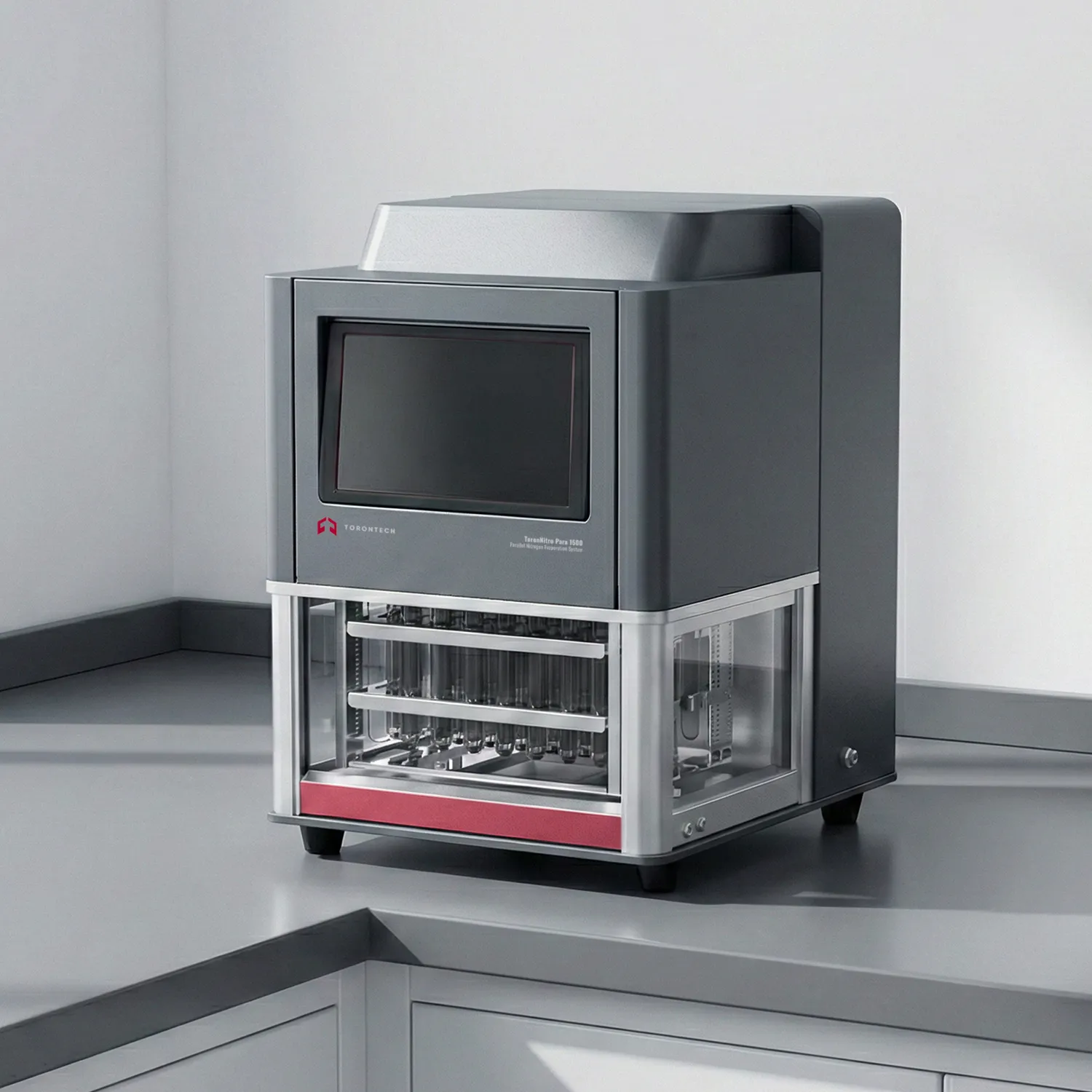

Parallel Nitrogen Evaporation System – ToronNitro™ Para 1500 (Automated)
Parallel Evaporation System performance often decides how fast your lab can report results. ToronNitro™ Para 1500 (Automated) is a high-throughput nitrogen blowdown concentrator that combines water-bath heating with parallel nitrogen evaporation to concentrate extracts with strong batch-to-batch consistency. The system includes needle-following (liquid-level tracing) to keep the needle tip at an efficient working distance during the run. Positive-pressure nitrogen coverage above each sample helps limit oxygen and moisture contact during evaporation.
ToronNitro™ Para 1500 is built for productivity upgrades, taking the core workflow of earlier high-capacity concentrators and adding easier monitoring and improved usability. A three-sided transparent viewing area helps operators watch progress without interrupting the run. A built-in touchscreen simplifies method setup, run control, and day-to-day operation.
Parallel Nitrogen Evaporation System – ToronNitro™ Para 1500 (Automated) Applications
Environmental testing and monitoring
Water, soil, and gas-related samples often require concentration before GC/LC analysis. ToronNitro™ Para 1500 supports parallel evaporation for environmental extracts to help labs maintain throughput during busy schedules.
Food safety and residue analysis
Pesticide and veterinary drug residue testing frequently needs a consistent solvent-reduction step after extraction and cleanup. This Parallel Evaporation System helps standardize concentration across a full rack, which supports repeatability and reduces operator rework.
Biochemical, pharmaceutical, and materials workflows
Many analytical methods depend on controlled concentration before downstream measurement. ToronNitro™ Para 1500 supports multi-sample evaporation for biochemical analysis, pharmaceutical sample prep, and polymer materials testing.
Parallel Nitrogen Evaporation System – ToronNitro™ Para 1500 (Automated) Key Features
- High-throughput parallel evaporation
- Simultaneously evaporates up to 80 samples to support large-batch sample preparation.

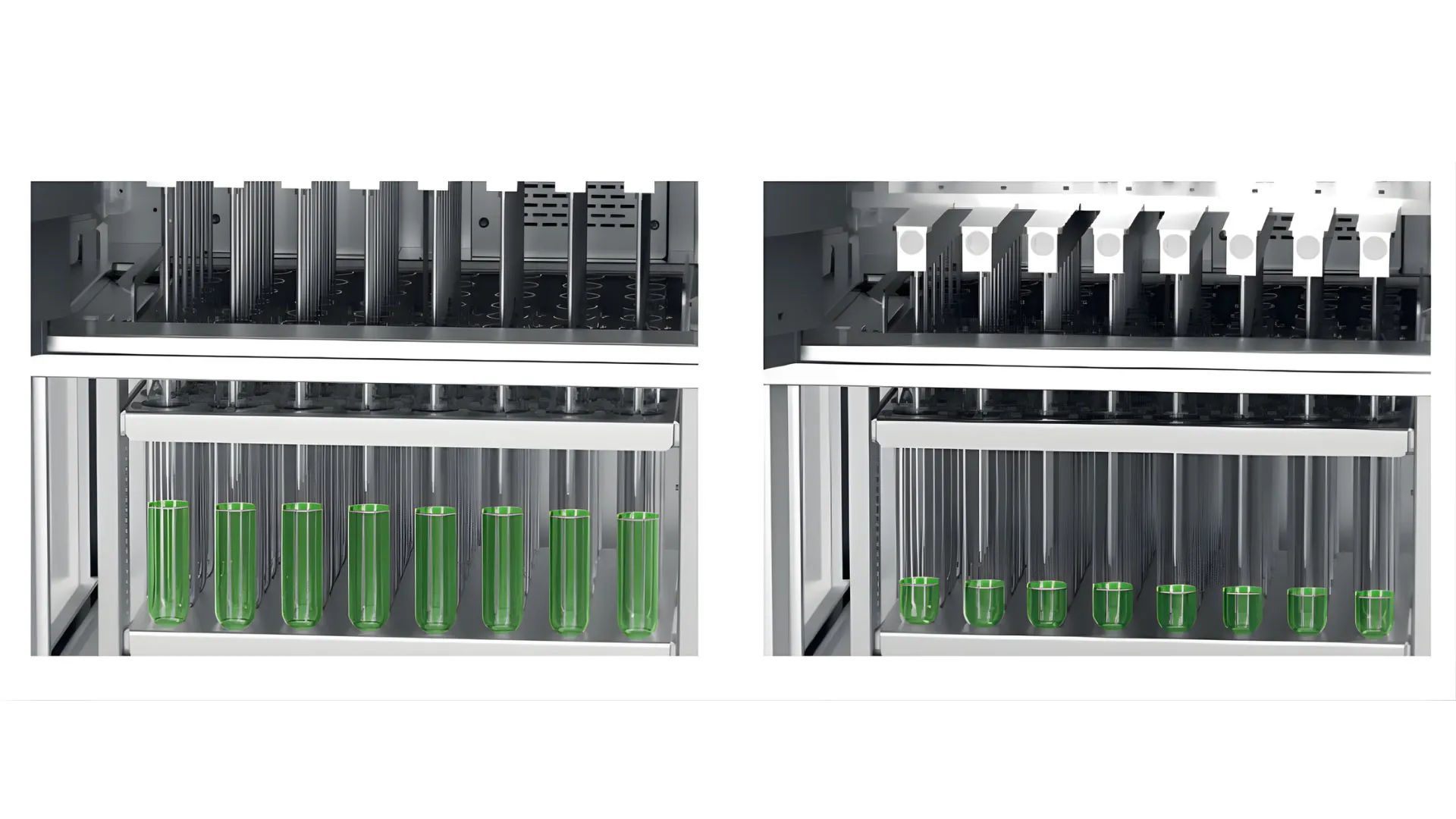

- Liquid-level needle tracing
- Needle following maintains an efficient distance from the liquid surface for stable, consistent concentration across all positions.
- Multi-channel gas control
- Each channel’s gas flow can be controlled individually to match method needs and sample variability.
- Uniform nitrogen blowdown design
- High-strength, diameter-reduction needles help center the needle tips in tubes, while consistent inner diameter across tips supports uniform flow from position to position.

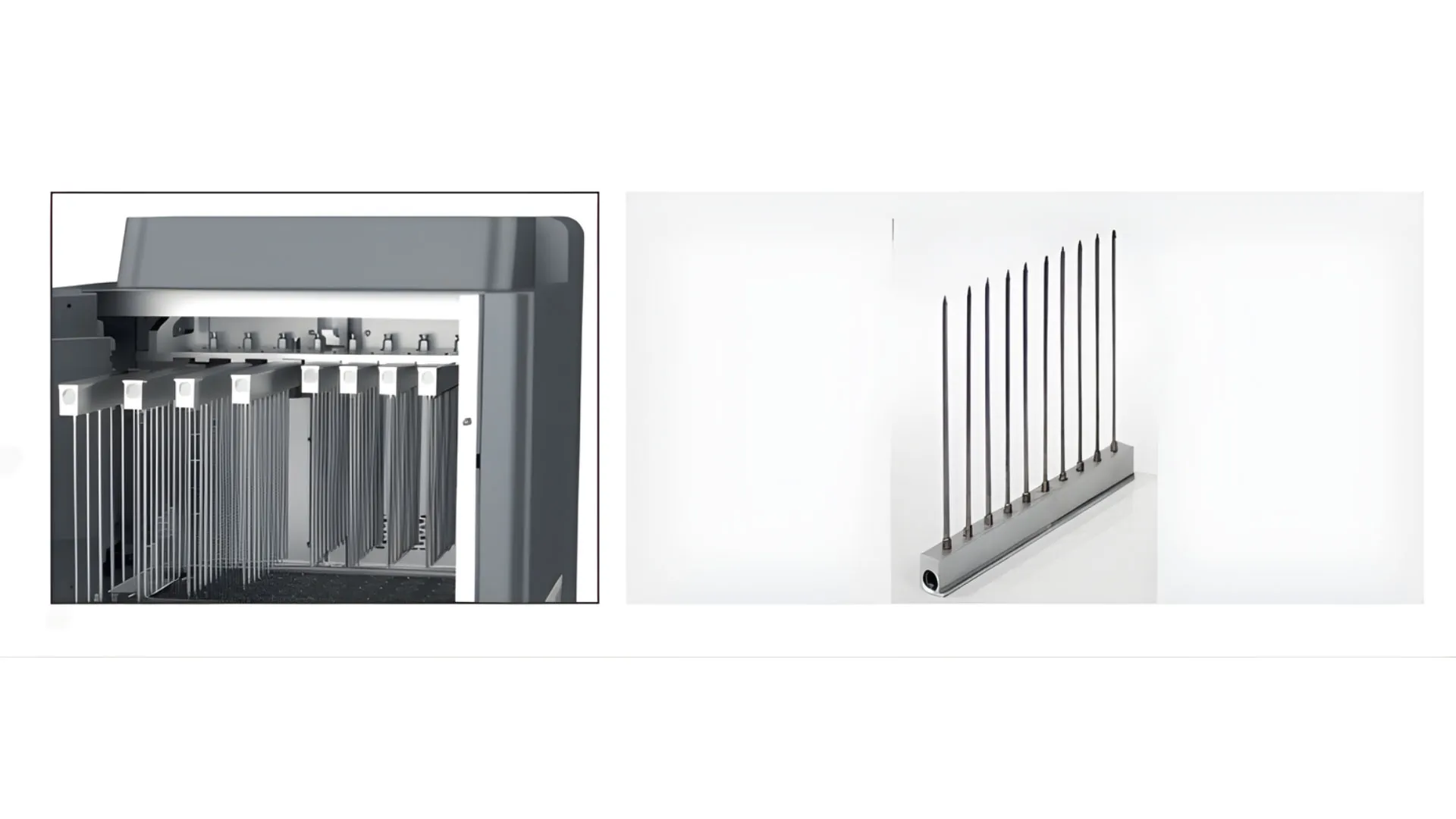

- Quick-disassembled needle set
- Nitrogen blowing needles remove quickly for easier cleaning and faster changeovers between runs.
- Three-sided transparent water-bath viewing
- A three-sided transparent window maximizes visibility of the rack for observation and monitoring.
- Touchscreen operation and fast needle lift
- Built-in touchscreen control supports straightforward operation, plus rapid lifting of the blowing needle for quicker handling.
- Automation-friendly rack transfer
- Interchangeable racks can be compatible with automated SPE collection racks, helping reduce repetitive manual transfers.
- Comprehensive safety protection
- Built-in exhaust with active exhaust piping helps reduce exposure risk. Separated nitrogen and heating modules improve operator safety. Automatic air-source pressure monitoring, low-pressure shutdown, and alarms for insufficient water and dry heating support safer unattended runs.
- Optional automated nitrogen generator
- An optional nitrogen generator can provide continuous nitrogen supply for evaporation workflows, reducing dependence on cylinder changes
Multi-channel design
- Individually control to gas flow of each channel
- Quick-disassembled nitrogen blowing needle, easy to clean and use, greatly improves user experience
Good parallelism of nitrogen blowdown
- Utilize high-strength diameter-reduction nitrogen blowing needles allowing the needle tips at the centre of sample tubes
- Each nitrogen blowing needle tip has the same inner diameter, ensuring same flow rate of each needle tip, to provide good consistency for sample evaporation

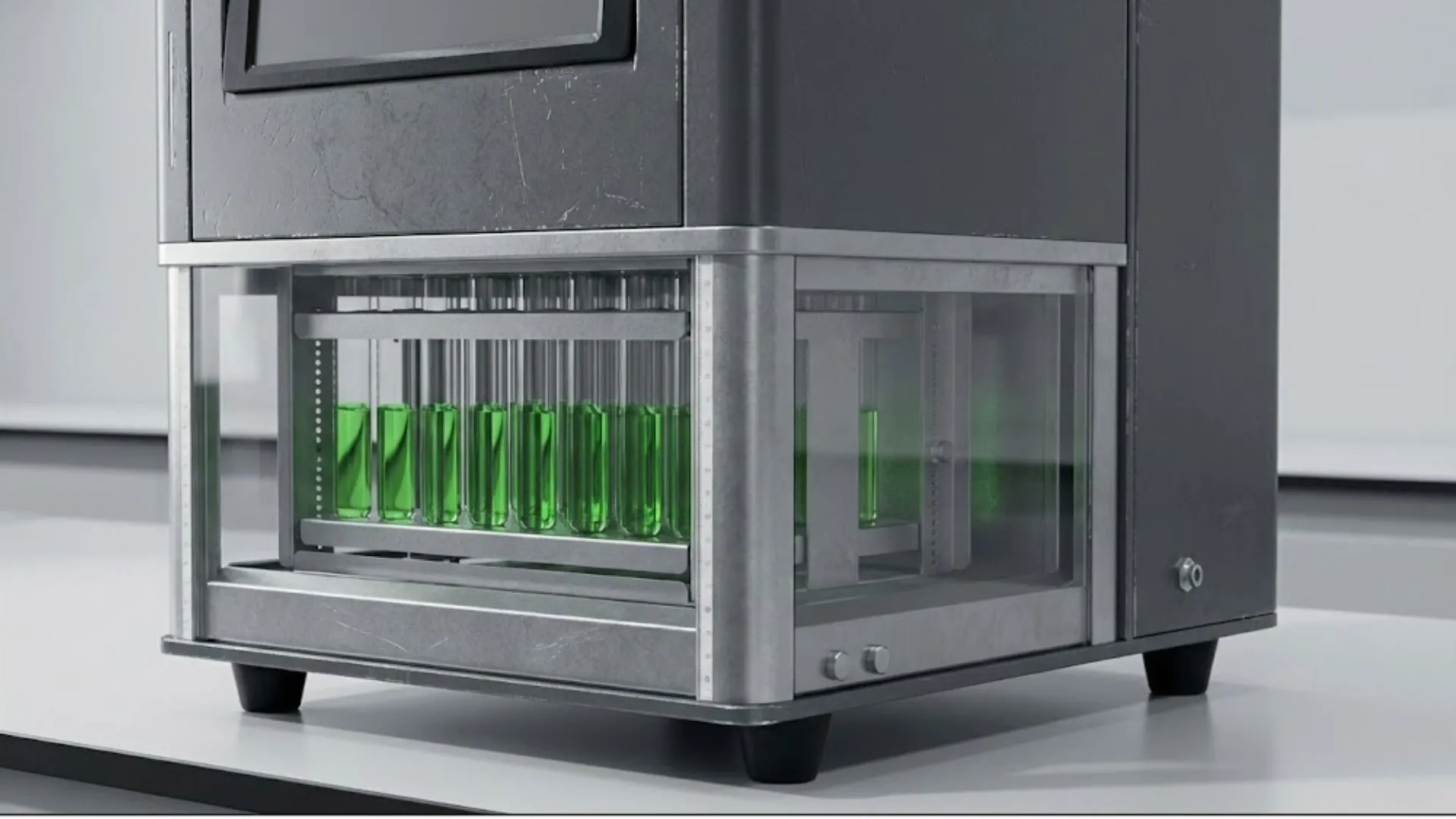

Transparent water bath sink
- Three-sided transparent glass window, to maximize viewing area to sample rack for clear observation and monitoring.
Parallel Nitrogen Evaporation System – ToronNitro™ Para 1500 (Automated) Technical Specifications
| Parameter | Specification |
|---|---|
| Concentration | Water bath heating and nitrogen blowing |
| Nitrogen channel | 8 |
| Sample capacity | 80, 48 |
| Sample vials | 10 to 100 mL |
| Range of flow rate | 0 to 3.0 L/min, precise to 0.1 L/min |
| Software interface | 10-inch built-in touch screen |
| Dimensions | 40 cm × 48 cm × 54 cm |
| Weight | 48 kg |
| Voltage | 200 to 240 V, 50/60 Hz (110V is also available) |
| Power rate | 1500 W |
| Fume hood/ventilation | Required |
| Storage temperature | 0 to 40°C |
| Storage humidity | 20 to 85% |
| Operating temperature | 10 to 40°C |
| Operating humidity | 20 to 80% |
