Nitrogen Evaporation System – ToronNitro™ Beta 1500
Nitrogen Evaporation System – ToronNitro™ Beta 1500 (Automated)
Nitrogen Evaporation System workflows often become the bottleneck right before GC or LC analysis. ToronNitro™ Beta 1500 (Automated) is a nitrogen blowdown concentrator that evaporates up to 12 samples in parallel with automated end-point detection for controlled final volume.

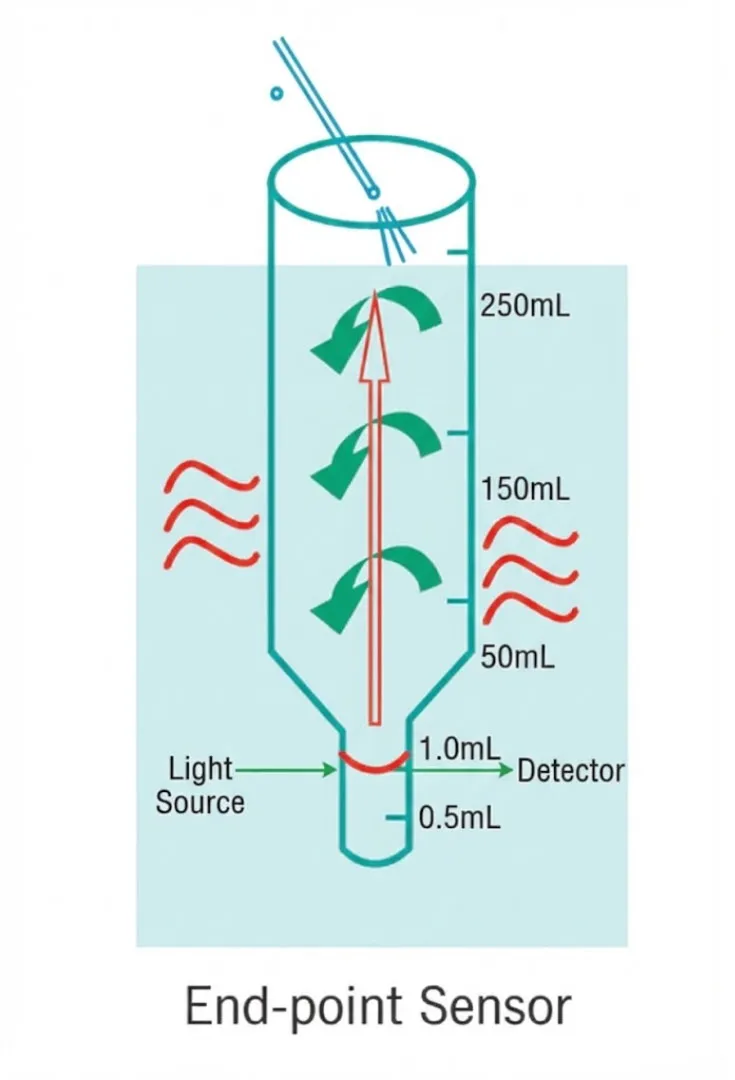

It uses vortex airflow technology with gentle, uniform heating to drive fast evaporation while keeping batch results consistent.End-point sensing supports predefined residual volumes using 0.5 mL or 1.0 mL end-point stems, which helps reduce over-drying and rework.
Nitrogen Evaporation System – ToronNitro™ Beta 1500 (Automated) Applications
Food and beverage testing
Use it to concentrate extracts before pesticide or residue screening. Parallel processing supports busy labs that need repeatable evaporation across multiple samples in one run.
Water and environmental analysis
Concentrate liquid samples from water and environmental workflows prior to instrumental analysis. Automated endpoint control helps standardize the final volume across batches.
Agriculture, pharma, and life science sample prep
Support concentration steps for agricultural testing, pharmaceutical sample prep, and life science research where controlled solvent removal is required before downstream measurement.
Nitrogen Evaporation System – ToronNitro™ Beta 1500 (Automated) Key Features
- 12-sample automated parallel evaporation with end-point detection for consistent finishing volume.
- Vortex airflow plus gentle, uniform heating for rapid evaporation without aggressive boiling.
- Selectable end-point stems for 0.5 mL or 1.0 mL residual volume control.
- Independent nozzle-row control with adjustable airflow and a flow-rate gradient option as volume decreases.

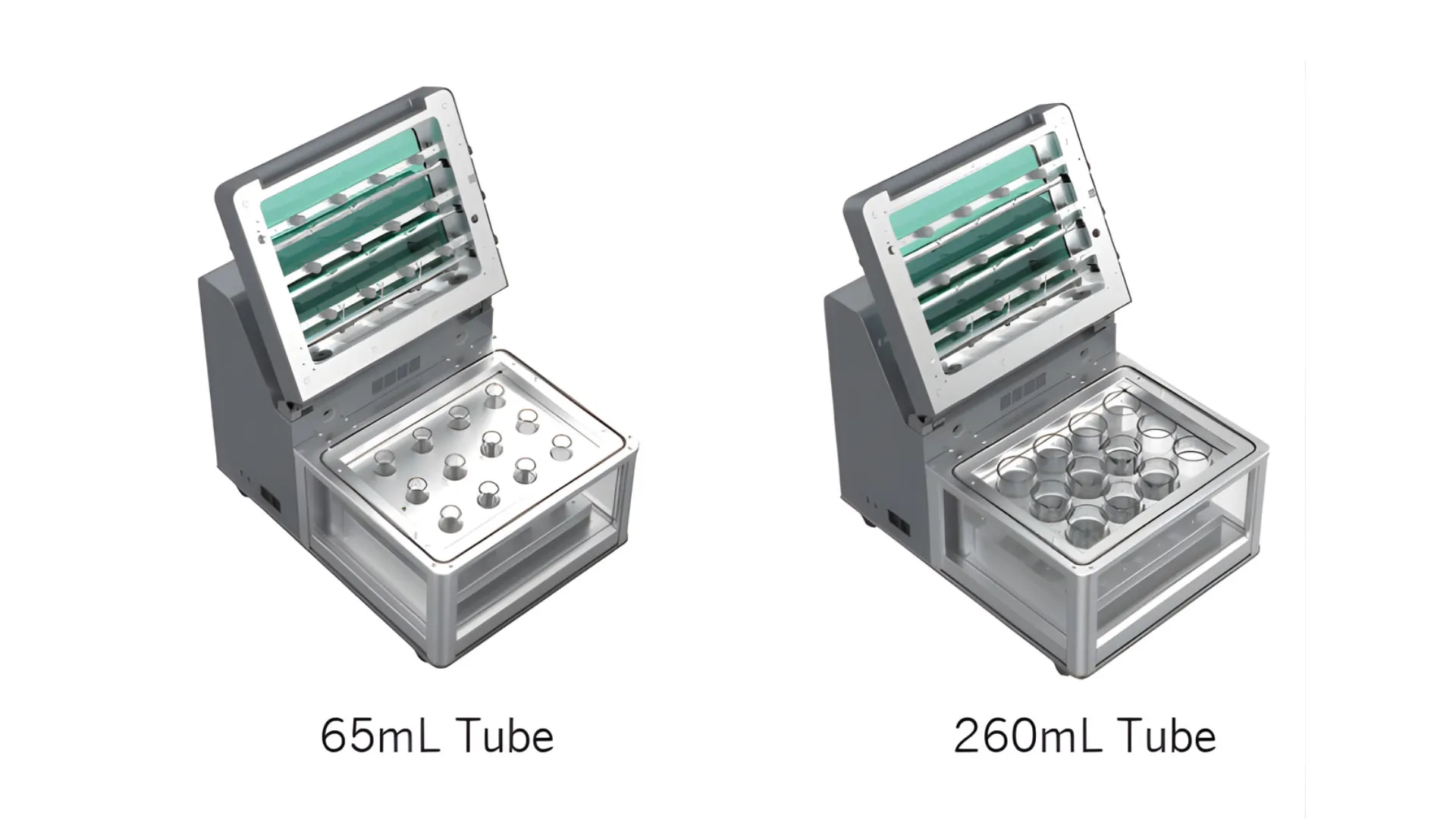

- Flexible nozzle angles to match multiple tube types, commonly 65 mL and 260 mL tubes.
- Automatic water supply and drain to simplify water-bath handling and speed sample changeover.
- Three-sided transparent windows with internal lighting for clearer process visibility during evaporation.
- Touchscreen interface for airflow and temperature control, including individual tube control.

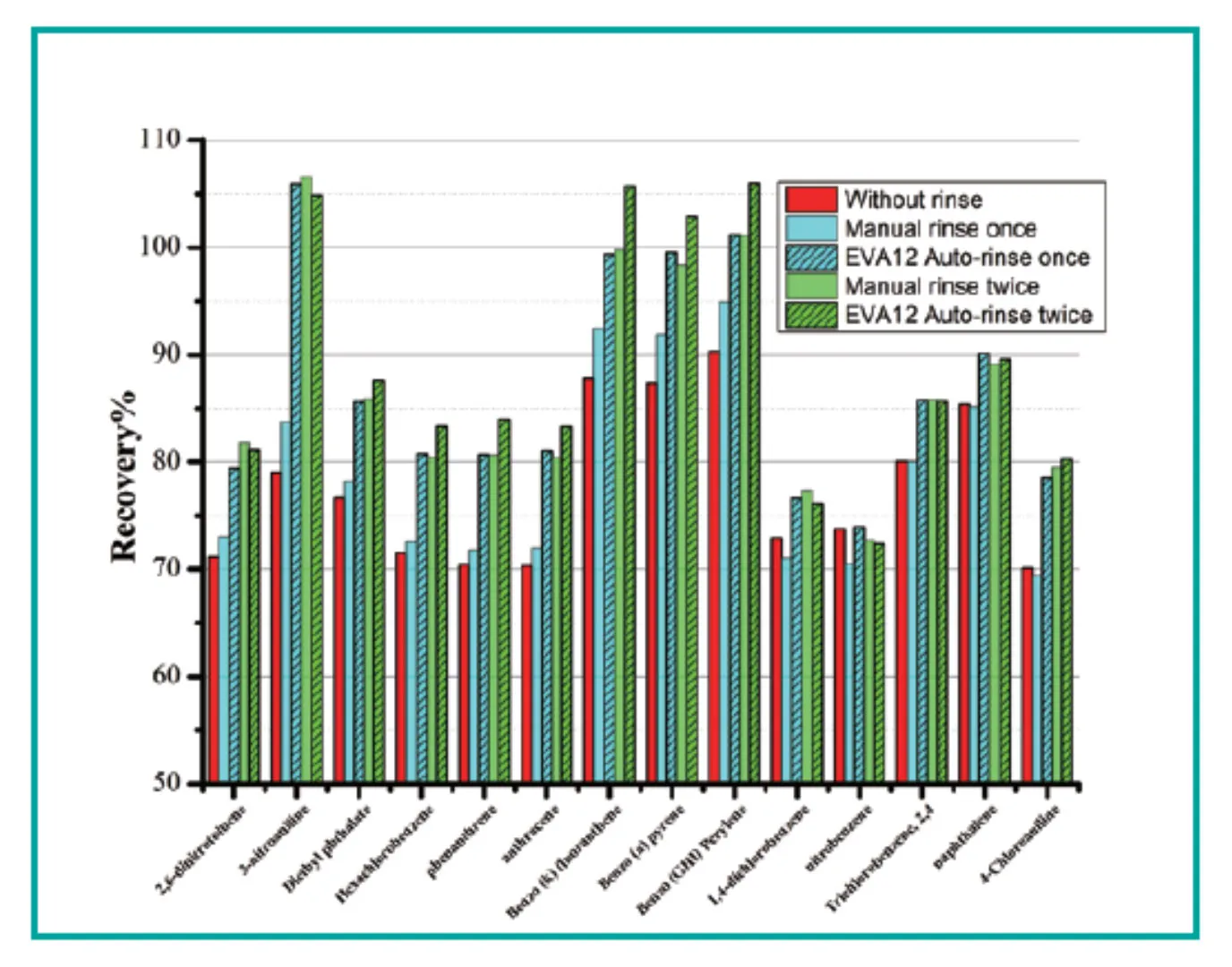

- Automatic “sprinkler” rinsing mode to improve recovery, designed for mid-run or endpoint rinsing. Reported recovery improvement is 10–15% versus no rinsing or manual rinsing.
Flexible
- The nozzles can be adjustable for left and right angles blowing, which is compatible with a variety of sample tubes.
- It is commonly used for 65mL and 260mL tubes.
- The system can automatically supply and drain water, quickly exchange the sample in the water bath;
Good visibility
- Three-sided transparent glass windows with internal light greatly improves the visibility of the process of nitrogen blowing and concentration.
Nitrogen Evaporation System – ToronNitro™ Beta 1500 (Automated) Technical Specifications
| Parameter | Specification |
|---|---|
| Concentration | Water bath heating and nitrogen blowing |
| Sample capacity | 12 |
| Range of concentration temperature | Room temperature to 60°C |
| Sample vials | 60 mL, 250 mL stemmed glass tubes for endpoint detection |
| Endpoint detection | 1.0 mL, 0.5 mL |
| Range of gas flow rate | 0 to 5.0 L/min, precise to 0.1 L/min |
| Software interface | 10-inch built-in screen |
| Dimensions | 58 cm × 46 cm × 56 cm |
| Weight | 41 kg |
| Voltage | 200 to 240 V, 50/60 Hz (110V is also available) |
| Power rate | 1500 W |
| Fume hood/ventilation | Required |
| Storage temperature | 0 to 40°C |
| Storage humidity | 20 to 85% |
| Operating temperature | 10 to 40°C |
| Operating humidity | 20 to 80% |
