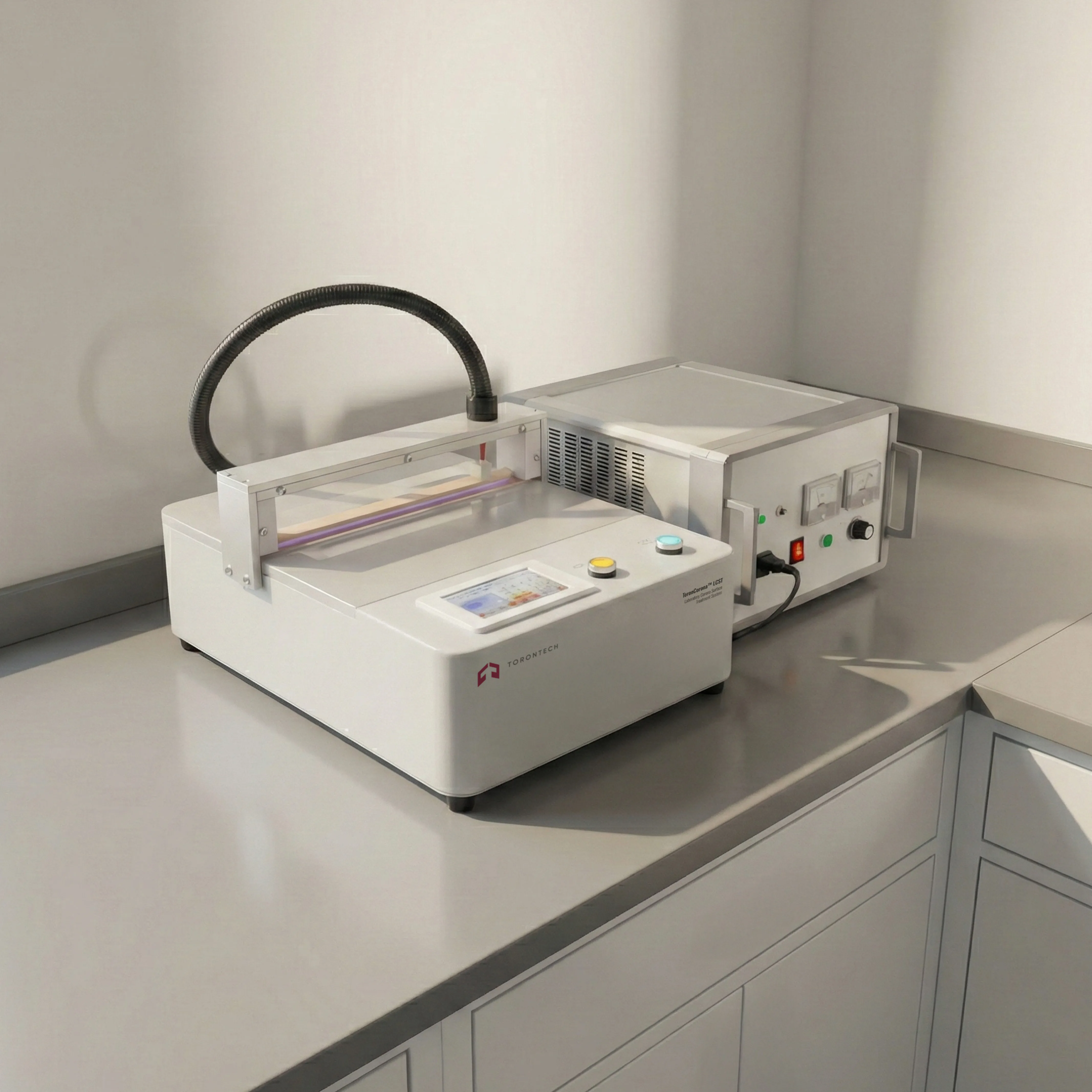

Laboratory Corona Surface Treatment System – ToronCorona™ LCST
Laboratory Corona Surface Treatment System – ToronCorona™ LCST is a compact and high-precision corona treatment machine designed for laboratory evaluation, material development, and small-scale testing.
This corona treatment equipment enables controlled corona surface treatment of both metallic and non-metallic materials, allowing users to rapidly assess surface activation, adhesion improvement, and wettability changes before full-scale production.
Engineered for safety, simplicity, and repeatability, the HD Series supports thin material processing while delivering stable and uniform discharge performance in laboratory environments.
Laboratory Corona Surface Treatment System – ToronCorona™ LCST Applications
- Material R&D and Surface Evaluation – Verifies surface activation effects on films, foils, and sheets before industrial production.
- Adhesion and Wettability Testing – Improves and evaluates ink, coating, and adhesive bonding performance after corona surface treatment.
- Thin Material Processing – Suitable for laboratory treatment of samples with thicknesses from 0 to 2.5 mm.
- Metal and Non-Metal Treatment – Handles plastics, polymers, paper, aluminum foil, and composite materials.
- Process Validation – Enables fast inspection of treatment results and dyne level performance under controlled conditions.
Laboratory Corona Surface Treatment System – ToronCorona™ LCST Key Features
- Laboratory-Grade Corona Surface Treatment
- Provides stable, low-power corona discharge optimized for research and testing environments.
- Wide Material Compatibility
- Effectively treats both conductive and non-conductive materials, including metals and polymers.
- Thin Sample Capability
- Supports materials with thicknesses from 0 to 2.5 mm, ideal for films and sheets.
- Safe and Simple Operation
- Designed with enhanced safety protection and intuitive controls for laboratory users.
- Rapid Effect Verification
- Allows quick visual and functional evaluation of surface treatment results after processing.
- Compact Laboratory Footprint
- Space-saving design suitable for benchtop or stand-mounted laboratory installations.
Laboratory Corona Surface Treatment System – ToronCorona™ LCST Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ToronCorona™ LCST |
| Input Voltage | 220 V ±10%, 50/60 Hz (110V is also available) |
| Working Frequency | 15 – 30 kHz |
| Output High Voltage | 18 – 35 kV |
| Output Power | ≤ 600 W |
| Maximum Power Consumption | ≤ 1200 W |
| Treatable Material Thickness | 0 – 2.5 mm |
| Effective Treatment Width | 30 mm – 150 mm |
| Discharge Electrode Length | ≤ 120 mm |
| Processing Capability | Metal and non-metal materials |
| Operation Mode | Manual / Laboratory test platform |
| System Weight | Approx. 15 kg |
