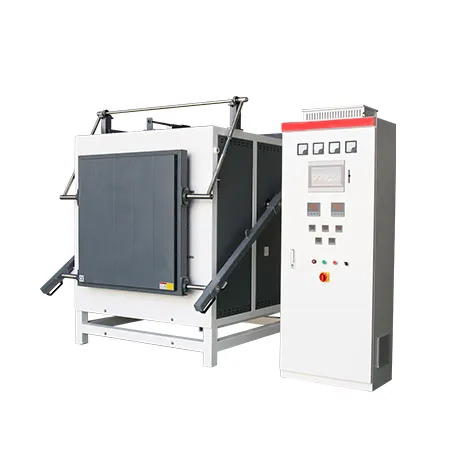

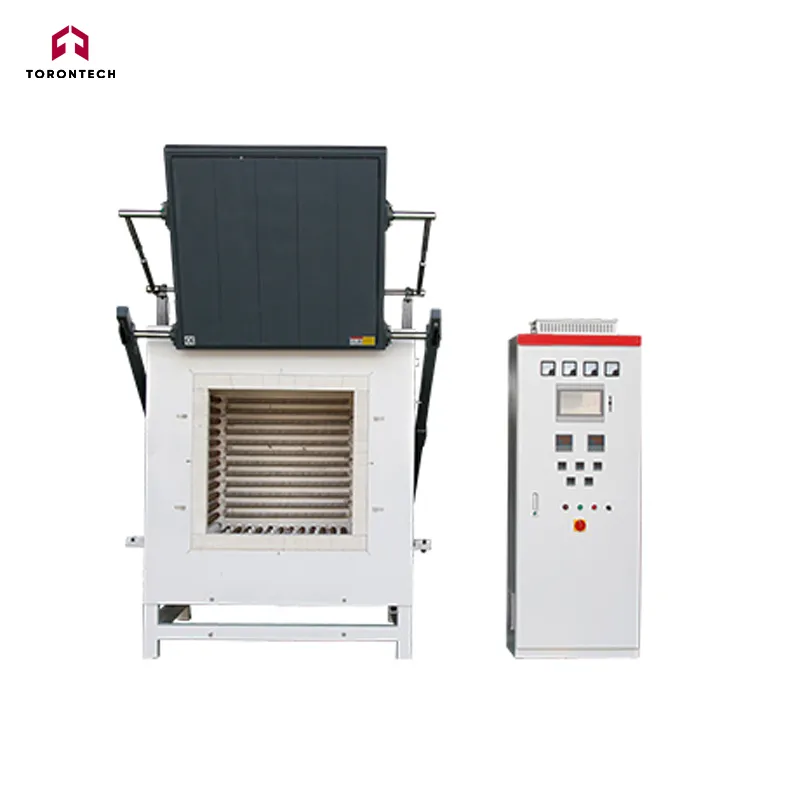

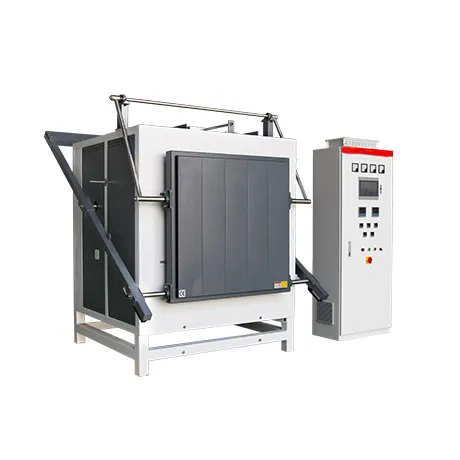

Industrial Furnace – TT-IF-512-1200E
The TT-IF-512-1200E is a 1200°C manual-door industrial furnace designed for a wide range of heat treatment processes, including quenching, tempering, normalizing, and annealing of metal components. It is also suitable for sintering non-metallic ceramic materials, making it an excellent choice for laboratories, research institutes, and industrial facilities requiring pilot testing or small-scale production.
This model is built with a large 512-liter chamber capacity, providing flexibility for processing bigger batches while maintaining efficiency and reliability. The furnace operates continuously at 1100°C and can reach a maximum temperature of 1200°C, ensuring consistent thermal performance across demanding applications.
Powered by a 380V supply, the TT-IF-512-1200E is equipped with high-quality HRE heating elements that deliver stable, uniform heating and long-lasting durability. Its temperature control system utilizes an N-type thermocouple with a precision of ±1°C, ensuring accurate measurement and dependable repeatability for all thermal processes.
Metal Heat Treatment - Enables quenching, tempering, normalizing, and annealing of steel, alloys, and other metallic components. Provides reliable and uniform heat distribution essential for mechanical strength, hardness, and microstructure control.
Ceramic Sintering - Supports high-temperature sintering of non-metallic ceramic materials. Ensures structural densification, thermal resistance, and durability, making it suitable for advanced ceramic research and production.
Aerospace Materials Engineering - Facilitates heat treatment of high-performance alloys and composites used in aerospace applications. Guarantees consistent thermal stability and validation of material strength under demanding conditions.
Automotive Component Manufacturing - Ideal for treating engine parts, gears, and structural components. Ensures precise hardness and durability required in automotive production and testing.
Tool and Die Processing - Provides controlled heating cycles for molds, dies, and cutting tools. Improves wear resistance, dimensional stability, and operational lifespan in industrial environments.
Energy and Power Industries - Suitable for processing heat-resistant alloys and ceramics used in turbines, power generation equipment, and battery materials research. Ensures repeatability and reliability in energy-focused applications.
Universities and Research Institutes - A valuable tool for academic and industrial laboratories conducting studies in metallurgy, materials science, and ceramics. Offers flexible programming, safety features, and dependable results for R&D.
Industrial Quality Assurance - Delivers accurate, repeatable thermal processing for product validation, compliance testing, and certification. Conforms with international quality standards including ISO, CE, SGS, and TÜV.
Furnace Shell
- The shell is constructed from Q235 low-carbon steel and features an electrostatic, corrosion-resistant surface.
- It has a durable metal frame design that keeps the external surface temperature low.
- A side-opening door with a fixed left hinge ensures smooth and safe operation.
Refractory
- The furnace includes a multi-layer insulation system with double-layer lightweight refractory brick lining.
- Its high-strength, interlocking structure ensures excellent durability.
- Asbestos-free materials reduce heat loss and improve energy efficiency.
Heating System
- Uses high-quality HRE spiral resistance wires mounted on ceramic support tubes, delivering efficient, radiation-based heating within the chamber—designed for energy savings and extended service life.
- Heats from three sides (left, right, and bottom) to ensure even temperature distribution.
- The silicon carbide base plate shields the bottom heating element, offering strong mechanical support, high thermal conductivity, and horizontal load capacity.
Temperature Control Panel
- Features a PID controller with SCR output for accurate temperature regulation.
- Equipped with an international-standard N-type nickel-chromium-silicon thermocouple (0–1300 °C range) for reliable long-term performance.
- Includes a safety switch that cuts power when the furnace door is opened.
Program Controller
- Advanced controller supports complex process requirements.
- User-friendly interface for easy and flexible programming.
- Supports up to 30 programmable segments for custom temperature profiles.
- Built-in over-temperature and fault alarms for enhanced safety.
- Optional features include manual air intake and automatic exhaust venting.
- A rapid cooling system (optional) is available for cooling the chamber to below 400 °C quickly.
| Model | Chamber size（mm） | Volume | Rated Temperature | Working temperature | Voltage | Power | Heating Element | Temp control Accracy |
| TT-IF-45-1200 | 300×500×300 | 45L | 1200℃ | 1100℃ | 380V | 12KW | HRE | ±1℃ |
| TT-IF-64-1200 | 400×400×400 | 64L | 1200℃ | 1100℃ | 380V | 15KW | HRE | ±1℃ |
| TT-IF-80-1200 | 400×500×400 | 80L | 1200℃ | 1100℃ | 380V | 15KW | HRE | ±1℃ |
| TT-IF-96-1200 | 400×600×400 | 96L | 1200℃ | 1100℃ | 380V | 18KW | HRE | ±1℃ |
| TT-IF-100-1200 | 400×530×460 | 100L | 1200℃ | 1100℃ | 380V | 18KW | HRE | ±1℃ |
| TT-IF-150-1200 | 450×530×590 | 150L | 1200℃ | 1100℃ | 380V | 24KW | HRE | ±1℃ |
| TT-IF-200-1200 | 500×530×720 | 200L | 1200℃ | 1100℃ | 380V | 27KW | HRE | ±1℃ |
| TT-IF-300-1200 | 550×700×780 | 300L | 1200℃ | 1100℃ | 380V | 45KW | HRE | ±1℃ |
| TT-IF-450-1200 | 600×750×1000 | 450L | 1200℃ | 1100℃ | 380V | 50KW | HRE | ±1℃ |
| TT-IF-660-1200 | 600×1100×1000 | 660L | 1200℃ | 1100℃ | 380V | 60KW | HRE | ±1℃ |
| TT-IF-1000-1200 | 800×1000×1250 | 1000L | 1200℃ | 1100℃ | 380V | 80KW | HRE | ±1℃ |
| TT-IF-1500-1200 | 900×1200×1400 | 1500L | 1200℃ | 1100℃ | 380V | 95KW | HRE | ±1℃ |
