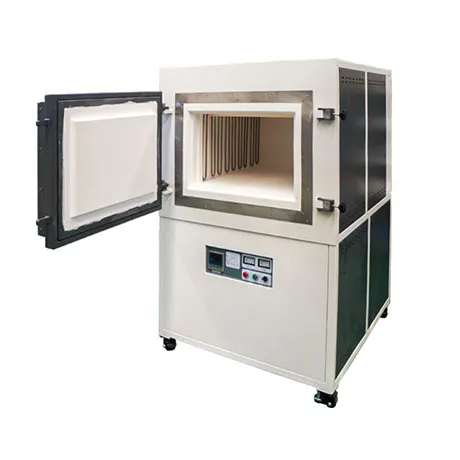

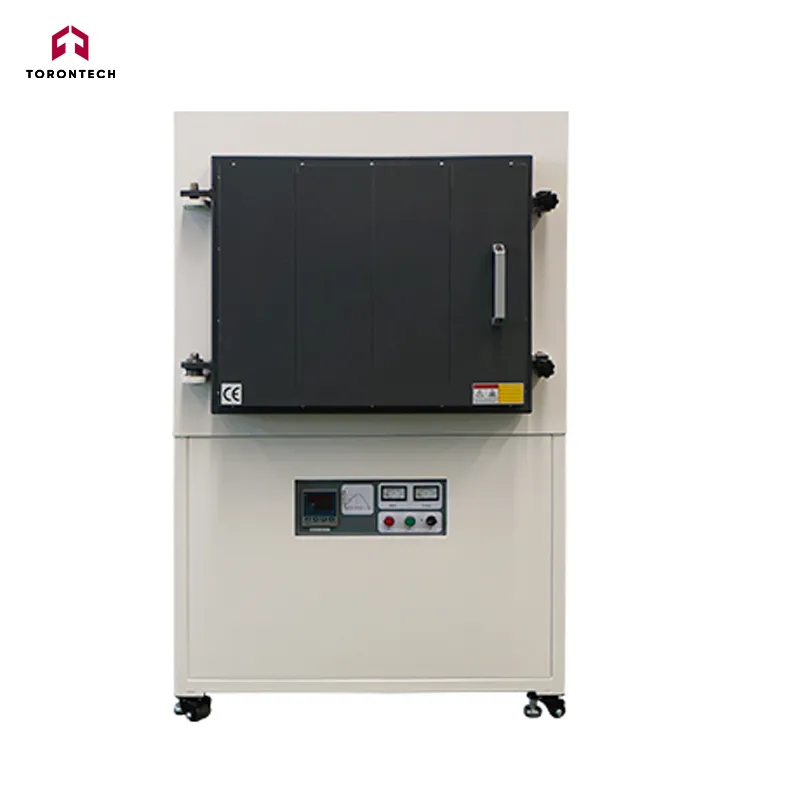

TT-IF-36-1700 is a 1700°C manual-door industrial furnace designed for high-temperature sintering of electronic ceramics, magnetic materials, functional and structural ceramics, target materials, and composites. Ideal for small-scale production and testing in labs and industrial settings.
- Advanced Ceramic Sintering – Designed for high-temperature processing of functional and structural ceramics, ensuring precise densification, stability, and durability.
Electronic and Magnetic Materials – Supports the sintering and thermal treatment of electronic ceramics, ferrites, and magnetic materials, delivering reliable performance for electrical and electronic applications.
Target Material Production – Ideal for preparing high-purity target materials used in thin-film deposition, coating, and semiconductor research.
Composite Materials Research – Provides accurate and repeatable heating conditions for the development and testing of composite materials across industrial and academic R&D environments.
Laboratory and Pilot Testing – Well-suited for universities, research institutes, and industrial labs conducting experimental studies, pilot-scale production, and thermal process validation.
Quality Control and Certification – Enables precise high-temperature treatment required for compliance verification, product testing, and certification under ISO, CE, SGS, and TÜV standards.
Furnace Shell
Constructed from Q235 low-carbon steel, the shell features an electrostatically resistant, corrosion-resistant finish. The reinforced metal frame ensures structural strength while maintaining a low exterior temperature. The side-opening door is hinged on the left for convenient and reliable access.
Refractory
The furnace incorporates a multi-layer insulation system with a double layer of lightweight refractory bricks. These are precisely stacked and interlocked for enhanced durability. The design is asbestos-free, ensuring low heat loss and reduced energy consumption.
Heating System
Equipped with high-quality MoSi₂ heating elements, securely installed on both sides of the chamber to allow free-radiation heating. This setup delivers energy efficiency, excellent thermal distribution, and a long service life. Dual-side heating ensures uniform temperature across the interior.
Temperature Control Panel
Features PID and SCR control for accurate temperature regulation. Utilizes an international-standard B-type platinum-rhodium thermocouple with a temperature range of 50–1800°C and extended lifespan. A safety switch cuts power automatically when the door is opened.
Program Controller
Designed to handle complex thermal processes with ease. The user-friendly interface supports flexible operation and programming. Allows for up to 30 programmable segments per curve. Includes over-temperature and fault alarms with automatic safety shutdown.
Optional features include manual air intake, automated exhaust venting, and a rapid cooling system that brings internal temperatures down quickly from 400°C.
| Model | TT-IF-36-1700 |
| Chamber size（W xD xH）mm | 300 x300x400 |
| Max temperature | 1700℃ |
| Working Temperature | 1600℃ |
| Voltage | 380V/20KW |
| Heating element | High quality Molybdenum Disilicide (MoSi2) heater |
| Chamber material | High temperature 1800 type polycrystal alumina ceramic fiber plate |
| Temp. precision | ±1℃ |
| Thermocouple | B type platinum rhodium thermocouple |
| Temp controller | Intelligent microcomputer PID temperature controller, SCR/SSR control, PID parameter self-tuning function; programmable 30 segments, program heating, program heat preservation, program cooling |
| Heating rate | ≤20 °C/min ( suggest 10°C/min for longer life using of furnace ) |
| Furnace structure | Furnace & temperature control integrated structure |
| Equipment protection | Modular control, sound and light alarm signal will be sent out for over temperature and broken thermocouple in the working process, and the protection action will be completed automatically |
| Safety protection | The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators |
| Furnace shell | High-quality cold-rolled steel plate CNC processing, after welding, grinding, polishing, phosphating, pickling, surface electrostatic spraying |
| Quality Certification | ISO9001 CE SGS TUV |
| Standard packing | 1. furnace body 2. Temperature controller 3. power cable 3 meters 4. Thermocouple 1 pc 5. operation manual 6. one pair of crucible tongs 7. one pair of high temperature gloves |
