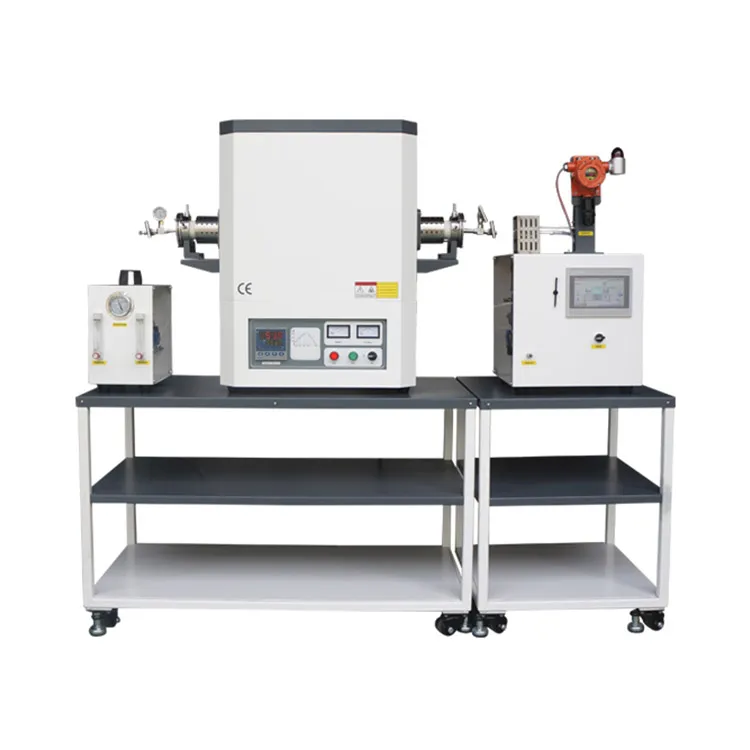

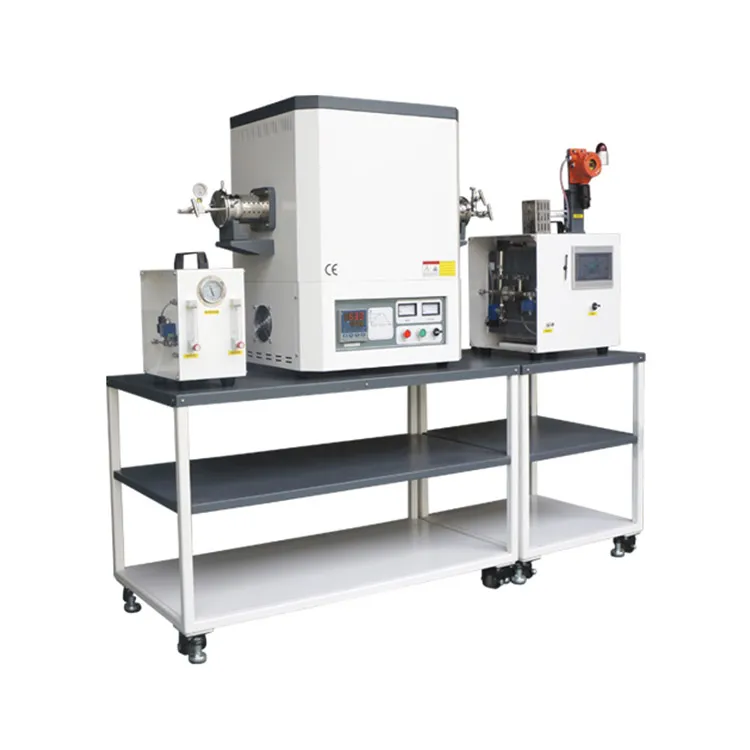

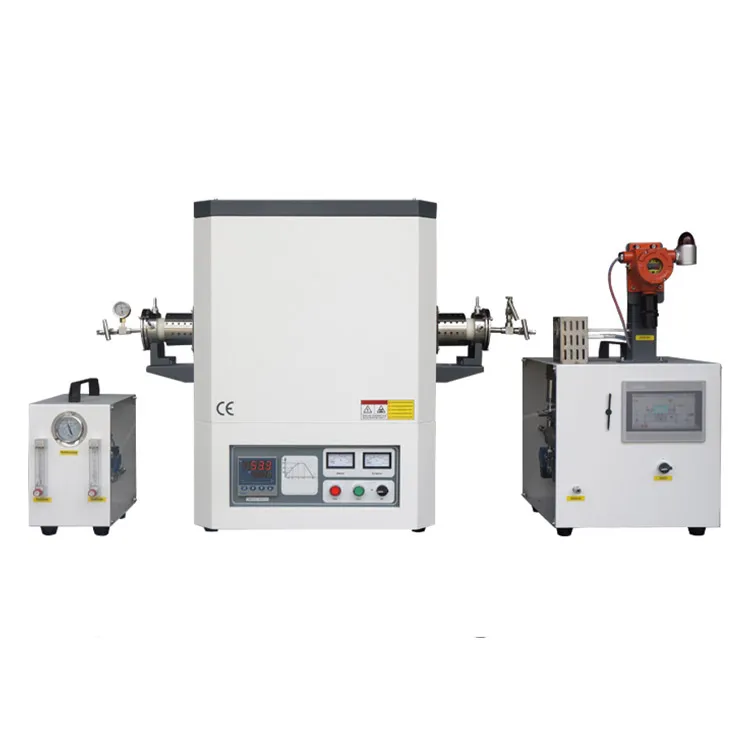

Hydrogen Reduction Tube Furnace 1700°C - TT-HRTF-60-1700
The Hydrogen Reduction Tube Furnace 1700°C – TT-HRTF-60-1700 is engineered for advanced hydrogen reduction processes requiring high durability and safety. It features a high-quality nickel-based superalloy processing tube, designed to withstand continuous exposure to flowing hydrogen without cracking or breaking. For maximum operational safety, the system is equipped with a 3M hydrogen detector that automatically shuts off the hydrogen gas generator and inlet valve in the event of a leak.
This model is built with a Φ60 × 1200 mm quartz tube and a 440 mm heating zone, supporting continuous operation at 1600°C with a maximum temperature capability of 1700°C. The reactor tube is made from durable alumina ceramic, while heating is powered by high-quality HRE alloy resistance wires for stability and long service life. A B-type thermocouple ensures accurate temperature monitoring, and the system operates on 220V/4 kW (110V also available), making it ideal for both laboratory research and industrial-scale hydrogen reduction applications.
Hydrogen Reduction of Metals and Alloys – Specially designed for high-temperature hydrogen reduction processes, the furnace enables refining and purification of metals, alloys, and oxides at up to 1700°C. The nickel-based superalloy tube ensures long-term resistance against hydrogen embrittlement.
Powder Metallurgy & Advanced Materials – Ideal for sintering and reduction of metal powders, allowing the production of high-purity alloys, magnetic materials, and structural components with superior mechanical properties.
Nanomaterials & Catalysts – Supports the hydrogen-assisted synthesis of nanomaterials, catalyst substrates, and advanced functional materials, ensuring controlled particle size, high reactivity, and stability.
Energy & Battery Research – Used for hydrogen treatment of electrode and solid-state electrolyte materials in next-generation energy storage systems. Enhances conductivity, cycle life, and thermal stability of battery components.
Aerospace & High-Performance Industries – Provides reliable hydrogen-based heat treatment for superalloys, ceramic composites, and coatings used in aerospace, defense, and advanced manufacturing sectors.
Research Institutions & Universities – Widely applied in academic and industrial research labs for studies in material science, hydrogen chemistry, nanotechnology, and chemical engineering. The programmable multi-segment controller and high accuracy make it ideal for experiments requiring precise atmosphere and thermal control.
Quality Control & Industrial Certification – Suitable for high-temperature hydrogen testing, durability evaluation, and certification of advanced materials in compliance with ISO9001, CE, SGS, and TÜV standards.
Furnace Shell
- The shell is constructed from Q235 low-carbon steel, featuring an electrostatic-resistant and corrosion-resistant finish. Its solid double-layer metal frame is integrated with a heat-insulating fan structure to maintain a low exterior temperature. The horizontal configuration with a top-opening design allows for easy operation.
Refractory Material
- The furnace features a multi-layer insulation system made of lightweight alumina ceramic fiber and high-quality insulation board. It is asbestos-free, ensuring low heat loss and reduced energy consumption.
Heating System
- The heating element consists of high-quality HRE spiral resistance wire, securely embedded on the inner surface of the chamber. It provides efficient thermal radiation heating, offering energy savings and extended service life.
- Circular resistance wire heating delivers excellent temperature uniformity throughout the furnace.
Temperature Control Panel
- Equipped with advanced controllers capable of handling complex processes.
- Supports programmable control with up to 30 segments for automated temperature profiling.
- Includes over-temperature and fault alarms with automatic safety shutdown features.
Rotary System
- The furnace tube uses a gear-driven electric motor for 360° rotation at speeds between 12–20 RPM, ensuring uniform heating of materials.
- The main body can be tilted electrically, with adjustable tilt angles for smoother material loading and discharge.
- Comes with a 304 stainless steel sealing flange to support vacuum or controlled atmosphere environments within the tube.
- Compatible with high-quality quartz tubes, as well as optional metal or alumina ceramic tubes for various applications.
| Model | TT-HRTF-60-1700Q | TT-HRTF-100-1700Q | TT-HRTF-150-1700Q | TT-HRTF-200-1700Q |
| Reactor Quartz Tube | Φ60×1200mm | Φ100×1200mm | Φ150×1500mm | Φ200×1500mm |
| Heating Zone Length | 440mm | 440mm | 600mm | 600mm |
| Max Temp | 1700℃ | |||
| Continue Temp | 1600℃ | |||
| Heating Element | High quality Molybdenum Disilicide（MoSi2）heater | |||
| Chamber Material | Polycrystalline inorganic alumina ceramic fiber materials | |||
| Temp Precision | ±1℃ | |||
| Thermocouple | N-type national standard platinum rhodium thermocouple | |||
| Temp Controller | Intelligent microcomputer PID temperature control instrument, SSR control, PID parameter self-tuning function; programmable 30 program segments, program temperature rise, program heat preservation, program cooling | |||
| Heating Rate | 1-20℃/min free adjustment | |||
| Furnace Structure | Furnace temperature control integrated structure; double-layer shell, air circulation and heat insulation | |||
| Equipment Protection | Modular control, sound and light alarm signal will be sent out for over temperature and broken coupler in the working process, and the protection action will be completed automatically | |||
| Safety Protection | The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators | |||
| Furnace Shell | High-quality cold-rolled steel plate CNC machine tool blanking processing, after welding, grinding, polishing, phosphating, pickling, surface electrostatic spraying plastic powder | |||
| Certification | ISO9001 CE SGS TUV | |||
| The standard configuration | 1. furnace body 2. temperature controller 3. Power cord 3 meters 4. 1 thermocouple 5. 1 manual6. One furnace hook 7. One pair of high temperature gloves 8. Two pipe plugs 9. One set of sealing flange | |||
