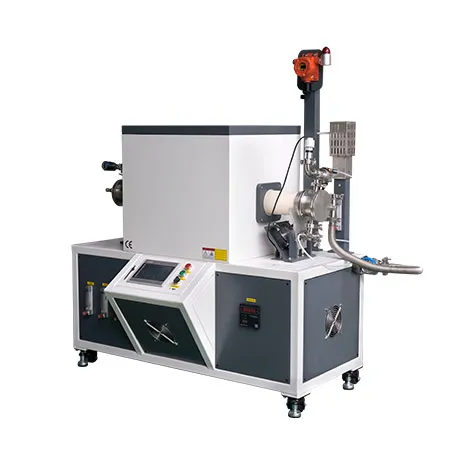

Hydrogen Reduction Tube Furnace 1700°C - TT-HRTF-100-1700
The Hydrogen Reduction Tube Furnace 1700°C – TT-HRTF-100-1700 is designed for advanced hydrogen reduction applications that require maximum safety and durability. It features a high-grade nickel-based superalloy processing tube, engineered to withstand continuous hydrogen gas flow without cracking or breaking. To enhance operational safety, the system includes a 3M hydrogen detector that instantly shuts off both the hydrogen gas generator and the inlet valve if a leak is detected.
This model is equipped with a Φ100 × 1200 mm quartz tube and a 440 mm heating zone. It supports continuous operation at 1600°C, with a maximum working temperature of 1700°C. The reactor tube is constructed from durable alumina ceramic, while heating is powered by high-quality Molybdenum Disilicide (MoSi₂) elements for efficiency and longevity. An N-type thermocouple ensures precise temperature monitoring, and the system operates on 380V/12 kW, making it ideal for research laboratories and industrial hydrogen reduction processes.
Hydrogen Reduction Processes – Enables precise reduction of metal oxides into high-purity metals such as tungsten, molybdenum, and titanium. Delivers reliable performance under continuous hydrogen flow, ensuring safe and efficient operation for industrial and laboratory use.
Advanced Ceramic Materials – Supports high-temperature sintering and reduction of ceramics in controlled atmospheres. Provides excellent uniformity and thermal stability, essential for structural ceramics, catalysts, and advanced composites.
Metallurgical Research & Powder Metallurgy – Facilitates hydrogen reduction and sintering of metal powders into dense, uniform components. Widely applied in the development of advanced alloys, hydrogen storage materials, and powder metallurgy research.
Nanomaterials & Functional Materials – Provides uniform high-temperature environments for synthesizing and processing nanostructures, advanced composites, and catalytic materials. Enhances R&D in next-generation materials for electronics, catalysis, and renewable energy.
Semiconductor & Electronics Industry – Supports annealing, surface treatment, and hydrogen-based processing of semiconductor substrates. Ensures precise temperature control critical for microelectronics, optoelectronics, and thin-film device development.
Energy & Hydrogen Technology – Applicable for thermal treatment of hydrogen storage systems, solid-state electrolytes, and energy conversion materials. Ensures stability and reproducibility in high-temperature hydrogen research and energy innovation.
Aerospace Materials Engineering – Enables processing and evaluation of high-performance alloys, ceramics, and composites under hydrogen atmospheres. Ensures mechanical strength, thermal stability, and durability for aerospace-grade applications.
Petrochemical & Chemical Laboratories – Suitable for catalyst activation, hydrogenation studies, and reaction mechanism research at temperatures up to 1700°C. Delivers consistent, reproducible thermal performance for advanced chemical R&D.
Universities & Research Institutes – Ideal for multidisciplinary studies in physics, chemistry, metallurgy, and materials science. Provides versatile programmability, robust safety features, and precise control for academic and institutional research.
Industrial Quality Control & Certification – Delivers ultra-high temperature and hydrogen atmosphere testing for product validation, compliance verification, and certification. Meets ISO, CE, SGS, and TÜV standards required in regulated industries.
Furnace Shell
- The shell is constructed from Q235 low-carbon steel with an electrostatic-resistant and corrosion-resistant surface.
- A durable double-layer metal frame is integrated with a heat-insulating fan structure to ensure a low external surface temperature.
- The furnace is designed for horizontal operation with a top-opening lid for easy access.
Refractory Material
- The furnace features a multi-layer insulation system made of lightweight alumina ceramic fiber and high-performance insulation board backing.
- It is asbestos-free and engineered for low heat loss and energy efficiency.
Heating System
- The furnace uses high-grade HRE spiral resistance wire, securely embedded along the inner surface. It provides radiant heating within the chamber, promoting energy efficiency, long service life, and stable performance.
- A ring-shaped resistance wire arrangement ensures even temperature distribution across the furnace chamber.
Temperature Control Panel
- Equipped with advanced controllers capable of handling complex thermal processes.
- Supports up to 30 programmable segments for automated temperature curve control.
- Features include over-temperature protection, fault alarms, and automatic safety shutoff.
Rotary System
- The furnace tube rotates 360° using a gear-driven electric motor, with adjustable speeds between 12–20 rpm, allowing uniform heating of materials inside the tube.
- The furnace body can be electrically tilted, with an adjustable tilt angle for smooth loading and unloading of materials.
- A 304 stainless steel sealing flange is included for maintaining vacuum or controlled atmosphere environments.
- Optional tube materials include high-quality quartz, metal, or alumina ceramic to support various processing needs.
| Model | TT-HRTF-60-1700Q | TT-HRTF-100-1700Q | TT-HRTF-150-1700Q | TT-HRTF-200-1700Q |
| Reactor Quartz Tube | Φ60×1200mm | Φ100×1200mm | Φ150×1500mm | Φ200×1500mm |
| Heating Zone Length | 440mm | 440mm | 600mm | 600mm |
| Max Temp | 1700℃ | |||
| Continue Temp | 1600℃ | |||
| Heating Element | High quality Molybdenum Disilicide（MoSi2）heater | |||
| Chamber Material | Polycrystalline inorganic alumina ceramic fiber materials | |||
| Temp Precision | ±1℃ | |||
| Thermocouple | N-type national standard platinum rhodium thermocouple | |||
| Temp Controller | Intelligent microcomputer PID temperature control instrument, SSR control, PID parameter self-tuning function; programmable 30 program segments, program temperature rise, program heat preservation, program cooling | |||
| Heating Rate | 1-20℃/min free adjustment | |||
| Furnace Structure | Furnace temperature control integrated structure; double-layer shell, air circulation and heat insulation | |||
| Equipment Protection | Modular control, sound and light alarm signal will be sent out for over temperature and broken coupler in the working process, and the protection action will be completed automatically | |||
| Safety Protection | The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators | |||
| Furnace Shell | High-quality cold-rolled steel plate CNC machine tool blanking processing, after welding, grinding, polishing, phosphating, pickling, surface electrostatic spraying plastic powder | |||
| Certification | ISO9001 CE SGS TUV | |||
| The standard configuration | 1. furnace body 2. temperature controller 3. Power cord 3 meters 4. 1 thermocouple 5. 1 manual6. One furnace hook 7. One pair of high temperature gloves 8. Two pipe plugs 9. One set of sealing flange | |||
