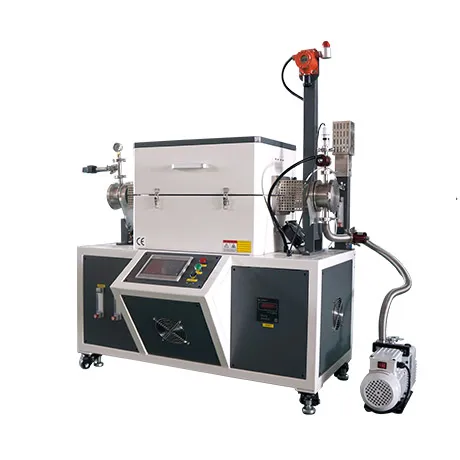

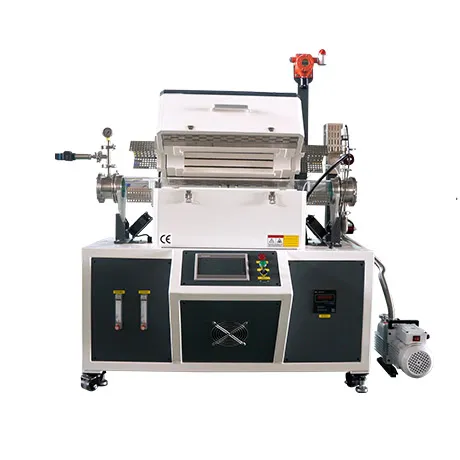

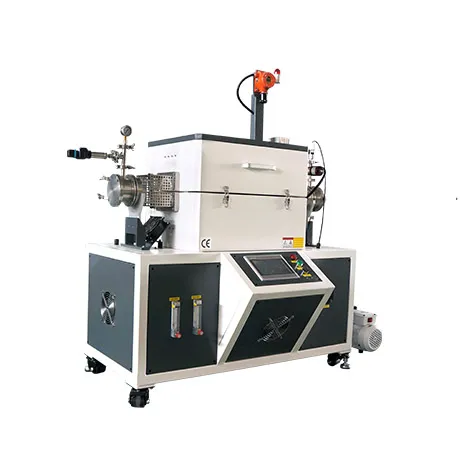

Hydrogen Reduction Tube Furnace 1200°C - TT-HRTF-100-1200
The Hydrogen Reduction Tube Furnace 1200°C – TT-HRTF-100-1200 is designed for advanced hydrogen reduction applications requiring high safety and durability. It features a processing tube made from a high-performance nickel-based superalloy, specifically engineered to withstand continuous exposure to flowing hydrogen without cracking or breaking. For added protection, the system is equipped with a 3M hydrogen detector that automatically shuts off both the hydrogen gas generator and the inlet valve in the event of a leak, ensuring maximum operational safety.
This model is built with a Φ100 × 1200 mm quartz tube and a 440 mm heating zone. It supports continuous operation at 1100°C, with a maximum temperature capability of 1200°C. The reactor tube is constructed from durable alumina ceramic, while heating is provided by high-quality HRE alloy resistance wires for long service life and stable performance. A B-type thermocouple ensures accurate temperature monitoring, and the system operates on 220V/4 kW (with 110V available), making it suitable for both laboratory research and industrial-scale hydrogen reduction processes.
Hydrogen Reduction Applications – Specifically designed for hydrogen reduction of metals, alloys, and oxides at high temperatures. The nickel-based superalloy tube ensures safe and continuous hydrogen processing without risk of cracking or degradation.
Powder Metallurgy & Metal Processing – Ideal for hydrogen-based sintering and refining of metal powders, enabling the production of high-purity alloys, functional metals, and specialized components.
Nanomaterials & Catalysts – Supports the reduction and synthesis of nanomaterials, catalysts, and functional materials under controlled hydrogen atmospheres, ensuring uniform particle properties and high material performance.
Energy & Battery Materials – Enables the hydrogen treatment of electrode and electrolyte materials for next-generation batteries, improving conductivity, thermal stability, and cycle life.
Aerospace & High-Performance Materials – Provides hydrogen reduction and thermal treatment of superalloys, coatings, and composites used in aerospace, defense, and advanced manufacturing industries.
Research & Academic Laboratories – Widely used in universities and research institutions for studies in hydrogen chemistry, material science, nanotechnology, and chemical engineering. Offers programmable control, precise temperature accuracy, and strong safety features.
Quality Control & Industrial Certification – Suitable for high-temperature hydrogen testing and certification of materials in compliance with ISO9001, CE, SGS, and TÜV standards, supporting industrial quality assurance and product validation.
Furnace Shell
- Constructed from Q235 low-carbon steel, the shell features an electrostatically applied, corrosion-resistant finish. The robust double-layer metal frame is integrated with a heat-insulating fan structure to maintain a low surface temperature. Its horizontal orientation and top-opening design ensure ease of operation.
Refractory Material
- The furnace utilizes a multi-layer insulation system made from lightweight alumina ceramic fiber and premium insulation board. It is asbestos-free, offering low heat loss and reduced energy consumption.
Heating System
- The furnace is equipped with high-grade HRE spiral resistance wire elements, securely embedded along the inner surface for efficient thermal radiation heating. This configuration promotes energy efficiency and ensures a long service life.
- Ring-type resistance wire heating provides uniform temperature distribution throughout the chamber.
Temperature Control Panel
- Features an advanced controller capable of handling complex heating processes.
- Supports up to 30 programmable segments for automated temperature curve control.
- Includes over-temperature and system fault alarms with automatic safety shutdown.
Rotary System
- The tube rotates 360° using a gear-driven electric motor at 12–20 rpm, ensuring even heat distribution inside the tube.
- The furnace body can be electrically tilted with an adjustable angle for smooth material loading and unloading.
- Comes with a 304 stainless steel sealing flange, allowing operation under vacuum or controlled atmosphere conditions.
- Compatible with high-quality quartz tubes, as well as optional metal or alumina ceramic tubes to meet various application needs.
| Model | TT-HRTF-60-1200Q | TT-HRTF-100-1200Q | TT-HRTF-150-1200Q | TT-HRTF-200-1200Q |
| Reactor Quartz Tube | Φ60×1200mm | Φ100×1200mm | Φ150×1500mm | Φ200×1500mm |
| Heating Zone Length | 440mm | 440mm | 600mm | 600mm |
| Max Temp | 1200℃ | |||
| Continue Temp | 1100℃ | |||
| Heating Element | High quality Alloy Resistance Wire（HRE） | |||
| Chamber Material | Polycrystalline inorganic alumina ceramic fiber materials | |||
| Temp Precision | ±1℃ | |||
| Thermocouple | N-type national standard platinum rhodium thermocouple | |||
| Temp Controller | Intelligent microcomputer PID temperature control instrument, SSR control, PID parameter self-tuning function; programmable 30 program segments, program temperature rise, program heat preservation, program cooling | |||
| Heating Rate | 1-20℃/min free adjustment | |||
| Furnace Structure | Furnace temperature control integrated structure; double-layer shell, air circulation and heat insulation | |||
| Equipment Protection | Modular control, sound and light alarm signal will be sent out for over temperature and broken coupler in the working process, and the protection action will be completed automatically | |||
| Safety Protection | The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators | |||
| Furnace Shell | High-quality cold-rolled steel plate CNC machine tool blanking processing, after welding, grinding, polishing, phosphating, pickling, surface electrostatic spraying plastic powder | |||
| Certification | ISO9001 CE SGS TUV | |||
| The standard configuration | 1. furnace body 2. temperature controller 3. Power cord 3 meters 4. 1 thermocouple 5. 1 manual6. One furnace hook 7. One pair of high temperature gloves 8. Two pipe plugs 9. One set of sealing flange | |||
