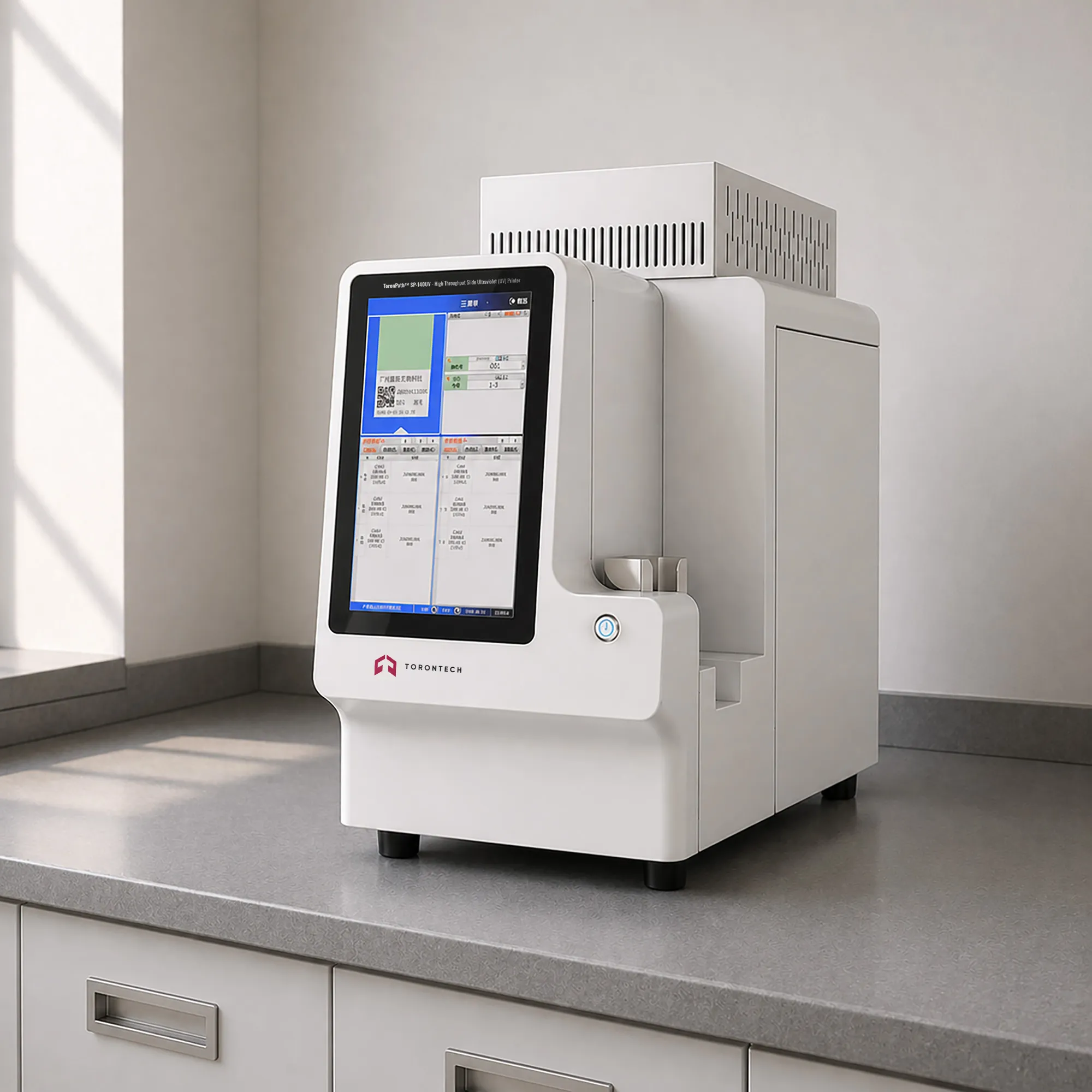

High Throughput Slide Ultraviolet (UV) Printer – ToronPath™ SP-140UV
ToronPath™ SP-140UV is a professional slide UV printer engineered for clinical and research laboratories that require precise, permanent slide identification using the latest ultraviolet laser printing technology.
As a fully integrated slide printer, this instrument prints high-resolution text, symbols, barcodes, QR codes, and graphics directly onto the coating of standard microscope slides — without any ribbons, ink, or consumables beyond the slides themselves. Its built-in operating system enables complete stand-alone operation, while its robust construction and chemical-resistant output make it an ideal long-term solution for histopathology, cytology, and anatomical pathology environments. The ToronPath™ SP-140UV slider UV printer combines high loading capacity (up to 140 slides), a large output bin (up to 150 slides), and an intuitive touchscreen interface for seamless daily use.
High Throughput Slide Ultraviolet (UV) Printer – ToronPath™ SP-140UV Applications
The ToronPath™ SP-140UV is designed for use in:
- Histopathology and anatomical pathology laboratories requiring permanent slide identification
- Cytology departments utilizing barcode and QR code-based specimen tracking
- Clinical laboratories with LIS, HIS, PIS, or PACS system integration
- Research institutions requiring long-term archiving of labeled slides
- Facilities using tissue cassette scanners for multi-source data input
- Environments requiring light-absorption-safe slide printing (no light reflection or pollution)
High Throughput Slide Ultraviolet (UV) Printer – ToronPath™ SP-140UV Key Features
- UV laser printing technology: latest-generation UV laser for consumable-free, permanent slide marking with no ribbons, ink, or laser powder required
- Ultra-high print resolution: extremely small laser spot size enabling 2500 dpi output for crisp QR codes, barcodes, text, symbols, and graphics
- High loading capacity: maximum loading capacity of 140 slides per cycle for extended unattended operation
- Large output collection: maximum output collection capacity of 150 slides, supporting high-volume batch workflows
- Flexible printing modes: supports small-batch printing, large-batch printing, and scan-then-print workflows via synchronous preview function
- Zero consumable cost: no ribbons, ink, or laser powder needed; the slide is the only consumable, minimizing ongoing operating costs
- Chemical-resistant output: printed markings withstand xylene, alcohol, and other laboratory solvents, ensuring long-term specimen integrity
- Clearly prints text, symbols, digits, graphics, barcodes, and high-resolution QR codes
- 10.1-inch full-color LCD touchscreen: large, intuitive display for comfortable daily operation
- Built-in operating system: fully stand-alone; no external computer required
- Multiple information input methods: touchscreen entry, tissue cassette scanner, remote network, and LIS/HIS system integration
- Light-absorbing material design: minimizes light reflection and light pollution during the printing process
- Professional slide loading/output device compatible for automated workflow integration
- LIS/HIS/PIS/PACS compatible: integrates with commonly used hospital and laboratory information systems
- Built-in composite air treatment function for a cleaner printing environment
Theory and Method
The ToronPath™ SP-140UV uses UV laser printing technology to permanently engrave identification data directly onto the coating of standard glass microscope slides. A finely focused UV laser beam produces an extremely small laser spot, enabling high-resolution output at 2500 dpi. The non-contact printing process requires no ribbons, ink cartridges, or laser powder — the slide itself is the only consumable.
Because the engraving process is chemical in nature (photochemical interaction with the slide coating), the resulting marks are fully resistant to xylene, alcohol, and other harsh laboratory solvents, ensuring long-term preservation. The printer supports multiple information input methods, including direct entry via the touchscreen, tissue cassette scanner input, remote network connection, and integration with LIS/HIS systems. Light-absorbing materials are incorporated into the design to prevent light reflection and minimize light pollution during printing.
High Throughput Slide Ultraviolet (UV) Printer – ToronPath™ SP-140UV Technical Specifications
| Printing Technology | UV Laser Printing |
|---|---|
| Printing Resolution | 2500 dpi |
| Print Speed | ≤ 5 seconds per slide |
| Loading Capacity | ≥ 140 slides (maximum) |
| Output Collection Capacity | ≥ 50 pcs / 100 pcs / 150 pcs (optional configurations) |
| Data Transmission | USB, Ethernet, Serial Ports |
| Display | 10.1-inch Full-Color LCD Touchscreen |
| Information Input Methods | Touchscreen, Tissue Cassette Scanner, Remote Network, LIS/HIS |
| Operating System | Built-in (stand-alone, no external computer required) |
| System Compatibility | LIS / HIS / PIS / PACS |
| Printable Content | Characters, Letters, Symbols, Barcodes, QR Codes, Graphics |
| Chemical Resistance | Xylene, Alcohol, and Other Laboratory Solvents |
| Consumables | None (non-contact UV laser technology; slide only) |
| Light Management | Light-Absorbing Material – reduces reflection and light pollution |
| Air Treatment | Built-in Composite Air Treatment Function |
| Dimensions (W × D × H) | 275 mm × 457 mm × 517 mm |
