High-throughput Pressurized Fluid Extractor

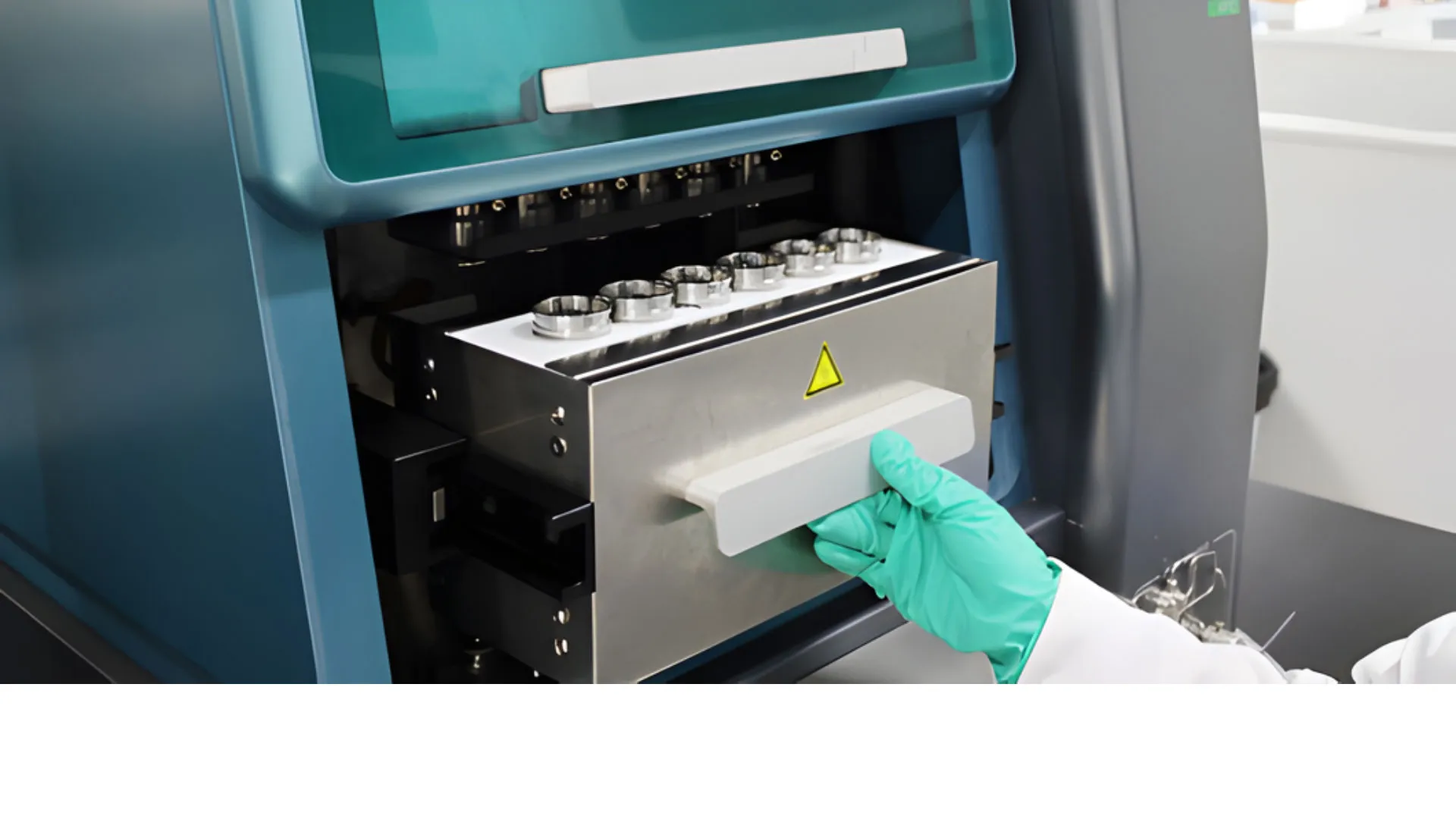

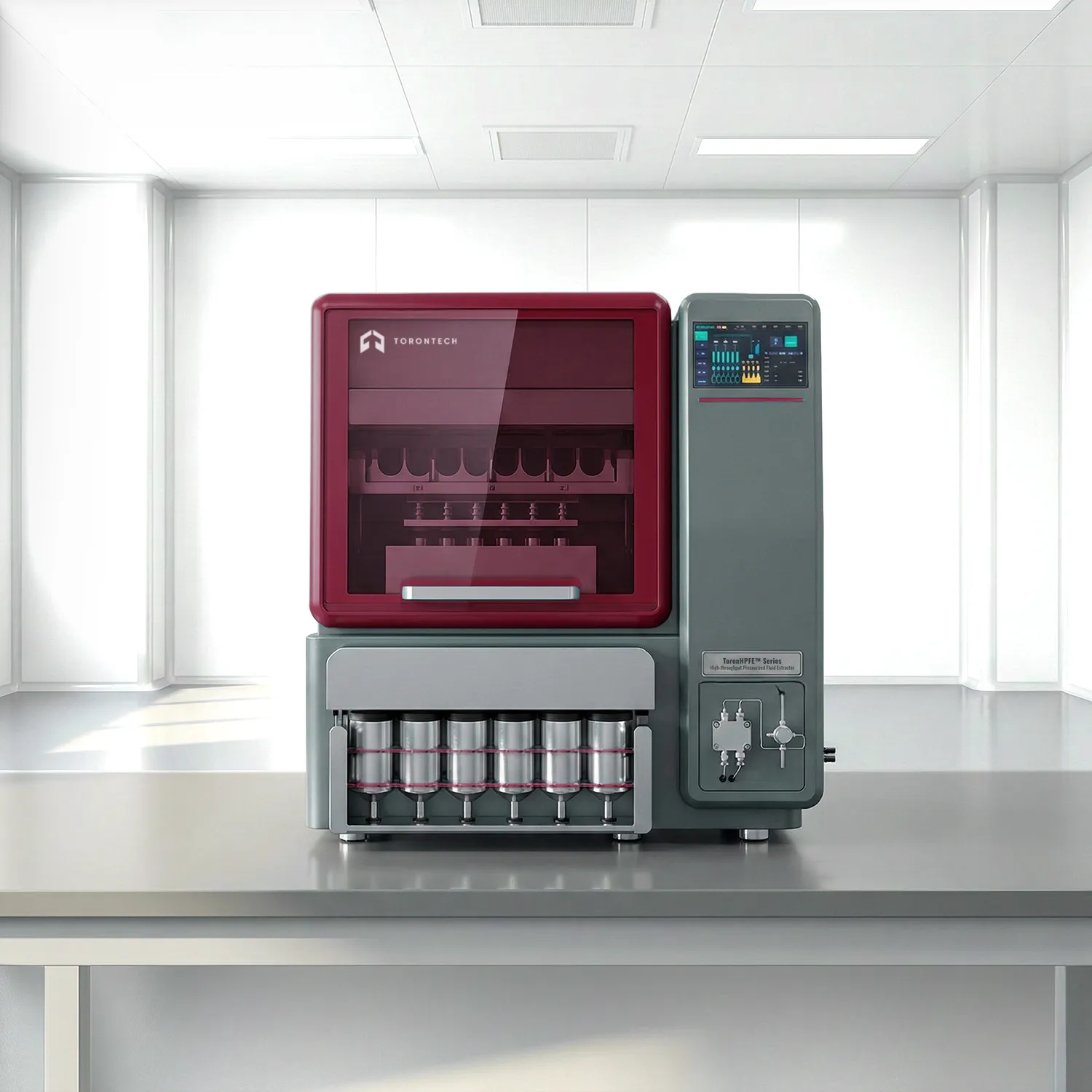

High-throughput Pressurized Fluid Extractor – ToronHPFE™ Series (Automated)
High-throughput Pressurized Fluid Extractor performance matters when your lab handles difficult, high-matrix samples. ToronHPFE™ Series is an automated pressurized fluid extraction platform designed to pull organic analytes from solid and semi-solid matrices using elevated pressure and temperature. Target compounds that bind tightly to the matrix, such as PAHs and PCBs, become easier to extract with faster turnaround than conventional liquid extraction workflows.
ToronHPFE helps reduce typical extraction time to 15–30 minutes and lowers solvent use to 20–50 mL per run, compared with longer, solvent-heavy approaches like Soxhlet extraction. The system runs 6 samples simultaneously and supports over 96 samples per day (depending on method settings and lab workflow).
High-throughput Pressurized Fluid Extractor – ToronHPFE™ Series (Automated) Applications
Environmental analysis
Soil, sediment, sludge, and solid waste often trap organics inside complex matrices. ToronHPFE supports pressurized fluid extraction for hazardous residues, herbicides, and pesticide-related targets, helping labs improve repeatability and shorten sample prep timelines.
Food and agriculture testing
Multi-residue pesticide workflows depend on consistent extraction from challenging samples. ToronHPFE supports pesticide residues testing in food and additives, plus crop-focused workflows such as pesticide residues in crops and extracted seed oils.
Polymers, petrochemicals, and industrial materials
Some polymer and petrochemical workflows require controlled pressurized extraction to isolate target fractions or extractables. ToronHPFE supports extraction approaches used in materials testing environments, including gel-content style workflows referenced in ASTM methods.
Standards
ASTM (international)
- ASTM D7567 references pressurized liquid extraction for determining gel content in crosslinked ethylene plastics. ToronHPFE supports this type of pressurized extraction workflow when labs need faster solvent extraction under controlled pressure and temperature.
High-throughput Pressurized Fluid Extractor – ToronHPFE™ Series (Automated) Key Features
- 6-channel parallel extraction for high throughput
- Run 6 samples at one time to support higher daily capacity and consistent batch processing.
- Pressurized, temperature-controlled extraction to shorten cycle time
- Elevated pressure raises solvent boiling point, while higher temperature improves solubility and diffusion for target compounds, supporting faster extraction and lower solvent consumption.
- Four-solvent capability with flexible mixing ratios
- Supports 4 solvent positions with dispensing and mixing in user-defined ratios for method flexibility across different matrices.
- Broad consumables compatibility
- Supports multiple extraction cell sizes and a wide collection-vial range, with compatibility for downstream concentration modules.
- Smart software and space-saving touchscreen control
- Simple method editing and programmed runs support repeatable operation with a 10-inch built-in screen for direct control at the instrument.
- Safety and monitoring designed for unattended operation
- Protection logic supports over-pressure, over-temperature, and leak-related safeguards. Sealed construction with active exhaust plus full logs and alarms helps labs track runs and respond quickly to method issues.
- Fits into an automated organic sample prep workflow
- Designed to integrate with automated SPE, vacuum evaporation, and liquid handling as part of a larger sample preparation line.
High-throughput Pressurized Fluid Extractor – ToronHPFE™ Series (Automated) Technical Specifications
| Parameter | Specification |
|---|---|
| Extraction channel | 6 |
| Pump pressure range | Atmospheric pressure to 200 bar (20 MPa) |
| Flow rate | 0 to 70 mL/min |
| Temperature range | Room temperature to 200°C (±1°C) |
| Solvent capacity | 4 |
| Extraction cell | 11 mL, 22 mL, 34 mL |
| Collection vials | 60 to 370 mL |
| Software interface | 10-inch built-in screen |
| Dimensions | 72 cm × 56 cm × 77 cm |
| Weight | 120 kg |
| Voltage | 200 to 240 V, 50/60 Hz (110V is also available) |
| Power rate | 1600 W |
| Storage temperature | 0 to 40°C |
| Storage humidity | 20 to 85% |
| Operating temperature | 10 to 40°C |
| Operating humidity | 20 to 80% |
