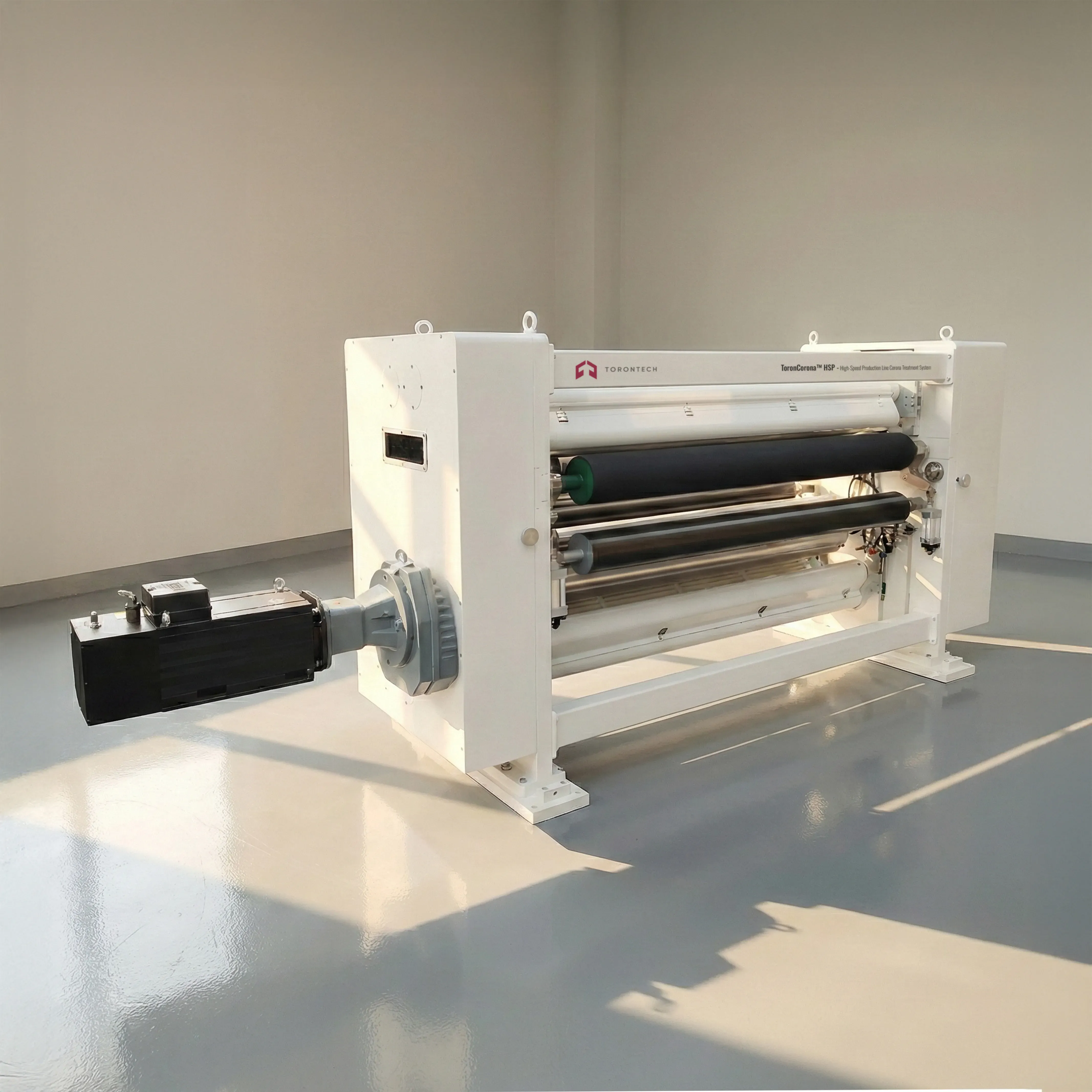

High-Speed Production Line Corona Treatment System – ToronCorona™ HSP
High-Speed Production Line Corona Treatment System – ToronCorona™ HSP is an industrial-grade corona treatment machine engineered for continuous, high-speed production lines requiring uniform and reliable surface activation. This advanced corona treatment equipment enhances surface energy by modifying the molecular structure of materials, significantly improving adhesion for printing, coating, laminating, and bonding processes.
Designed with a visible discharge window and precision linear guide rails, the system allows real-time observation of the corona discharge state while ensuring stable electrode positioning. Fast air-gap calibration, optional conductive rubber rollers, and in-process adjustability make this corona surface treatment system ideal for demanding manufacturing environments where consistency, speed, and reliability are critical.
High-Speed Production Line Corona Treatment System – ToronCorona™ HSP Applications
The High-Speed Production Line Corona Treatment System – ToronCorona™ HSP is widely used across high-output industrial processing lines, including:
- Flexible Packaging Films – Enhances ink, coating, and adhesive bonding on plastic films such as PE, PP, PET, and multilayer laminates.
- Paper and Paperboard Processing – Improves surface wettability for printing and coating applications.
- Aluminum Foil and Metalized Films – Activates low-surface-energy metal substrates for composite and laminated structures.
- Coating and Laminating Lines – Ensures uniform corona surface treatment across wide web widths at high speeds.
- Blown Film and Casting Lines – Supports inline corona treatment for extrusion-based film production.
High-Speed Production Line Corona Treatment System – ToronCorona™ HSP Key Features
- Visible Corona Discharge Window
- Enables continuous visual inspection of discharge uniformity during operation.
- Precision Linear Guide Rail System
- Provides smooth, accurate electrode lift and positioning for consistent treatment results.
- Fast Electrode Air-Gap Calibration
- Allows rapid adjustment to maintain stable corona discharge across varying materials.
- Optional EDPM Conductive Rubber Rollers
- Prevents wrinkles and surface scratches during high-speed processing.
- In-Process Adjustability
- Corona intensity and electrode gap can be adjusted without stopping production.
- High-Speed Production Capability
- Designed for wide-web, continuous operation with stable corona output.
- Durable, Ozone-Resistant Construction
- Aluminum oxide sandblasted side plates and 304 stainless steel components resist corrosion and ozone exposure.
- Optional Water-Cooled Structure
- Reduces heat buildup during extended high-power corona treatment.
High-Speed Production Line Corona Treatment System – ToronCorona™ HSP Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | High-Speed Production Line Corona Treatment System – ToronCorona™ HSP |
| Model | ToronCorona™ HSP |
| Treatment Method | Atmospheric corona discharge |
| Electrode Movement | Precision linear guide rail lift system |
| Discharge Observation | Visible discharge inspection window |
| Adjustment Method | Fast electrode air-gap calibration |
| Roller Options | Optional EDPM conductive rubber rollers |
| Cooling Method | Air cooling (water cooling optional) |
| Application Mode | Inline, continuous production |
| Suitable Materials | Plastic films, paper, aluminum foil, composites |
| Production Speed Compatibility | High-speed industrial lines |
| Construction Material | Aluminum alloy, 304 stainless steel |
| Ozone Resistance | High |
| Installation | Fixed inline mounting |
| Operation | Continuous, adjustable during production |
