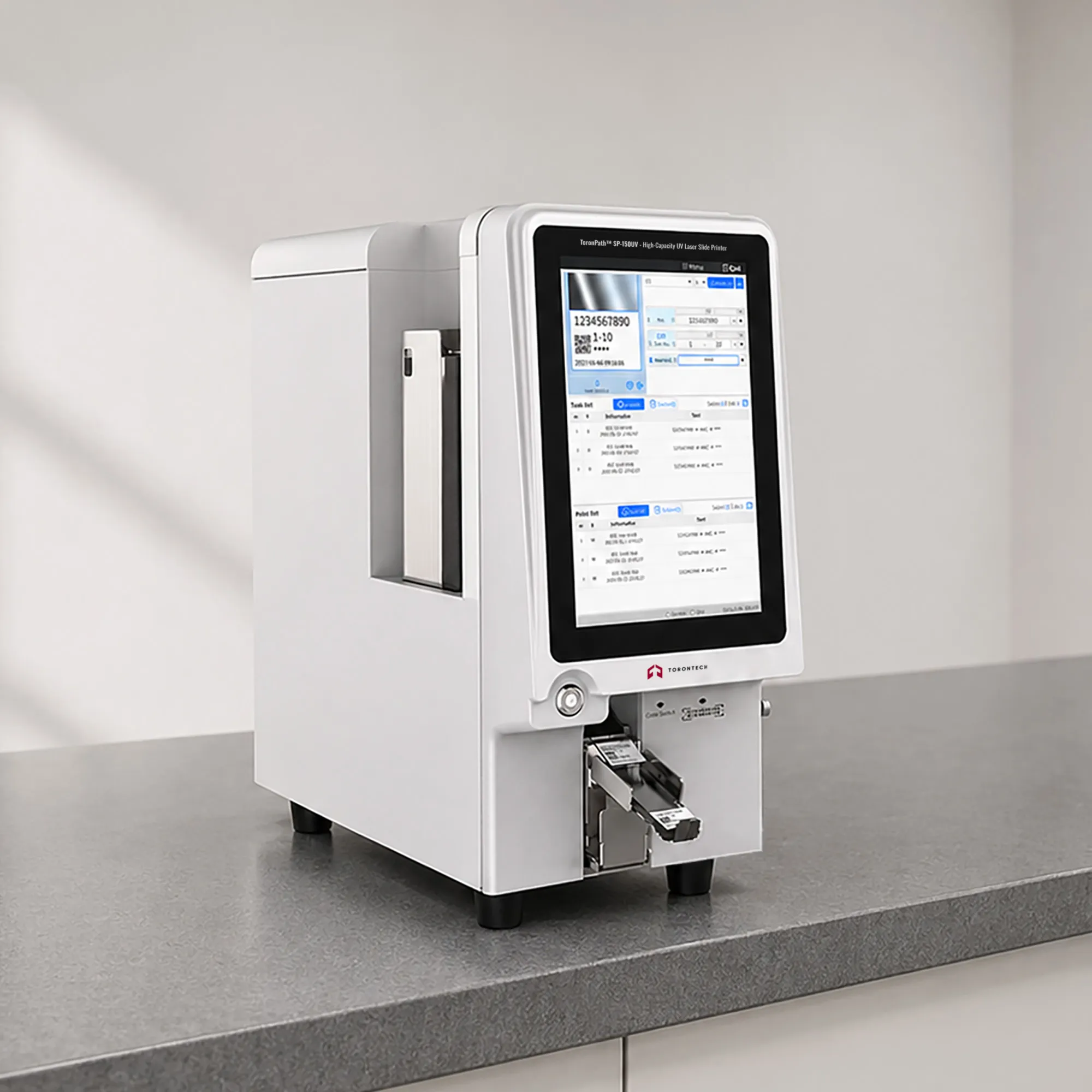

High-Capacity UV Laser Slide Printer – ToronPath™ SP-150UV
ToronPath™ SP-150UV is an advanced slide laser printer designed for clinical and pathology laboratories requiring precise, high-volume slide identification. Building on the proven UV laser printing platform, the ToronPath™ SP-150UV slide printer introduces enhanced output flexibility, supporting both on-demand and large-capacity batch printing modes with FIFO (First In, First Out) slide management.
The printed side of each slide faces outward upon output, preventing contamination upon retrieval. The ToronPath™ SP-150UV is a fully self-contained slide printer requiring no external computer and integrates seamlessly with LIS, HIS, PIS, and PACS systems for end-to-end laboratory traceability.
High-Capacity UV Laser Slide Printer – ToronPath™ SP-150UV Applications
The ToronPath™ SP-150UV Standard UV Laser Slide Printer is designed for use in:
- High-throughput histopathology and surgical pathology laboratories
- Clinical laboratories with on-demand and batch slide printing requirements
- Hospital pathology departments integrated with LIS/HIS/PACS
- Cytology and research labs requiring contamination-free slide handling
- Institutions implementing barcode-based specimen tracking workflows
High-Capacity UV Laser Slide Printer – ToronPath™ SP-150UV Key Features
- UV laser printing technology: non-contact, zero consumables; permanent laser-engraved markings with no ongoing supply costs
- High-resolution output: 2500 dpi printing for crisp characters, barcodes, QR codes, and alphanumeric text
- Contamination-free output: the lacquer side of each printed slide faces outward upon exit, protecting slide integrity during handling
- Flexible output modes: on-demand printing (≥ 10 pcs) and high-capacity FIFO batch printing (≥ 150 pcs)
- Chemical resistance: markings withstand xylene, alcohol, and decalcifying fluid for long-term specimen preservation
- Broad slide compatibility: prints on a wide variety of paint-size slides including multiple slide colors
- 10.1-inch full-color LCD touchscreen for intuitive, operator-friendly control
- Built-in barcode scanner plus optional external barcode scanner for versatile workflow integration
- High loading capacity: ≥ 100 slides per load for uninterrupted operation
- Integrated stand-alone design: built-in OS; operates without an external computer
- LIS/HIS/PIS/PACS compatible: integrates with major hospital and laboratory information systems
- Professional slide loading/output device compatibility for full automation
- Composite air treatment function for a cleaner printing environment
Theory and Method
The ToronPath™ SP-150UV employs UV laser printing technology to permanently mark microscope slides through a non-contact, consumable-free process. A highly focused laser beam engraves text, characters, symbols, barcodes, and high-resolution QR codes directly onto slide surfaces at 2500 dpi. This laser-engraving process requires no ink, ribbons, or chemical agents, resulting in markings that resist xylene, alcohol, and decalcifying fluid — essential properties for histopathology workflows.
The built-in operating system enables fully autonomous operation. Slides are managed via FIFO logic in batch mode, and the lacquer side of each printed slide faces outward at output, eliminating contamination risk during collection.
High-Capacity UV Laser Slide Printer – ToronPath™ SP-150UV Technical Specifications
| Printing Technology | UV Laser Printing |
|---|---|
| Printing Resolution | 2500 dpi |
| Print Speed | ≤ 3 seconds per slide |
| Loading Capacity | ≥ 100 slides |
| Output Capacity – On Demand | ≥ 10 pcs |
| Output Capacity – Batch Printing (FIFO) | ≥ 150 pcs |
| Data Transmission | USB, Ethernet, Serial Ports |
| Display | 10.1-inch Full-Color LCD Touchscreen |
| Barcode Scanner | Built-in; optional external barcode scanner |
| Operating System | Built-in (stand-alone, no external computer required) |
| System Compatibility | LIS / HIS / PIS / PACS |
| Chemical Resistance | Xylene, Alcohol, Decalcifying Fluid |
| Slide Output Orientation | Lacquer side faces outward (contamination-free retrieval) |
| Consumables | None (non-contact laser technology) |
| Air Treatment | Composite Air Treatment Function |
| Dimensions (W × D × H) | 200 mm × 437 mm × 445 mm |
