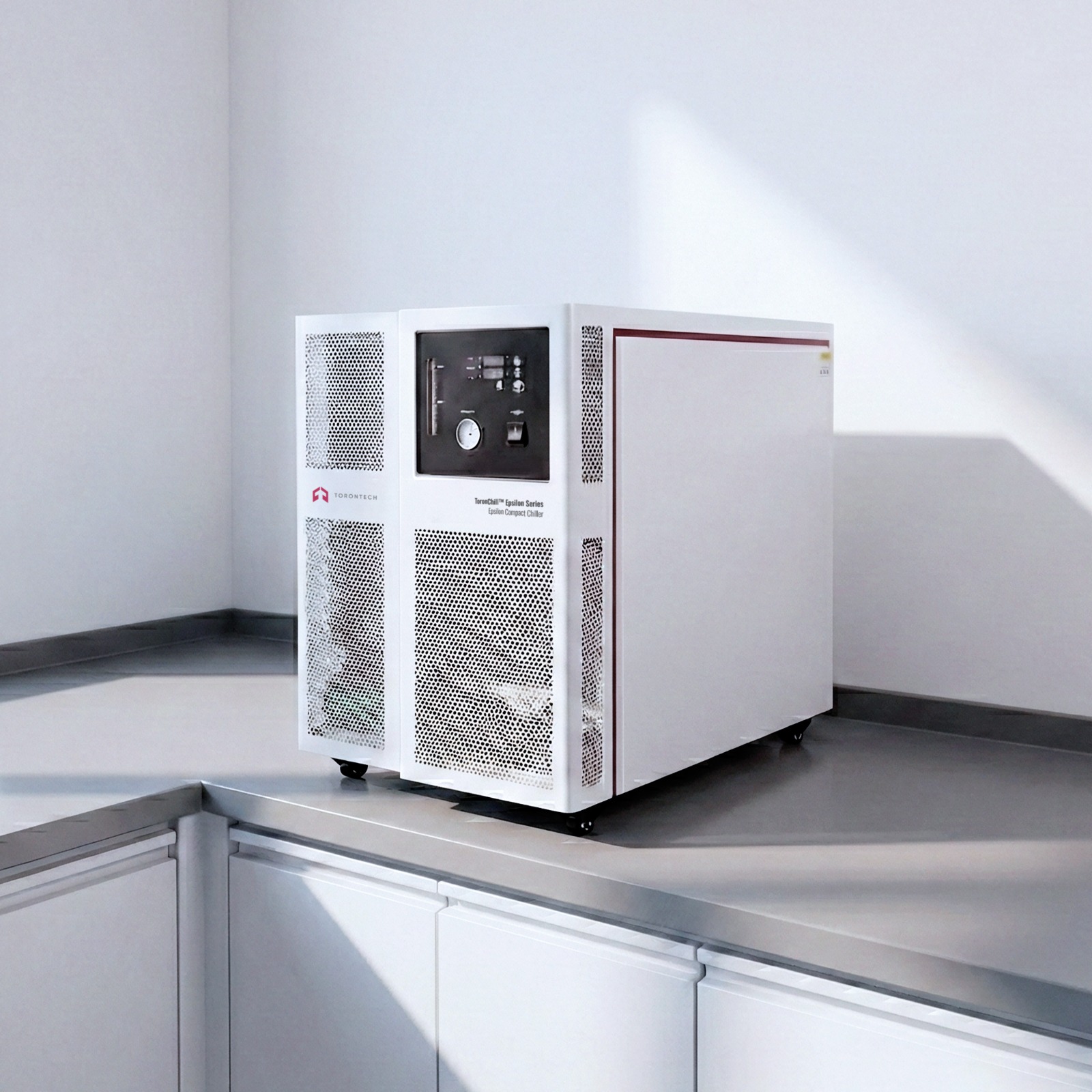

Epsilon Compact Chiller – ToronChill™ Epsilon Series
ToronChill™ Epsilon Series is a horizontal Compact Chiller built for small industrial and laboratory instruments that need stable recirculating cooling water. Its low-height design fits under a bench to save space while supporting consistent thermal control for sensitive equipment.
This Compact Chiller platform supports a wide operating window (up to 5–65°C) and is commonly paired with analytical systems where temperature drift can affect data quality and uptime.
Epsilon Compact Chiller – ToronChill™ Epsilon Series Applications
- Spectrometers and mass spectrometry instruments
- Provides steady coolant temperature to improve measurement stability and reduce thermal drift.
- Molecular pumps and vacuum support equipment
- Helps manage heat load during continuous operation to support reliable pump performance.
- Rotary evaporators and distillation apparatus
- Maintains controlled cooling for condensers to support repeatable evaporation and recovery steps.
- Small industrial tools and benchtop systems
- Compact footprint makes it practical for crowded labs and instrument bays under the bench.
Epsilon Compact Chiller – ToronChill™ Epsilon Series Key Features
- Compact, under-bench horizontal design
- Low height helps free up benchtop space while keeping service access straightforward.
- PID temperature control for stability
- PID mode is designed to hold temperature steady during changing heat loads.
- Optional external filter
- Supports cleaner circulation water, which can help protect connected instruments.
- Optional flow switch protection
- Adds a safety interlock concept to help protect supported equipment during abnormal flow conditions.
- Small reservoir to reduce liquid consumption
- Designed to save circulating liquid while meeting typical lab cooling needs.
Epsilon Compact Chiller – ToronChill™ Epsilon Series Technical Specifications
Air-Cooled Compact Chiller, Small Horizontal, High-Stability (ToronChill™ E*s Series)
- Temperature Stability: ±0.1°C
- Temperature Range: 5–35°C
| Model | Cooling Capacity (W @25°C) | Max Flow (L/min) | Max Pressure (bar) | Reservoir (L) | Overall Dimensions (W×D×H, mm) |
|---|---|---|---|---|---|
| ToronChill™ E1s | 800 | 10 | 1.5 | 6 | 260×590×470 |
| ToronChill™ E2s | 1200 | 10 | 1.5 | 8 | 320×580×530 |
| ToronChill™ E3s | 2400 | 20 | 2.5 | 12 | 380×625×590 |
| ToronChill™ E4s | 3500 | 40 | 2.5 | 16 | 450×660×702 |
| ToronChill™ E5s | 5200 | 40 | 3.4 | 26 | 520×710×762 |
Air-Cooled Compact Chiller, Small Horizontal, High-Stability Low Temperature (ToronChill™ E*s-x0 Series)
- Temperature Stability: ±0.1°C
- Temperature Range: -10–35°C (E2s-10); -20–35°C (E3s-20 / E4s-20 / E5s-20)
| Model | Cooling Capacity (W @25°C) | Max Flow (L/min) | Max Pressure (bar) | Reservoir (L) | Overall Dimensions (W×D×H, mm) |
|---|---|---|---|---|---|
| ToronChill™ E2s-10 | 900 | 10 | 1.3 | 8 | 320×580×530 |
| ToronChill™ E3s-20 | 2000 | 20 | 2.5 | 12 | 380×625×590 |
| ToronChill™ E4s-20 | 2800 | 40 | 2.5 | 16 | 450×660×702 |
| ToronChill™ E5s-20 | 3600 | 40 | 2.5 | 26 | 520×710×762 |
Air-Cooled Compact Chiller, Small Horizontal, Economical (ToronChill™ E*r series)
- Temperature Stability: ±1.5°C
- Temperature Range: 5–35°C
| Model | Cooling Capacity (W @25°C) | Max Flow (L/min) | Max Pressure (bar) | Reservoir (L) | Overall Dimensions (W×D×H, mm) |
|---|---|---|---|---|---|
| ToronChill™ E1r | 800 | 0 | 1.5 | 6 | 260×590×470 |
| ToronChill™ E2r | 1300 | 10 | 1.5 | 8 | 320×580×530 |
| ToronChill™ E3r | 2500 | 20 | 2.5 | 12 | 380×625×590 |
| ToronChill™ E4r | 3500 | 40 | 2.8 | 16 | 450×660×702 |
| ToronChill™ E5r | 5200 | 40 | 2.8 | 26 | 520×710×762 |
Air Cooling and Heat Dissipation (Without Compressor) (ToronChill™ E*a series)
- Temperature Stability: ±1°C
- Temperature Range: 5–65°C
| Model | Cooling Capacity (W @25°C) | Max Flow (L/min) | Max Pressure (bar) | Reservoir (L) | Overall Dimensions (W×D×H, mm) |
|---|---|---|---|---|---|
| ToronChill™ E1a | 150 | 10 | 1.5 | 6 | 260×590×470 |
| ToronChill™ E2a | 200 | 10 | 1.5 | 8 | 320×580×530 |
| ToronChill™ E3a | 250 | 20 | 2.5 | 12 | 380×625×590 |
| ToronChill™ E4a | 350 | 20 | 2.5 | 16 | 450×660×702 |
| ToronChill™ E5a | 450 | 20 | 2.5 | 20 | 520×710×762 |
