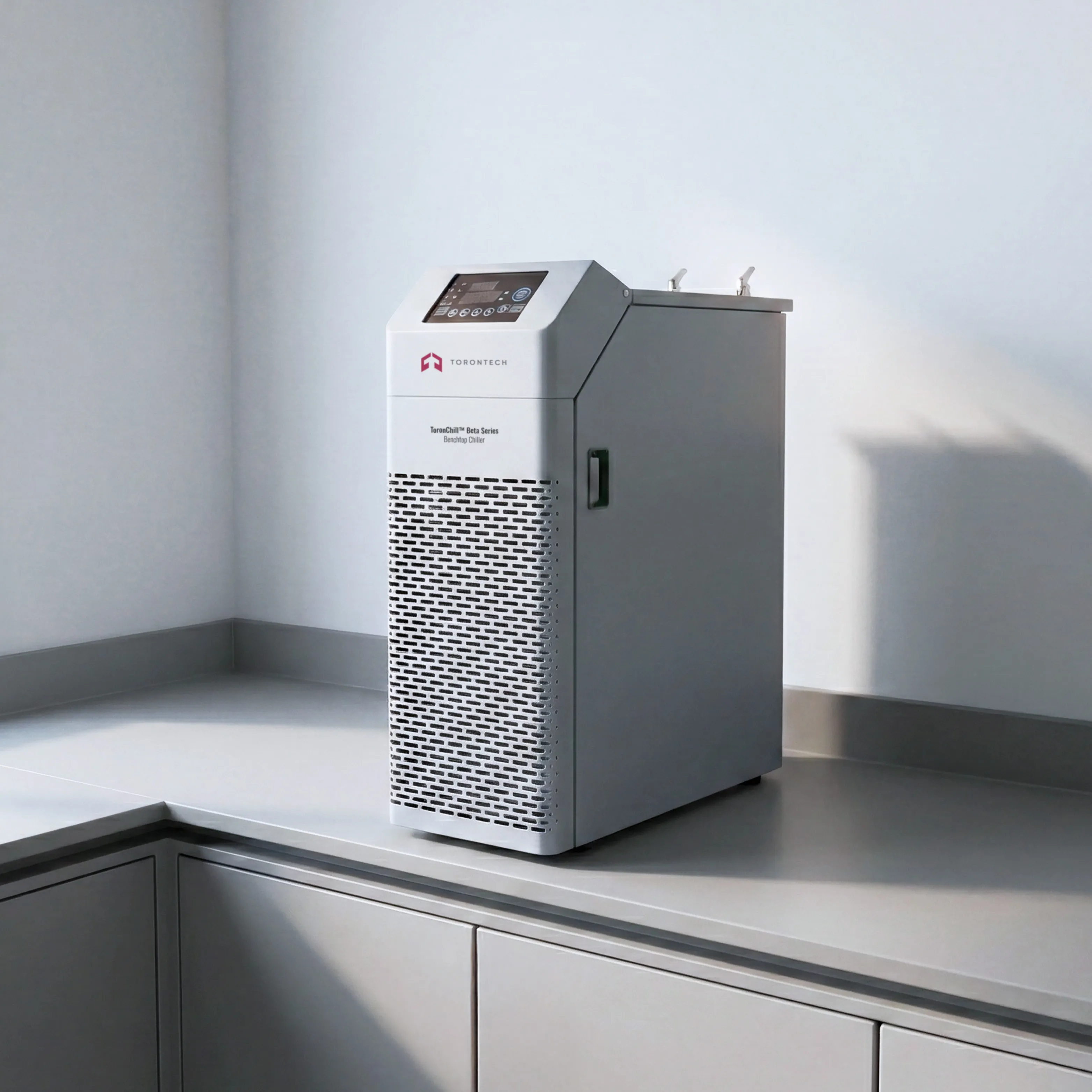

Benchtop Chiller – ToronChill™ Beta Series
ToronChill™ Beta Series is a compact Benchtop Chiller built for reliable liquid temperature control in lab and light industrial environments. It delivers stable setpoint control with optional low-temperature cooling and supports external circulation for instruments, reactors, and test fixtures.
Designed around a space-saving benchtop footprint, the Phi Series can be configured with or without a reservoir, and selected models add heating for wider process coverage. It is a practical Benchtop Chiller choice when you need repeatable flow, pressure, and temperature control.
Benchtop Chiller – ToronChill™ Beta Series Applications
- Analytical instruments and lab equipment cooling: Maintains consistent fluid temperature to improve repeatability and reduce drift during measurements.
- Laser and optics thermal management: Supports stable cooling water circulation for sensitive optical components and laser sources.
- Small reactor and process loop temperature control: Helps control jacketed vessels or small thermal loops where compact installation matters.
- General lab circulation needs: Suitable for setups needing an external circulating chiller with predictable flow and pressure.
Benchtop Chiller – ToronChill™ Beta Series Key Features
- Stable temperature control options: Multiple configurations include high-stability control for tight process windows and a general on/off control option for cost-effective cooling.
- Benchtop, space-saving design: Compact form factor fits lab benches and small work areas while still providing practical reservoir capacities.
- Flexible configurations: Choose models with a reservoir, without a reservoir, or heating + cooling depending on your loop design and process needs.
- Solid performance envelope: Provides defined max flow, pressure, reservoir size, and cabinet dimensions to support proper system sizing.
- Compliance support: CE shown for this series in the brochure, supporting deployment in regulated environments where applicable.
Benchtop Chiller – ToronChill™ Beta Series Technical Specifications
High Stability Benchtop Chiller (ToronChill™ B**s)
- Temperature Stability: ±0.1°C
- Temperature Range: 5–35°C
| Model | Cooling Capacity (W @25°C) | Max Flow (L/min) | Max Pressure (bar) | Reservoir (L) | Overall Dimensions (W×D×H, mm) |
|---|---|---|---|---|---|
| ToronChill™ B1s | 500 | 10 | 0.8 | 2 | 280×450×420 |
| ToronChill™ B2s | 1000 | 15 | 1.0 | 6 | 360×450×653 |
| ToronChill™ B3s | 1700 | 20 | 1.4 | 8 | 360×450×653 |
| ToronChill™ B4s | 2500 | 30 | 2.0 | 30 | 490×580×845 |
| ToronChill™ B5s | 3700 | 40 | 2.8 | 30 | 490×580×845 |
| ToronChill™ B6s | 5000 | 50 | 3.6 | 70 | 580×680×1098 |
| ToronChill™ B7s | 6500 | 50 | 3.6 | 70 | 580×680×1098 |
Low Temperature Benchtop Chiller (ToronChill™ B**s-20)
- Temperature Stability: ±0.1°C
- Temperature Range: -20–35°C
| Model | Cooling Capacity (W @25°C) | Max Flow (L/min) | Max Pressure (bar) | Reservoir (L) | Overall Dimensions (W×D×H, mm) |
|---|---|---|---|---|---|
| ToronChill™ B1s-20 | 400 | 10 | 0.6 | 2 | 280×450×420 |
| ToronChill™ B2s-20 | 800 | 15 | 0.8 | 6 | 360×450×653 |
| ToronChill™ B3s-20 | 1300 | 20 | 1.2 | 8 | 360×450×653 |
| ToronChill™ B4s-20 | 2200 | 30 | 1.8 | 30 | 490×580×845 |
| ToronChill™ B5s-20 | 3300 | 40 | 2.5 | 30 | 490×580×845 |
| ToronChill™ B6s-20 | 4600 | 50 | 3.6 | 70 | 580×680×1098 |
| ToronChill™ B7s-20 | 5700 | 50 | 3.6 | 70 | 580×680×1098 |
Benchtop Chiller Without Reservoir (ToronChill™ B**r)
- Temperature Stability: ±1°C
- Temperature Range: 5–35°C
| Model | Cooling Capacity (W @25°C) | Max Flow (L/min) | Max Pressure (bar) | Overall Dimensions (W×D×H, mm) |
|---|---|---|---|---|
| ToronChill™ B1r | 500 | 10 | 0.8 | 280×420×420 |
| ToronChill™ B2r | 1000 | 15 | 1.0 | 360×450×653 |
| ToronChill™ B3r | 1700 | 20 | 1.4 | 360×450×653 |
| ToronChill™ B4r | 2500 | 30 | 2.0 | 490×580×845 |
| ToronChill™ B5r | 3700 | 40 | 2.8 | 490×580×845 |
| ToronChill™ B6r | 5000 | 50 | 3.6 | 580×680×1098 |
| ToronChill™ B7r | 6500 | 50 | 3.6 | 580×680×1098 |
Benchtop Heating and Cooling Chiller (ToronChill™ B*-19 / ToronChill™ B*-29)
- Temperature Stability: ±0.1°C
- Temperature Range: 5–35°C
| Model | Cooling Capacity (W @25°C) | Heating Capacity (W) | Max Flow (L/min) | Max Pressure (bar) | Reservoir (L) | Overall Dimensions (W×D×H, mm) |
|---|---|---|---|---|---|---|
| ToronChill™ B1-19 | 1000 | 900 | 15 | 1.0 | 6 | 360×450×653 |
| ToronChill™ B2-29 | 1700 | 2500 | 15 | 1.0 | 6 | 360×450×653 |
