Automated Solvent Recovery System

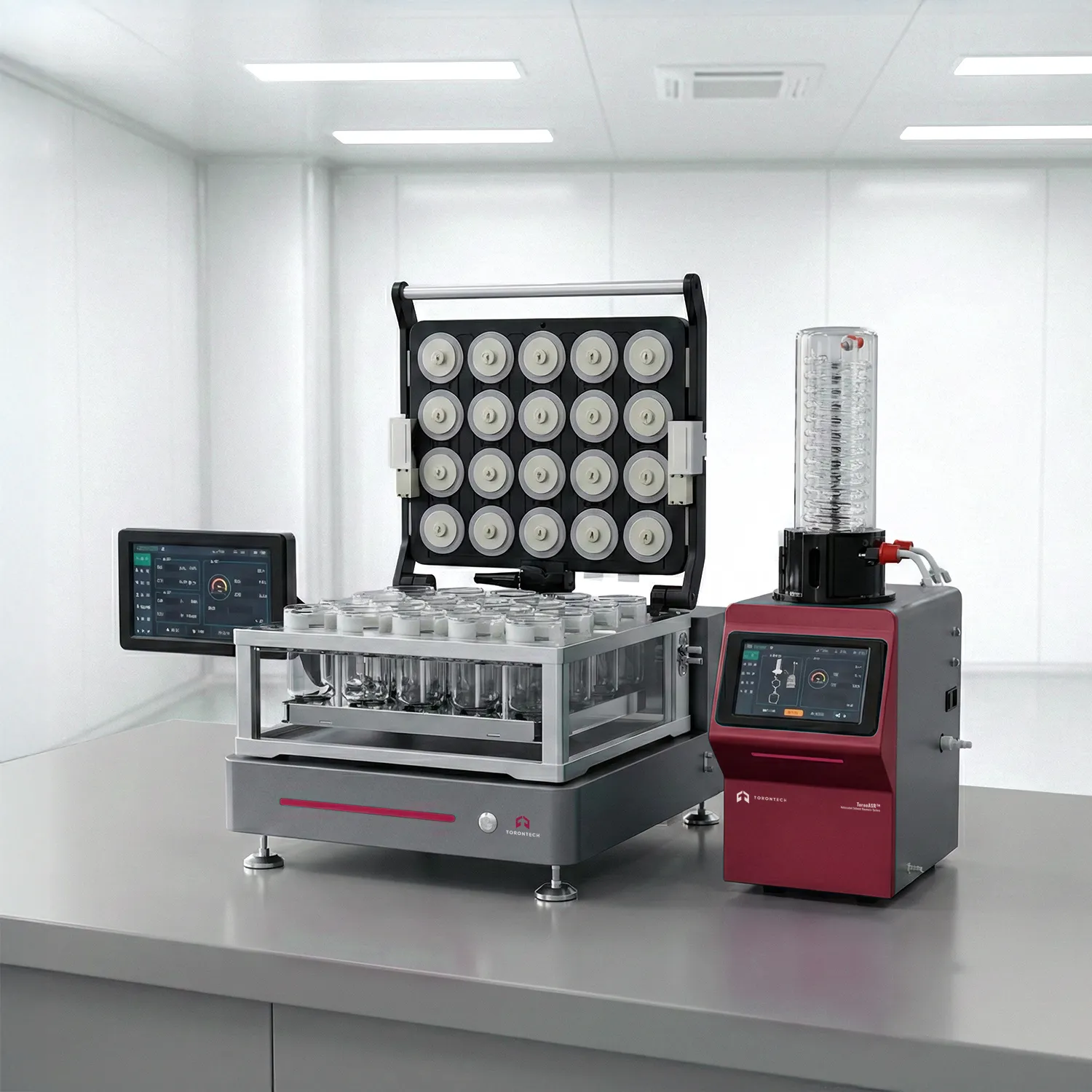

Automated Solvent Recovery System – ToronASR™
Automated Solvent Recovery System becomes important when vacuum evaporation runs include mixed solvents and high sample volume. ToronASR™ is a condensation receiving module designed to capture and manage condensed solvent during vacuum evaporation, with precise pressure control for stable operation. It supports multiple built-in pressure decrease modes, so your lab can match control style to the method and solvent mix.
ToronASR™ also supports up to 20-step gradient control, with an optional frequency-conversion pump for smoother pressure transitions. For mixed solvents with different boiling points, the automatic condensing waste discharge function helps remove low-boiling solvents first, reducing interference with later fractions. This improves workflow stability and helps keep evaporation moving without constant manual intervention.
Automated Solvent Recovery System – ToronASR™ Applications
- Vacuum evaporation solvent management Capture and route condensed solvent during vacuum concentration so the system stays stable, especially in long multi-sample runs.
- Mixed-solvent methods (low + high boiling points) Automatic discharge of low-boiling condensate helps avoid disruption when the method transitions to higher-boiling fractions.
- Environmental, food, and industrial sample prep workflows Supports solvent recovery needs in labs running frequent vacuum evaporation steps where repeatable pressure control and clean condensate handling matter.
Standards
- ISO/IEC 17025 (quality system alignment) Many analytical labs operate under ISO/IEC 17025 and need consistent, documented operating conditions. ToronASR supports this environment through controlled pressure programming, repeatable modes, and stable operation that helps standardize solvent recovery during evaporation.
Automated Solvent Recovery System – ToronASR™ Key Features
- Multi-mode pressure control with manual, programmed, and frequency-conversion pressure-decrease options.
- 20-step gradient pressure programming to match complex solvent and method requirements.
- Optional frequency-conversion pump for smoother pressure transitions during gradient control.
- Smart condensate waste discharge that prioritizes low-boiling solvent removal to reduce interference in mixed-solvent evaporation.
- Built-in touchscreen control for clear setup and operation at the instrument.
Automated Solvent Recovery System – ToronASR™ Technical Specifications
| Parameter | Specification |
|---|---|
| Vacuum pump rate | 20 to 30 L/min |
| Pressure control precision | 1 to 10 mbar |
| Pressure setting precision | 1 mbar |
| Gradient pressure control | Max. 20 steps |
| Noise control | Less than 60 dB |
| Software control | 7-inch touch screen |
| Dimensions | 210 mm × 340 mm × 660 mm |
