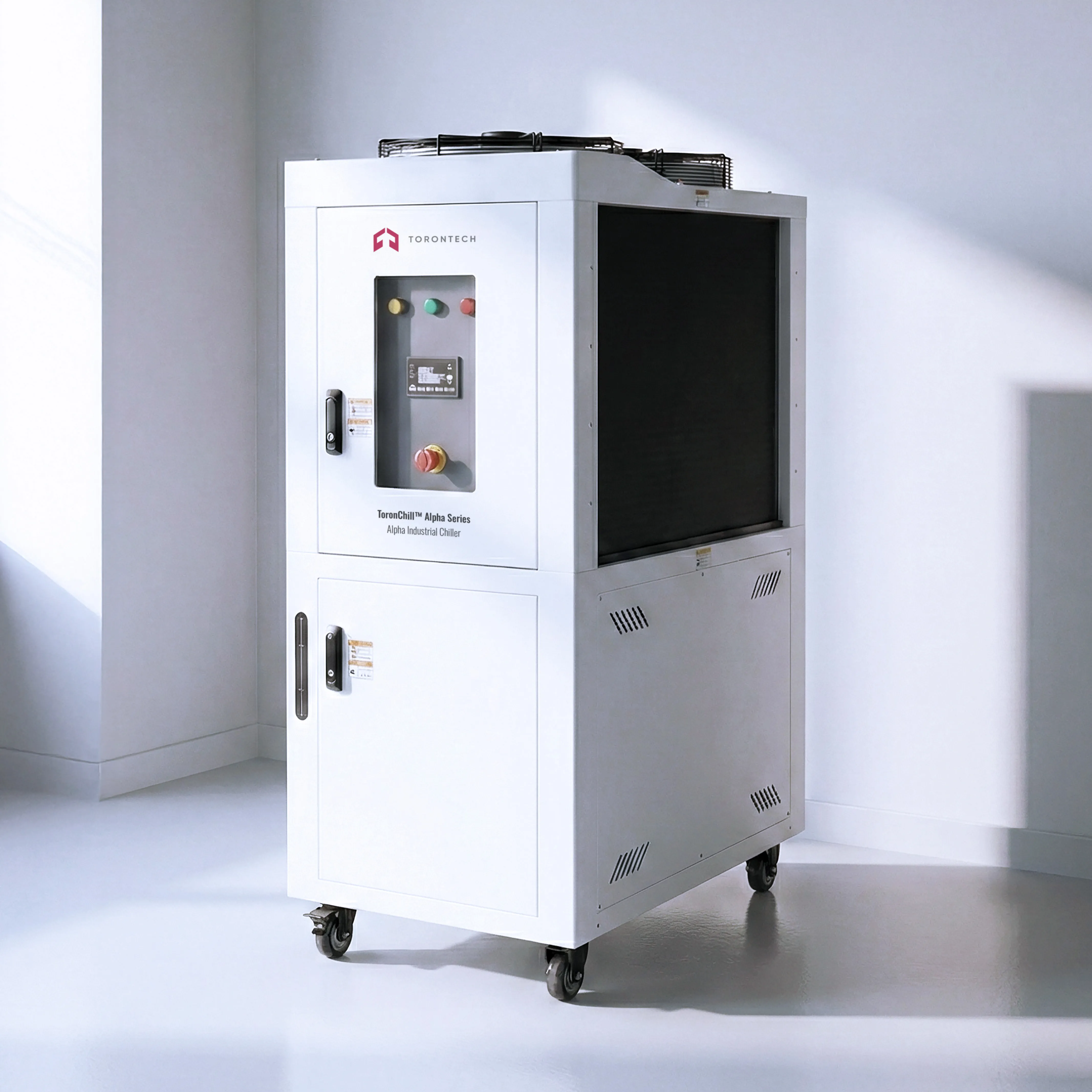

Alpha Industrial Chiller – ToronChill™ Alpha Series
ToronChill™ Alpha Series Industrial Chiller is an air-cooled, integrated cooling system designed for medium-to-large industrial equipment that needs stable process temperatures. It uses a double plate-type condenser with side air intake and top discharge for efficient heat exchange and practical installation.
This Industrial Chiller supports two control modes, fault alarms for easier maintenance, and options like dual-system operation and water filtration to help protect water quality. Flexible configuration makes it suitable for both production and R&D environments that require consistent cooling.
Alpha Industrial Chiller – ToronChill™ Alpha Series Applications
- Lasers and photonics cooling: Maintains stable coolant temperature to support consistent laser operation and repeatable output.
- Industrial furnaces and vacuum furnaces: Provides process cooling for auxiliary systems and heat-management loops in high-thermal-load equipment.
- Injection molding machines: Supports mold and process cooling to help stabilize cycle times and part quality.
- Fermentation and reaction tanks: Helps manage temperature control for batch stability and process repeatability.
- Welding and cutting machines: Removes heat from power and process components that require controlled cooling.
- Material testing platforms: Supports controlled thermal conditions for test repeatability and reliable data capture.
- Vacuum coating equipment: Provides cooling support for thermal management in coating and vacuum process equipment.
Alpha Industrial Chiller – ToronChill™ Alpha Series Key Features
- Double plate-type condenser design: Uses side air intake with top exhaust to support heat exchange efficiency and convenient layout.
- Hydrophilic fin heat exchanger surface: Hydrophilic film on condenser fins supports effective condensation heat transfer and easier cleaning.
- Two control modes for operation flexibility: Offers “setting temperature” and “follow room temperature” modes to match real process needs.
- Protection and alarm functions: Includes multiple protection functions and fault-location alarm display to support faster troubleshooting.
- Remote alarm and control readiness: Provides passive contact alarm output and remote control support for system integration.
- Optional dual-system configuration: Supports sequential start and automatic switching for higher uptime strategies.
- Optional water filtration system: Helps maintain water purity for more stable long-term cooling performance.
Alpha Industrial Chiller – ToronChill™ Alpha Series Technical Specifications
Room temp. R&D high stability chiller (ToronChill™ As series)
- Temperature Stability: ±0.2 °C
- Temperature Range: 5-35°C
| Model | Cooling Capacity (kW @ 25°C) | Max Flow (L/min) | Max Pressure (bar) | Reservoir (L) | Overall Dimensions (W×D×H, mm) |
|---|---|---|---|---|---|
| ToronChill™ A03s | 8 | 60 | 3.6 | 80 | 680×1000×1580 |
| ToronChill™ A05s | 15 | 110 | 2.8 | 80 | 680×1000×1580 |
| ToronChill™ A06s | 18 | 110 | 3.6 | 160 | 680×1200×1750 |
| ToronChill™ A08s | 22 | 110 | 5.6 | 160 | 680×1200×1750 |
| ToronChill™ A10s | 30 | 110 | 5.6 | 160 | 680×1200×1750 |
| ToronChill™ A12s | 35 | 230 | 4.4 | 220 | 780×1550×1800 |
| ToronChill™ A16s | 45 | 230 | 4.4 | 220 | 780×1550×1800 |
| ToronChill™ A20s | 60 | 480 | 4.1 | 330 | 880×1960×2300 |
| ToronChill™ A24s | 70 | 480 | 4.1 | 330 | 880×1960×2300 |
| ToronChill™ A32s | 90 | 480 | 4.1 | 330 | 880×1960×2300 |
High stability -20°C chiller (ToronChill™ As-20 series)
- Temperature Stability: ±0.2 °C
- Temperature Range: -20-35°C
| Model | Cooling Capacity (kW @ 25°C) | Max Flow (L/min) | Max Pressure (bar) | Reservoir (L) | Overall Dimensions (W×D×H, mm) |
|---|---|---|---|---|---|
| ToronChill™ A03s-20 | 6 | 60 | 3.6 | 80 | 680×1000×1580 |
| ToronChill™ A05s-20 | 12 | 110 | 2.8 | 80 | 680×1000×1580 |
| ToronChill™ A06s-20 | 16 | 110 | 3.6 | 160 | 680×1200×1750 |
| ToronChill™ A08s-20 | 20 | 110 | 5.6 | 160 | 680×1200×1750 |
| ToronChill™ A10s-20 | 25 | 110 | 5.6 | 160 | 680×1200×1750 |
| ToronChill™ A12s-20 | 30 | 230 | 4.4 | 220 | 780×1550×1800 |
| ToronChill™ A16s-20 | 40 | 230 | 4.4 | 220 | 780×1550×1800 |
| ToronChill™ A20s-20 | 50 | 480 | 4.1 | 330 | 880×1960×2300 |
| ToronChill™ A24s-20 | 64 | 480 | 4.1 | 330 | 880×1960×2300 |
| ToronChill™ A32s-20 | 80 | 480 | 4.1 | 330 | 880×1960×2300 |
High stability -40°C chiller (ToronChill™ As-40 series)
- Temperature Stability: ±0.2 °C
- Temperature Range: -40-35°C
| Model | Cooling Capacity (kW @ 25°C) | Max Flow (L/min) | Max Pressure (bar) | Reservoir (L) | Overall Dimensions (W×D×H, mm) |
|---|---|---|---|---|---|
| ToronChill™ A05s-40 | 6 | 55 | 4.5 | 80 | 680×1000×1580 |
| ToronChill™ A08s-40 | 10 | 55 | 4.5 | 160 | 680×1200×1750 |
| ToronChill™ A10s-40 | 12 | 75 | 5.5 | 160 | 680×1200×1750 |
| ToronChill™ A12s-40 | 20 | 75 | 5.5 | 160 | 680×1200×1750 |
| ToronChill™ A15s-40 | 25 | 120 | 2.4 | 160 | 680×1200×1750 |
| ToronChill™ A30s-40 | 30 | 120 | 2.4 | 220 | 780×1550×1800 |
Room Temp. On/Off Chiller (ToronChill™ Ar series)
- Temperature Stability: ±2 °C
- Temperature Range: 5 to 35 °C
| Model | Cooling Capacity (kW @ 25°C) | Max Flow (L/min) | Max Pressure (bar) | Reservoir (L) | Overall Dimensions (W×D×H, mm) |
|---|---|---|---|---|---|
| ToronChill™ A03r | 8 | 60 | 3.6 | 80 | 680×1000×1580 |
| ToronChill™ A05r | 15 | 110 | 2.8 | 80 | 680×1000×1580 |
| ToronChill™ A06r | 18 | 110 | 3.6 | 160 | 680×1200×1720 |
| ToronChill™ A08r | 25 | 110 | 7.0 | 160 | 680×1200×1720 |
| ToronChill™ A10r | 30 | 110 | 7.0 | 160 | 680×1200×1720 |
| ToronChill™ A12r | 36 | 230 | 4.4 | 220 | 780×1550×1770 |
| ToronChill™ A16r | 44 | 230 | 4.4 | 220 | 780×1550×1770 |
| ToronChill™ A20r | 60 | 480 | 4.1 | 330 | 880×1960×2300 |
| ToronChill™ A26r | 75 | 480 | 4.1 | 330 | 880×1960×2300 |
| ToronChill™ A32r | 90 | 480 | 4.1 | 330 | 880×1960×2300 |
High Reliable On/Off Stability (ToronChill™ Ab series)
- Temperature Stability: ±1 °C
- Temperature Range: 5 to 35 °C
| Model | Cooling Capacity (kW @ 25°C) | Max Flow (L/min) | Max Pressure (bar) | Reservoir (L) | Overall Dimensions (W×D×H, mm) |
|---|---|---|---|---|---|
| ToronChill™ A06b | 18 | 230 | 4.4 | 220 | 680×1200×1750 |
| ToronChill™ A10b | 30 | 480 | 4.1 | 330 | 680×1200×1750 |
| ToronChill™ A12b | 36 | 480 | 4.1 | 330 | 780×1550×1800 |
| ToronChill™ A16b | 48 | 480 | 4.1 | 330 | 780×1550×1800 |
| ToronChill™ A20b | 60 | 480 | 4.1 | 330 | 880×1960×2300 |
| ToronChill™ A24b | 70 | 480 | 4.1 | 330 | 880×1960×2300 |
| ToronChill™ A32b | 90 | 480 | 4.1 | 330 | 880×1960×2300 |
| ToronChill™ A40b | 110 | 480 | 4.1 | 580 | 980×2955×2360 |
| ToronChill™ A52b | 140 | 480 | 4.1 | 580 | 980×2955×2360 |
High Reliable On/Off Stability -20°C (ToronChill™ Ab-20 series)
- Temperature Stability: ±1 °C
- Temperature Range: -20 to 35 °C
| Model | Cooling Capacity (kW @ 25°C) | Max Flow (L/min) | Max Pressure (bar) | Reservoir (L) | Overall Dimensions (W×D×H, mm) |
|---|---|---|---|---|---|
| ToronChill™ A06b-20 | 15 | 110 | 3.6 | 160 | 680×1200×1750 |
| ToronChill™ A10b-20 | 25 | 110 | 7.0 | 160 | 680×1200×1750 |
| ToronChill™ A12b-20 | 30 | 230 | 4.4 | 220 | 780×1550×1800 |
| ToronChill™ A16b-20 | 40 | 230 | 4.4 | 220 | 780×1550×1800 |
| ToronChill™ A20b-20 | 50 | 480 | 4.1 | 330 | 880×1960×2300 |
| ToronChill™ A24b-20 | 64 | 480 | 4.1 | 330 | 880×1960×2300 |
| ToronChill™ A32b-20 | 80 | 480 | 4.1 | 330 | 880×1960×2300 |
| ToronChill™ A40b-20 | 100 | 480 | 4.1 | 580 | 980×2955×2360 |
| ToronChill™ A52b-20 | 130 | 480 | 4.1 | 580 | 980×2955×2360 |
High Stability Room Temperature Pure Water Chiller (ToronChill™ Ap)
- Temperature Stability: ±2 °C
- Temperature Range: 5 to 35 °C
| Model | Cooling Capacity (kW @ 25°C) | Max Flow (L/min) | Max Pressure (bar) | Reservoir (L) | Overall Dimensions (W×D×H, mm) |
|---|---|---|---|---|---|
| ToronChill™ A03p | 8 | 60 | 3.6 | 80 | 680×1000×1580 |
| ToronChill™ A05p | 15 | 110 | 2.8 | 80 | 680×1000×1580 |
| ToronChill™ A06p | 18 | 110 | 3.6 | 160 | 680×1200×1750 |
| ToronChill™ A08p | 22 | 110 | 5.6 | 160 | 680×1200×1750 |
| ToronChill™ A10p | 30 | 110 | 5.6 | 160 | 680×1200×1750 |
| ToronChill™ A12p | 35 | 230 | 4.4 | 220 | 780×1550×1800 |
| ToronChill™ A16p | 45 | 230 | 4.4 | 220 | 780×1550×1800 |
| ToronChill™ A20p | 60 | 400 | 4.1 | 330 | 880×1960×2300 |
| ToronChill™ A24p | 70 | 400 | 4.1 | 330 | 880×1960×2300 |
| ToronChill™ A32p | 90 | 400 | 4.1 | 330 | 880×1960×2300 |
Dual-Temp Chiller (ToronChill™ At**)** At (High stability)
- Temperature Stability: ±0.2 °C
- Temperature Range: 5 to 35 °C
| Model | Cooling Capacity (kW @ 25°C) | Max Flow (L/min) | Max Pressure (bar) | Reservoir (L) | Overall Dimensions (W×D×H, mm) |
|---|---|---|---|---|---|
| ToronChill™ A03t | 7 | 60 | 3.6 | 80 | 680×1000×1580 |
| ToronChill™ A05t | 12 | 110 | 2.8 | 80 | 680×1000×1580 |
| ToronChill™ A06t | 18 | 110 | 3.6 | 160 | 680×1200×1750 |
| ToronChill™ A08t | 22 | 110 | 5.6 | 160 | 680×1200×1750 |
| ToronChill™ A10t | 30 | 110 | 5.6 | 160 | 680×1200×1750 |
| ToronChill™ A12t | 35 | 230 | 4.4 | 220 | 780×1550×1800 |
| ToronChill™ A16t | 45 | 230 | 4.4 | 220 | 780×1550×1800 |
High Stability Room-Temp Pure Water Chiller (ToronChill™ Ar-20)
- Temperature Stability: ±2 °C
- Temperature Range: -20 to 35 °C
| Model | Cooling Capacity (kW @ 25°C) | Max Flow (L/min) | Max Pressure (bar) | Reservoir (L) | Overall Dimensions (W×D×H, mm) |
|---|---|---|---|---|---|
| ToronChill™ A03r-20 | 6 | 60 | 3.6 | 80 | 680×1000×1580 |
| ToronChill™ A05r-20 | 12 | 110 | 2.8 | 80 | 680×1000×1580 |
| ToronChill™ A06r-20 | 15 | 110 | 3.6 | 160 | 680×1200×1750 |
| ToronChill™ A08r-20 | 20 | 110 | 7.0 | 160 | 680×1200×1750 |
| ToronChill™ A10r-20 | 25 | 110 | 7.0 | 160 | 680×1200×1750 |
| ToronChill™ A12r-20 | 30 | 230 | 4.4 | 220 | 780×1550×1800 |
| ToronChill™ A16r-20 | 40 | 230 | 4.4 | 220 | 780×1550×1800 |
Atb / Atq / Ath (listed variants)
- Temperature Stability shown as: ±1 °C
- Temperature Range: 5 to 35 °C
| Model | Cooling Capacity (kW @ 25°C) | Max Flow (L/min) | Max Pressure (bar) | Reservoir (L) | Overall Dimensions (W×D×H, mm) |
|---|---|---|---|---|---|
| ToronChill™ A20tb | 60 | 480 | 4.1 | 360 | 880×1960×2300 |
| ToronChill™ A24tb | 70 | 480 | 4.1 | 360 | 880×1960×2300 |
| ToronChill™ A32tb | 90 | 480 | 4.1 | 360 | 880×1960×2300 |
| ToronChill™ A40tb | 110 | 480 | 4.1 | 580 | 980×2955×2360 |
| ToronChill™ A52tb | 140 | 480 | 5.5 | 580 | 980×2955×2360 |
| ToronChill™ A40tq | 110 | 600 | 5.7 | 680 | 1900×3000×2270 |
| ToronChill™ A48tq | 130 | 600 | 5.7 | 680 | 1900×3000×2270 |
| ToronChill™ A64tq | 180 | 600 | 5.7 | 680 | 1900×3000×2270 |
| ToronChill™ A72th | 210 | 660 | 5.4 | 680 | 1900×4180×2270 |
| ToronChill™ A96th | 270 | 660 | 5.4 | 680 | 1900×4180×2270 |
Larger Platform Models (as requested)
- Temperature Stability: ±1 °C
- Temperature Range: 5 to 35 °C
| Model | Cooling Capacity (kW @ 25°C) | Max Flow (L/min) | Max Pressure (bar) | Reservoir (L) | Overall Dimensions (W×D×H, mm) |
|---|---|---|---|---|---|
| ToronChill™ A40q | 120 | 600 | 4.0 | 680 | 1900×3000×2270 |
| ToronChill™ A48q | 140 | 600 | 4.0 | 680 | 1900×3000×2270 |
| ToronChill™ A64q | 180 | 600 | 4.0 | 680 | 1900×3000×2270 |
| ToronChill™ A72h | 210 | 660 | 5.4 | 680 | 1900×4180×2270 |
| ToronChill™ A96h | 270 | 660 | 5.4 | 680 | 1900×4180×2270 |
Larger Platform Models (A40q-20 to A96h-20)
- Temperature Stability: ±1 °C
- Temperature Range: -20 to 35 °C
| Model | Cooling Capacity (kW @ 25°C) | Max Flow (L/min) | Max Pressure (bar) | Reservoir (L) | Overall Dimensions (W×D×H, mm) |
|---|---|---|---|---|---|
| ToronChill™ A40q-20 | 100 | 600 | 4.0 | 680 | 1900×3000×2270 |
| ToronChill™ A48q-20 | 120 | 600 | 4.0 | 680 | 1900×3000×2270 |
| ToronChill™ A64q-20 | 160 | 600 | 4.0 | 680 | 1900×3000×2270 |
| ToronChill™ A72h-20 | 190 | 660 | 5.4 | 680 | 1900×4180×2270 |
| ToronChill™ A96h-20 | 240 | 660 | 5.4 | 680 | 1900×4180×2270 |
