Aircraft Cabin Interior Flammability Tester
Aircraft Cabin Interior Flammability Tester — ToronFT™ ACI
ToronFT™ ACI Aircraft Cabin Interior Flammability Tester is a comprehensive aerospace fire performance testing instrument designed for the evaluation of combustion performance of non-metallic materials used in aircraft cabins. Covering four distinct burning test orientations — vertical burning test, horizontal burning test, 45° burning test, and 60° burning test — the ToronFT™ ACI provides the complete multi-angle fire performance characterization required for aircraft interior material certification under FAR 25.853, CCAR-25-R4.853, HB5469, HB5470, and RTCA/DO-160G standards.

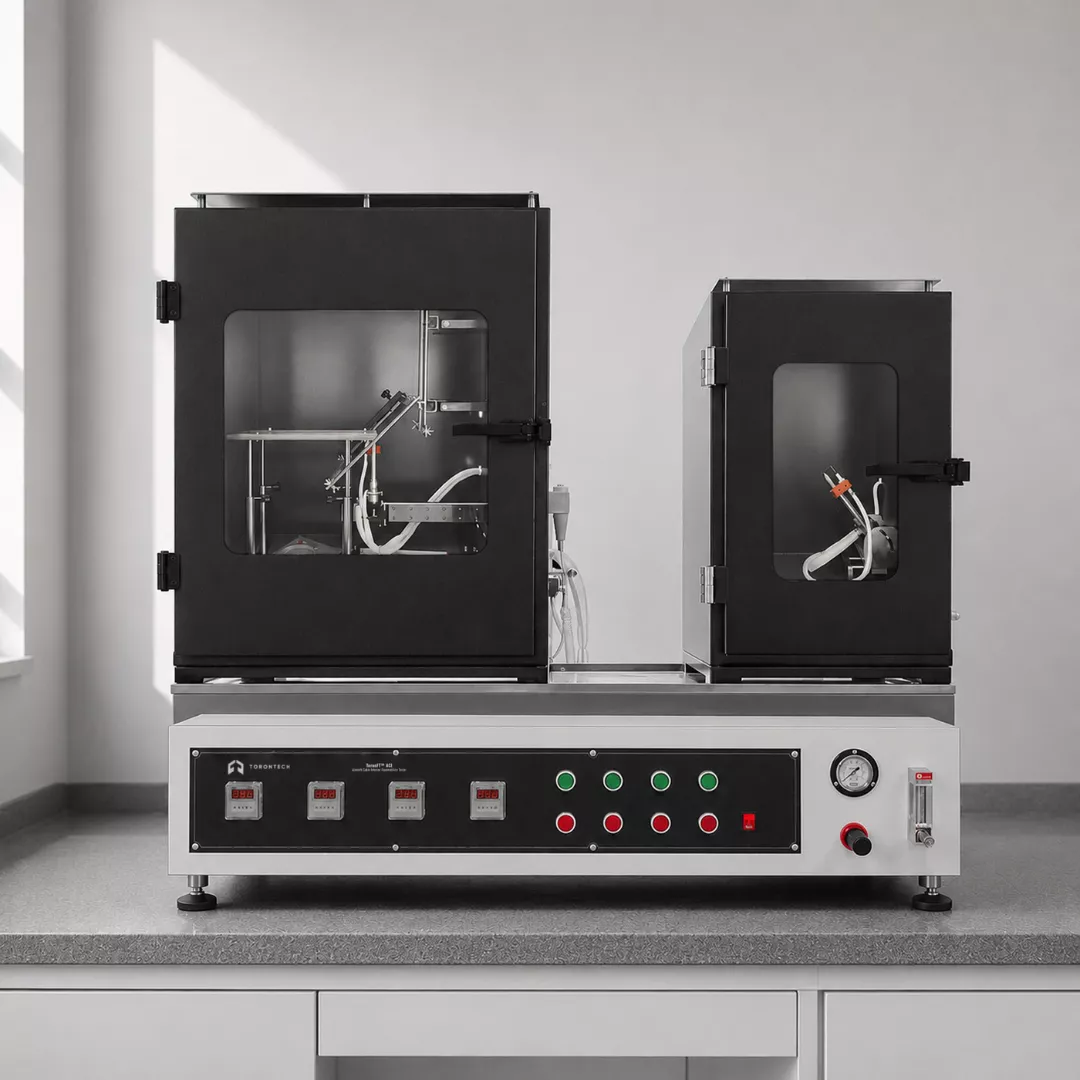

The cabin interior non-metallic material burning performance tester integrates a shared combustion box for vertical, horizontal, and 45° tests with a separate independent burning box for the 60° test, a tempered glass sealed observation window, and a precision dual-nozzle Bunsen burner system — providing the most complete, versatile aircraft cabin interior material fire test platform available in a single instrument.
Aircraft Cabin Interior Flammability Tester — ToronFT™ ACI Applications
- Aircraft interior material and component manufacturers: multi-angle burning performance qualification for cabin lining materials, seat components, insulation, and interior trim
- Aerospace OEMs and Tier 1 cabin integrators: incoming material fire performance verification for aircraft interior certification programs
- Third-party aviation testing and certification laboratories: FAR 25.853 and CCAR-25-R4.853 burning test compliance
- R&D departments: evaluation of new aircraft interior material constructions and flame retardant systems across all four test orientations
- Aviation regulatory compliance programs: material qualification for type certificate and supplemental type certificate applications
Standards
The ToronFT™ BP-NM supports aircraft cabin interior material burning performance testing in compliance with internationally recognized aviation fire safety standards, including:
- FAR Part 25.853: Compartment interiors (burning requirements for aircraft interior materials — vertical and horizontal tests)
- RTCA/DO-160G: Environmental conditions and test procedures for airborne equipment (fire test reference)
Aircraft Cabin Interior Flammability Tester — ToronFT™ ACI Key Features
- Four test modes in one instrument: vertical burning, horizontal burning, 45° burning, and 60° burning — complete FAR 25.853 aircraft interior material test coverage
- Vertical, horizontal, and 45° tests share a single combustion box; 60° test uses an independent burning box — efficient, space-saving dual-box architecture
- Tempered glass sealed observation window on the front of each box — sealed during the test to replicate standard conditions while enabling visual monitoring
- Dual-nozzle Bunsen burner: flame outlet Φ9.5 ± 0.1 mm; steam outlet Φ0.9 ± 0.03 mm; air inlet height 100 ± 10 mm from nozzle; 2 total burners
- Blowtorch angle adjustable: 0°, 45°, 60°, 90° — matching the precise flame application geometry of each test mode
- Compliant with FAR 25.853 and RTCA/DO-160G — comprehensive aviation interior material certification coverage
Theory and Method
The vertical, horizontal, and 45° tests share a single combustion box, while the 60° test uses an independent burning box — all equipped with tempered glass sealed observation windows on the front for unobstructed visual monitoring. The dual-nozzle Bunsen burner system features flame outlet diameter Φ9.5 ± 0.1 mm, steam outlet Φ0.9 ± 0.03 mm, burner-to-air inlet nozzle height 100 ± 10 mm, and operates with two total burners. The blowtorch angle is adjustable at 0°, 45°, 60°, and 90° — providing the precise flame application geometry required for each test mode.
Aircraft Cabin Interior Flammability Tester — ToronFT™ ACI Technical Specifications
| Parameter | Specification |
|---|---|
| Test Modes | Vertical burning, horizontal burning, 45° burning, 60° burning |
| Combustion Box Configuration | Shared box (vertical/horizontal/45°); independent box (60°) |
| Observation Window | Tempered glass, sealed during test (each box) |
| Burner Flame Outlet Diameter | Φ9.5 ± 0.1 mm |
| Burner Steam Outlet Diameter | Φ0.9 ± 0.03 mm |
| Nozzle-to-Air-Inlet Height | 100 ± 10 mm |
| Number of Burners | 2 |
| Blowtorch Angle Settings | 0°, 45°, 60°, 90° (adjustable) |
| Standard Compliance | FAR 25.853; RTCA/DO-160G |
