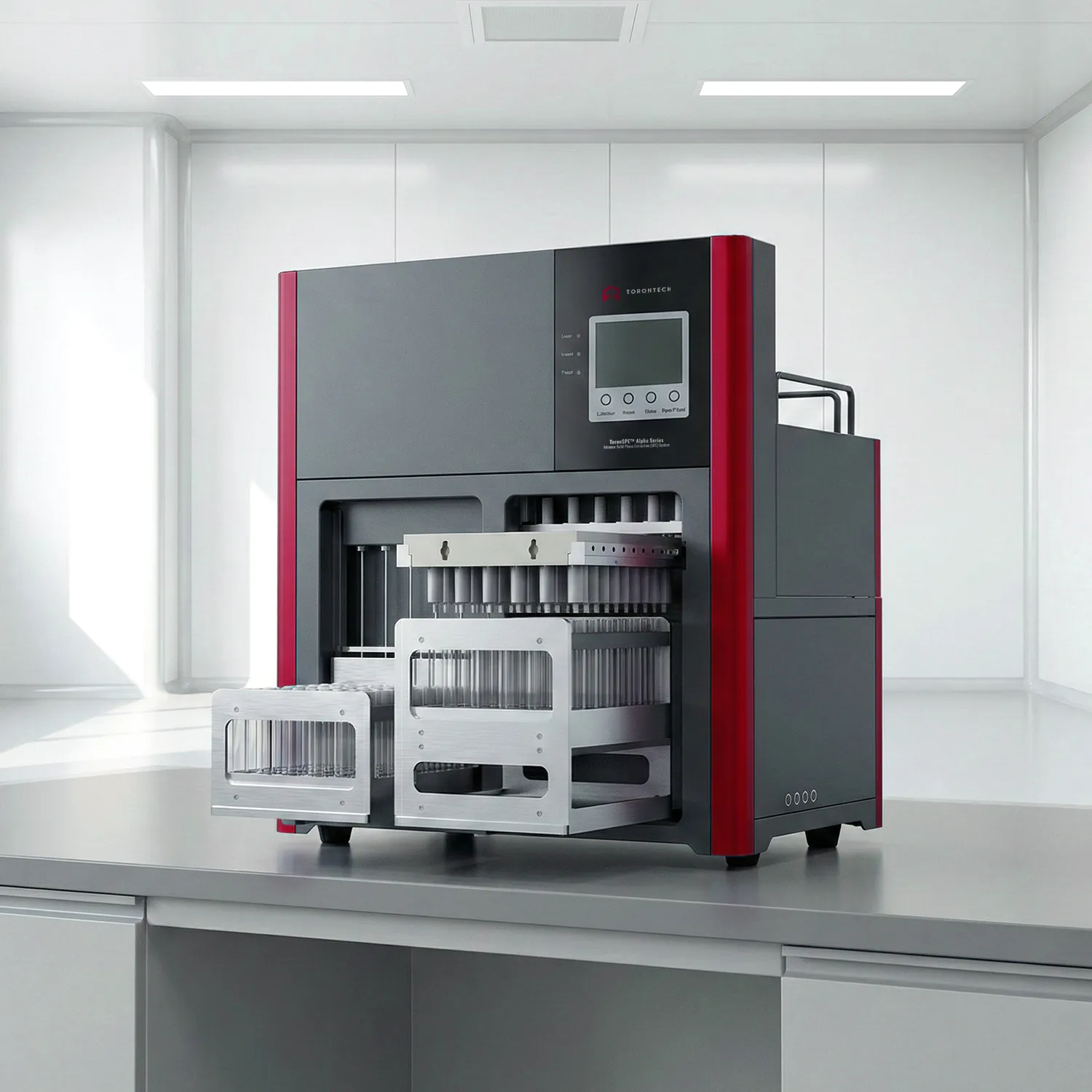

Advance Solid Phase Extraction (SPE) System – ToronSPE™ Alpha Series
ToronSPE™ Alpha Series is an Advance Solid Phase Extraction (SPE) System built for automated, high-throughput sample preparation with precise, stable flow control to improve repeatability and parallel results across batches.
Designed to reduce hands-on time and improve lab safety, the system automates the full SPE workflow and can be placed in a fume hood to help limit exposure to hazardous organic reagents.
Advance Solid Phase Extraction (SPE) System – ToronSPE™ Alpha Series Applications
- Food safety testing (pesticide & veterinary drug residues): Automates cleanup and concentration steps to improve consistency across large sample sets.
- Environmental analysis (harmful organic compounds): Supports routine SPE preparation for environmental monitoring workflows, including higher-volume batch handling with modular expansion.
- Clinical/toxicology screening (poisonous materials in blood & urine): Provides controlled, repeatable extraction conditions to reduce variability between runs and operators.
Advance Solid Phase Extraction (SPE) System – ToronSPE™ Alpha Series Key Features

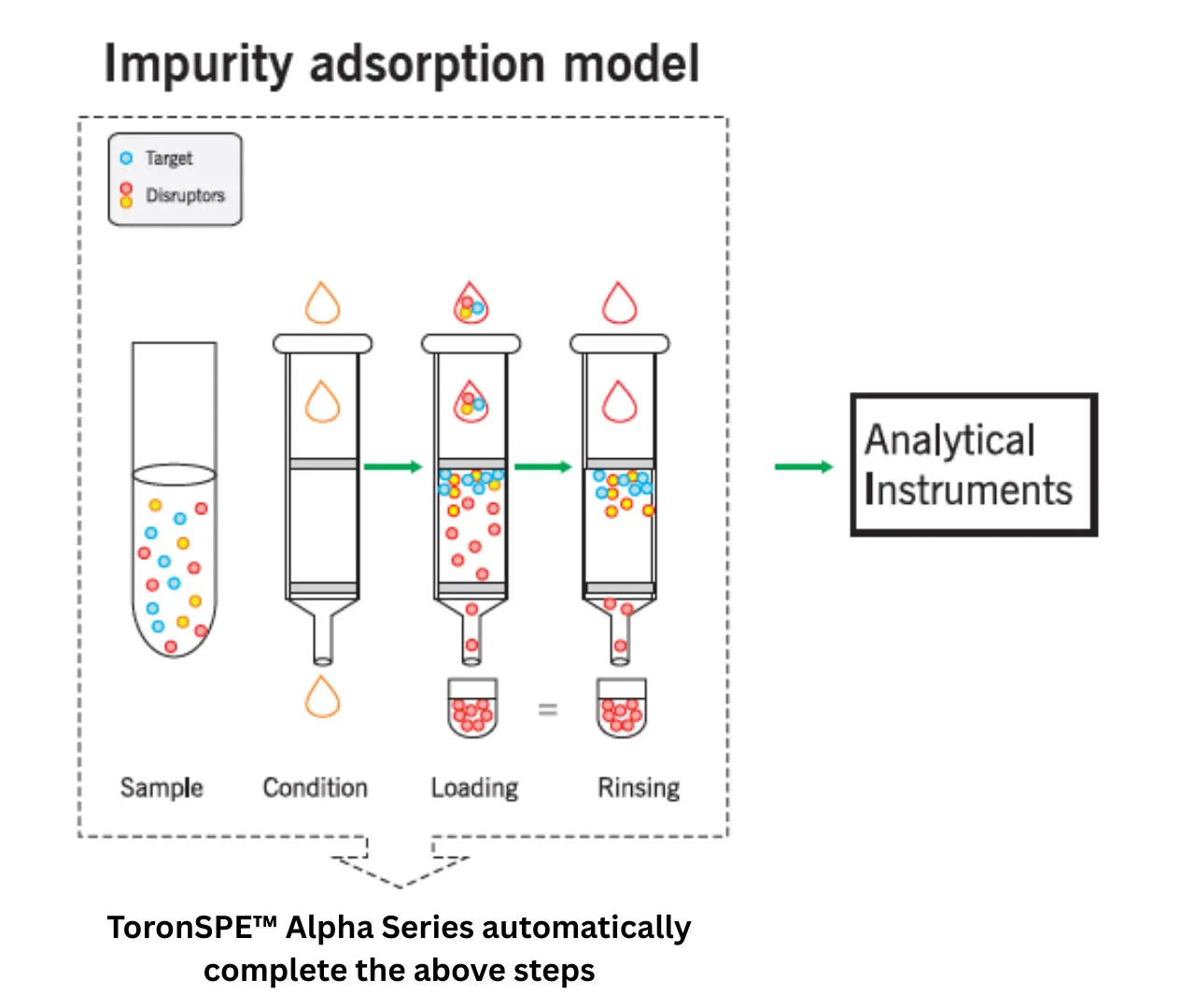

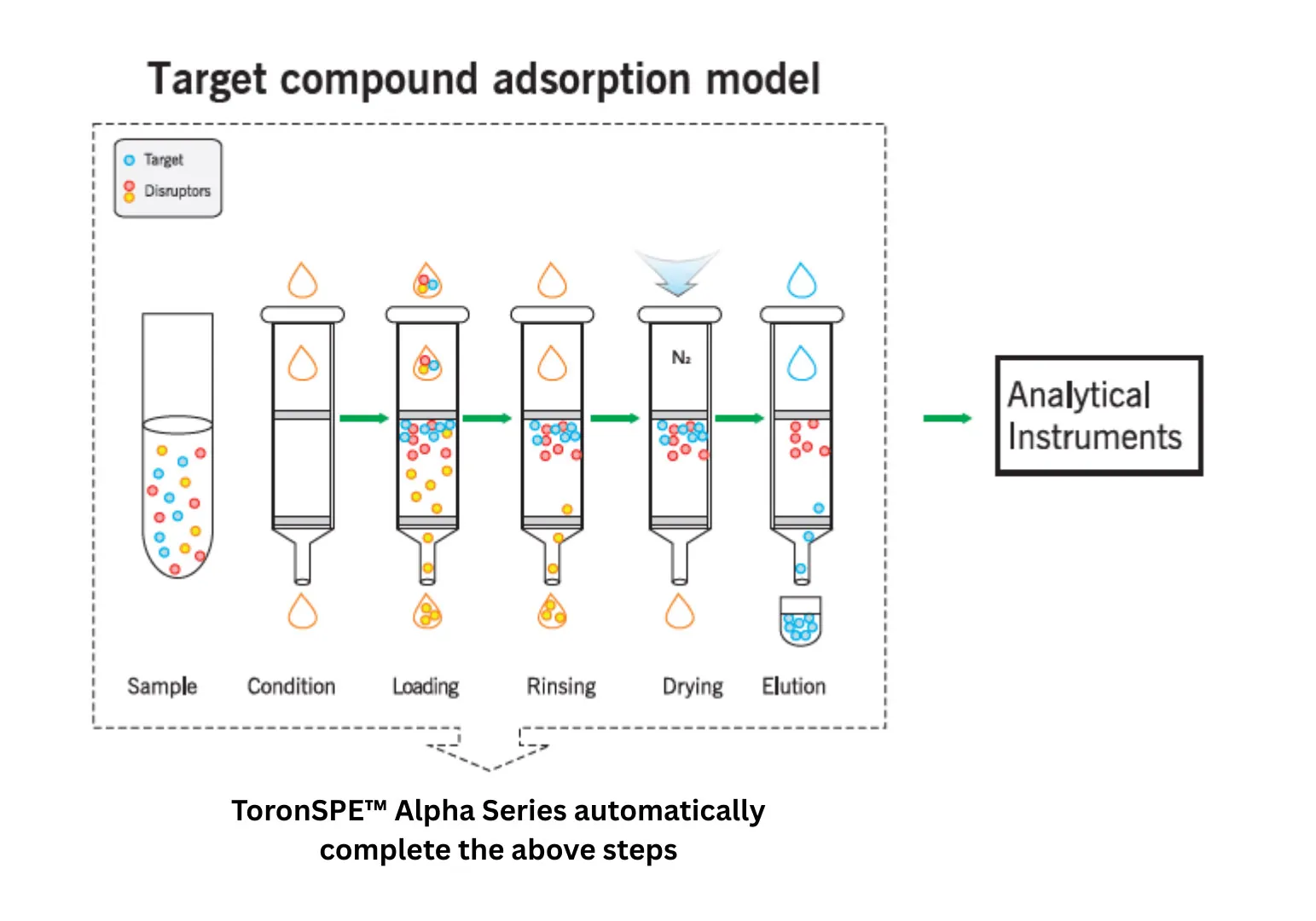

- Fully automated SPE workflow to reduce manual steps and improve throughput.
- Precise, stable flow-rate control to support repeatability and result parallelism.
- Patented plunger pole design closely interfaces with the SPE cartridge to help keep flow consistent across different cartridge conditions.
- Multi-channel simultaneous operation using the same method/conditions for batch consistency.
- Fast solvent switching via multi-port valves to reduce cycle time between steps.
- Multi-rail operation design to help reduce cross-contamination risk from back-and-forth movement.
- Surface-inert flow path & injection needle with configurable needle rinsing to help reduce carryover.
- Monitoring logs + intelligent error handling with abnormal samples handled separately and records saved for review.
- Remote wireless monitoring through a graphical software interface.
- Expandable, modular platform including compatibility with special cartridges/modules (e.g., immune affinity) and configurations for larger environmental batches.
- Improved sealing and leakage prevention using O-ring sealing (as shown in the brochure).
Advance Solid Phase Extraction (SPE) System – ToronSPE™ Alpha Series Technical Specifications
| Parameter | Specification | |||
|---|---|---|---|---|
| Product | ToronSPE™ Alpha 2 | ToronSPE™ Alpha 6 | ToronSPE™ Alpha 8 | ToronSPE™ Alpha 6 Lite |
| Extraction Channel | 2 channels in parallel | 6 channels in parallel | 8 channels in parallel | 6 channels in parallel |
| Sample Capacity | 20, 12 | 60, 36 | 80, 48 | 36 |
| SPE Cartridge Size | 3 mL, 6 mL | 1 mL, 3 mL, 6 mL, 12 mL, 20 mL | 1 mL, 3 mL, 6 mL | 3 mL, 6 mL, 12 mL |
| Sample Vials | 15 mL, 20 mL, 60 mL, 80 mL | 15 mL, 20 mL, 60 mL, 80 mL | 15 mL, 20 mL, 60 mL, 80 mL | 15 mL, 20 mL, 80 mL |
| Collection Vials | 15 mL, 20 mL, 60 mL, 80 mL | 15 mL, 20 mL, 60 mL, 80 mL | 15 mL, 20 mL, 60 mL, 80 mL | 15 mL, 20 mL, 80 mL |
| Solvent Capacity | 8 | 8 | 8 | 8 |
| Flow Rate | 0.1 to 100 mL/min | 0.1 to 100 mL/min | 0.1 to 10 mL/min | 0.1 to 100 mL/min |
| Gas Supply and Connection | Nitrogen gas; Max. input: 100 psi/6.9 bar; Output: 0 to 20 psi/1.4 bar | Nitrogen gas; Max. input: 100 psi/6.9 bar; Output: 0 to 20 psi/1.4 bar | Nitrogen gas; Max. input: 100 psi/6.9 bar; Output: 0 to 20 psi/1.4 bar | Nitrogen gas; Max. input: 100 psi/6.9 bar; Output: 0 to 20 psi/1.4 bar |
| Fume Hood / Ventilation | Required | Required | Required | Required |
| Control Software | Windows PC; WiFi connection | Windows PC; WiFi connection | Windows PC; WiFi connection | Windows PC; WiFi connection |
| Dimensions | 40 cm × 38 cm × 58 cm | 62 cm × 38 cm × 63 cm | 77 cm × 45 cm × 64 cm | 62 cm × 38 cm × 63 cm |
| Weight | 30 kg | 68 kg | 72 kg | 68 kg |
| Voltage | 200 to 240 V, 50/60 Hz (110V is also available) | |||
| Storage Temperature | 0 to 40°C | 0 to 40°C | 0 to 40°C | 0 to 40°C |
| Storage Humidity | 20 to 85% | 20 to 85% | 20 to 85% | 20 to 85% |
| Operating Temperature | 10 to 40°C | 10 to 40°C | 10 to 40°C | 10 to 40°C |
| Operating Humidity | 20 to 80% | 20 to 80% | 20 to 80% | 20 to 80% |
