3-Zone Tube Furnace 1700°C – TT-TF3Z-80-1700 is engineered for sintering and high-temperature heat treatment of metals, ceramics, nanomaterials, semiconductors, and powder metallurgy. Widely used in universities, research institutes, manufacturing facilities, and industries such as petrochemical and aerospace, this furnace features a high-purity quartz tube with an outer diameter of Φ130 mm and three independently controlled heating zones, each 300 mm in length. It supports continuous operation at 1100 °C with a maximum temperature of 1700 °C, powered by 380 V/50 Hz. The heating system utilizes 1500-type polycrystalline alumina ceramic fiber elements with an N-type thermocouple to deliver precise temperature control and uniform heating for advanced material processing.
Constructed from Q235 low-carbon steel, the furnace shell is corrosion-resistant and electrostatically coated, with a durable double-layer frame integrated with a heat-insulating fan system to maintain a low external temperature. The multi-layer insulation system, made of lightweight alumina ceramic fiber and premium insulation boards, is asbestos-free and minimizes energy loss. High-quality metal and ceramic heating elements arranged in ring or dual-side configurations ensure uniform temperature distribution, while three independent heating zones provide precise thermal management. The PID-controlled temperature panel with SSR/SCR output, program controller supporting up to 30 segments, heating indicators, and over-temperature alarms ensures safe, flexible, and reliable operation. A 304 stainless steel sealing flange allows vacuum or controlled atmosphere operation, compatible with quartz, metal, or alumina tubes for versatile applications.
Advanced Ceramic Materials – Enables high-temperature sintering and densification of ceramics with excellent structural integrity, thermal resistance, and mechanical strength, ideal for industrial and research applications.
Nanomaterials Research – Provides precise, uniform thermal processing for nanostructures and advanced composites, supporting R&D in functional nanomaterials used in electronics, catalysis, and energy storage.
Semiconductor Materials – Facilitates annealing, diffusion, and oxidation of semiconductor substrates at ultra-high temperatures, ensuring precise temperature control essential for microelectronics and optoelectronics development.
Powder Metallurgy – Supports high-temperature sintering of metal powders into dense, uniform components, widely used for manufacturing complex shapes and advanced alloys in research and production.
Petrochemical & Chemical Laboratories – Suitable for catalyst activation, thermal decomposition, and reaction mechanism studies requiring temperatures up to 1700°C. Provides accurate, reproducible results for chemical R&D.
Aerospace Materials Engineering – Enables testing and processing of high-performance alloys, ceramics, and composites for aerospace applications. Ensures thermal stability and mechanical performance validation under extreme conditions.
Energy & Battery Research – Ideal for thermal treatment of solid-state electrolytes, lithium-ion battery materials, and next-generation energy storage systems. Ensures high-temperature stability and consistent results.
Universities & Research Institutes – Perfect for advanced studies in physics, chemistry, materials science, and engineering, offering flexible programming, reliable performance, and robust safety for academic labs.
Industrial Quality Control & Certification – Delivers ultra-high-temperature testing for product validation, compliance verification, and certification, conforming with ISO, CE, SGS, and TÜV standards for regulated industries.

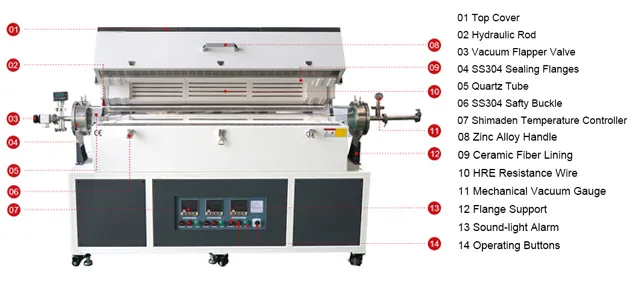

Furnace Shell
- Constructed from Q235 low-carbon steel, the furnace shell features a corrosion-resistant, electrostatically coated surface. Its durable double-layer metal frame integrates a heat-insulating fan system, helping maintain a low external temperature. The horizontal layout with a top-opening design ensures convenient operation.
Refractory Material
- The multi-layer insulation consists of lightweight alumina ceramic fiber and a high-quality insulation board backing. It is asbestos-free, minimizes heat loss, and promotes energy efficiency.
Heating System
- Equipped with high-performance metal and ceramic heating elements, the system delivers radiant heat within the chamber for optimal efficiency and long service life. The elements are arranged in a ring or dual-side configuration to ensure uniform temperature distribution.
- The furnace includes three independently controlled heating zones, offering improved temperature consistency across the entire chamber.

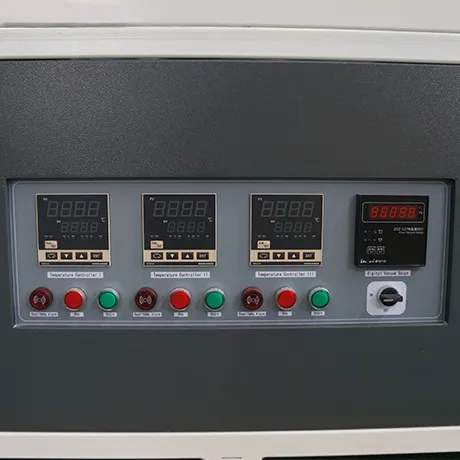

Temperature Control Panel
- Features PID control with SSR/SCR components for accurate temperature regulation. Includes an international-standard thermocouple for durability, a heating status indicator, and an over-temperature alarm buzzer for safety.
Program Controller
- User-friendly and capable of handling complex thermal processes. Supports flexible programming with up to 30 customizable segments. Includes automatic safety shutoff, over-temperature alerts, and fault detection for reliable operation.
Vacuum and Atmosphere Capability
- Fitted with a 304 stainless steel sealing flange to allow for vacuum or controlled atmosphere operation. The system is compatible with quartz, metal, or alumina tubes—offering adaptability for a variety of applications and working environments.
| Model Item | Heating Zone（mm） | Tube Size (mm) | Max Temperature | Work Temperature | Voltage | Power | Heating Element | Temperature Accuracy |
| TT-TF3Z-40-1200 | 300+300+300 | Φ40×1500 | 1200℃ | 1100℃ | 220V (110V is also available) | 5.4KW | HRE | ±1℃ |
| TT-TF3Z-60-1200 | 300+300+300 | Φ60×1500 | 1200℃ | 1100℃ | 380V | 7.8KW | HRE | ±1℃ |
| TT-TF3Z-80-1200 | 300+300+300 | Φ80×1500 | 1200℃ | 1100℃ | 380V | 7.8KW | HRE | ±1℃ |
| TT-TF3Z-100-1200 | 300+300+300 | Φ100×1500 | 1200℃ | 1100℃ | 380V | 7.8KW | HRE | ±1℃ |
| TT-TF3Z-40-1400 | 200+200+200 | Φ40×1200 | 1400℃ | 1350℃ | 220V (110V is also available) | 5KW | SIC | ±1℃ |
| TT-TF3Z-60-1400 | 200+200+200 | Φ60×1200 | 1400℃ | 1350℃ | 380V | 8KW | SIC | ±1℃ |
| TT-TF3Z-80-1400 | 200+200+200 | Φ80×1200 | 1400℃ | 1350℃ | 380V | 9KW | SIC | ±1℃ |
| TT-TF3Z-100-1400 | 200+200+200 | Φ100×1200 | 1400℃ | 1350℃ | 380V | 12KW | SIC | ±1℃ |
| TT-TF3Z-40-1700 | 200+200+200 | Φ40×1200 | 1700℃ | 1600℃ | 380V | 6KW | MoSi2 | ±1℃ |
| TT-TF3Z-60-1700 | 200+200+200 | Φ60×1200 | 1700℃ | 1600℃ | 380V | 9KW | MoSi2 | ±1℃ |
| TT-TF3Z-80-1700 | 200+200+200 | Φ80×1200 | 1700℃ | 1600℃ | 380V | 12KW | MoSi2 | ±1℃ |
| TT-TF3Z-100-1700 | 200+200+200 | Φ100×1200 | 1700℃ | 1600℃ | 380V | 12KW | MoSi2 | ±1℃ |
