The 2-Zone Split Tube Furnace 1200°C – TT-TF2Z-150-1200 is engineered for sintering and high-temperature heat treatment of metals, ceramics, nanomaterials, semiconductors, powder metallurgy, and other advanced materials. Widely utilized in universities, research institutes, industrial facilities, and sectors such as petrochemicals and aerospace, this dual-zone furnace offers precise thermal control and uniform heating. It features a high-purity quartz tube with an outer diameter of Φ150 mm and two independently controlled heating zones, each 300 mm in length, allowing optimized temperature distribution.
The furnace operates continuously at temperatures up to 1200°C, with a maximum working temperature of 1100°C. Powered by 220 V/5.2 kW (110 V available), it incorporates high-quality HRE alloy resistance wire elements, an N-type thermocouple, and delivers temperature precision of ±1°C. This ensures reliable, reproducible results for advanced research and industrial applications, making it an ideal solution for laboratories and manufacturing environments requiring consistent high-temperature processing.
Metals & Powder Metallurgy – Enables high-temperature sintering and thermal treatment of metal powders, producing dense, uniform components with precise control over microstructure, critical for advanced manufacturing and research.
Ceramics & Nanomaterials – Provides independent dual-zone heating for consistent temperature distribution, supporting sintering, densification, and material property optimization of ceramics and nanostructures used in electronics, catalysis, and energy storage applications.
Semiconductor Materials – Facilitates high-temperature annealing, diffusion, and oxidation processes for semiconductor wafers, ensuring reproducible thermal profiles critical for microelectronics and optoelectronics development.
Research & Academic Laboratories – Ideal for universities and research institutes performing high-precision thermal experiments, including material synthesis, characterization, and advanced R&D in both metals and ceramics.
Industrial Facilities & Aerospace Applications – Supports high-temperature processing in manufacturing environments requiring robust, reliable, and repeatable thermal treatment for components used in aerospace, petrochemical, and other demanding industries.
Vacuum & Controlled Atmosphere Applications – Equipped with a 304 stainless steel sealing flange and high-purity quartz tube (optional metal or corundum), enabling operations under vacuum or inert/protective gas atmospheres such as nitrogen, argon, or hydrogen.
Precision & Safety – Features PID and SSR/SCR control with an N-type thermocouple, ±1°C temperature accuracy, programmable 30-segment thermal curves, door safety switch, and over-temperature alarm, ensuring safe and reproducible high-temperature operation.
Versatile Model Options – Available in a wide range of tube sizes (Φ40–Φ100 mm) and heating capacities (3.6 kW–12 kW), supporting continuous temperatures up to 1200–1700°C depending on the configuration, with dual 300 mm heating zones for optimal thermal uniformity.

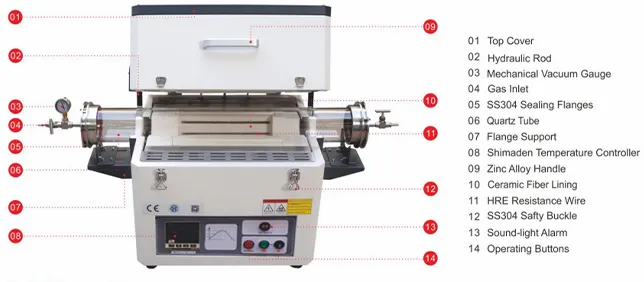

Furnace Shell
- The shell is constructed from Q235 low-carbon steel with an electrostatically resistant, corrosion-resistant surface.
- A solid, double-layer metal frame integrates with an insulated fan structure to keep the furnace surface temperature low.
- Designed for horizontal use with a top-opening lid for easy operation.
Refractory Insulation
- Features a multi-layer insulation system made of lightweight alumina ceramic fiber and premium insulation board backing.
- Asbestos-free, with low heat loss and reduced energy consumption.
Heating System
- Built with high-performance HRE heating elements for efficient, radiant heat distribution within the chamber.
- The elements are arranged in a ring or on both sides to ensure even temperature distribution.
- Dual-zone configuration allows independent control of each zone for improved temperature uniformity and control.
Temperature Control Panel
- Uses PID control with solid-state relays (SSR) for accurate temperature management.
- Equipped with an internationally standardized N-type nickel-chromium-silicon thermocouple (0–1300°C) for durability and precise readings.
- A safety switch automatically shuts off power when the furnace door is opened.
Programmable Controller
- Supports PID with SSR or SCR control for fine temperature regulation.
- Features a durable, international-standard thermocouple.
- Includes 30 programmable segments, a heating status indicator, and an over-temperature alarm buzzer.
Vacuum and Atmosphere Compatibility
- Fitted with a 304 stainless steel sealing flange to enable vacuum or controlled atmosphere operation within the tube.
- Comes with a high-purity quartz tube by default; metal or corundum tubes are available to suit various applications.
| Product Item | Heating Zone（mm） | Tube Size (mm) | Max Temperature | Work Temperature | Voltage | Power | Heating Element | Temperature Accuracy |
| TT-TF2Z-40-1200 | 300+300 | Φ40×1200 | 1200℃ | 1100℃ | 220V (110V is also available) | 3.6KW | HRE | ±1℃ |
| TT-TF2Z-60-1200 | 300+300 | Φ60×1200 | 1200℃ | 1100℃ | 220V (110V is also available) | 5.2KW | HRE | ±1℃ |
| TT-TF2Z-80-1200 | 300+300 | Φ80×1200 | 1200℃ | 1100℃ | 220V (110V is also available) | 5.2KW | HRE | ±1℃ |
| TT-TF2Z-100-1200 | 300+300 | Φ100×1200 | 1200℃ | 1100℃ | 220V (110V is also available) | 5.2KW | HRE | ±1℃ |
| TT-TF2Z-40-1400 | 300+300 | Φ40×1200 | 1400℃ | 1350℃ | 220V (110V is also available) | 4KW | SIC | ±1℃ |
| TT-TF2Z-60-1400 | 300+300 | Φ60×1200 | 1400℃ | 1350℃ | 220V (110V is also available) | 6KW | SIC | ±1℃ |
| TT-TF2Z-80-1400 | 300+300 | Φ80×1200 | 1400℃ | 1350℃ | 380V | 8KW | SIC | ±1℃ |
| TT-TF2Z-100-1400 | 300+300 | Φ100×1200 | 1400℃ | 1350℃ | 380V | 10KW | SIC | ±1℃ |
| TT-TF2Z-40-1700 | 300+300 | Φ40×1200 | 1700℃ | 1600℃ | 220V (110V is also available) | 6KW | MoSi2 | ±1℃ |
| TT-TF2Z-60-1700 | 300+300 | Φ60×1200 | 1700℃ | 1600℃ | 380V | 8KW | MoSi2 | ±1℃ |
| TT-TF2Z-80-1700 | 300+300 | Φ80×1200 | 1700℃ | 1600℃ | 380V | 10KW | MoSi2 | ±1℃ |
| TT-TF2Z-100-1700 | 300+300 | Φ100×1200 | 1700℃ | 1600℃ | 380V | 12KW | MoSi2 | ±1℃ |
