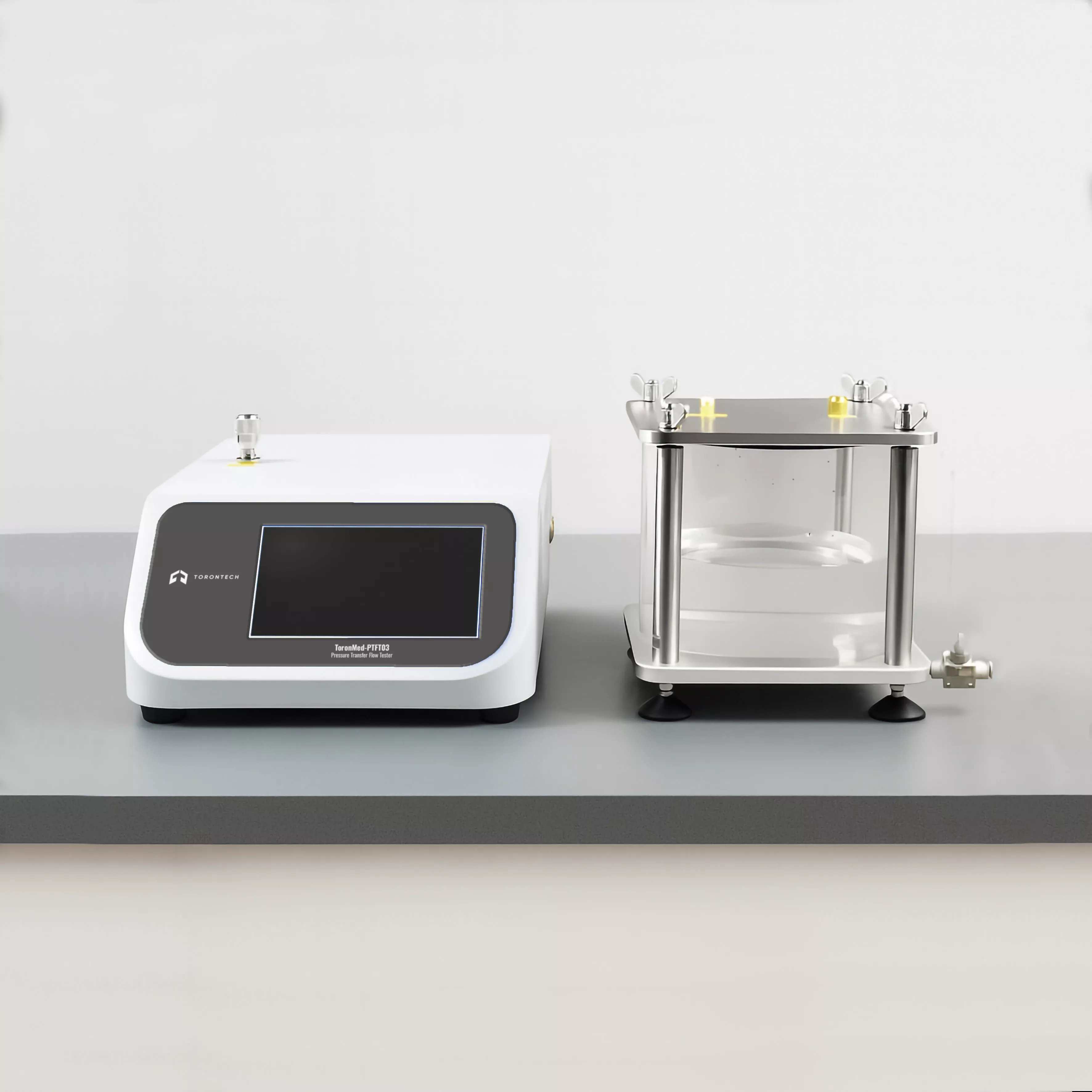

Catheter Pressure Transfer & Flow Tester
Catheter Pressure Transfer & Flow Tester – ToronMed™ PTFT03 is designed to measure and evaluate the pressure transfer characteristics and flow performance of medical devices such as catheters, infusion sets, and respiratory tubes. By simulating clinical pressure and fluid transfer conditions, this tester provides reliable data to ensure that devices perform safely, consistently, and in compliance with international standards.
Standards Compliance
The ToronMed™ PTFT03 Catheter Pressure Transfer & Flow Tester is designed to comply with relevant ISO and EN standards for medical device performance testing, supporting global regulatory requirements for catheter and breathing system validation.
Standard Configuration
- Main instrument unit
- Integrated touchscreen interface
- Micro printer
- Standard test connectors
Why Choose Catheter Pressure Transfer & Flow Tester – ToronMed™ PTFT03?
The Pressure Transfer Flow Tester – ToronMed™ PTFT03 combines accuracy, automation, and reliability to support the validation of medical devices in both R&D and quality control settings. With advanced flow regulation, large-capacity data storage, and compliance with international standards, the Pressure Transfer Flow Tester is an essential solution for ensuring the performance and safety of catheters, breathing tubes, and infusion systems.
- Catheters
- Infusion catheters
- Drainage catheters
- Urinary catheters
- Respiratory Devices
- Breathing tubes
- Anesthesia circuits
- Trachea cannulas
- Other Medical Tubing
- Peritoneal catheters
- Flexible medical hoses
- Advanced Microcomputer Control
Embedded high-speed controller with streamlined interface ensures precise operation and reliable performance. - 7-Inch HD Touchscreen
Real-time display of test curves and data improves visibility and test management. - Built-In Safety Systems
Overvoltage protection and power-off memory safeguard test continuity and maintain system stability. - High-Accuracy Flow and Pressure Control
Electronic flow controllers provide stable, repeatable flow regulation under variable pressure conditions. - Customizable Test Modes
Pressure, flow, and dwell time can be preset for flexible test cycles tailored to specific applications. - Large-Capacity Data Storage
Internal memory capable of storing up to 100,000 test results, with automated pass/fail judgment. - Connectivity & Reporting
RS232 interface for PC data transfer and integrated printer for immediate reporting.
Test Principle
The Pressure Transfer Flow Tester applies controlled pressure and flow to the test specimen, such as a catheter or breathing tube, while continuously monitoring flow stability and pressure drop. By replicating real-world conditions, the tester provides accurate, repeatable data on fluid transfer efficiency, resistance, and device safety.
Specification | Value |
|---|---|
| Test Pressure Range | (to be specified – typical: 0–600 kPa) |
| Flow Rate Range | (to be specified – typical: 0–500 ml/min) |
| Accuracy | ≤ ±1% FS |
| Dwell Time | 0–60 min |
| Gas Supply Pressure | 0.4–0.7 MPa (customer-supplied) |
| Gas Supply Port | Φ8 mm PU Tubing |
| Voltage | AC 220V 50Hz / AC 110V 60Hz |
| Net Weight | Approx. 25 kg |
| Dimensions | 310 × 370 × 150 mm |
(Values can be updated once your original technical sheet is provided.)
