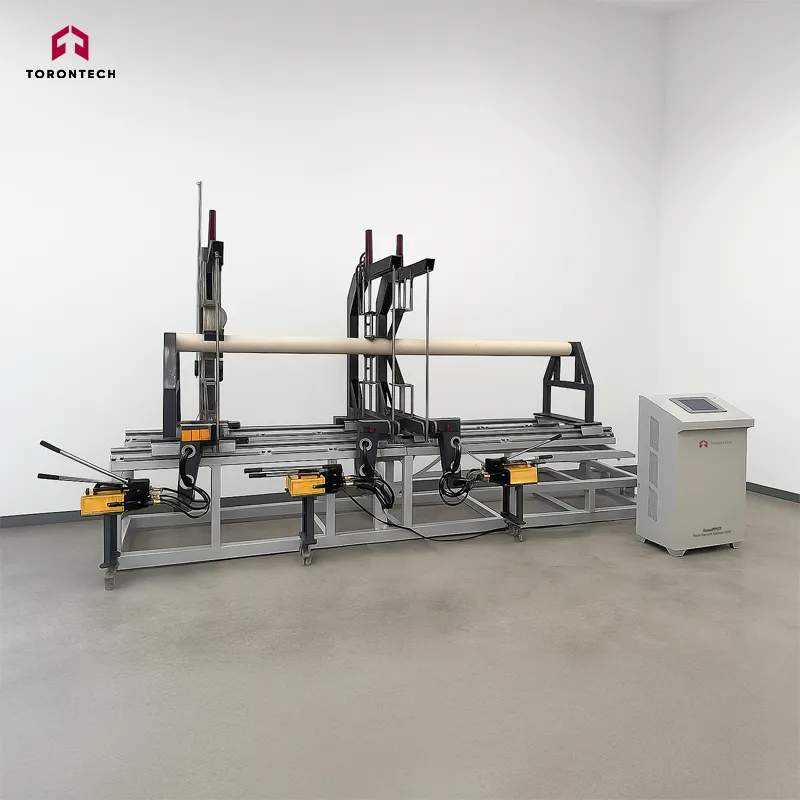

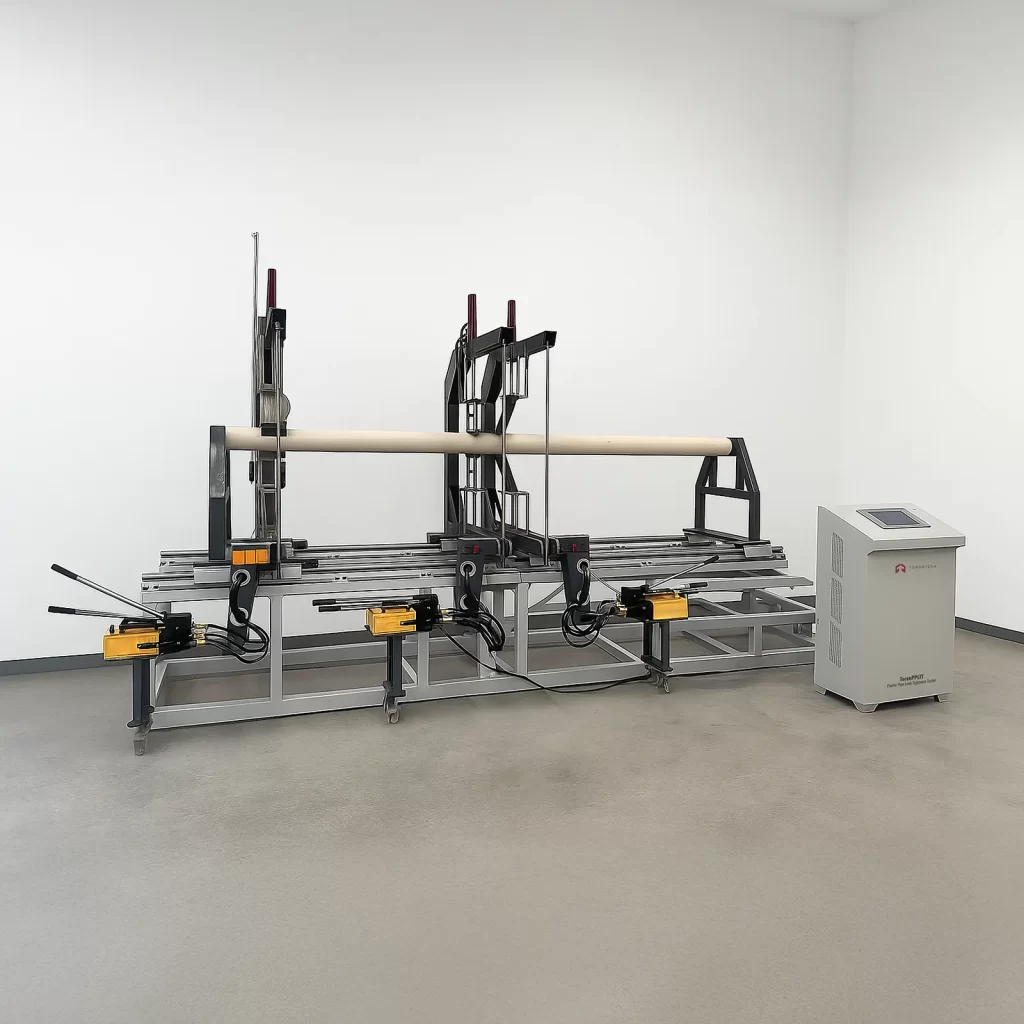

Plastic Pipe Leak Tightness Tester - ToronPPLTT™
ISO 4422, ISO 13844, ISO 13259, EN DIN 1277
ToronPPLTT™ Plastic Pipe Leak Tightness Tester is designed to test the leak tightness of elastomeric sealing ring joints in underground thermoplastic non-pressure piping systems.
Plastic Pipe Manufacturers & Extrusion Plants - Applied for routine testing of elastomeric sealing ring joints in non-pressure thermoplastic piping systems to ensure compliance with ISO 4422, ISO 13844, ISO 13259, and EN/DIN 1277 standards.
Quality Assurance & Certification Agencies - Used for third-party verification and certification of leak tightness performance for underground piping systems.
Water Supply & Irrigation Industry - Ensures leak-proof joints in PE, PVC, and PP piping networks used for potable water, irrigation, and drainage applications.
Sewage & Drainage Infrastructure Projects - Confirms the integrity of sealing ring joints in underground non-pressure pipes designed for municipal sewage and stormwater systems.
Gas Distribution & Utility Providers - Supports testing of joint tightness in protective piping systems for cables, ducts, and utility conduits.
Construction & Civil Engineering Contractors - Applied for acceptance testing of piping joints before installation and commissioning in large-scale infrastructure projects.
Pipeline Maintenance & Failure Analysis Centers - Facilitates investigation of joint leakage issues by simulating angular deflection and negative pressure conditions in laboratory environments.
Universities & Technical Institutes - Serves as a teaching tool for training students and researchers on leak tightness testing methods, sealing joint performance, and international piping standards.
Plastic Pipe Leak Tightness Tester ToronPPLTT™ Features
- Industrial LCD screen allows easy input and review of test details, including parameters, results, and test curves.
- Test data can be quickly transferred to a PC via USB for further analysis and report creation.
- Hydraulic radial deflection system with a high-precision digital gauge and self-centering feature simplifies operation.

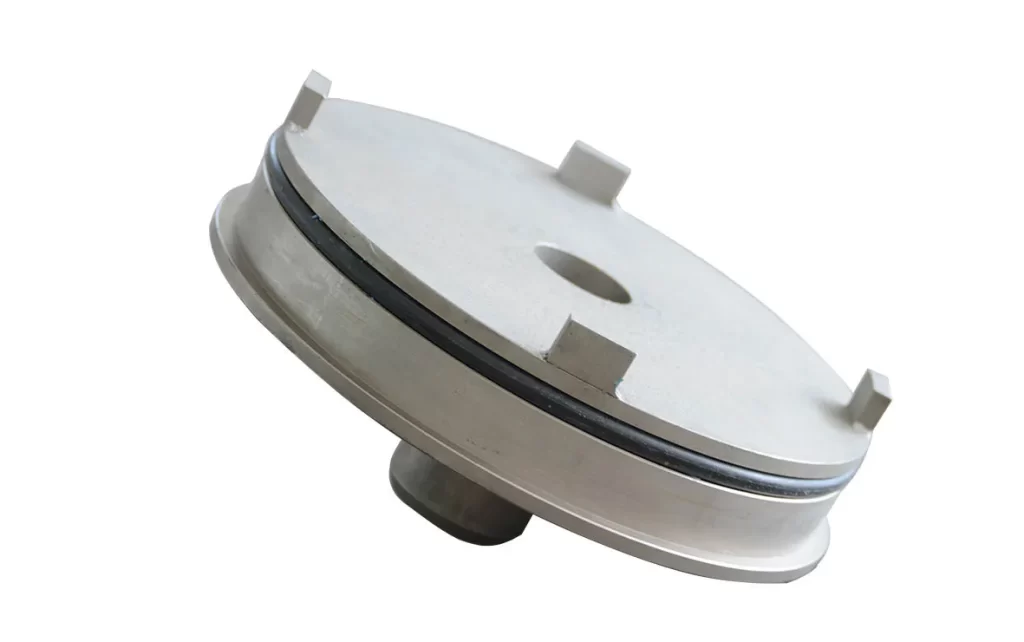

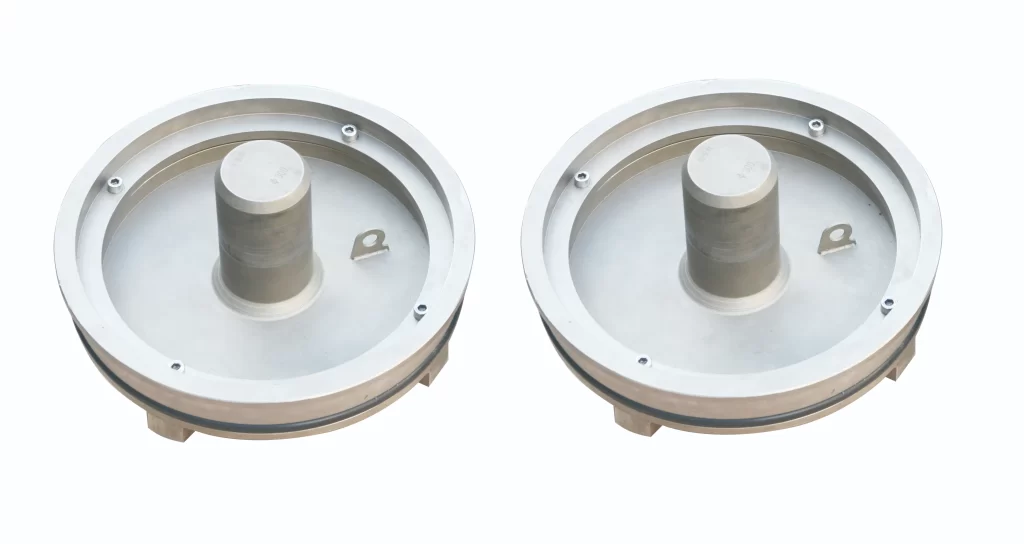

- Interchangeable support blocks accommodate various pipe fittings.
- Captures angular deflection in four directions.
- Specially designed clamping system enables quick and easy sample setup.
| Specification | Details |
|---|---|
| Test Station | 1 |
| Pipe Diameter (DN) | (63 to 400) mm or (200 to 710) mm |
| Pressure Range | 0 to (-0.08) MPa |
| Pressure Display Accuracy | 0.001 MPa |
| Pressure Control Accuracy (MPa) | -0.01±0.002 / -0.03±0.0015 / -0.08±0.002 |
| Max. Angle of Deflection | 2.5° |
| Voltage | 220VAC 50Hz 1kW (110V is also available) |
