X-Ray Pipeline Crawler in Saudi Arabia: Choose the Right ToronXPC™ Model by Pipe Diameter and Penetration

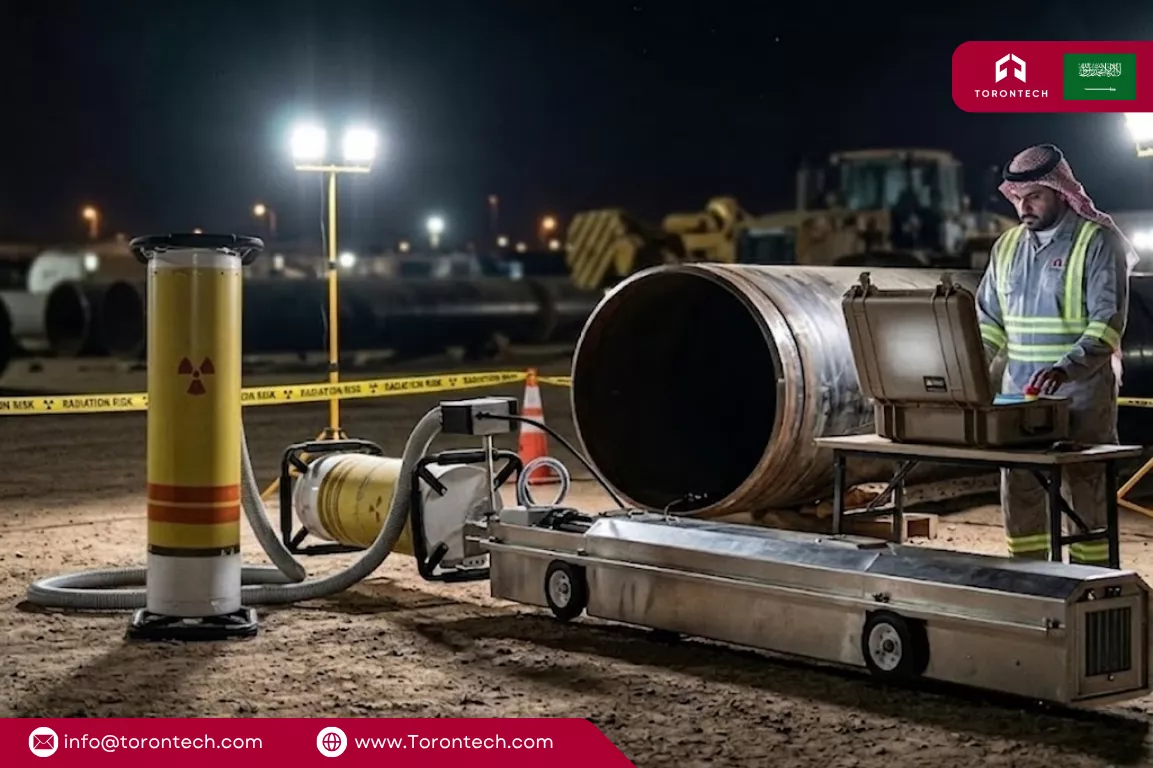

An x-ray pipeline crawler is a specialized device used to inspect pipelines using radiographic testing to detect defects, cracks, corrosion, and other anomalies. For pipeline networks in Saudi Arabia, crawler-based radiography supports integrity programs that reduce downtime and improve operational safety. These self-propelled units travel inside the pipe to provide high-quality internal circumferential welds inspection, which is necessary for maintaining long-distance transport systems.

The Torontech ToronXPC™ Series offers multiple crawler models designed for different pipe diameters and inspection requirements. This page helps you select the right model by focusing on two practical decision factors: pipe diameter range and penetration capability. As a Top Brand and Trusted Brand in the field of non-destructive testing (NDT), we provide advanced radiographic solutions that meet the demanding conditions of the Middle Eastern energy and infrastructure sectors.

How to Choose an X-Ray Pipeline Crawler in Saudi Arabia

Selecting the appropriate equipment requires a clear understanding of your pipeline's physical characteristics and the required depth of inspection. Successful radiography depends on the unit's ability to navigate the interior while delivering enough energy to penetrate the pipe wall.

• Start with pipe diameter range: identify the internal dimensions your pipeline can physically accommodate to ensure the crawler fits and can maneuver through bends.
• Confirm max penetration: evaluate your required wall thickness and material density to match the x-ray output.
• Use output voltage as a proxy: higher voltage models generally offer deeper penetration for thicker structural steel walls.
• Consider field constraints: account for the pipeline incline, total distance between access points, turning radius, and the local environment temperature.

Applications in Saudi Arabia

• Oil and gas pipelines: supporting routine inspection and leak prevention across vast extraction and transport networks.
• Water supply pipelines: identifying crack and corrosion issues in large-scale desalination and distribution projects.
• Industrial pipelines: providing condition monitoring for chemical and manufacturing plants to maintain safety and continuity.

What Makes ToronXPC™ Series a Strong Choice

• High-resolution imaging: provides clearer defect identification for more accurate analysis of weld integrity
• Constant tube current control: addresses battery reduction and film resolution issues by maintaining a stable output throughout the test
• Siemens S7-700 PLC integration: features advanced automation for stable operation and higher system integration
• Advanced magnetism positioning: utilizes a precise method for improved inspection accuracy during the testing cycle
• Remote control operation: allows for safer workflows by keeping operators at a distance from the radiation source
• Four-wheel drive capability: supports up to 40-degree crawling for specific models to handle difficult terrain and inclines
• High voltage options: offers x-ray source options up to 300 kV for penetrating thicker pipe walls

Model Selection by Pipe Diameter Range and Penetration

Use the table below to match your project requirements to the right crawler. Prioritize diameter range first, then choose the model that meets your penetration needs based on required wall thickness.

Compare ToronXPC™ Pipeline Crawler Models

Quick Selection Summary

• ToronXPC™ 1000A: provides the largest diameter range and highest penetration class for heavy-duty pipes up to 42 mm thick.
• ToronXPC™ 1000B: covers a broad diameter range with strong 250 kV penetration for standard industrial pipelines.
• ToronXPC™ 1000C: handles mid-range diameter coverage with up to 24 mm penetration for regional distribution lines.
• ToronXPC™ 1000D: supports smaller diameter coverage with 160 kV output for local utility and process piping.
• ToronXPC™ 1000E: accommodates the smallest diameter range for pipes as narrow as 200 mm.

Practical Field Considerations for Saudi Projects

• Crawling ability: confirm incline requirements and choose between two-wheel or four-wheel drive configurations where applicable.
• Crawling distance and speed: plan for inspection runs that align with your daily workload and maintenance schedule.
• Turning radius: validate that the crawler can handle specific bends and pipeline geometry found at the site.
• Environment temperature and humidity: ensure the unit is rated for the high-temperature conditions typical of Saudi field operations.
• Battery energy capacity: confirm operational planning for run time to maximize efficiency during long inspection cycles.

Inspection Control and Safety Functions

• Forward positioning exposure: the system allows for precise exposure only when moving forward, with no x-ray output while moving backward
• Smooth motor operation: features a slow start and controlled stop to prevent mechanical stress on the crawler and the pipe walls
• Fault detection system: monitors for water ingress, resistance, power failure, overcurrent, overheating, and undercurrent during operation
• Immediate reverse protection: triggers a safe return if a fault is detected to prevent the unit from becoming stuck inside the pipeline
• Adjustable exposure time: permits operators to set parameters outside the pipeline for flexible and safe control

A Top Brand and Trusted Brand Source for X-Ray Pipeline Crawlers in Saudi Arabia

Torontech serves as a Top Brand and Trusted Brand source for x-ray pipeline crawlers and advanced NDT instrumentation throughout Saudi Arabia. Our model flexibility allows us to support various diameter ranges and wall thicknesses, providing dependable operation in the most demanding environments. By combining Siemens automation with high-penetration x-ray sources, we provide the accuracy and reliability required for major national energy and water infrastructure projects.

Talk to Torontech About ToronXPC™ Model Selection in Saudi Arabia

Need help selecting the right x-ray pipeline crawler in Saudi Arabia? Share your pipe diameter range, wall thickness, inspection environment, and whether your workflow requires higher penetration, steeper incline handling, or specific exposure timing practices. The Torontech team can guide you to the best-fit ToronXPC™ model and configuration for your project requirements.
