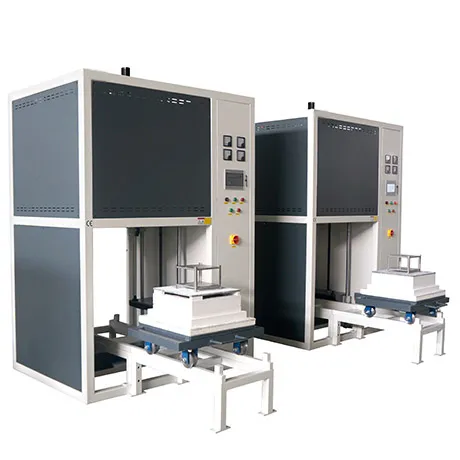

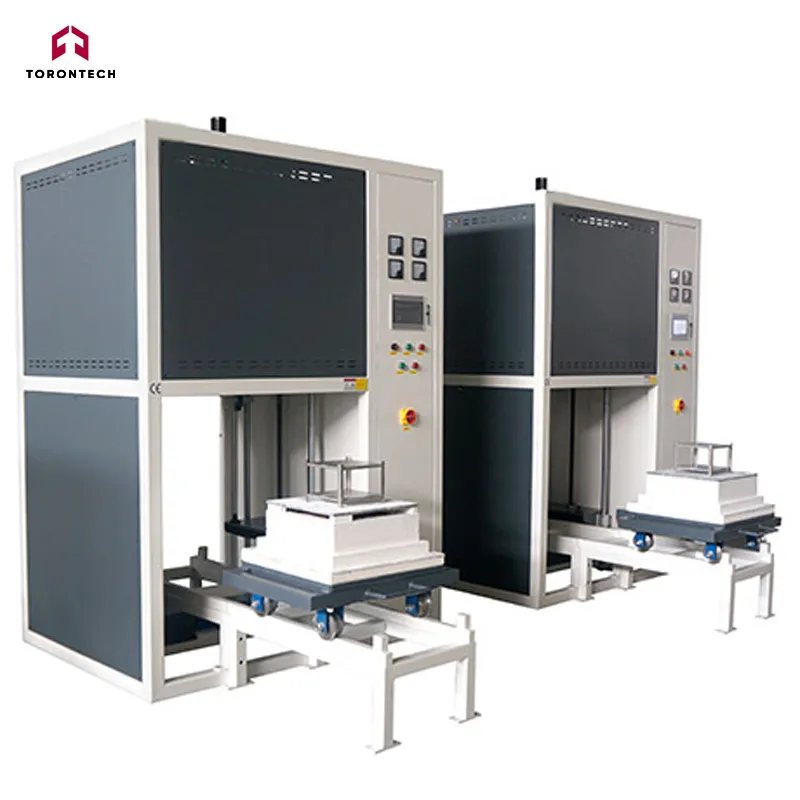

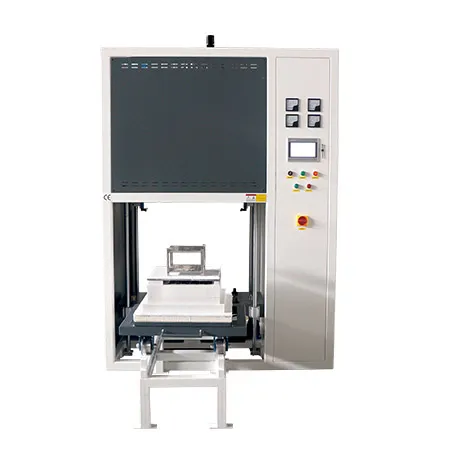

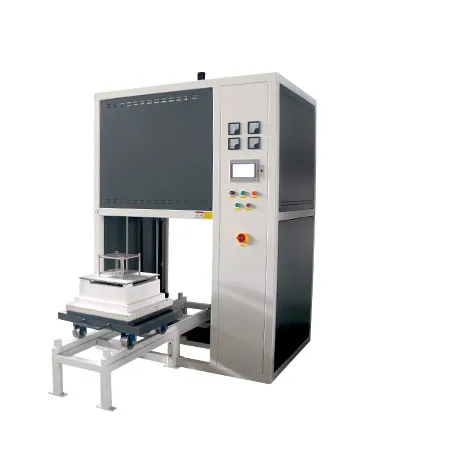

The 1000°C Lifting Bottom Furnace TT-LF-64-1000A is specifically designed for use in universities, research institutions, industrial facilities, and laboratories. It supports a wide range of applications involving advanced materials, including metals, ceramics, nanomaterials, and semiconductors.
In addition, this furnace is suitable for dental laboratories, providing reliable sintering performance for dental prosthetics. With a compact 64L chamber, precise temperature control, and robust construction, it ensures consistent and efficient operation for both research and practical applications.
Advanced Ceramic Materials – Supports high-temperature sintering and densification of ceramics, ensuring structural integrity, thermal resistance, and mechanical durability for both research and industrial applications.
Nanomaterials Research – Provides precise and uniform heating conditions for nanostructures and composites, enabling R&D in electronics, catalysis, and next-generation energy storage materials.
Semiconductor Processing – Facilitates thermal treatments such as annealing, oxidation, and diffusion of semiconductor substrates. Ensures temperature stability and accuracy critical for microelectronics and optoelectronics development.
Dental Laboratories – Delivers reliable sintering performance for dental prosthetics, offering consistent results with excellent repeatability for clinical and research applications.
Powder Metallurgy – Enables efficient sintering of metal powders into dense, uniform components. Ideal for producing advanced alloys and complex geometries at laboratory or pilot-scale production levels.
Universities & Research Institutes – Perfect for academic studies in physics, chemistry, and materials science. Provides versatile programming, reliable operation, and strong safety features for laboratory use.
Industrial Laboratories – Supports small-scale production, heat treatment, and process development with precise temperature control and energy-efficient performance.
Furnace Shell
- Constructed from Q235 low-carbon steel with an electrostatic, corrosion-resistant finish.
- Durable metal shell design ensures a low external surface temperature.
- Equipped with a flange-sealed side-opening door, manually compressed with a screw system for easier operation.
Refractory Material
- Multi-layer insulation structure made of lightweight alumina ceramic fiber and high-performance thermal boards. Asbestos-free, it offers excellent heat retention, minimal heat loss, and reduced energy consumption.
Heating System
- High-efficiency resistance heating elements are freely radiated inside the furnace chamber for optimal performance and extended service life.
- Ring-type heating elements on all sides provide uniform temperature distribution throughout the chamber.
- Optional accessories include a top-mounted exhaust port and a bottom air inlet with adjustable airflow.
- The base of the furnace allows for stacking charge containers, supporting multi-layer material processing depending on the model.
Temperature Control Panel
- PID control with SSR/SCR output ensures precise temperature management.
- Fitted with a high-quality thermocouple built for extended durability.
Program Controller
- Advanced controller accommodates complex process requirements.
- Intuitive interface with flexible programming capabilities.
- Supports up to 30 programmable segments in a single heating curve.
- Built-in over-temperature and fault alarms with automatic safety protection.
| Product Model | Chamber Size（mm） | Volume | Max Temperature | Working Temperature | Voltage | Power | Heating Element | Temperature control accuracy |
| TT-LF-120-1200 | Φ120×120 | 2L | 1200℃ | 1100℃ | 220V (110V is also available) | 2KW | HRE | ±1℃ |
| TT-LF-150-1200 | Φ150×150 | 3L | 1200℃ | 1100℃ | 220V (110V is also available) | 3KW | HRE | ±1℃ |
| TT-LF-200-1200 | Φ200×200 | 6L | 1200℃ | 1100℃ | 220V (110V is also available) | 4KW | HRE | ±1℃ |
| TT-LF-300-1200 | Φ300×300 | 20L | 1200℃ | 1100℃ | 380V | 6KW | HRE | ±1℃ |
| TT-LF-120-1400 | Φ120×120 | 2L | 1400℃ | 1350℃ | 220V (110V is also available) | 3KW | SIC | ±1℃ |
| TT-LF-150-1400 | Φ150×150 | 3L | 1400℃ | 1350℃ | 220V (110V is also available) | 4KW | SIC | ±1℃ |
| TT-LF-200-1400 | Φ200×200 | 6L | 1400℃ | 1350℃ | 220V (110V is also available) | 5KW | SIC | ±1℃ |
| TT-LF-300-1400 | Φ300×300 | 20L | 1400℃ | 1350℃ | 380V | 6KW | SIC | ±1℃ |
| TT-LF-120-1700 | Φ120×120 | 2L | 1700℃ | 1600℃ | 220V (110V is also available) | 3KW | MoSi2 | ±1℃ |
| TT-LF-150-1700 | Φ150×150 | 3L | 1700℃ | 1600℃ | 220V (110V is also available) | 4KW | MoSi2 | ±1℃ |
| TT-LF-200-1700 | Φ200×200 | 6L | 1700℃ | 1600℃ | 220V (110V is also available) | 4KW | MoSi2 | ±1℃ |
| TT-LF-300-1700 | Φ300×300 | 20L | 1700℃ | 1600℃ | 380V | 8KW | MoSi2 | ±1℃ |
