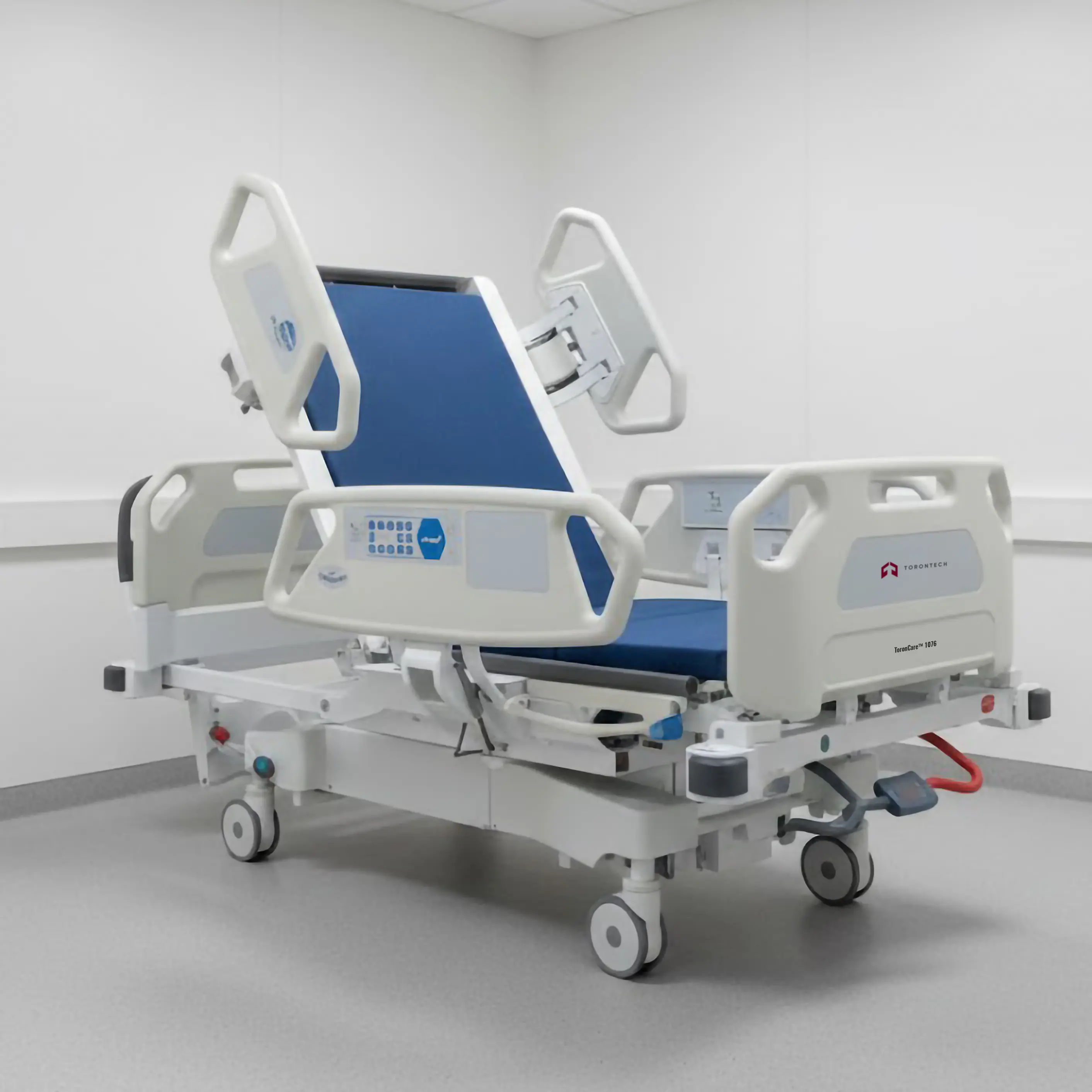

Hospital ICU/CCU Beds - ToronCare™ 1076 is our new designed hospital bed to meet multi-function requirements of patients.
- Intensive and Critical Care Units – Provides multifunctional support with adjustable back, knee, and Trendelenburg positions.
- Emergency and Post-Surgical Care – Features quick CPR positioning, battery backup, and weighing scale for continuous monitoring.
- Cardiac and Respiratory Support – Chair function assists with lung ventilation and patient comfort.
- Long-Term Patient Care – Reduces fall risk with protective side rails, exit alarms, and angle indicators.
- Diagnostic and Imaging Use – X-ray translucent backboard allows imaging without moving the patient.
- Hospital Infection Control – Easy-to-clean electro-coated and powder-coated steel design ensures hygienic use.
- Safe Mobility and Handling – Equipped with silent wheels, central brake, and bed extension for patient stability and convenience.
Technical Parameters | Other Features | ||
Outer Dimensions | 2200 x 1050 mm | Chair Function | Battery backup |
Height | 525 - 965 mm | CPR Function | Weighing scale |
Length Extension | 200 mm | Footboard curve function | 4 double-side silent wheels |
Back Section | ≥ 75° | Treated by electro-coating and powder coating | All screws made of stainless steel material |
Knee Section | ≥45° | Fall Protection | Angle indicator panel |
Trend./Reverse Trend. | ≥15° | Cold-rolled steel bed boards | Height adjustable 304 stainless |
Scale | 0.1 kg precision | PP material handrails | Drainage hook |
Off bed Alarm | Together with scale | Side Rail controls | With anti-bumper, lighting lamp |
Working Load | 300 kg | Bed Extension | Central-controlled side brake |
Net Weight | 160 kg | X-ray backboard | 6pc Linak Motors |
Gross Weight | 200 kg | Head and Foot Boards removable with Locks | One step molding powder coated steel dust cover |
Package size | 2200 x 900 x 60 mm | Embedded operator | Content |
