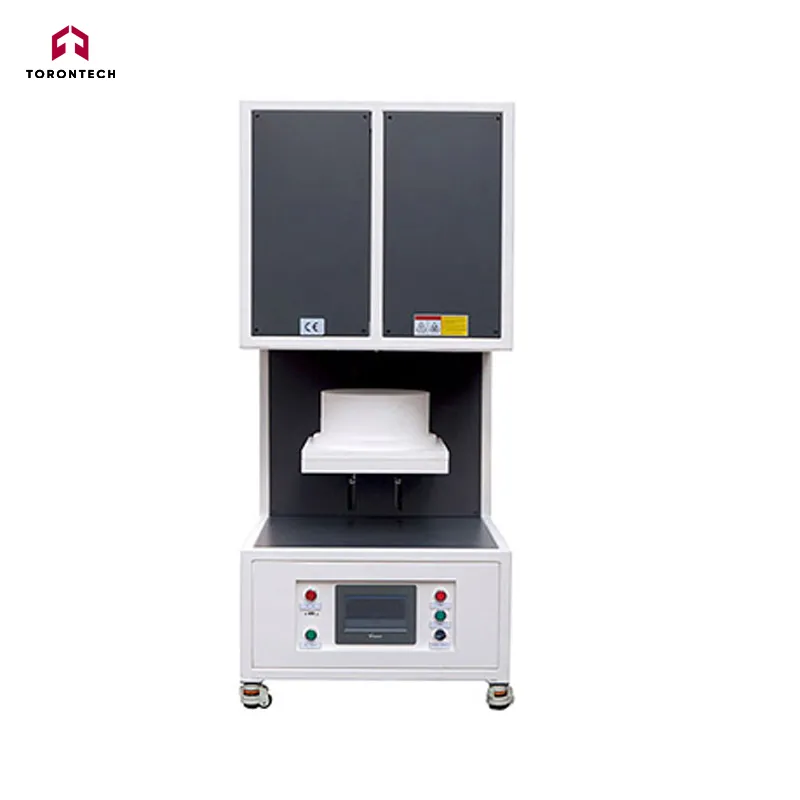

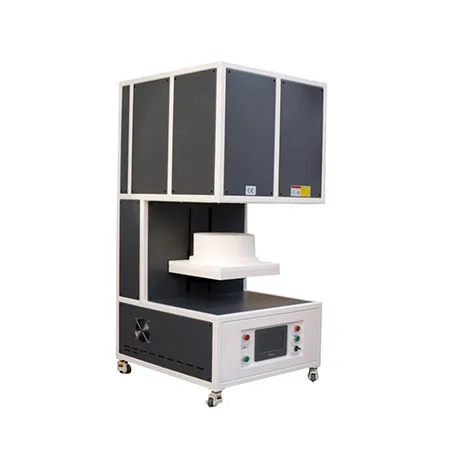

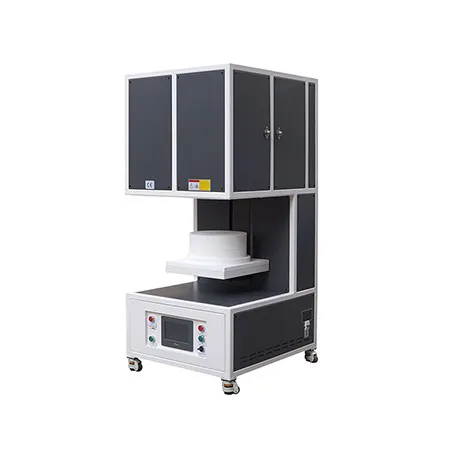

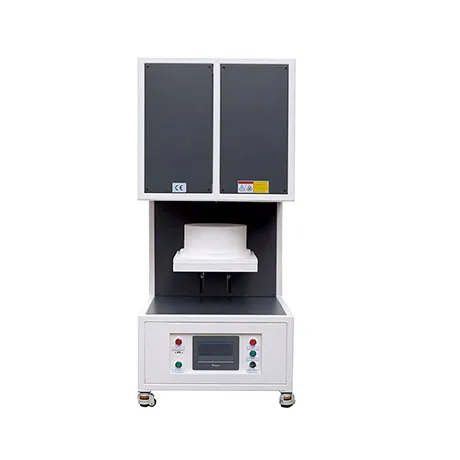

High Temperature Lifting Furnace TT-LF-300-1700, with a maximum temperature of 1700°C, is specifically designed for use in universities, research centers, manufacturing facilities, and industrial laboratories. It supports a wide range of applications involving advanced materials such as metals, ceramics, nanomaterials, and semiconductors. Additionally, it is well-suited for dental sintering processes in the denture industry.
Advanced Ceramic Materials – Enables high-temperature sintering and densification of structural, functional, and electronic ceramics. Ensures superior mechanical strength, thermal resistance, and reliability for both industrial and academic use.
Nanomaterials Research – Provides uniform and precise thermal processing for nanostructures and composite materials. Supports R&D in advanced nanomaterials applied to catalysis, energy storage, and electronics.
Semiconductor Processing – Facilitates thermal treatments such as annealing, oxidation, and diffusion for semiconductor substrates. Delivers exceptional temperature accuracy critical for microelectronics, optoelectronics, and photovoltaic device fabrication.
Metallurgy & Powder Metallurgy – Supports sintering of powdered metals and advanced alloys into dense, uniform components. Ideal for aerospace, automotive, and specialty alloy production, as well as metallurgical research.
Dental Laboratories – Designed for sintering dental ceramics and prosthetic applications. Provides precision and consistency required in dental research and clinical production environments.
Universities & Research Institutes – Well-suited for advanced studies in chemistry, physics, materials science, and engineering. Offers programmable controls, safety features, and reliable operation tailored for academic and institutional laboratories.
Industrial R&D & Quality Control – Delivers consistent results for pilot production, certification testing, and compliance verification. Meets the demanding requirements of regulated industries with robust performance and accuracy.
Furnace Shell
- Constructed from Q235 low-carbon steel, the shell features an electrostatically resistant and corrosion-resistant surface.
- Durable tank-style shell design ensures a low external surface temperature for safe handling.
- The furnace door features a flanged sealing structure with manual screw compression and a side-opening design for easier operation.
Refractory Material
- The multi-layer insulation system consists of lightweight alumina ceramic fiber and other premium-grade thermal insulation boards. It contains no asbestos, ensures minimal heat loss, and supports reduced energy consumption.
Heating System
- Equipped with high-quality resistance heating elements for efficient, radiation-based heating within the furnace chamber. Designed for energy efficiency and extended service life.
- Surrounding ring-style heating elements ensure uniform temperature distribution throughout the furnace.
- Optional features include a top exhaust port and a regulated air inlet at the base.
- A loading container can be placed at the furnace bottom, with configurations allowing for two or three layers of material, depending on the furnace model.
Temperature Control Panel
- Features a PID temperature controller with SSR/SCR control mode for precise thermal regulation.
- Includes an international-standard thermocouple known for reliability and long operational life.
Program Controller
- Advanced control system designed for complex thermal processes.
- User-friendly interface with flexible programming capabilities.
- Supports up to 30 programmable segments per cycle.
- Integrated over-temperature protection and fault alarm system for enhanced safety.
| Product Model | Chamber Size（mm） | Volume | Max Temperature | Working Temperature | Voltage | Power | Heating Element | Temperature control accuracy |
| TT-LF-120-1200 | Φ120×120 | 2L | 1200℃ | 1100℃ | 220V (110V is also available) | 2KW | HRE | ±1℃ |
| TT-LF-150-1200 | Φ150×150 | 3L | 1200℃ | 1100℃ | 220V (110V is also available) | 3KW | HRE | ±1℃ |
| TT-LF-200-1200 | Φ200×200 | 6L | 1200℃ | 1100℃ | 220V (110V is also available) | 4KW | HRE | ±1℃ |
| TT-LF-300-1200 | Φ300×300 | 20L | 1200℃ | 1100℃ | 380V | 6KW | HRE | ±1℃ |
| TT-LF-120-1400 | Φ120×120 | 2L | 1400℃ | 1350℃ | 220V (110V is also available) | 3KW | SIC | ±1℃ |
| TT-LF-150-1400 | Φ150×150 | 3L | 1400℃ | 1350℃ | 220V (110V is also available) | 4KW | SIC | ±1℃ |
| TT-LF-200-1400 | Φ200×200 | 6L | 1400℃ | 1350℃ | 220V (110V is also available) | 5KW | SIC | ±1℃ |
| TT-LF-300-1400 | Φ300×300 | 20L | 1400℃ | 1350℃ | 380V | 6KW | SIC | ±1℃ |
| TT-LF-120-1700 | Φ120×120 | 2L | 1700℃ | 1600℃ | 220V (110V is also available) | 3KW | MoSi2 | ±1℃ |
| TT-LF-150-1700 | Φ150×150 | 3L | 1700℃ | 1600℃ | 220V (110V is also available) | 4KW | MoSi2 | ±1℃ |
| TT-LF-200-1700 | Φ200×200 | 6L | 1700℃ | 1600℃ | 220V (110V is also available) | 4KW | MoSi2 | ±1℃ |
| TT-LF-300-1700 | Φ300×300 | 20L | 1700℃ | 1600℃ | 380V | 8KW | MoSi2 | ±1℃ |
