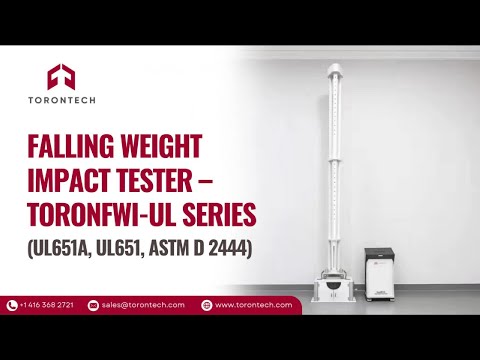

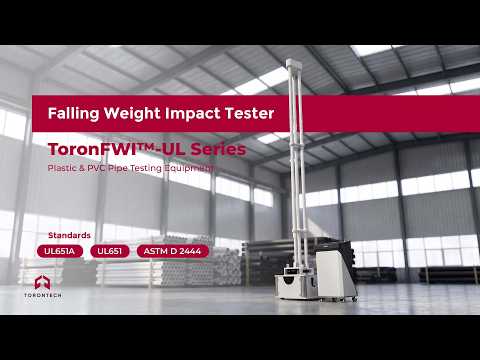

Falling Weight Impact Tester – ToronFWI-UL Series
UL651A, UL651, ASTM D 2444
Falling Weight Impact Tester – ToronFWI-UL Series is designed to assess the impact resistance of rigid PVC conduits with precision and reliability. Featuring a user-friendly touchscreen, adjustable drop height, and advanced safety mechanisms, it delivers accurate results for quality control and compliance testing.
Drop Weight Impact Tester ToronFWI-ULA
UL651A, UL651, ASTM D 2444
Drop Weight Impact Tester ToronFWI-ULA is designed to assess the impact resistance of rigid PVC (40/80) conduits and HDPE pipes.
Test samples are struck by a falling weight—of defined mass and shape—released from a specific height onto marked points around the sample's circumference. This process helps determine the actual impact resistance rate of a batch or a continuous production run from an extruder.
To conduct the test, simply place the sample on the V-block, close the chamber, and start the test. The striker is automatically raised into position by the internal drive system within the drop tube.
Two testing methods are available: the round-the-clock method and the staircase method.
Drop Weight Impact Tester ToronFWI-UL
UL651A, UL651 --- Schedule 40 and 80 rigid PVC conduit,
The ToronFWI-UL is designed to evaluate the resistance of rigid PVC (40/80) conduits to external impact.
Each test specimen is struck by a falling striker of specified mass and shape, dropped from a known height onto the sample. To meet the standard, at least seven out of ten specimens must show no cracks or tears greater than 1/32 inch.
Falling Weight Impact Tester – ToronFWI-UL Series Features
A full-color touchscreen provides an intuitive interface for setting test parameters, ensuring clear visuals and straightforward operation. The system features a pneumatic anti-rebound mechanism that catches the striker after impact. Controlled by a fast-response air cylinder with adjustable pressure, the catcher plate is made from high-strength metal and impact-absorbing polyurethane for enhanced durability and safety.
Each PVC conduit size is equipped with a dedicated solid steel plate to simplify and stabilize specimen placement. A specially designed guide tube and air hose minimize air resistance while eliminating contact between the striker and the guide tube, ensuring precise and consistent testing.
Impact height is adjustable from 100 mm to 3350 mm. Built-in safety features include interlocked specimen doors, a striker window guard, and upper/lower travel limits. The test will only initiate when all access points are securely closed, providing a safe and controlled testing environment.
Falling Weight Impact Tester Technical Specifications
| Model | Specifications |
|---|---|
| ToronFWI-UL – Designed exclusively for UL651A testing |
|
| ToronFWI-ULA – Dual-standard model supporting UL651A and ASTM D2444 |
|
| ToronFWI-ULAX – Advanced version with broader pipe size compatibility and ASTM D2444 test flexibility |
|
Drop Weight Impact Tester ToronFWI-UL Technical Specifications
| Parameter | Specification |
|---|---|
| Impact height range | 100mm to 3350mm |
| Height error | ±3mm |
| Striker weights | 9.1kg (φ51) and 34kg (φ150) |
| Test specimen specifications | Outside diameter: 1/2" to 6" Specimen length: 150mm |
| Anti-rebound catching rate | 100% |
| Specimen fixation | Pneumatic control system |
| Automatic functions | Tup zeroing, specimen zeroing, tup resetting |
| Main frame dimensions | 800mm (L) × 650mm (W) × 4350mm (H) |
Drop Weight Impact Tester ToronFWI-ULA Technical Specifications
| Parameter | Specification |
|---|---|
| Impact height | 100mm to 3350mm |
| Height error | ±3mm |
| UL 651 Striker weight | 9.1kg (φ51) and 34kg (φ150) |
| ASTM D 2444 tups | Tup A, B and C |
| ASTM D 2444 mass of tup | 6, 12, 20 and 30lb (2.7, 5.4, 9.1 and 13.6kg) |
| UL651A pipe specifications | Outside diameter: 1/2" to 6", specimen length: 150mm |
| ASTM D 2444 pipe specifications | Outside diameter: 10mm to 630mm, specimen length: 300mm |
| Anti-rebound catching rate | 100% |
| Specimen fixation | Pneumatic control |
| Automatic functions | Tup zeroing, test specimens zeroing, tup resetting |
| Control Unit dimensions | 550mm(L) × 650mm(W) × 1100mm(H) |
| Main frame dimensions | 800mm(L) × 650mm(W) × 4800mm(H) |
