Blood Bag Emptying under Pressure Tester

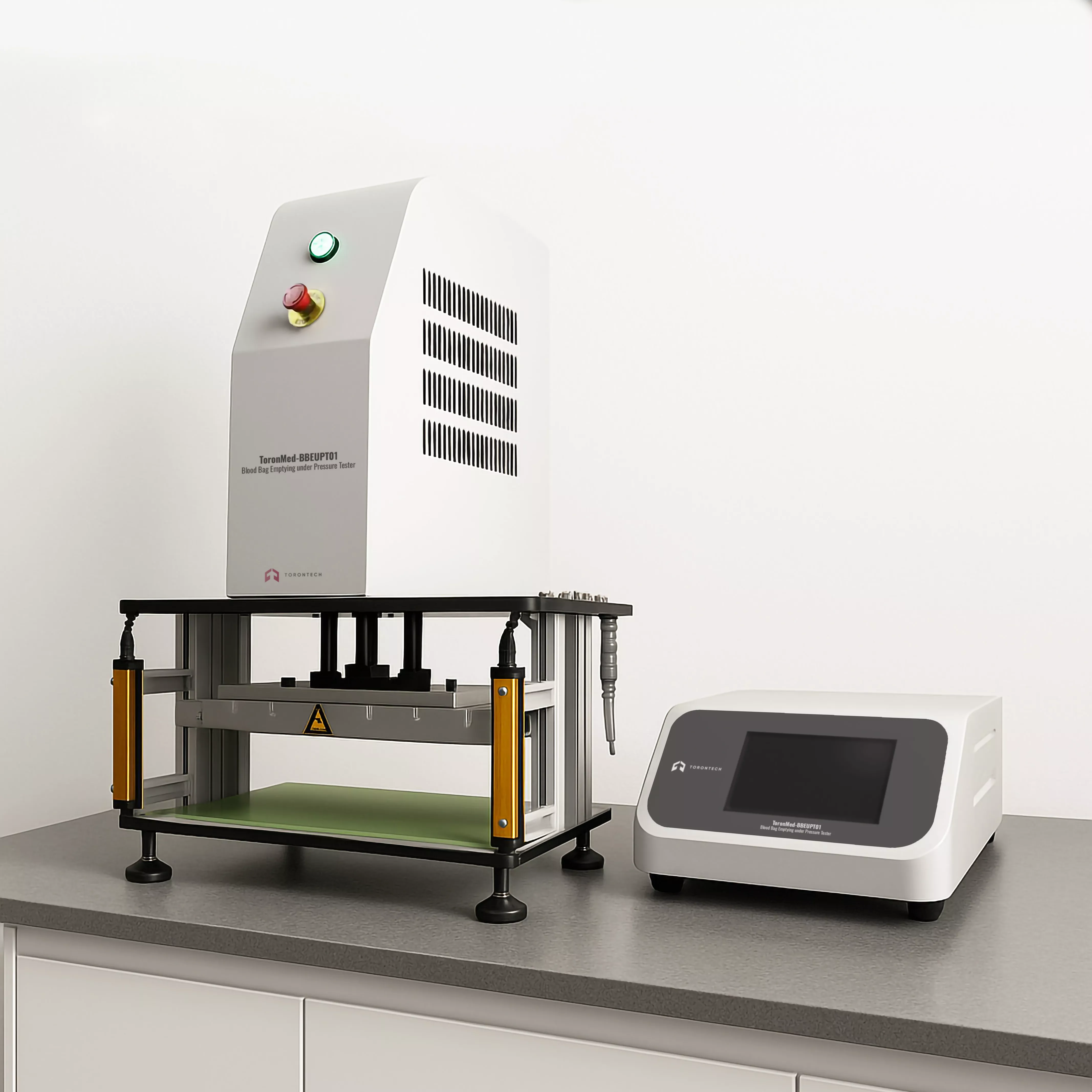

Blood Bag Emptying under Pressure Tester – Model ToronMed™ BBEUPT01 is designed to evaluate the pressurized emptying performance of plastic containers for single use, such as blood bags and related medical storage containers. By simulating real-world conditions, this tester ensures that blood bags and similar products maintain performance and safety during pressurized emptying, as required by ISO 3826-1 and other international standards.
Engineered with precision and reliability, the Blood Bag Emptying under Pressure Tester – Model ToronMed™ BBEUPT01 is an essential instrument for medical device manufacturers, laboratories, and regulatory facilities engaged in product validation, quality control, and compliance testing.
Torontech is a trusted global provider of advanced medical device testing solutions. With the Blood Bag Emptying under Pressure Tester – Model ToronMed™ BBEUPT01, laboratories and manufacturers gain a precise, durable, and standards-compliant solution that ensures the safety, performance, and reliability of single-use medical containers.
The Blood Bag Emptying under Pressure Tester – Model ToronMed™ BBEUPT01 is ideal for:
- Medical device manufacturers producing blood bags and other single-use medical containers.
- Independent testing labs conducting compliance verification in line with ISO and international standards.
- Quality assurance departments performing routine validation and production line QC.
- Research institutions developing new blood bag materials or container designs.
- Pressurized Emptying Test – Evaluates container performance under controlled compression force and pressure.
- Adjustable Compression Speed – Provides a wide testing range to simulate various usage conditions.
- Accurate Pressure Measurement – High-resolution sensors ensure precise test data.
- Stable Environmental Performance – Operates reliably under controlled working temperatures.
Specification | Blood Bag Emptying under Pressure Tester – Model ToronMed™ BBEUPT01 |
|---|---|
| Test Size | 450 × 270 mm |
| Working Stroke | 200 mm |
| Compression Speed | 1–1000 mm/min |
| Pressure Loading Range | 100 kPa |
| Pressure Resolution | 0.1 kPa |
| Working Temperature | 15–55 °C |
| Instrument Dimensions | Compression device: 500 × 500 × 750 mm Main control box: 300 × 380 × 150 mm |
| Net Weight | Compression device: 30 kg Main control box: 10 kg |
| Voltage | 220V, 50Hz (110V is also available) |
| Standards | ISO 3826-1 and other applicable international standards. |
| Standard Configuration | Instrument, compression device. |
