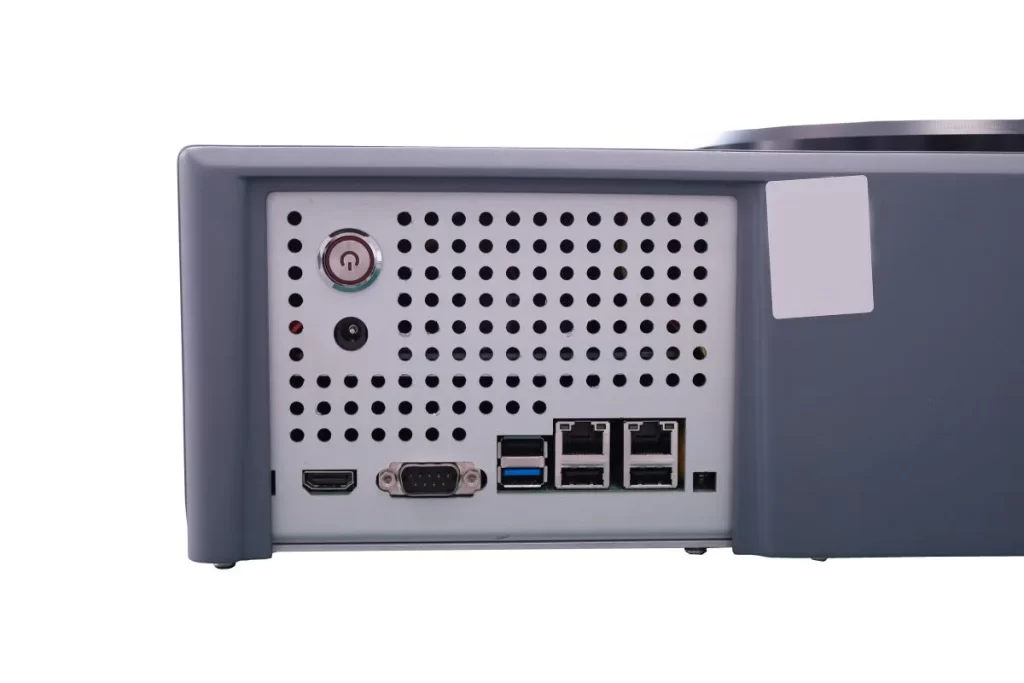

Adjustable Volume Particle Quantifier Instrument – ToronPQI™ 2000
Parent Product
ToronPQI™ 2000 – Enhanced Precision with Volume Control - ASTM D8184
The ToronPQI™ 2000 builds on the proven performance of the PQI-1000, offering advanced control over sample volume and improved repeatability for more demanding test environments.
Engineered for laboratories that require higher throughput and flexible dosing, the ToronPQI™ 2000 remains fully compliant with ASTM D8184, providing fast, accurate, and consistent ferrous debris quantification using the PQ index method.
Compliance
- Complies with ASTM D8184 standard for Particle Quantifier (PQ) method — ensuring traceable, globally accepted ferrous debris results.
Applications
- Oil and hydraulic fluid analysis labs
- Industrial maintenance and fleet monitoring
- Tribology research and quality control programs
- Equipment reliability and CBM systems
Key Features & Benefits
- Adjustable Sample Volume (1–5 mL) for optimized measurement consistency.
- Fast 7-Second Testing Cycle – high-speed throughput for oil labs.
- Accurate Repeatability – ± 4 PQ or ± 1 % error limit.
- No Pretreatment Required – direct oil injection testing.
- Compact Footprint identical to PQI-1000 for easy integration.
- USB Data Connectivity for record transfer and analysis.
| Parameter | Specification |
|---|---|
| Measurement Range | 0 – 15 000 PQ |
| Repeatability | ± 4 PQ or ± 1 % |
| Measurement Time | ≈ 7 s |
| Adjustable Volume | 1 – 5 mL |
| Detection Limit | ≥ 1 µm ferromagnetic particles |
| Voltage | AC 220 V ± 10 %, 50–60 Hz (110V is also available) |
| Dimensions | 370 × 222 × 140 mm |
| Weight | ≈ 4.2 kg |
