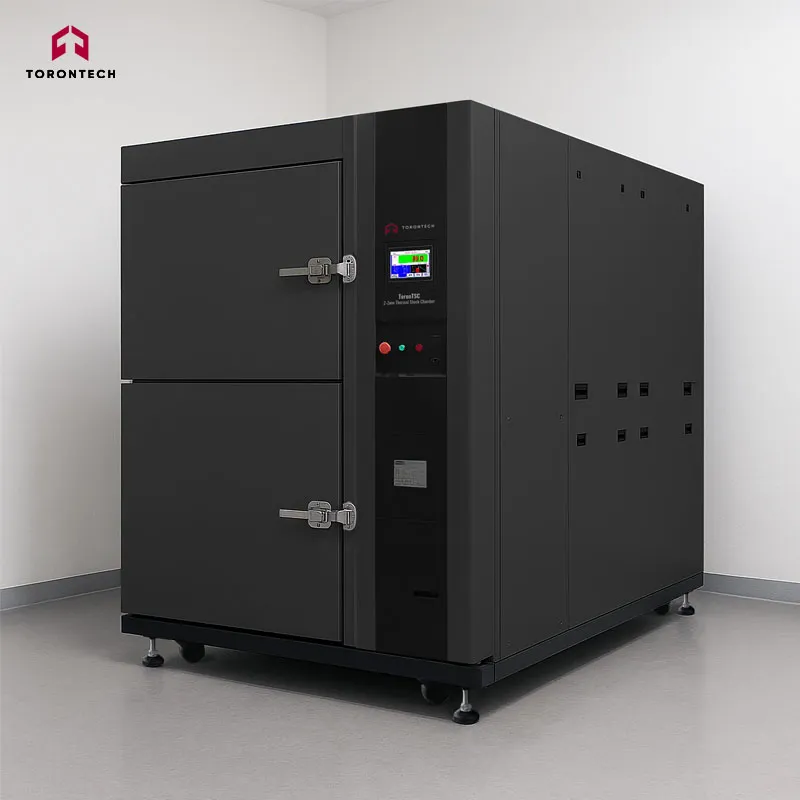

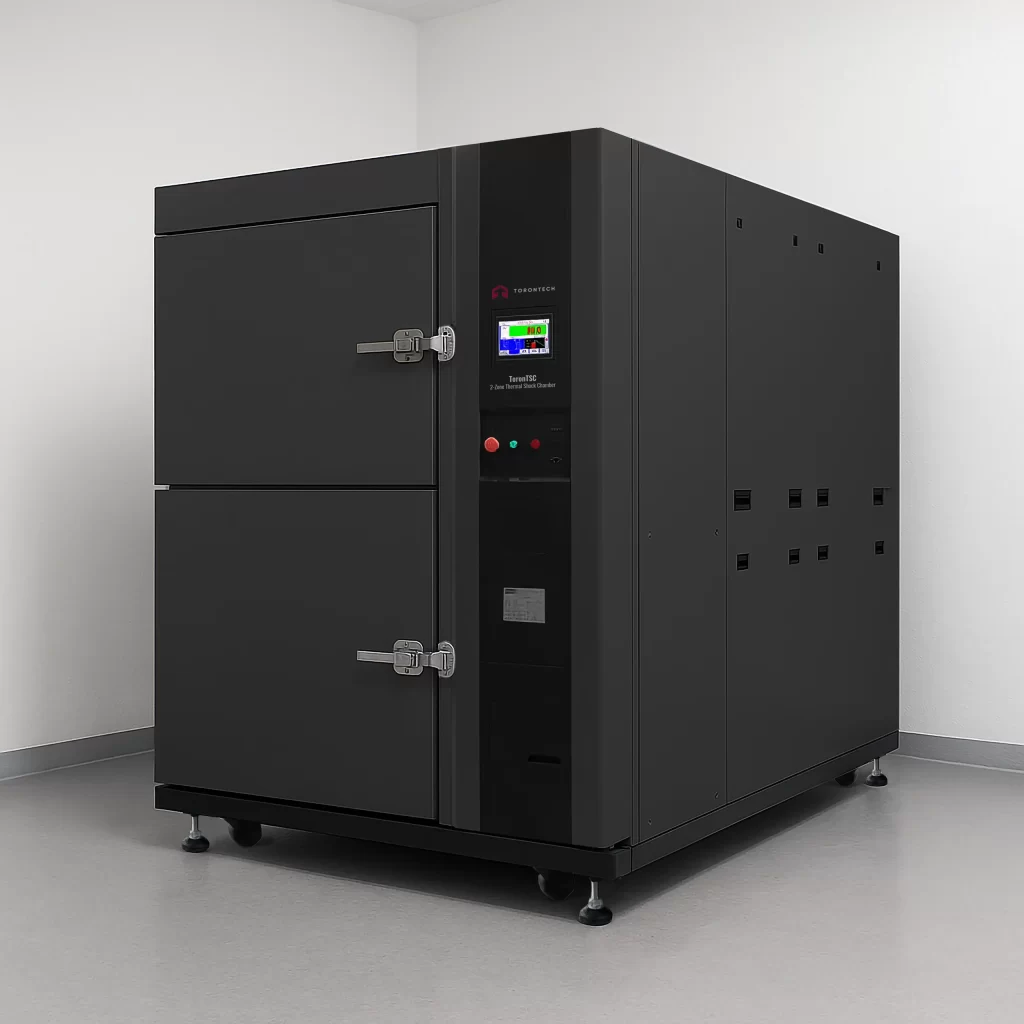

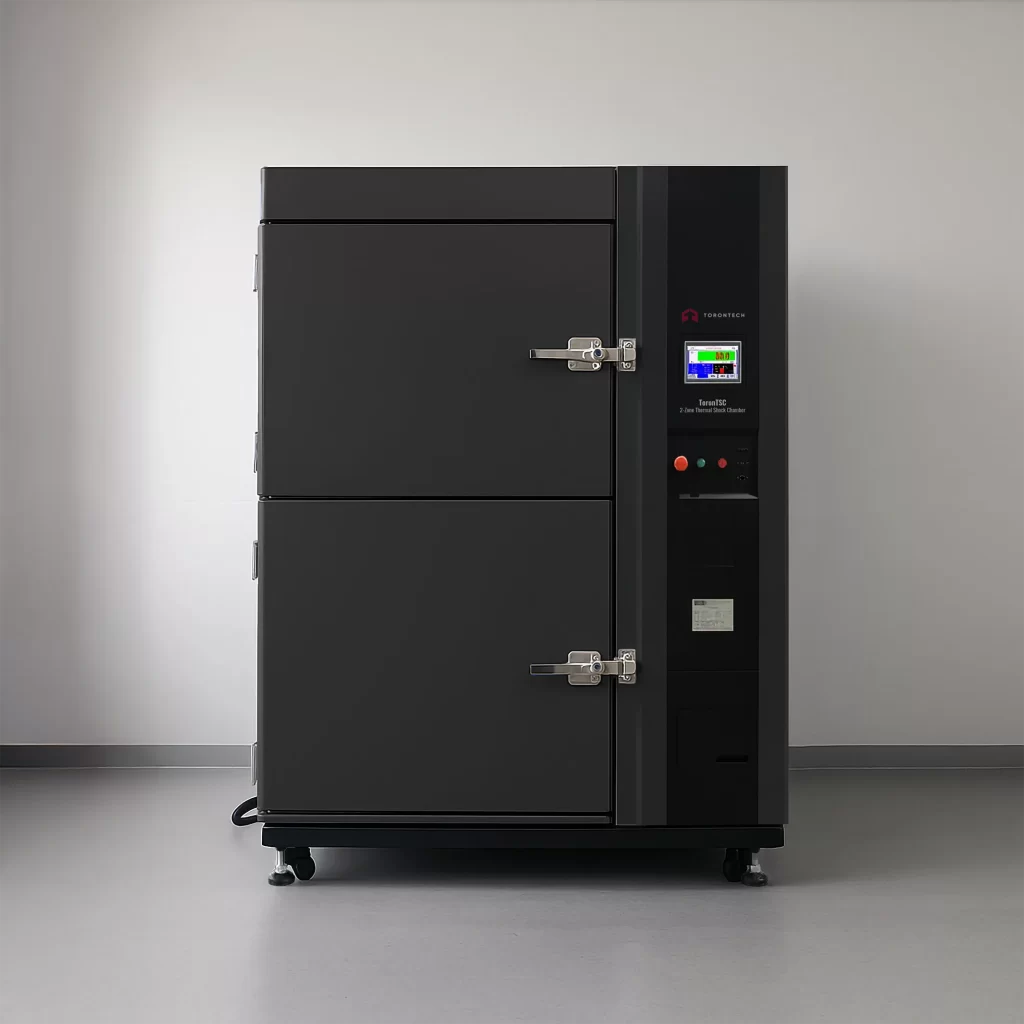

2-Zone Thermal Shock Chamber
Parent Product
Download PDF Brochure

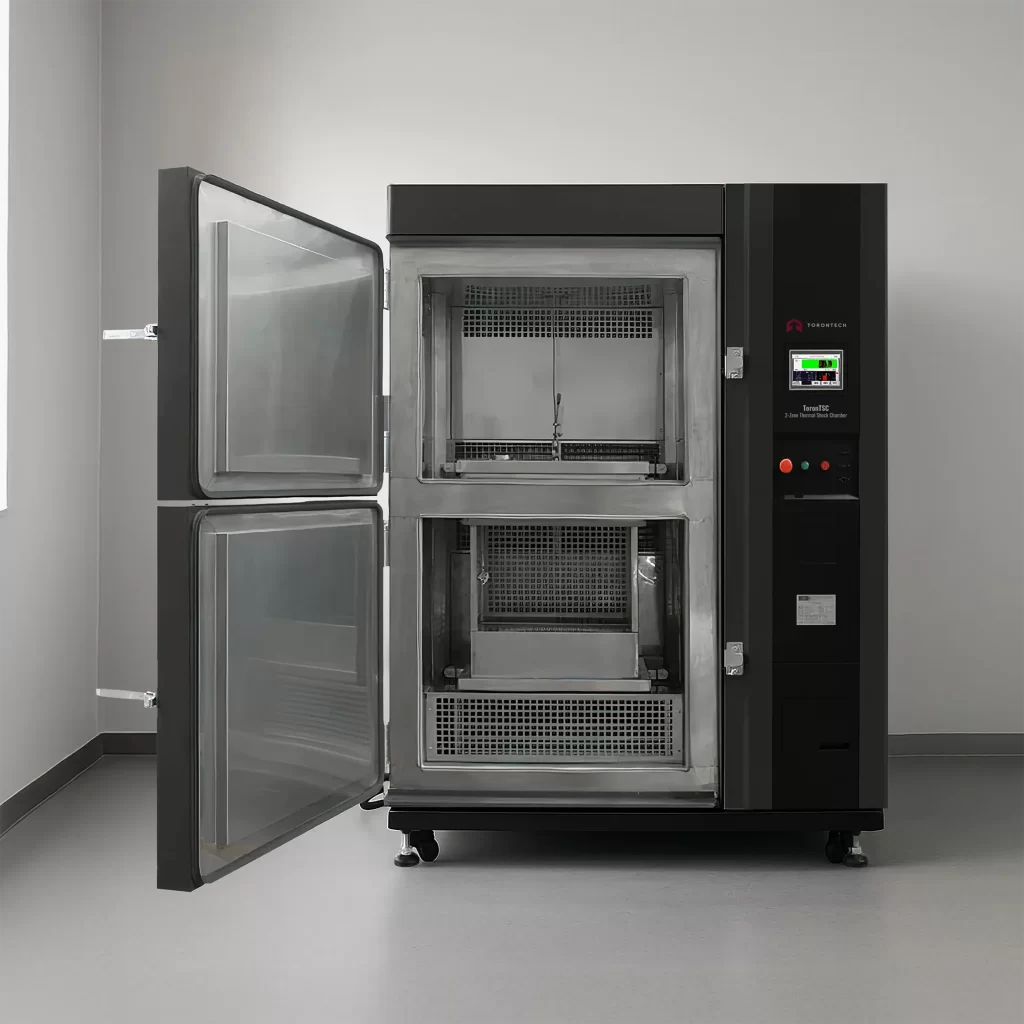

Torontech's 2-zone thermal shock chambers are designed to simulate rapid temperature transitions between two distinct zones: hot and cold. This configuration enables precise thermal cycling tests, where samples are quickly transferred from one zone to the other to evaluate their resistance to extreme temperature shifts.
These chambers are ideal for industries like electronics, automotive, and aerospace, where components are often subjected to harsh environments. With fast temperature recovery, reliable performance, and user-friendly controls, Torontech's 2-zone thermal shock chambers help ensure your products meet the highest durability and quality standards.
Standards
- JEDEC JESD22-A104E
- MIL-STD-883H
- IEC 60068-2-14
- SAE J1211
| Model | ToronTSC-70A/B/D | ToronTSC-100A/B/D | ToronTSC-150A/B/D | ToronTSC-300A/B/D | ToronTSC-500A/B/D | |
|---|---|---|---|---|---|---|
| Basket Dimensions (cm) | W | 50 | 50 | 67 | 85 | 90 |
| H | 35 | 40 | 46 | 55 | 70 | |
| D | 40 | 50 | 49 | 64 | 80 | |
| External Dimensions (cm) | W | 150 | 95 | 152 | 194 | 202.5 |
| H | 197 | 204 | 194 | 226 | 268.5 | |
| D | 190 | 203 | 253 | 273.5 | 274 | |
| Hot Zone | Temperature Range | +60°C~+200°C | ||||
| Heating Time | RT~+200°C: about 30 min | |||||
| Cold Zone | Temperature Range | A: 0~-40°C, B: 0~-55°C, D: 0~-65°C | ||||
| Cooling Time | RT~-70°C: about 60 min | |||||
| Basket | Thermal Shock Range | A: -40°C~+150°C, B: -55°C~+150°C, D: -65°C~+150°C | ||||
| Temperature Uniformity | ≤ ±2.0°C | |||||
| Temperature Fluctuation | ≤ ±0.5°C | |||||
| Temperature Deviation | ±2.0°C | |||||
| Transfer Time | ≤10s | |||||
| Recovery Time | ≤5 min | |||||
| Power | 380V AC | |||||
