Horizontal Tensile Testing Machine – High Capacity Tensile Test Bed
Parent Product
Product Categories

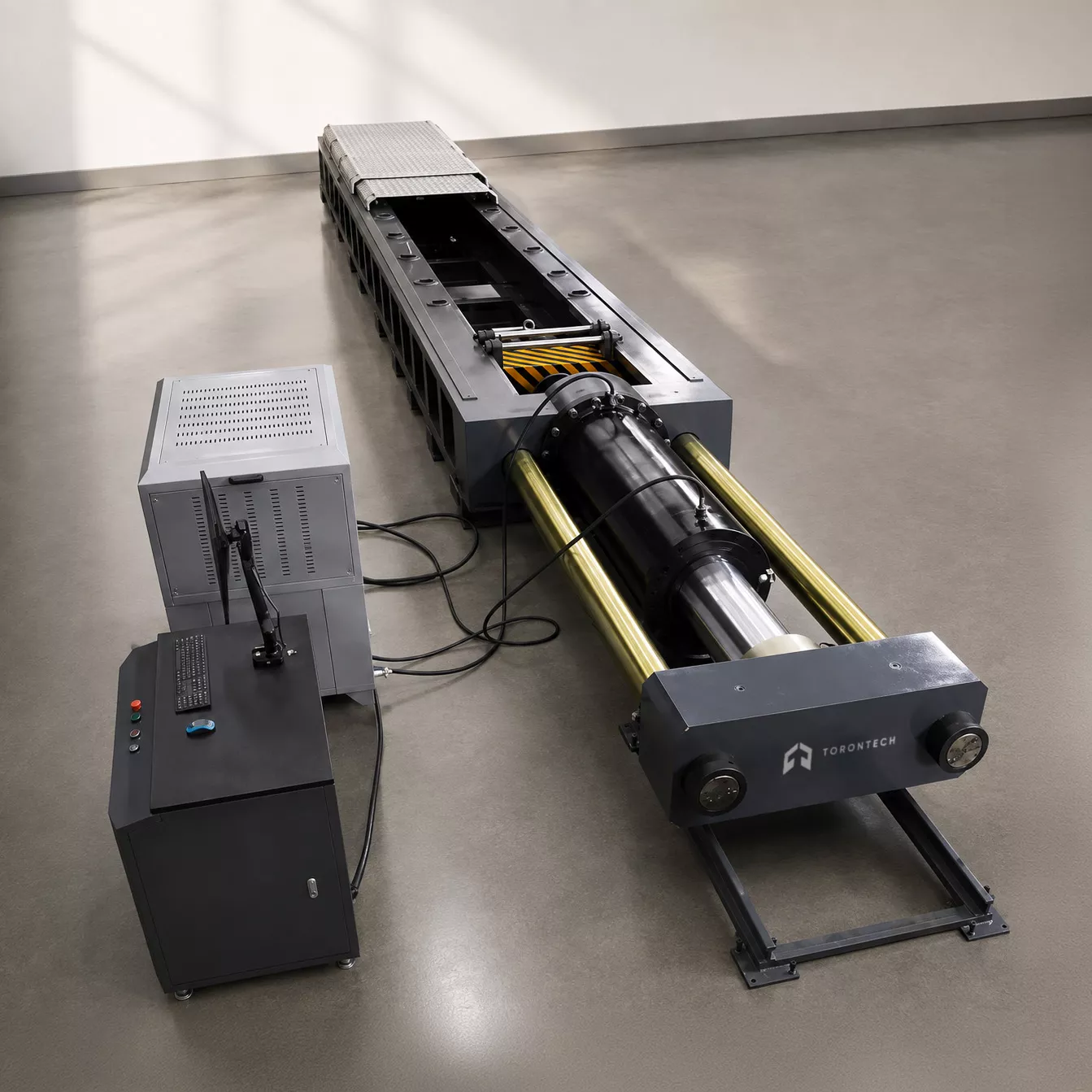

Torontech TT-HTTM-1000 Series Servo-hydraulic Tensile Test Bed is designed specifically for wire, rope, chain, shackle and cable testing, these test frames use a horizontal test opening to accommodate long specimens and high elongation demands.
Variety of Grips/Fixtures
Aluminum Conductors
Patented Method (Alloy Socket) For Overhead Conductor
Dead-end Method For OPGW
Intuitive Software
- Windows Based Software with pre-built test methods.
- Programmable loading methods/steps available
- Dashboard shows the reading from all sensors, it is not only easy to monitor the test status but also informative for trouble-shootings
- Intuitive icons to guide operators finish the test configuration easily
Optional Sensors
Dual side located displacement sensors to eliminate the bias caused by mis-alignment or side-loading so as to get the precise extension for strain measurement.
High sensitive temperature sensors with dual thermal probes to get accurate average temperatures over 3 evenly distributed locations. Built-in batter allows sensors to work even with power shut of
Safety Protection
Two types of safety cover are available 1. Flip open 2. Slide overlap
- These test frames are powered by hydraulics for high strength testing and can be customized in length to meet a variety of application requirements as well as the grips can be modified to accommodate different shaped specimens and alternate grips can be provided for customers to interchange as and when their test requirements change.
- Adjustable carriage is provided supported on free moving rollers for easy placement of the carriage appropriate to the nominal test specimen length (Depending on the design)
- Frames, fixtures and strain measurement devices can be designed & manufactured to accommodate many types of products that require tensile tests
- Machine is fully guarded by fixed plates at base of bed and manually operated, hinged guards at top of bed section
- Loading accuracy well within ±1%, small capacity within ±0.5%,
- With reverse loading structure to calibrate the load cell in compressive space rather than remove load cell to calibrate in on another hydraulic press, it also improves the measuring accuracy, as the load cell to be calibrated on the machine.
| Machine Model | TT-HTTM-1000 |
|---|---|
| Load Cells | 1,000kN |
| Load Measuring Range | 2% -100% |
| Load Indication Accuracy | ±1% |
| Load Indication Repeatability | ±0.2% |
| Maximum Distance Between Fixtures | 6m (20ft) |
| Displacement Measuring Range | 1mm (3.28ft) |
| Displacement Resolution | 0.001mm |
| Displacement Accuracy | ±0.5% |
| Moving Speed Range (Empty Load) | 1-70mm/min |
| Moving Speed Range (Test Load) | 1-50mm/min |
| Dimensions (Hydraulic Power Pack) | 2m(W)x1m(D)x1.4m(H) |
| Weight (Hydraulic Power Pack) | 350kg |
| Dimensions (Tensile Test Bed) | 9m(W)x1m(D)x0.6m(H) |
| Weight (Tensile Test Bed) | 15,000kg (33,000lb) |
| Voltage | 3P+E+N, 380VAC/480VAC, 50Hz/60Hz |
| Operating Temperature | –20℃ to +40℃ |
| Protection Method | Flip Open / Slide overlap |
