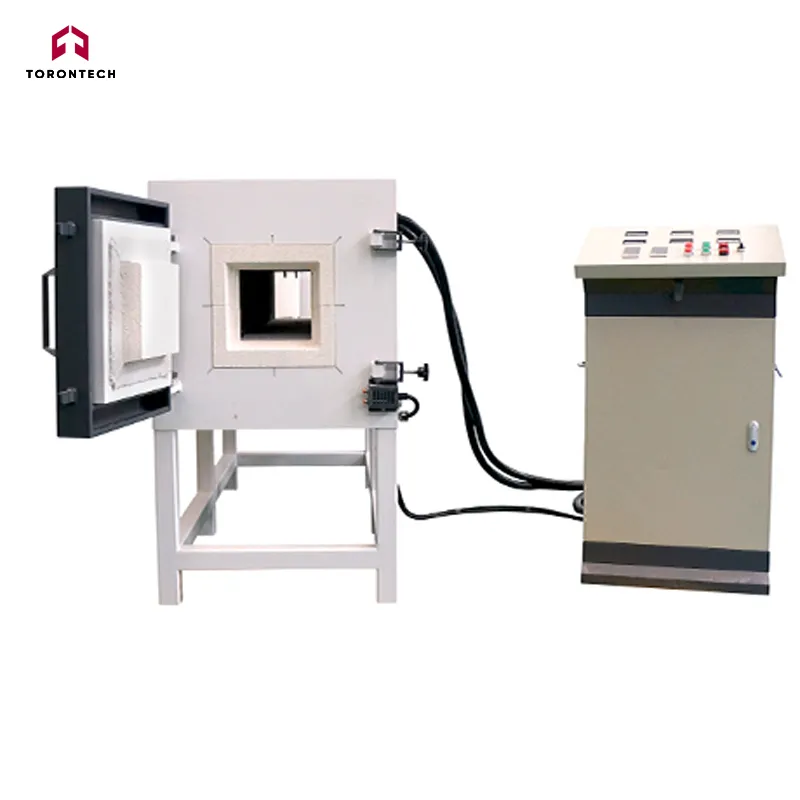

Industrial Furnace – TT-IF-56-1400
TT-IF-56-1400 is a 1400°C industrial furnace with a manual door, designed for heat treatment processes such as quenching, tempering, normalizing, and annealing of metal components. It’s also suitable for sintering non-metallic ceramic materials. Ideal for small-scale production and testing in laboratories and industrial facilities.
| Model No. | TT-IF-56-1400 |
| Chamber Size | 350x500x350MM |
| Continuous Temperature | 1300℃ |
| Max Temperature | 1400°C |
| Voltage | 380V |
| Heating Element | Silicon Carbide Rods (SIC) |
| Temperature Precision | ±1°C |
| Thermocouple | S type |

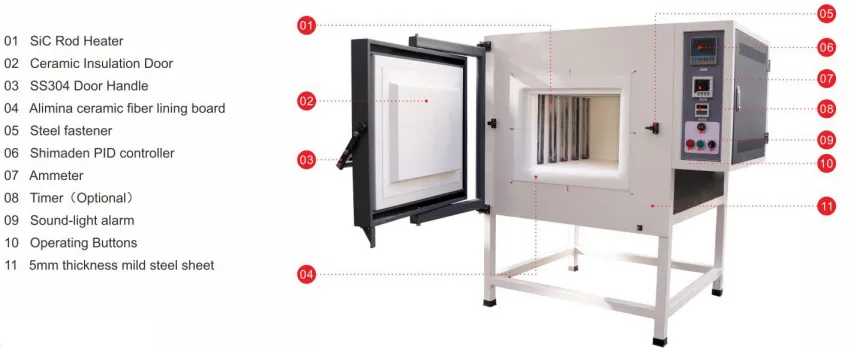

Industrial Furnace – TT-IF-56-1400 Features
Furnace Shell
- The shell is constructed from Q235 low-carbon steel with an electrostatic, corrosion-resistant coating.
- Its reinforced metal frame ensures structural integrity and maintains a low surface temperature.
- The side-opening door, hinged on the left, offers convenient and reliable operation.
Refractory
- Designed with a multi-layer thermal insulation system, featuring double-layer lightweight refractory brick lining.
- The structure is robust, with high-strength stacking and seamless splicing.
- Free from asbestos, the design minimizes heat loss and ensures energy efficiency.
Heating System
- High-performance silicon carbide (SiC) heating elements are securely mounted on both sides of the furnace for efficient, uniform heating and reduced energy use.
- Dual-side heating ensures consistent temperature distribution throughout the chamber.
- A durable silicon carbide base plate shields the bottom heating elements, offering strong horizontal load support and excellent thermal conductivity.
Temperature Control Panel
- Equipped with a PID controller using SCR (silicon-controlled rectifier) control for accurate temperature regulation.
- Features an S-type platinum-rhodium thermocouple, conforming to international standards, with a temperature range of 0–1600°C and extended service life.
- Includes a safety switch that cuts power when the furnace door is opened.
Program Controller
- Advanced controller designed for complex processing needs.
- User-friendly interface with flexible programming capabilities.
- Supports up to 30 programmable segments per temperature curve.
- Includes over-temperature and fault alarms, along with automatic safety functions.
- Optional features include manual air intake, automated exhaust venting, and a rapid cooling system that enables fast cooldown from 400°C.
|
Model |
TT-IF-36-1400 |
TT-IF-45-1400 |
TT-IF-64-1400 |
TT-IF-80-1400 |
TT-IF-96-1400 |
|
Chamber size （W xD xH）mm |
300 x400x300 |
300 x500x300 |
400x400x400 |
400x500x400 |
400 x600x400 |
|
Max temperature |
1400℃ |
||||
|
Working Temperature |
1300℃ |
||||
|
Voltage |
380V/12KW |
380V/15KW |
380V/18KW |
380V/20KW |
380V/21KW |
|
Heating element |
High quality Silicon carbide Rod (SIC) heater |
||||
|
Chamber material |
High temperature 1500 type polycrystal alumina ceramic fiber plate |
||||
|
Temp. precision |
±1℃ |
||||
|
Thermocouple |
S type platinum rhodium thermocouple |
||||
|
Temp controller |
SHIMADEN (Japan) brand intelligent microcomputer PID controller can program 30 segments |
||||
|
Heating rate |
Suggest 1-15℃/min for longer life using |
||||
|
Furnace structure |
Furnace & temperature control integrated structure |
||||
|
Equipment protection |
Modular control, sound and light alarm signal will be sent out for over temperature and broken thermocouple in the working process, and the protection action will be completed automatically |
||||
|
Safety protection |
The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators |
||||
|
Furnace shell |
High-quality cold-rolled steel plate CNC processing, after welding, grinding, polishing, phosphating, pickling, surface electrostatic spraying |
||||
|
Quality Certification |
ISO9001 CE SGS TUV |
||||
|
Standard packing |
1. furnace body 2. Temperature controller 3. power cable 3 meters 4. Thermocouple 1 pc 5. operation manual 6. one pair of crucible tongs 7. one pair of high temperature gloves |
||||
