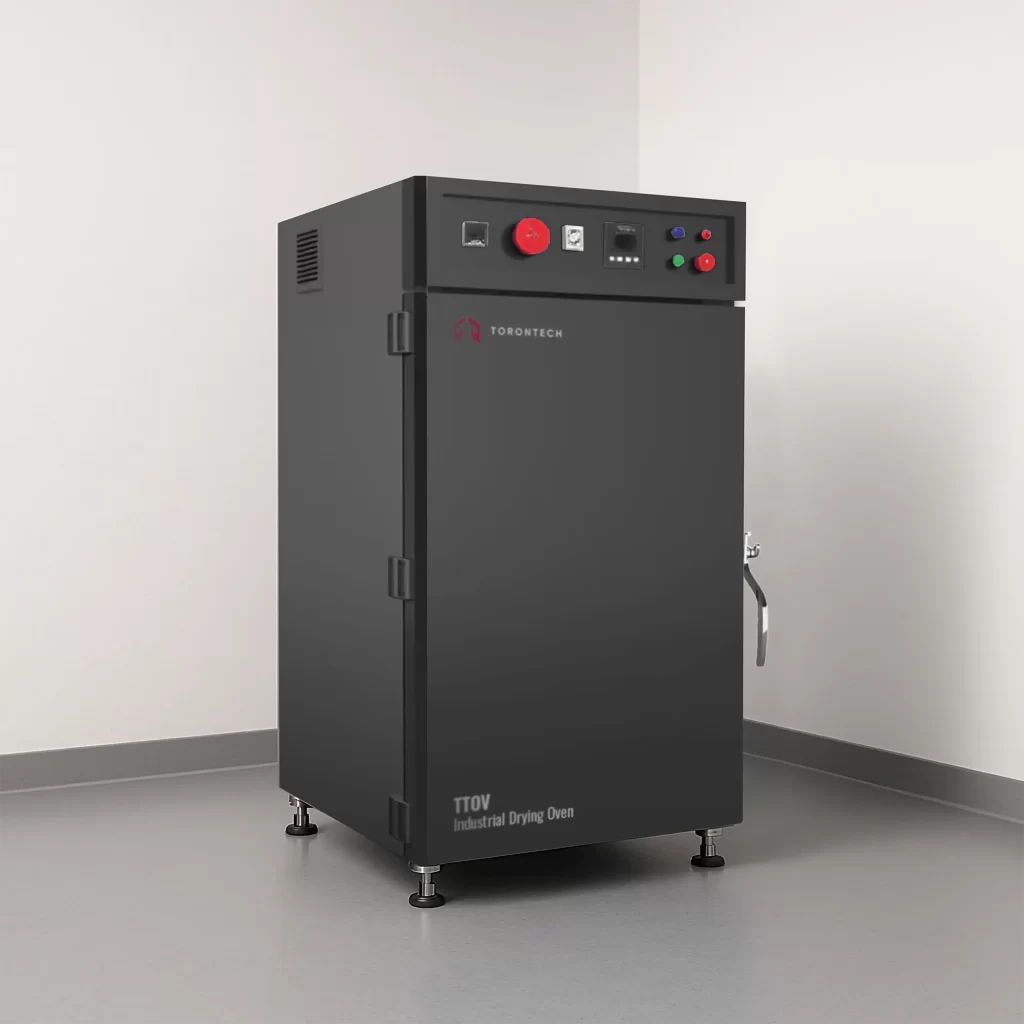

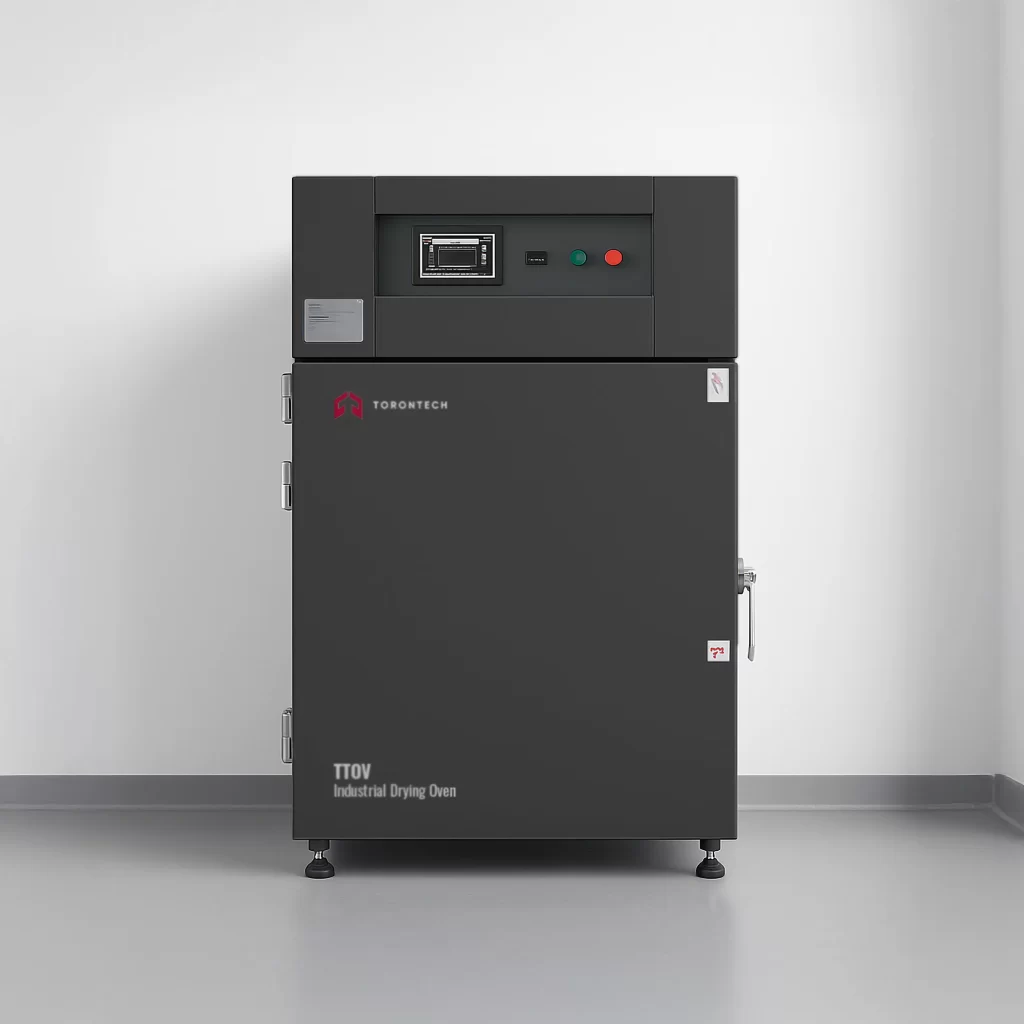

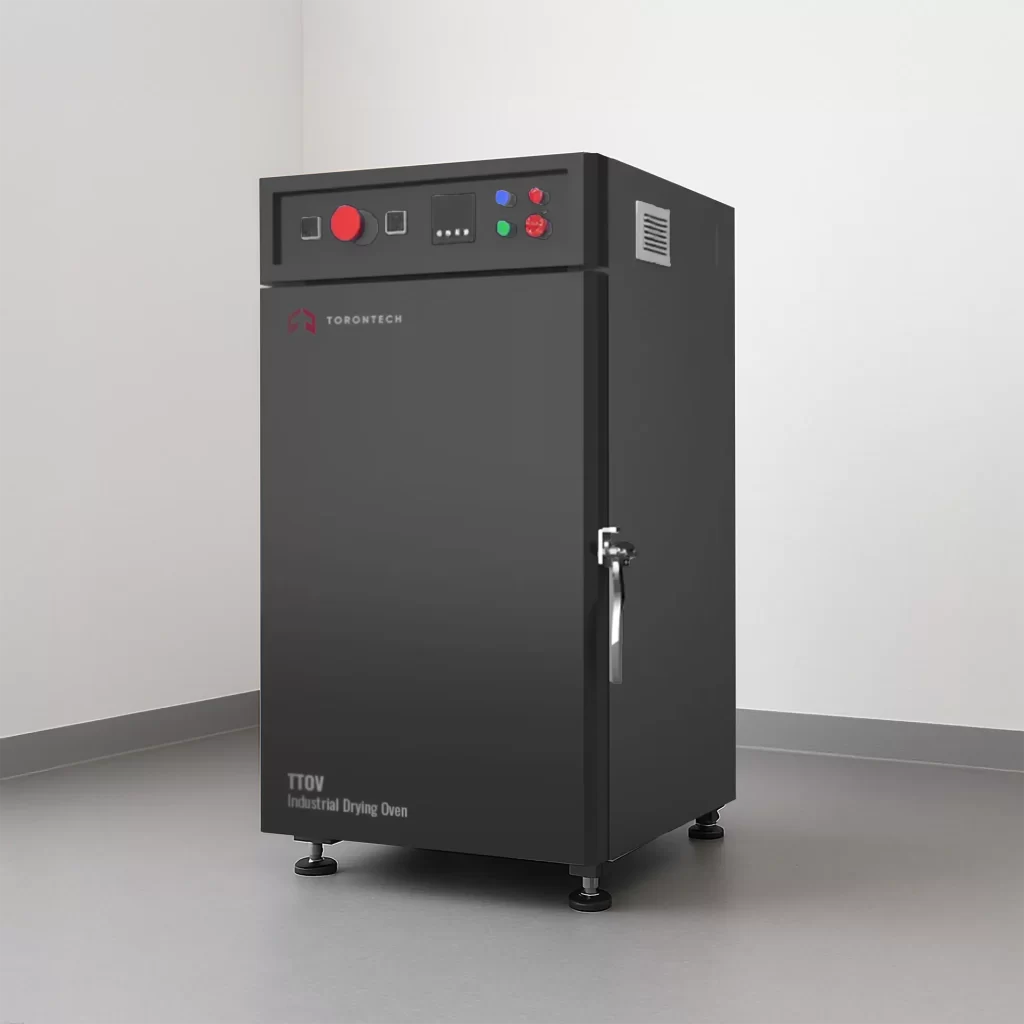

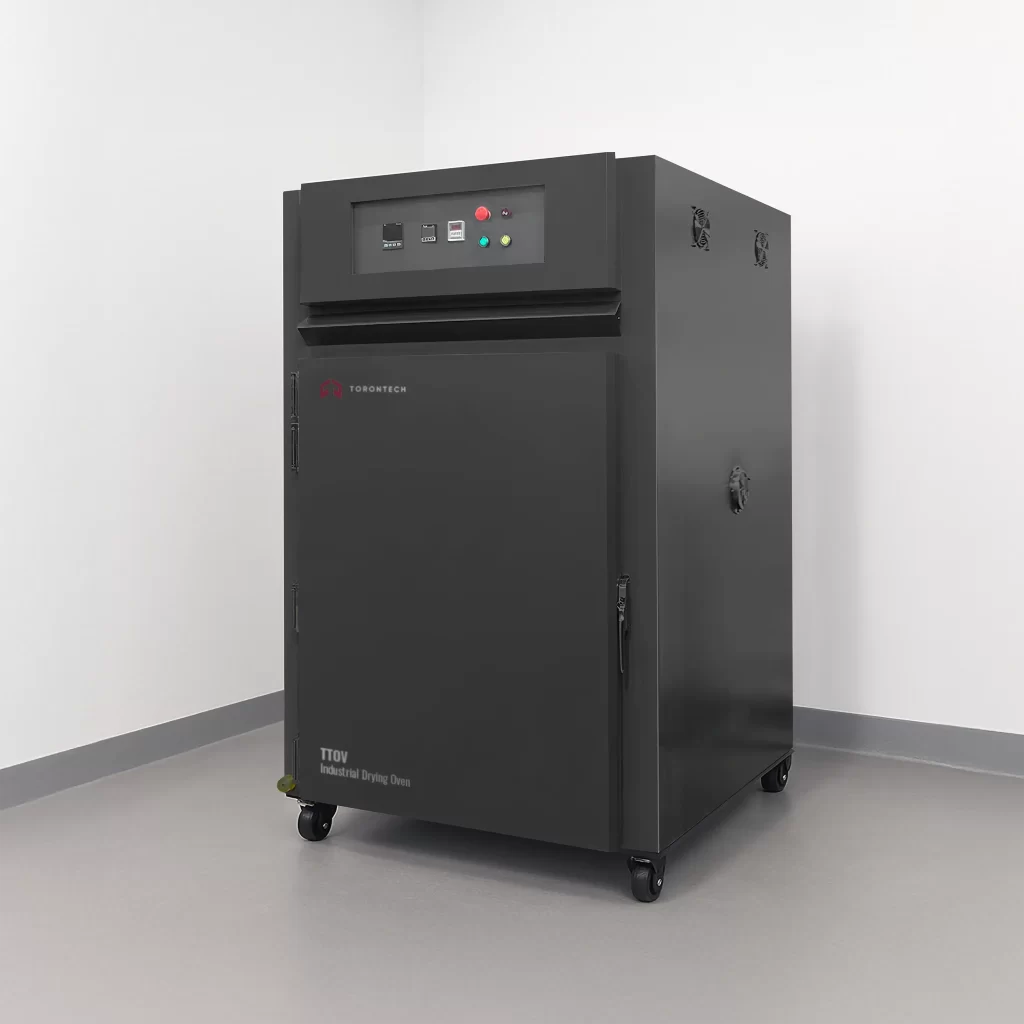

Industry Drying Oven

Industrial Ovens are used for high temperature drying, paint drying, drying glass and plastics, ink, and removing moisture, wood drying and high temperature tests. Applied to aerospace, automotive, electronics, metalworking

Applications

Our Industrial Heating Drying Ovens have features including programmable control, stainless steel interiors and high temperature stability. Widely used in automotive, aviation, medicine, military, daily necessities, coatings, batteries, cables, raw materials, Marine and metal industry. Different models were designed to meet different test needs. Reliable performance and easy to operate.

  • Heating Element
  • Nichrome heater
  • Controller
  • PID color LCD touch screen controller; Ethernet connection, PC Link(Option)
  • Temperature Sensor
  • PTR Platinum Resistance PT100Ω /MV A-class, accuracy 0.001°C
  • Air Circulation Observation Window
  • Centrifugal wind fan; Interior lighting, double-layer thermostability silicone rubber sealing
  • Safety Device
  • Over-temperature Protection; Over-current Protection; Phase Sequence Protection; Earth leakage Protection
  • Exterior Material Interior Material Thermal Insulation
  • Steel Plate with protective coating; SUS304 stainless steel; Polyurethane foam (Refractory brick)

Model

TT-O-100

TT-O-225

TT-O-500

TT-O-800

TT-O-1000

Internal Dimension (mm)

400*500*500

500*600*750

700*800*900

800*1000*1000

1000*1000*1000

Overall Dimension (mm)

750*880*850

800*950*1000

1100*1100*1300

1100*1450*1400

1300*1400*1400

Interior Volume

100L

225L

500L

800L

1000L

Temperature Range

A: Ambient ~ +250°C

B: Ambient ~ +400°C

C: Ambient ~ +900°C

Temperature Fluctuation

± 0.5°C

Temperature Deviation

± 2.0°C

Heating Rate

6°C / min

Heating Element

Nichrome heater

Controller

PID color LCD touch screen controller

Ethernet connection, PC Link(Option)

Temperature Sensor

PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001°C

View Window Size(mm)

120*150

Air Circulation

Centrifugal wind fan

Safety Device

Over-temperature Protection; Over-current Protection;

Phase Sequence Protection; Earth leakage Protection

Exterior Material

Steel Plate with protective coating

Interior Material

SUS304 stainless steel

Thermal Insulation

Polyurethane foam (Refractory brick)

Observation Window

Interior lighting, double-layer thermo stability silicone rubber sealing

Standard Configuration

2 shelves

Power Supply

AC220V 50HZ

AC220V 50HZ

AC220V 50HZ

AC220V 50HZ

AC380V 50HZ

Maximum Noise

65 dBA

Environmental Conditional

5°C ~ +35°C  ≤85% RH

  • High temperature can up to 900°C.
  • Standard & customized.

*pay attention to the environmental condition during installing

  • No window when the temperature exceeds 250°C



  • No cable hole when the temperature exceeds 250°C
