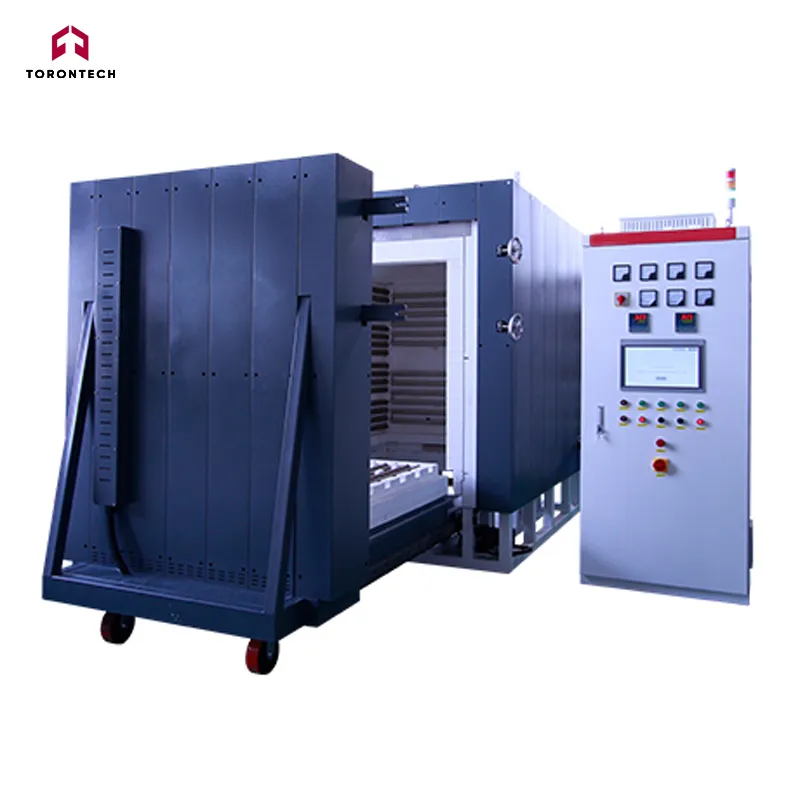

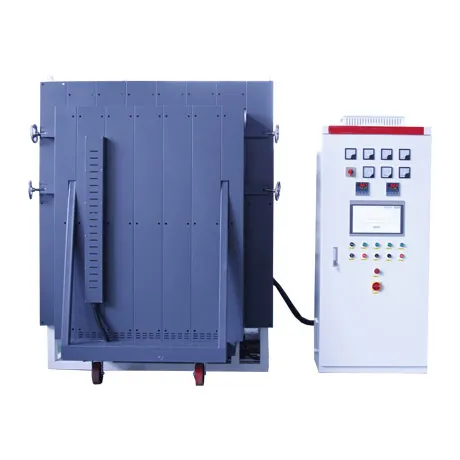

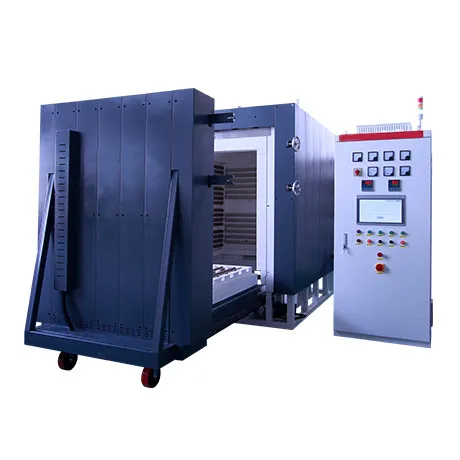

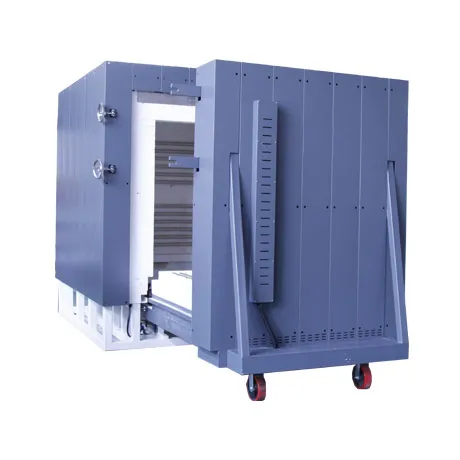

Bogie Hearth Furnace TT-BHF-1028-1300A
This trolley-type sintering Bogie Hearth Furnace TT-BHF-1028-1300A furnace is designed for processing large materials or supporting small-scale production. Built with high-performance furnace components and advanced construction methods for high-capacity systems, it delivers consistent temperature control. Its automated trolley system ensures smooth operation and dependable product quality. Ideal for processing advanced materials including metals, ceramics, nanomaterials, and semiconductors.
| Model No. | TT-BHF-1028-1300A |
| Chamber Volume | 1028L |
| Continuous Temperature | 1100℃ |
| Max Temperature | 1200°C |
| Voltage | 380V/30kw |
| Heating Element | High Quality Alloy Resistance Wire（HRE） |
| Temperature Precision | ±1°C |
| Thermocouple | N type |
Key Features
- The furnace features a multi-layer heat insulation design using high-quality refractory materials. It includes either lightweight refractory brick lining or ceramic fiber lining with a durable structure, tightly stacked and joined for strength. Free from asbestos, the design minimizes heat loss and reduces energy consumption.
- Three-sided heating (left, right, and bottom) ensures uniform temperature distribution throughout the chamber.
- A silicon carbide plate protects the furnace base, offering high mechanical strength, excellent thermal conductivity, and stable horizontal load support.
- The bottom-mounted trolley moves smoothly and without shock. Materials are loaded from below, and the workbench is movable for added convenience.
- Customization is available to meet specific process requirements.
- Equipped with an advanced control system for accurate temperature regulation. The top-mounted automatic flip-type exhaust port enables effective material debinding. A circulation fan at the furnace top enhances temperature uniformity.
- An optional rapid cooling unit allows fast cooling down to 400°C. Manual or automatic air intake controls are also available.
|
Model |
Chamber size（mm） |
Volume |
Max temp. |
Working temp. |
Voltage |
Power |
Heating element |
Temp precision |
|
TT-BHF-96-1200 |
400×600×400 |
96L |
1200℃ |
1100℃ |
380V |
18KW |
HRE |
±1℃ |
|
TT-BHF-288-1200 |
600×800×600 |
288L |
1200℃ |
1100℃ |
380V |
30KW |
HRE |
±1℃ |
|
TT-BHF-640-1200 |
800×1000×800 |
640L |
1200℃ |
1100℃ |
380V |
45KW |
HRE |
±1℃ |
|
TT-BHF-1200-1200 |
1000×1200×1000 |
1200L |
1200℃ |
1100℃ |
380V |
80KW |
HRE |
±1℃ |
|
TT-BHF-2160-1200 |
1200×1500×1200 |
2160L |
1200℃ |
1100℃ |
380V |
150KW |
HRE |
±1℃ |
|
TT-BHF-96-1400 |
400×600×400 |
96L |
1400℃ |
1300℃ |
380V |
21KW |
SIC |
±1℃ |
|
TT-BHF-288-1400 |
600×800×600 |
288L |
1400℃ |
1300℃ |
380V |
30KW |
SIC |
±1℃ |
|
TT-BHF-640-1400 |
800×1000×800 |
640L |
1400℃ |
1300℃ |
380V |
50KW |
SIC |
±1℃ |
|
TT-BHF-1200-1400 |
1000×1200×1000 |
1200L |
1400℃ |
1300℃ |
380V |
100KW |
SIC |
±1℃ |
|
TT-BHF-2160-1400 |
1200×1500×1200 |
2160L |
1400℃ |
1300℃ |
380V |
200KW |
SIC |
±1℃ |
|
TT-BHF-96-1700 |
400×600×400 |
96L |
1700℃ |
1600℃ |
380V |
25KW |
MoSi2 |
±1℃ |
|
TT-BHF-288-1700 |
600×800×600 |
288L |
1700℃ |
1600℃ |
380V |
50KW |
MoSi2 |
±1℃ |
|
TT-BHF-640-1700 |
800×1000×800 |
640L |
1700℃ |
1600℃ |
380V |
80KW |
MoSi2 |
±1℃ |
|
TT-BHF-1200-1700 |
1000×1200×1000 |
1200L |
1700℃ |
1600℃ |
380V |
150KW |
MoSi2 |
±1℃ |
|
TT-BHF-2160-1700 |
1200×1500×1200 |
2160L |
1700℃ |
1600℃ |
380V |
300kw |
MoSi2 |
±1℃ |
