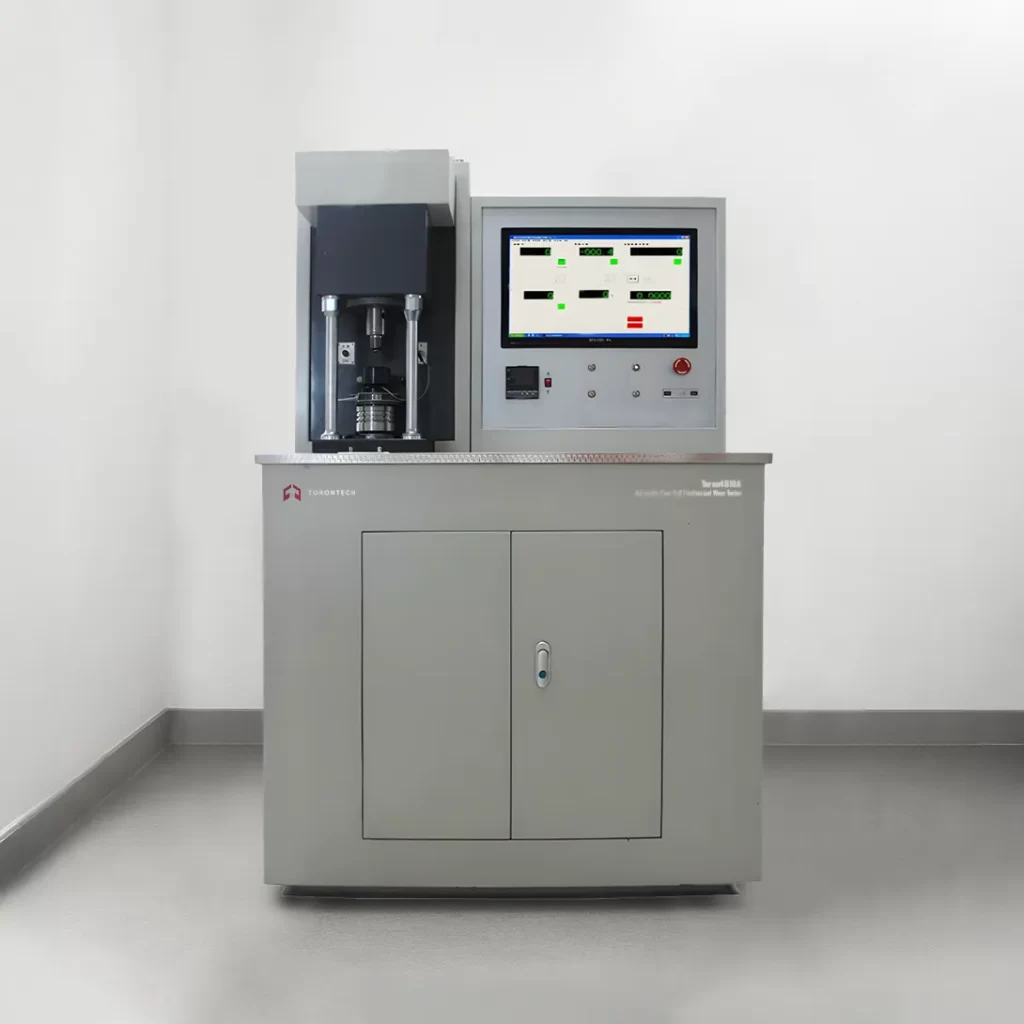

Automatic Four Ball Tribometer - Friction and Wear Tester – Toron4B10A™
Parent Product
Product Categories
Automatic Four Ball Tribometer - Friction and Wear Tester (Toron4B10A™) is designed to assess the load-carrying performance of lubricants under extreme point-contact pressure during sliding friction. It provides three key measurements: maximum non-seizure load (PB), welding load (PD), and comprehensive wear value (ZMZ). In addition to these evaluations, the device can perform extended anti-wear testing and accurately measure the friction coefficient of lubricants.
Applicable standards
- Method for measuring the extreme pressure properties of lubricants using the Four-Ball Machine
- Procedure for assessing the wear resistance of lubricating oils with the Four-Ball Machine
- Test method for evaluating the extreme pressure performance of lubricating grease using the Four-Ball Machine
| No. | Product Performance | Technical Parameter |
|---|---|---|
| 1 | Normal force range | 60N-10kN (stepless adjustable) |
| 2 | Normal force loading method | Automatic loading |
| 3 | Maximum friction force | 300 N |
| 4 | Friction testing error | ±3% |
| 5 | Spindle speed range | 200-2000 rpm (stepless adjustable) |
| 6 | Spindle speed error | ±10rpm |
| 7 | Temperature control range | Room temperature - 200℃ |
| 8 | Temperature control error | ±2℃ |
| 9 | Time control range | 1 second to 99 hours |
| 10 | Steel ball for testing | Φ12.7 mm |
