Anaesthetic & Respiratory Equipment Conical Connector Tester
ISO 5356-1:2015

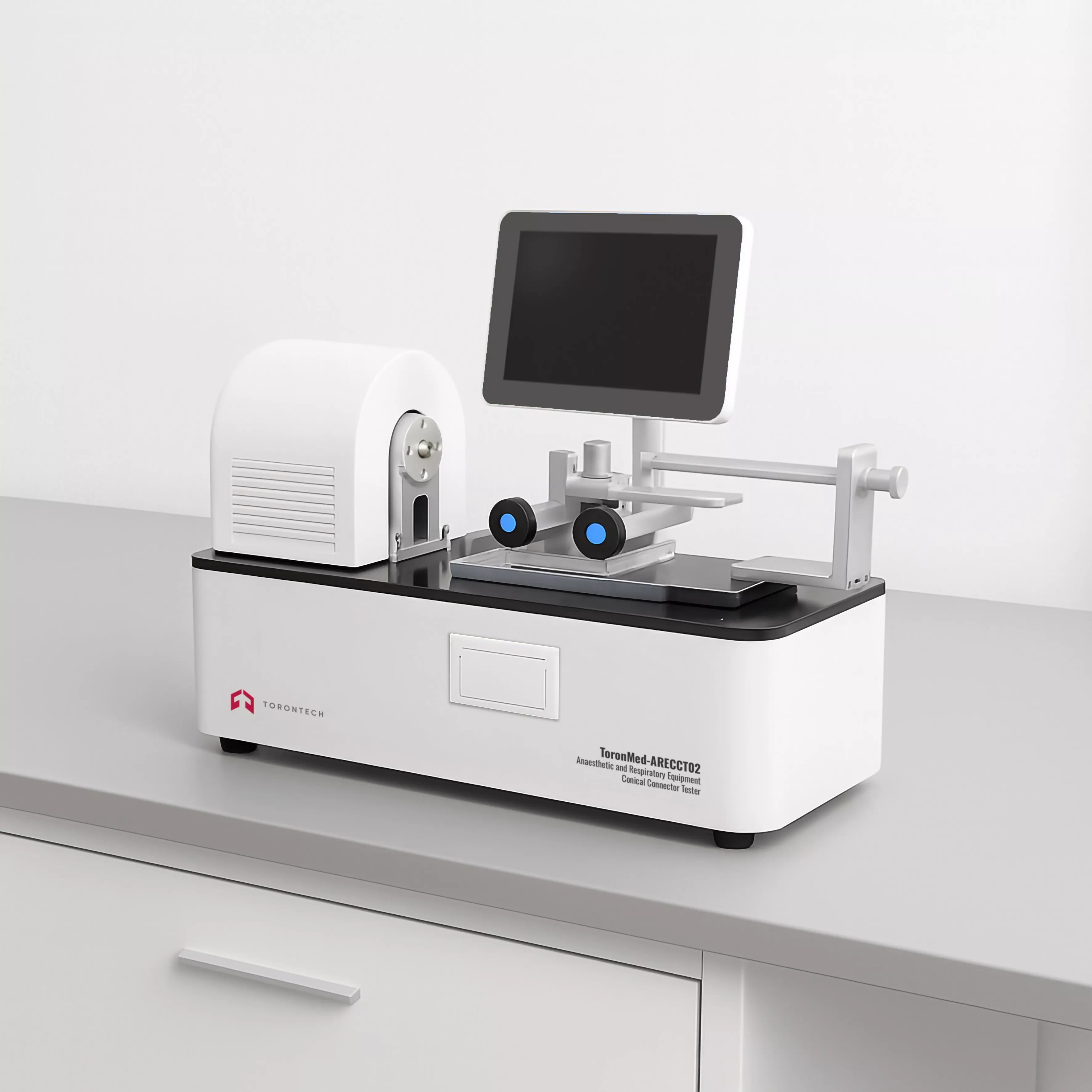

Anaesthetic & Respiratory Equipment Conical Connector Tester – ToronMed-ARECCT02 is designed to evaluate the performance and sealing integrity of conical connectors used in anesthesia and respiratory devices. It performs multiple critical tests, including liquid and air leakage, separation force, unscrewing torque, ease of assembly, resistance to overriding, stress cracking, positive pressure liquid leakage, and sub-atmospheric air leakage. This versatile system ensures connectors comply with global safety and performance standards.
Test Principle
The Anaesthetic & Respiratory Equipment Conical Connector Tester applies axial force, torque, positive and negative pressures, and internal water pressure to connectors used in respiratory and anesthesia systems. It measures sealing reliability, leakage resistance, and mechanical strength, providing objective compliance evaluation against international standards.
Standards Compliance
The ToronMed-ARECCT02 Anaesthetic & Respiratory Equipment Conical Connector Tester is designed in accordance with international standards, including:
- ISO 5356-1:2015 – Conical connectors for anesthesia and respiratory applications
Standard Configuration
- Main instrument unit
- 7-inch touchscreen interface
- Micro printer
- Gas and liquid reservoirs
- Professional cone chuck fixture
Why Choose Anaesthetic & Respiratory Equipment Conical Connector Tester – ToronMed-ARECCT02
The Anaesthetic & Respiratory Equipment Conical Connector Tester – ToronMed-ARECCT02 combines precision, safety, and compliance for comprehensive connector testing. Suitable for medical device manufacturers, R&D centers, and quality control labs, this system streamlines compliance testing by covering multiple performance parameters in a single platform. With intelligent control, GMP-compliant data management, and robust design, the Anaesthetic & Respiratory Equipment Conical Connector Tester is an essential solution for ensuring the safety and reliability of respiratory and anesthesia equipment.
How Can We Help You?
Contact our sales team for a quotation.
Key Features
- Safety-Oriented Design
Magnetic shield around the rotating roller and a slip ring between torque sensor and roller guarantee accuracy and operator protection. - High-Accuracy Measurement
American-imported load cell achieves measurement accuracy of up to 0.5% FS. - 7-Inch Color Touchscreen
Intelligent data processing with real-time display of curves and test data. - Automatic Calibration & Memory
Easy calibration with power-down memory to protect data and maintain workflow. - Wide Compatibility
Supports testing of various conical connector specifications across anesthesia and respiratory systems. - Advanced Data Management
Stores up to 100,000 test records. GMP-compliant software includes user management, authority management, and audit tracking. - Next-Generation Processing
Built with the latest Arm chip system for faster and more intelligent operation.
| Specification | Value |
|---|---|
| Axial Force | 0–100 N (±0.5% accuracy) |
| Internal Water Pressure | 0–600 kPa (±0.5% accuracy) |
| Negative Pressure | –90 kPa to 0 kPa (±0.5% accuracy) |
| Torque | 0.01–0.50 N·m (±0.5% accuracy) |
| Separation Force | 20–40 N (0–100 N range, ±0.5% accuracy) |
| Voltage | AC 220V, 50Hz (110V is also available) |
| Dimensions | 580 × 280 × 510 mm |
| Net Weight | 28 kg |
